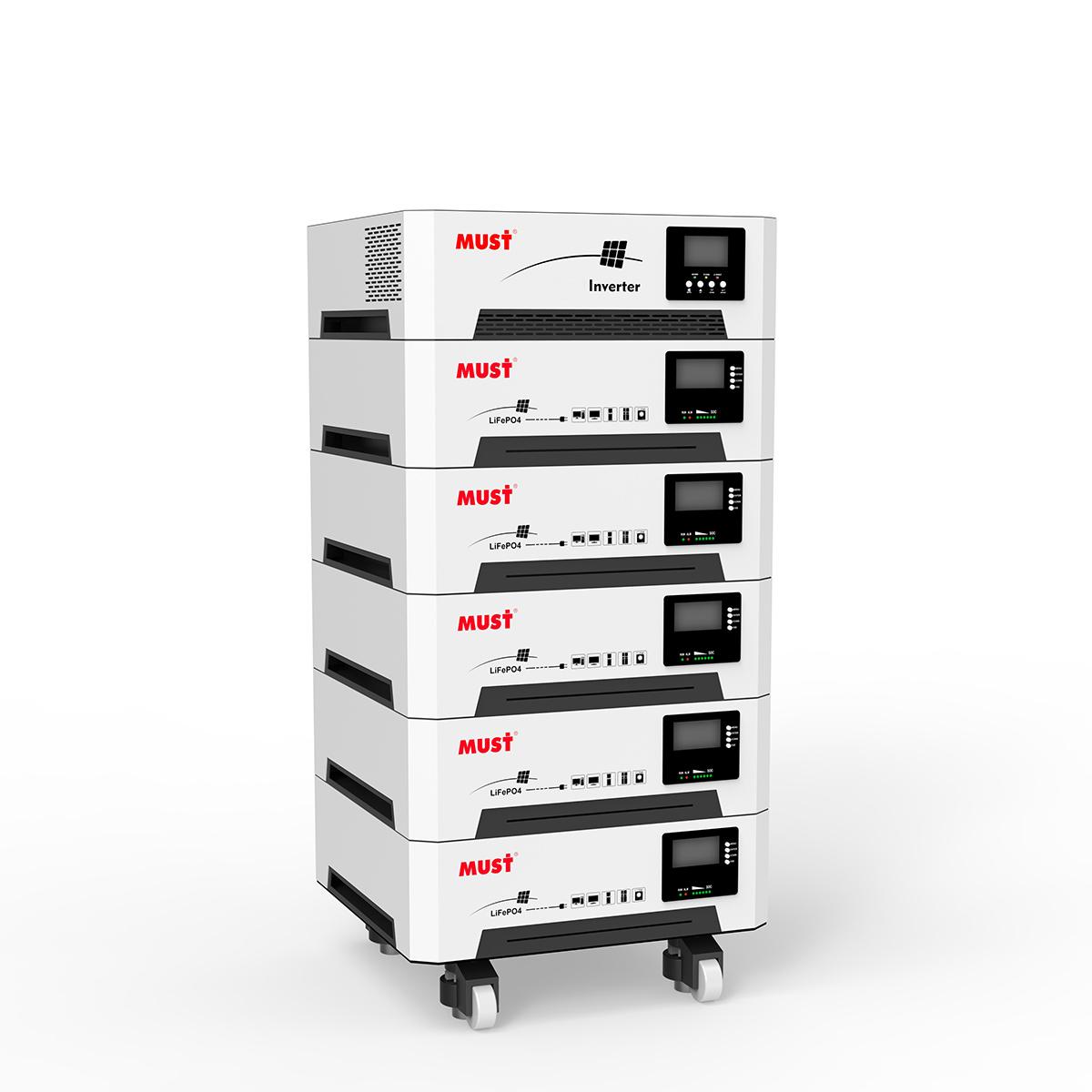

HB1800 PLUS Series (4/5KW)

All in One Energy Storage System 10240Wh/15360Wh/20480Wh/25600Wh

HB1800 PLUS energy storage system, including 4kw 5kw 48vdc power inverter and a lithium battery storage with 10kwh-25kwh energy optional. it is a

one-stop service system can manage your solar home battery storage system more conveniently. Flexible modular system can be designed based on

house daily consumption.

The perfect emergency energy solution for villas, apartments, hotels, shopping centers.



+ Stacked movable energy storage systems.

+ Rechargeable lithium batteries use safe lithium cell LiFePO4.

+ The intelligent BMS system adopts the latest battery communication system.

+ Flexible investment with 5.12kWh modular design, scalable from 10.24kWh to 25.6kWh.

+ The battery capacity can be increased freely and flexibly according to the situation of home use.

+ Reduce electricity bills and increase your energy needs for electrical self-sufficiency.


MODEL HB18-4048 PLUS HB18-5048 PLUS
Rated power 4000W 5000W
Output voltage waveform Pure sine wave
Output voltage regulation 230Vac±5%
Output frequency 50Hz or 60Hz (±0.2Hz)
Peak efficiency 90%
Nominal DC input voltage 48Vdc 48Vdc
Standby Consumption < 25W
AC Input
AC input voltage 230Vac ±5%
Acceptable input voltage range 170~280VAC
Nominal input frequency 50Hz / 60Hz (Auto detection)
Transfer time 10ms typical (UPS, VDE); 20ms typical (APL)
AC Charge
Charging current @ Nominal input voltage 60A-60A 20A-30A
Charging Algorithm 4-step (Li)
AC output 230Vac (Terminal)
Lithium Battery
Energy 10240Wh / 15360Wh / 20480Wh / 25600Wh
Nominal voltage 51.2V
Battery capacity 200AH/300AH/400AH/500AH
Standard charging and discharge current 100A
Maximum continuous charging & discharge current 100A
Operation ambient temperature Charge 0~45℃
Discharge -20~55℃
