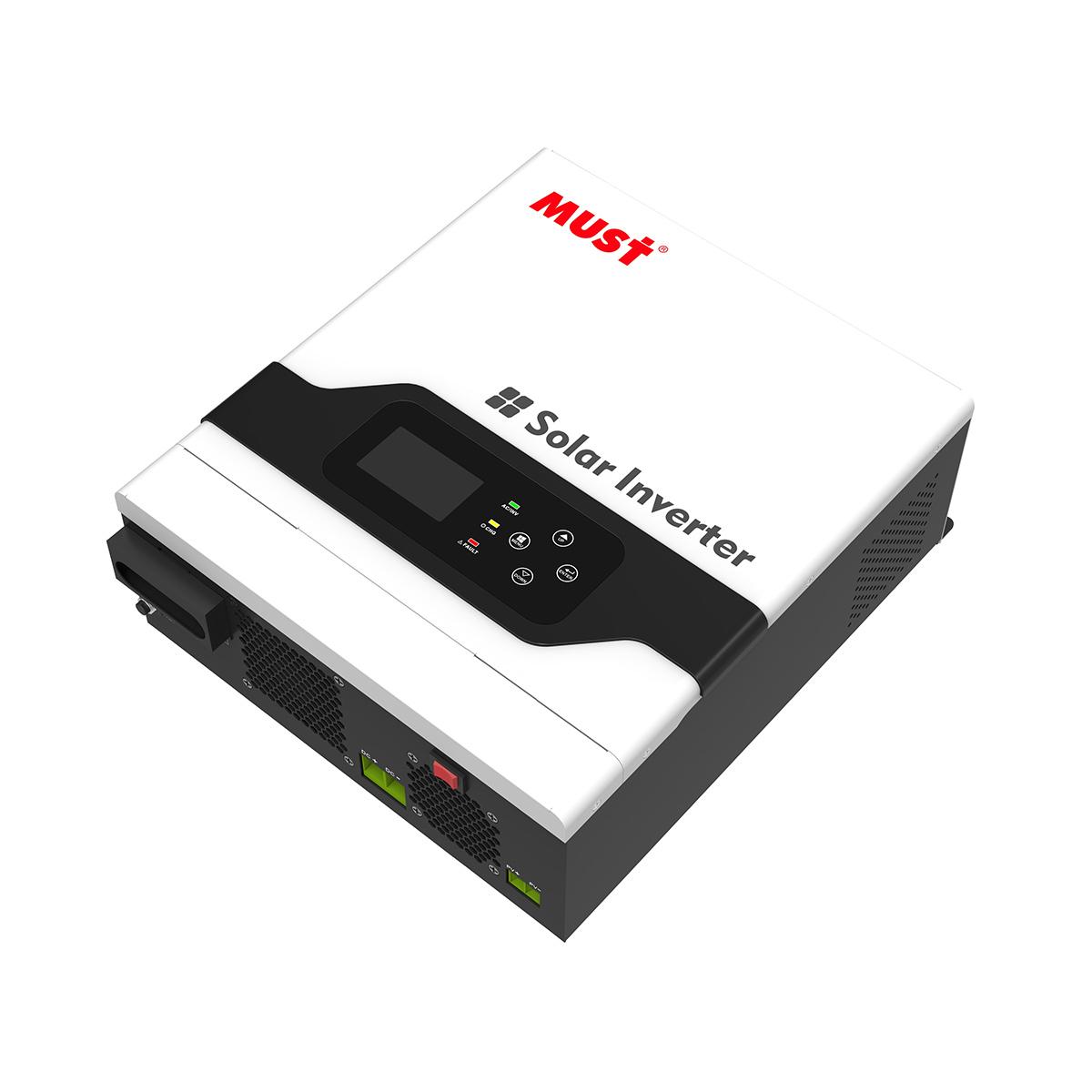

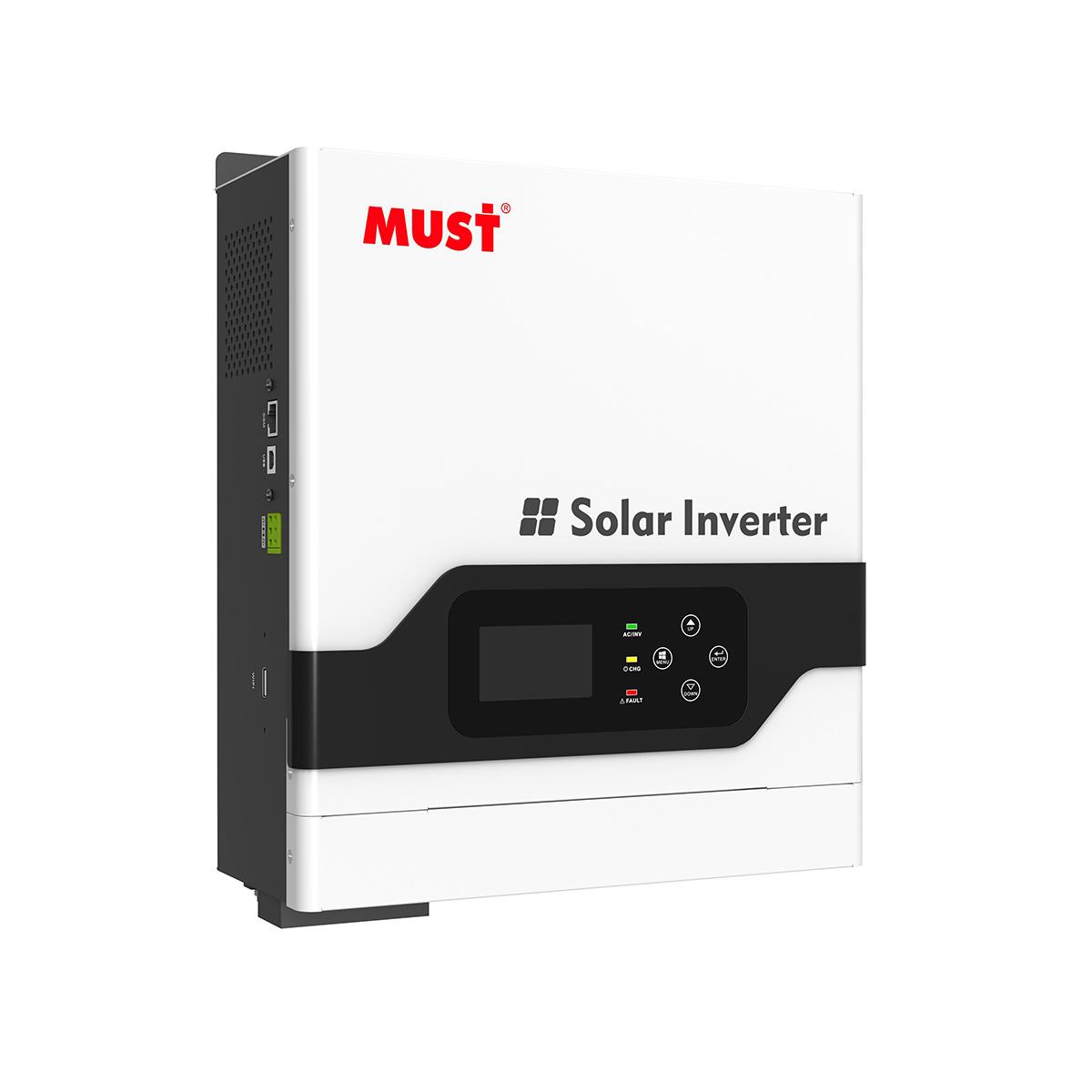

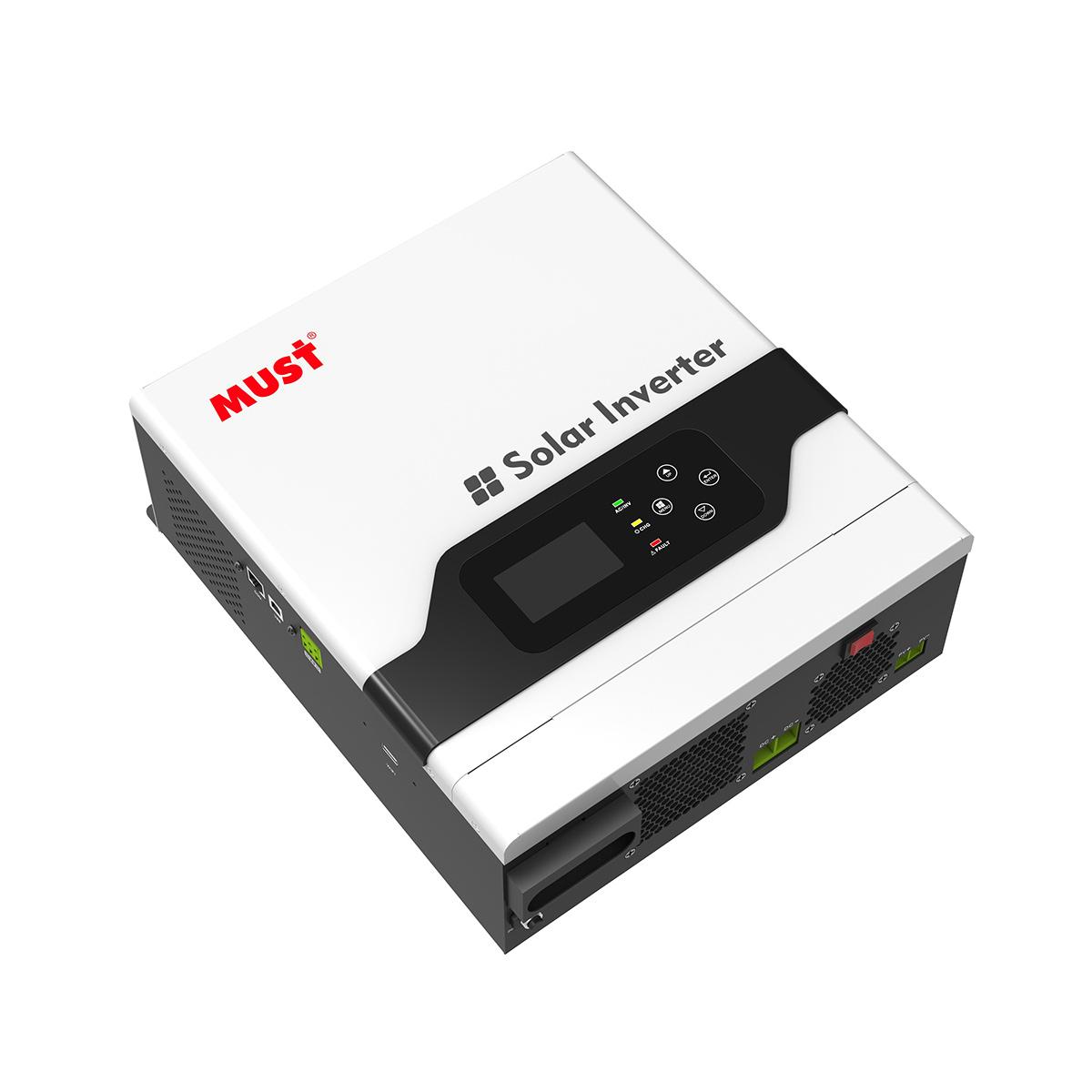

PV1800 VPM Series (1-3KW)

High Frequency Off Grid Solar Inverter

This is a multi-function inverter/charger, combining functions of inverter, MPPT 60A/80A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Model Certification & Standards
PV18-3024/2024/1012 VPM CE-LVD(IEC62109-1:2010, EN IEC62109-2:2011)
CE-LVD(IEC62109-1:2010, EN IEC62109-2:2011), UKCA
PV18-3024/2024/1012 VPM EN IEC62368-1:2018
PV18-1012 VPM CE-EMC+LVD(EN6100-6-4: 2007, EN6100-6-2:2017+EN IEC62109-1:2010, EN IEC62109-2:2011)
PV18-3024 VPM IEC61683: 1999
PV18-1012 VPM, PV18-2024 VPM CE-EMC+LVD(EN6100-6-3: 2007, EN6100-6-1:2017+EN IEC62109-1:2010, EN IEC62109-2:2011)
PV18-3024/2024/1012 VPM CE-LVD(IEC62109-1:2010, EN IEC62109-2:2011)
PV18-1012/2024/3024/3048/4048/5048VPM CB-(IEC62109-1:2010, IEC62109-2:2011)
Description

Description

Features:

• Pure sine wave output

• Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).

• Bult in MPPT 60A/80A solar charge controller

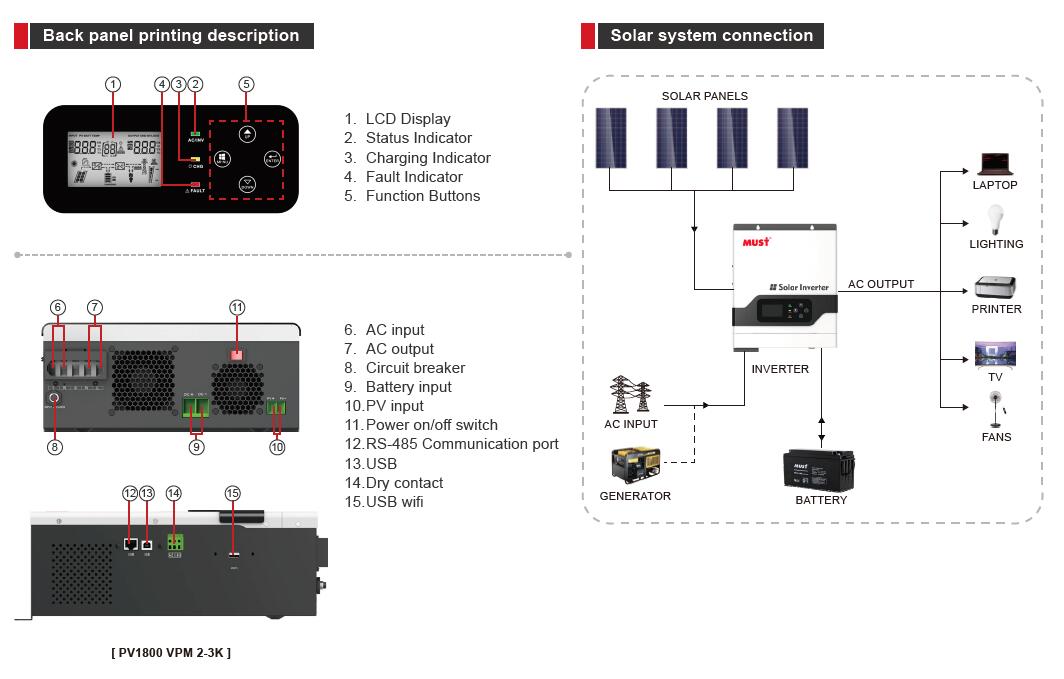

• Combining solar system, AC utility, and battery power source to supply continuous power

• Overload, short circuit and Deep discharge protection

• Cold start function

• Support USB, RS485 monitoring function

• WIFI remote monitoring (optional)

• Compatible to generator

Specification:

MODEL PV18-1012 VPM PV18-2024 VPM PV18-3024 VPM
Default Battery System Voltage 12VDC 24VDC
INVERTER OUTPUT
Rated Power 1000VA / 1000W 2000VA / 2000W 3000VA / 3000W
Surge Power 2000VA 4000VA 6000VA
Waveform Pure sine wave
AC Voltage Regulation (Batt.Mode) 220VAC~240VAC(Setting)
Inverter Efficiency(Peak) 90%~93%
Transfer Time 10ms(UPS / VDE4105) / 20ms(APL)
AC INPUT
Voltage 230VAC
Selectable Voltage Range 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE)
Frequency Range 50Hz / 60Hz (Auto sensing)
BATTERY
Normal voltage 12VDC 24VDC 48VDC
Floating Charge Voltage 13.7VDC 27.4VDC
Overcharge Protection 15VDC 30VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 105VDC 145VDC
PV Array MPPT Voltage Range 15~105VDC 30~120VDC
Standby Power Consumption 2W
Maximum PV Array Power 720W 1500W
Maximum Solar Charge Current 60A
Maximum Efficiency 98%
Maximum AC Charge Current 10A or 20A 20A or 30A
Maximum Charge Current 70A 80A
MECHANICAL SPECIFICATIONS
Machine Dimensions (W*H*D)(mm) 224*337*98 290*342*125
Package Dimensions (W*H*D)(mm) 299*392*184 408*412*240
Net Weight(kg) 5 7.4
Gross Weight(kg) 5.5 9.5
OTHER
Humidity 5% to 95% Relativ Humidity (Non-condensing)
Operating Temperature 0°C~50°C
Storage Temperature -15°C -60°C
