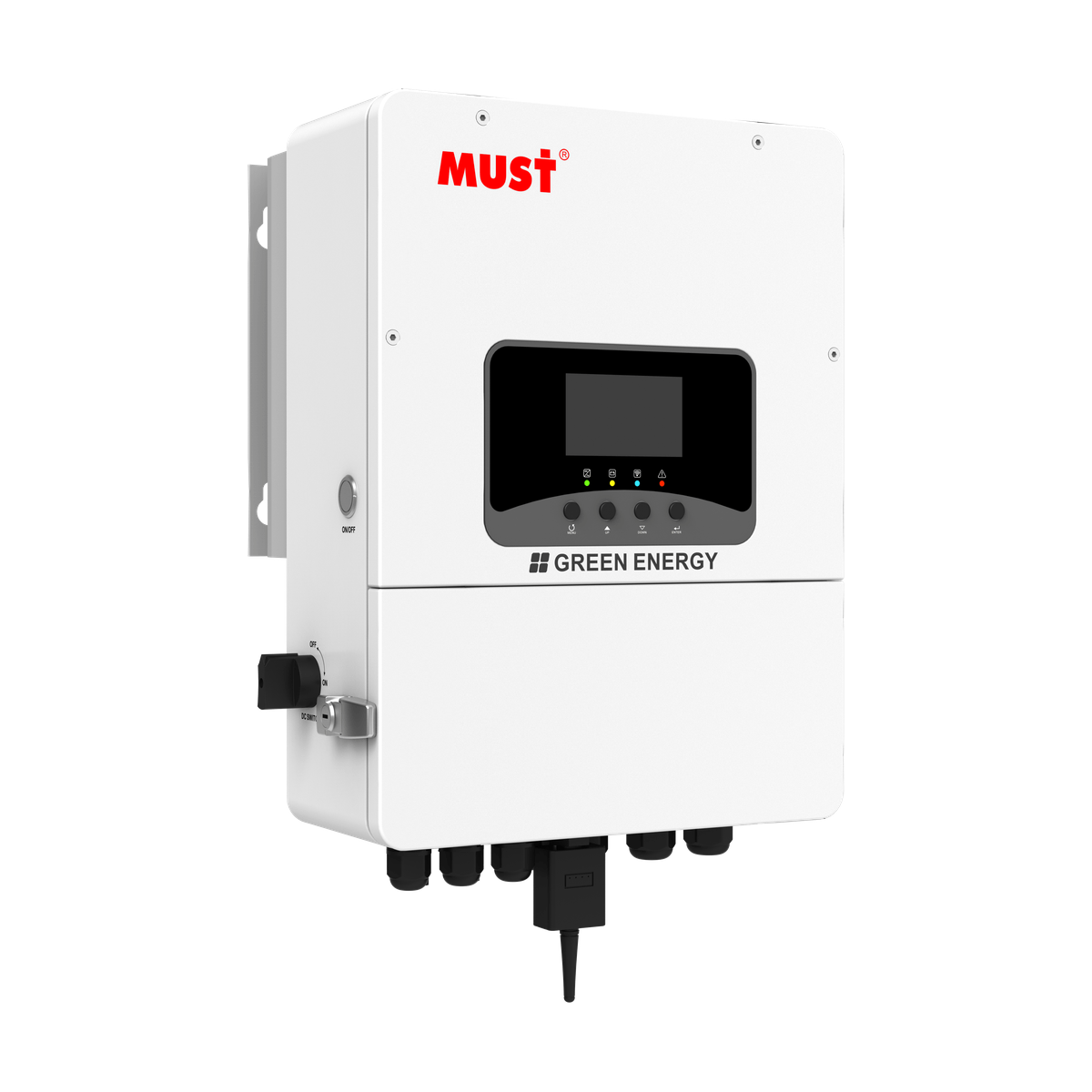

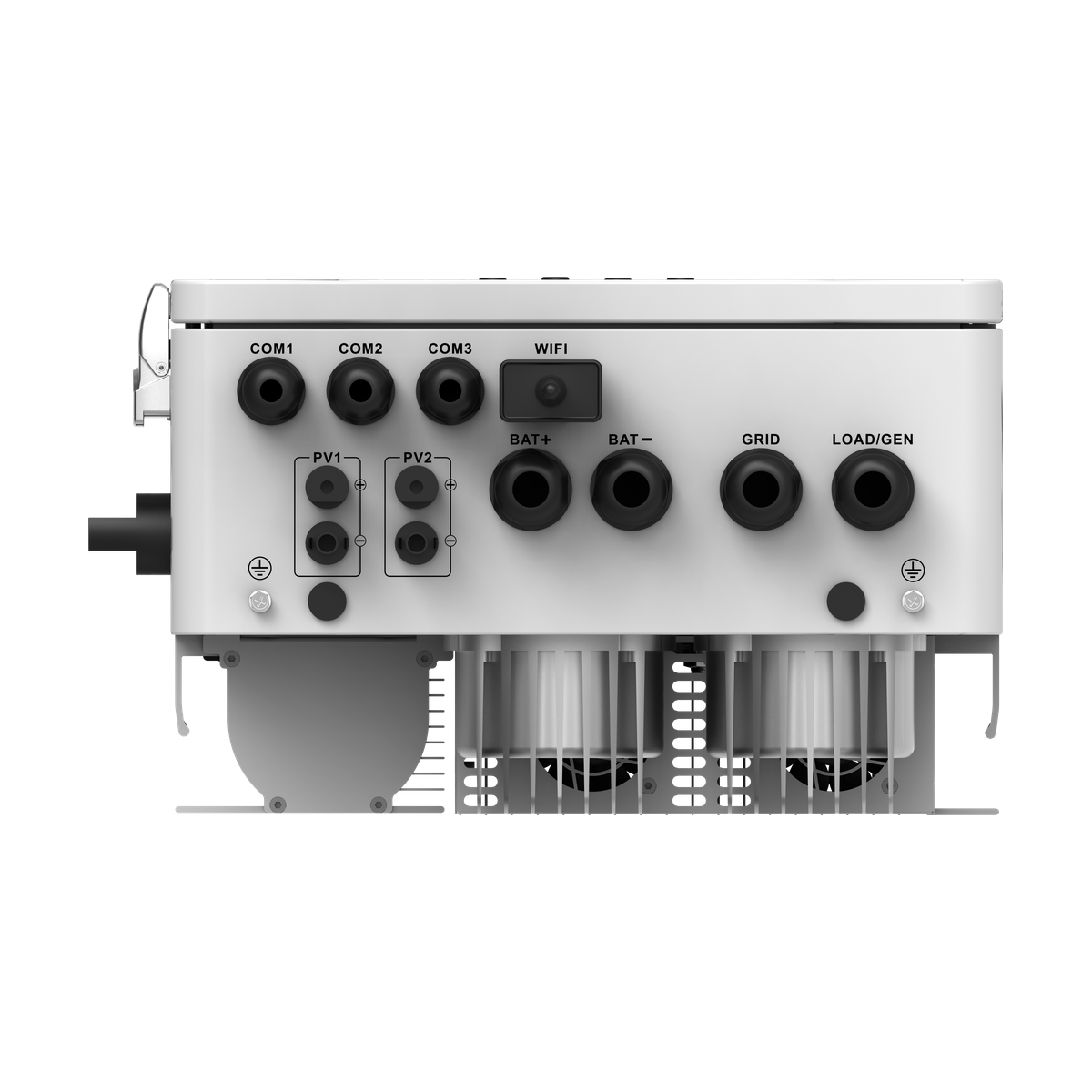

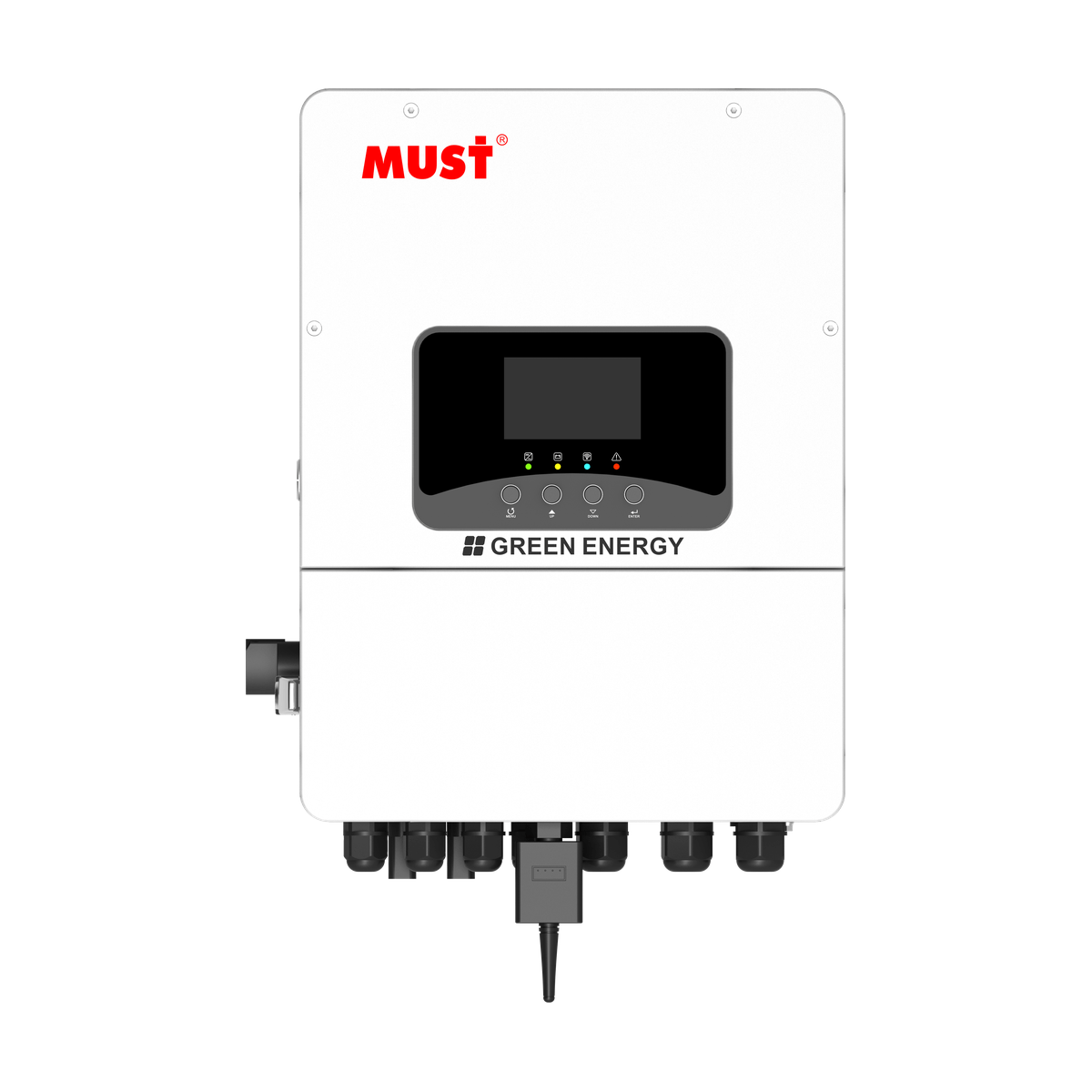

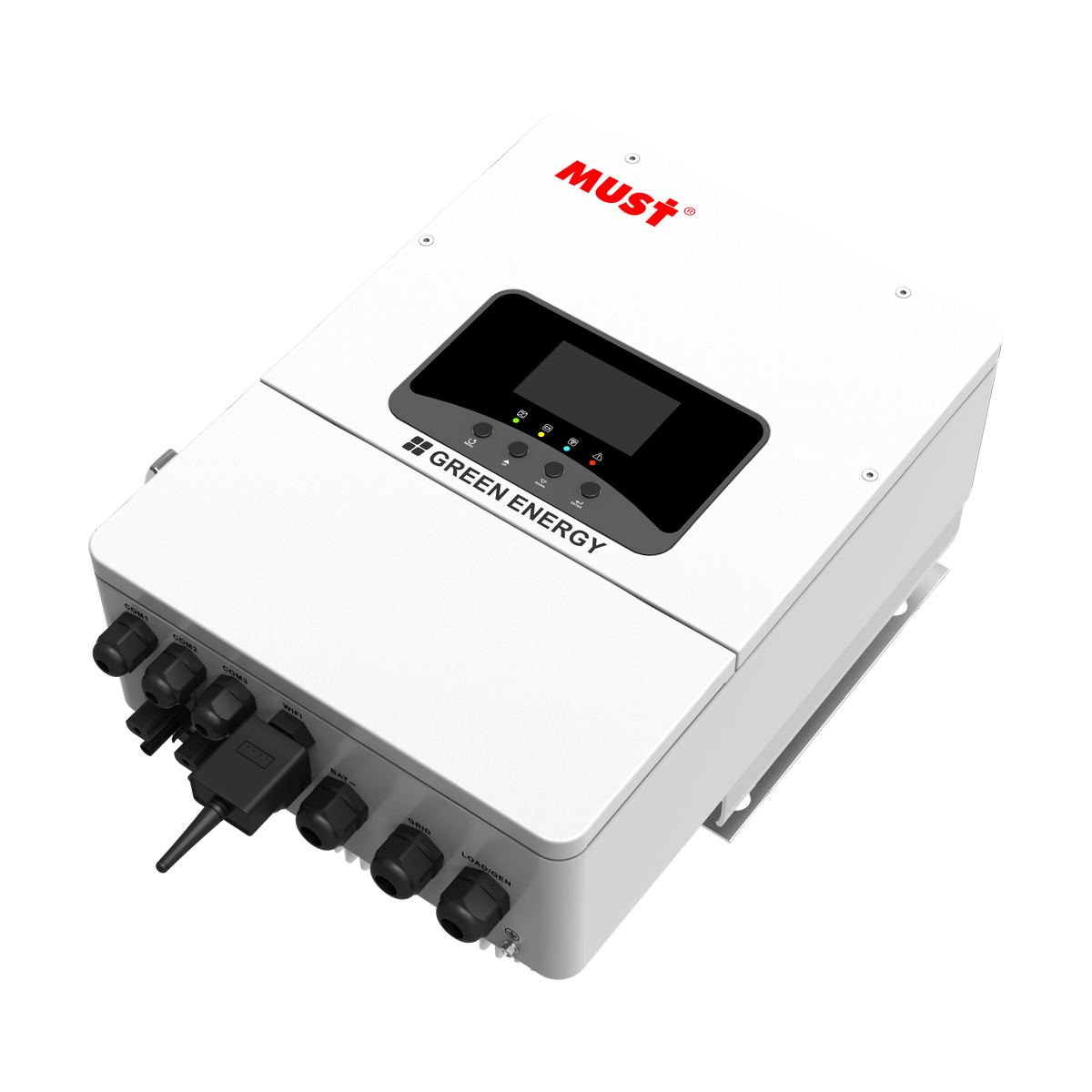

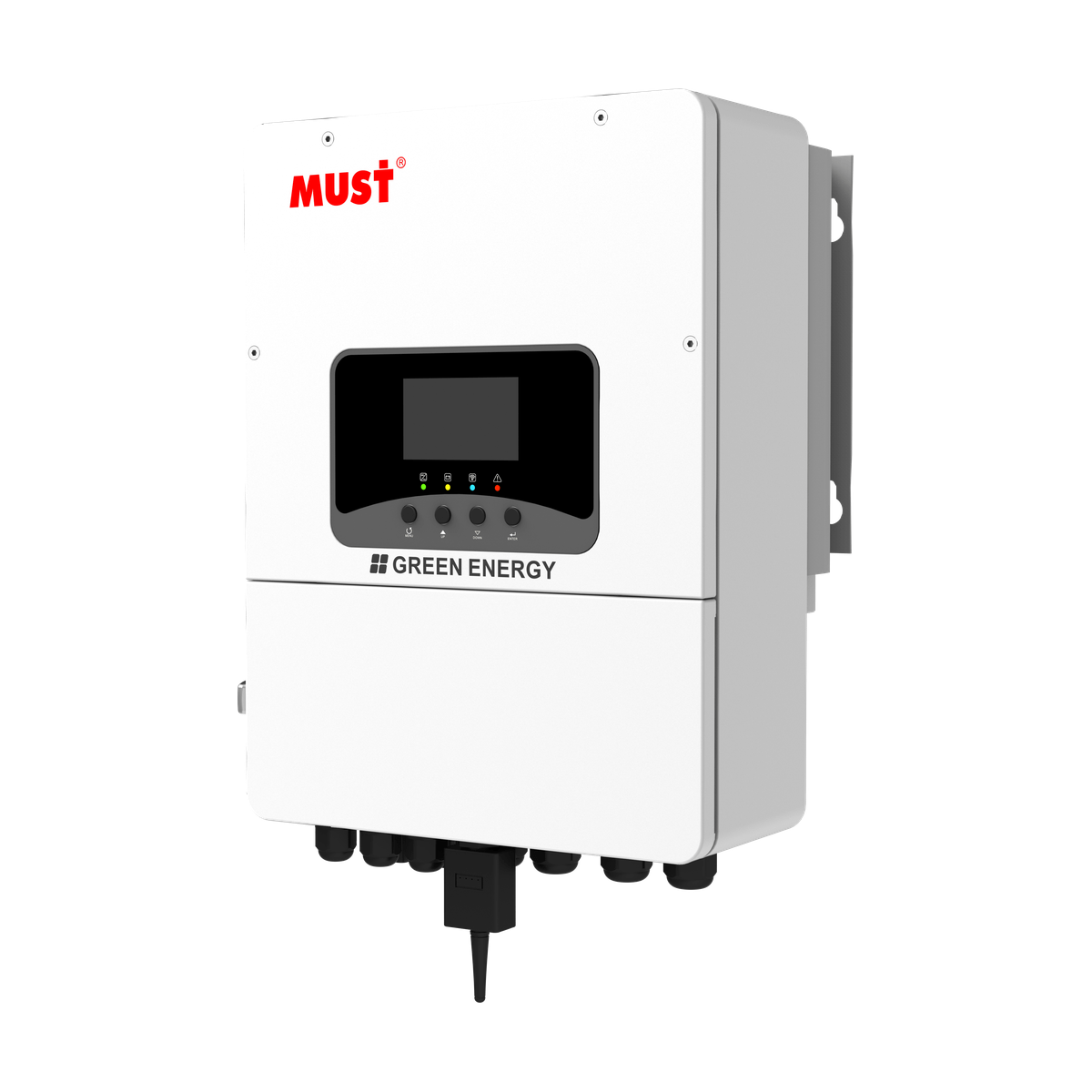

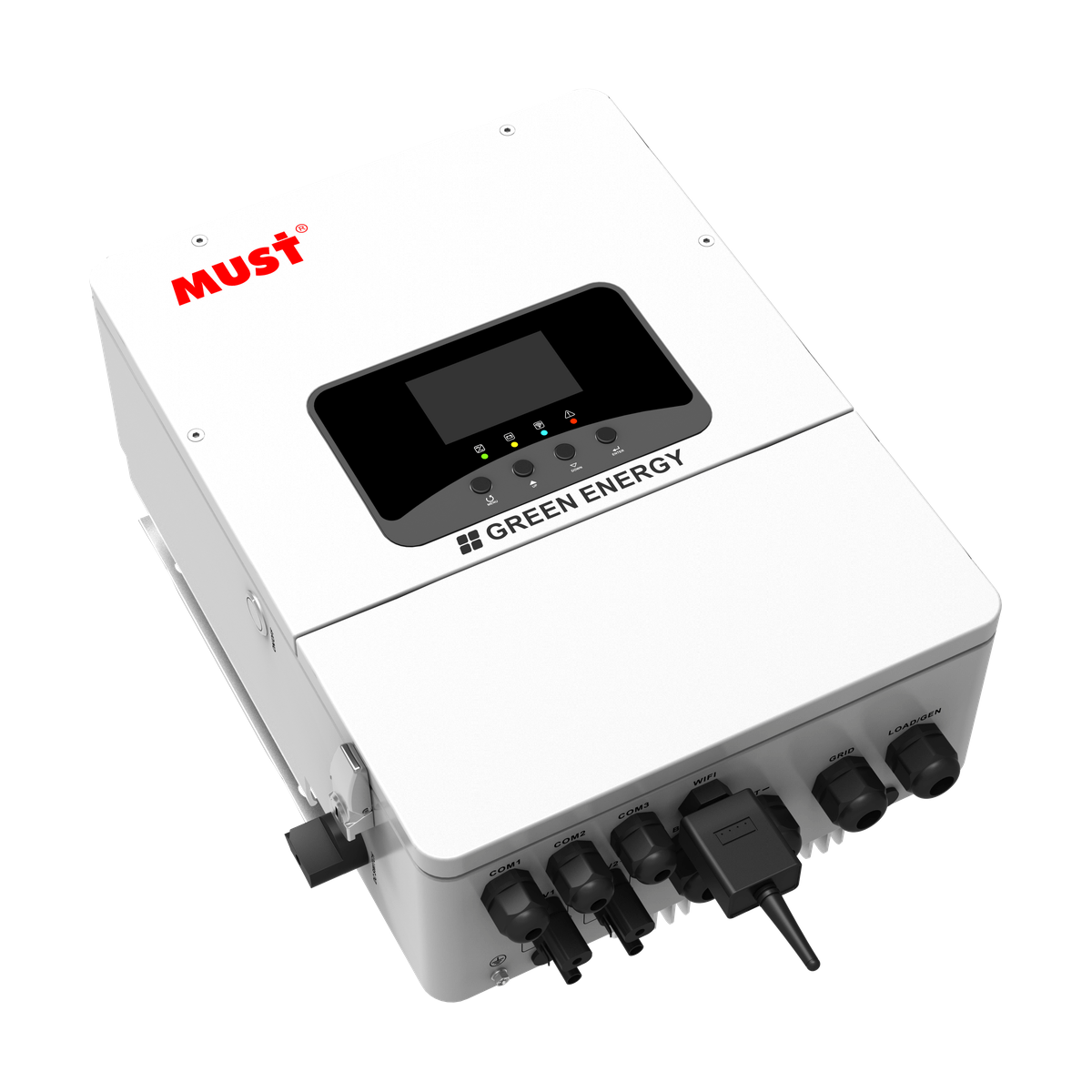

PH1100 LV (3.6-4KW)

3.6-4KW Hybrid Power | 120V Single Phase | IP66 | Dual MPPT

The PH1100 LV Series is a smart 120V single-phase hybrid solar inverter created for low-voltage residential energy storage and outdoor backup systems. Available in 3.6KW and 4KW models, it combines solar, battery, utility and generator power in a rugged IP66 enclosure. Two independent MPPT trackers support up to 500VDC PV input and as much as 8KW of solar power, helping maximize daily energy production. The 48V battery platform provides up to 100A charge and discharge current with configurable time-of-use periods for flexible energy management. AC-coupling capability supports solar retrofit projects, while parallel operation of up to nine units allows the system to grow with household or light commercial demand.
