On/Off Grid Hybrid Solar Inverter
PH1100 LV (3.6-4KW)
* 4.3" touch display
* IP66
* Single phase
* Up to 9 units in parallel
3.6-4KW Hybrid Power | 120V Single Phase | IP66 | Dual MPPT
The PH1100 LV Series is a smart 120V single-phase hybrid solar inverter created for low-voltage residential energy storage and outdoor backup systems. Available in 3.6KW and 4KW models, it combines solar, battery, utility and generator power in a rugged IP66 enclosure. Two independent MPPT trackers support up to 500VDC PV input and as much as 8KW of solar power, helping maximize daily energy production. The 48V battery platform provides up to 100A charge and discharge current with configurable time-of-use periods for flexible energy management. AC-coupling capability supports solar retrofit projects, while parallel operation of up to nine units allows the system to grow with household or light commercial demand.
PH1800 LV (3KW)
* power factor 1
* Built-in 80A MPPT
* 120VAC
* Compatible with generator
3KW Pure Sine Wave | 120VAC | 6000W Surge | Split-Phase Ready
The PH1800 LV Series is a flexible high-frequency on/off-grid solar inverter built for 120V homes, workshops and remote power systems. It delivers 3000W of pure sine wave output with 6000W surge power, providing stable electricity for appliances, pumps, tools and sensitive electronics. Available with 24V or 48V batteries, the inverter integrates MPPT solar charging, utility input and generator support in one compact wall-mounted design. Up to three units can operate in parallel for greater capacity, while two units can be configured as a 120V/240V split-phase system. Optional WiFi monitoring, CAN and RS485 communication simplify lithium BMS and generator integration, making the PH1800 LV suitable for expandable backup and off-grid applications.
PH9100 EU-HM (3.6-12KW)
* Single Phase
* IP66
* 4.3-inch Touchscreen
* Up to 10 Units in Parallel
3.6-12KW Hybrid Power | IP66 | Dual MPPT | 48V Battery
The PH9100 EU-HM Series is an intelligent single-phase hybrid solar inverter designed for modern residential and light commercial energy storage. Covering power ratings from 3.6KW to 12KW, it combines solar generation, battery storage, utility power and backup operation within a rugged IP66 outdoor enclosure. Dual MPPT trackers and a 500V maximum PV input provide efficient solar harvesting, while high charge and discharge currents support demanding household loads. The 48V battery platform works with both lead-acid and lithium systems and adapts to compatible BMS protocols. A 4.3-inch touchscreen, WiFi, RS485, CAN and Bluetooth deliver convenient system control, and parallel operation of up to 10 units provides flexible expansion.
PH1100 EU (5-16KW)
* Rated Power: 5KW-16KW
* Grid Type: Three Phase (380V/400V)
* Battery: 48V | Max Charge: 320A
* IP Rating: IP66
Three Phase Hybrid Solar Inverter – 380V Output | 100% Unbalanced Load | 320A Fast Charge | IP66
The PH1100 EU Series (Three Phase) is a flagship industrial-grade Hybrid Solar Inverter designed for large residential and commercial applications requiring Three Phase 380V/400V power. It features a comprehensive power range starting from 5KW up to 16KW, including specialized intermediate models (6.5KW, 13KW, 14.2KW, 15KW) to perfectly match specific project requirements. Capable of supporting 100% Unbalanced Output, it ensures stability even with uneven phase loads. With an impressive 320A Charge/Discharge Current (16KW model) and IP66 weatherproof rating, it serves as a powerful, reliable energy hub for demanding environments.
PH1100 US (5-10KW)
* Rated Power: 5KW-10KW
* Grid Type: Split Phase (120V/240V)
* Battery: 48V | Max Charge: 220A
* IP Rating: IP66
Split Phase Hybrid Inverter – 120V/240V Output | IP66 | 220A Fast Charge | Parallel 10 Units
The PH1100 US Series is a high-performance Split Phase Hybrid Inverter engineered specifically for the North American market. Ranging from 5KW to 10KW, it delivers native 120V/240V split-phase power, eliminating the need for external autotransformers. With an industry-leading 220A Charge/Discharge Current (10KW model) and IP66 weatherproof rating, it is the ultimate all-in-one solution for whole-home backup and energy independence in the US, Canada, and Puerto Rico.
PH1100 PRO (3.6-6KW)
* Rated Power: 3.6KW-6KW
* Battery Voltage: 48V
* IP Rating: IP66
* MPPT Range: 120-500V | Dual MPPT
Hybrid Solar Inverter – IP66 Outdoor | Grid-Tie & Off-Grid | Dual MPPT | Silent Operation
The PH1100 PRO Series is a premium Hybrid Solar Inverter designed for modern smart homes. It seamlessly integrates On-Grid, Off-Grid, and Energy Storage capabilities into one intelligent unit. Built with a rugged IP66 Waterproof housing and a Fanless Natural Cooling system, it operates silently and can be installed outdoors without fear of harsh weather. With Dual MPPT trackers and a wide voltage range (120-500V), it maximizes solar generation while offering flexible energy management modes (Self-Consumption, Peak Shaving, Backup).

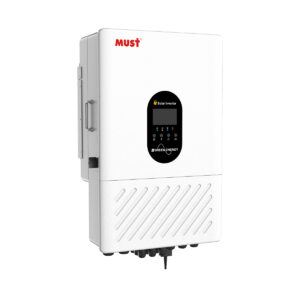

PH1100 US-G2 (5-12KW)
* Rated Power: 5KW-12KW
* Grid Type: Split Phase (120V/240V)
* Battery: 48V | Max Charge: 250A
* PV Input: Up to 18KW
Split Phase Hybrid Inverter – 12KW High Power | 250A Large Current | 120V/240V Output | IP66
The PH1100 US-G2 Series is a specialized high-performance lineup within the US Split Phase family, differentiated by its expanded power capabilities and market-specific optimizations. Designed to bridge the gap for larger residential demands, this series introduces a robust 12KW model and specific power nodes (such as 7.6KW) to perfectly match US regulatory thresholds and project sizes. With an enhanced 250A Charging/Discharging capability and a high-current MPPT design, it is tailored for heavy-load scenarios that require faster energy cycling and higher surge performance than standard models.
PH1100 EU (5-10KW)
* Rated Power: 5KW-10KW
* Grid Type: Single Phase (230V)
* Battery: 48V | Max Charge: 220A
* IP Rating: IP66
Single Phase Hybrid Solar Inverter – IP66 | 220A Charge | Parallel 10 Units | AC Coupling Ready
The PH1100 EU Series is a high-performance Single Phase Hybrid Inverter engineered for demanding residential energy storage needs. Available in models from 5KW to 10KW, it delivers robust Single Phase 220V/230V/240V power to support heavy household loads. Featuring an industry-leading 220A Charge/Discharge Current (10KW model) and the ability to Parallel up to 10 Units, it offers flexible scalability. Its IP66 rugged design ensures reliable outdoor operation, making it a top choice for modern smart homes requiring stable backup power.
PH1900 EXP II (6KW/10KW)
* Rated Power: 6KW/10KW
* Battery: 48V
* Max PV Voltage: 500V
* Max Charge: 150A
Hybrid Solar Inverter – Detachable LCD | Bluetooth/WiFi | Battery-Independent | Flexible Installation
The PH1900 EXP II Series is a specialized edition of the PH1900 family, engineered with a unique Detachable LCD Control Module to meet diverse installation needs. Unlike standard inverters, this design allows the unit to be installed in remote or hard-to-reach areas (like basements or garages) while the control screen is mounted conveniently in a living space (up to 40m away). Combined with Bluetooth connectivity and Battery-Free support, it offers unmatched flexibility for users requiring customized monitoring solutions.
PH1900 EXP (4-12KW)
* Rated Power: 4KW-12KW
* Battery Voltage: 24V/48V
* Max PV Voltage: 500VDC
* Max Solar Charge: 150A
On/Off-Grid Hybrid Inverter – Dual MPPT | Dual Output | 500V PV Input | Parallel up to 6 Units
The PH1900 EXP Series is a versatile On/Off-Grid Hybrid Solar Inverter designed to provide flexible energy management for residential and commercial applications. Ranging from 4KW to 12KW, this series supports both grid-tied operation (to feed excess power) and off-grid backup. It features a Dual Output design for smart load shedding and Dual MPPT trackers (on 6.2KW+ models) to maximize solar harvest. With high-voltage PV input (500V) and support for Parallel operation of up to 6 units, it offers a scalable solution for modern energy independence.
PH1100 EU (20-50KW)
* Rated Power: 20KW-50KW
* Battery: High Voltage (150-800V)
* Grid: Three Phase (400V)
* Max PV Voltage: 1000V
High Voltage Three Phase Hybrid Inverter – 150-800V Battery | 100% Unbalanced Load | IP65 Commercial Storage
The PH1100 EU Series (20-50KW) is a powerhouse High Voltage Hybrid Inverter tailored for large-scale residential and commercial energy storage projects. By utilizing High Voltage (HV) Batteries (up to 800V), it significantly reduces current loss and improves system efficiency compared to traditional 48V systems. With a power output of up to 50KW and support for 100% Unbalanced Loads, it provides stable, industrial-grade power for factories, office buildings, and large villas.
PH1100 EU-G2 (3-8KW)
* Rated Power: 3KW-8KW
* Battery Voltage: 48V
* IP Rating: IP66
* MPPT Range: 125-500V | Max Charge: 190A
Hybrid Solar Inverter – IP66 | 4.3″ Touch Screen | Parallel up to 9 Units | 190A Fast Charge
The PH1100 EU-G2 Series is a flagship Hybrid Solar Inverter tailored for high-performance residential energy storage. Ranging from 3KW to 8KW, it features a premium 4.3-inch Touch Screen for effortless control and supports a massive Parallel connection of up to 9 units, enabling scalable systems for large homes or small businesses. With an IP66 weatherproof design, it is built to withstand harsh outdoor elements. Its industry-leading 190A Charge/Discharge Current (8KW model) ensures rapid battery charging, maximizing your solar investment.
PH1100 EU (18-20KW)
* Rated Power: 18KW-20KW
* Grid Type: Three Phase (380V/400V)
* Battery: 48V | Max Charge: 350A
* IP Rating: IP66
Three Phase Hybrid Solar Inverter – 380V Output | 350A Fast Charge | Parallel 16 Units | IP66
The PH1100 EU Series (18-20KW) represents the pinnacle of low-voltage hybrid inverter technology. Designed for heavy-duty commercial and large residential applications, these Three Phase 380V/400V giants deliver continuous power up to 20KW. They feature an industry-shattering 350A Charge/Discharge Current, enabling massive energy throughput for 48V battery systems. With support for Parallel operation of up to 16 units and an IP66 rugged enclosure, this series is the ultimate solution for micro-grids and large-scale energy storage projects.
