Description
✅ Key Features
🔋 Supports 150–800V High-Voltage Batteries: Enhanced efficiency and system scalability
⚡ Max. PV Input 1000V, 1.5× PV Oversizing Supported: Maximize solar harvest
🔌 String Current up to 40A: Ideal for modern high-output PV modules
🔄 <10ms UPS Switching Time: Seamless backup for essential loads
💪 150% Peak Output Overload in Backup Mode: Reliable surge capacity
🧠 Smart Energy Management: Supports 6 programmable time-of-use segments
🌐 Built-in Anti-feed-in Function: Compliant with grid export control policies
🔗 Supports Parallel Connection and Generator Input
🔋 Compatible with 280Ah & 315Ah Battery Systems
🔄 100% Three-Phase Unbalanced Load Support
🚨 AFCI (Optional) & Rapid Shutdown Ready: Enhanced safety
📡 Remote Monitoring & Firmware Upgrade via WiFi

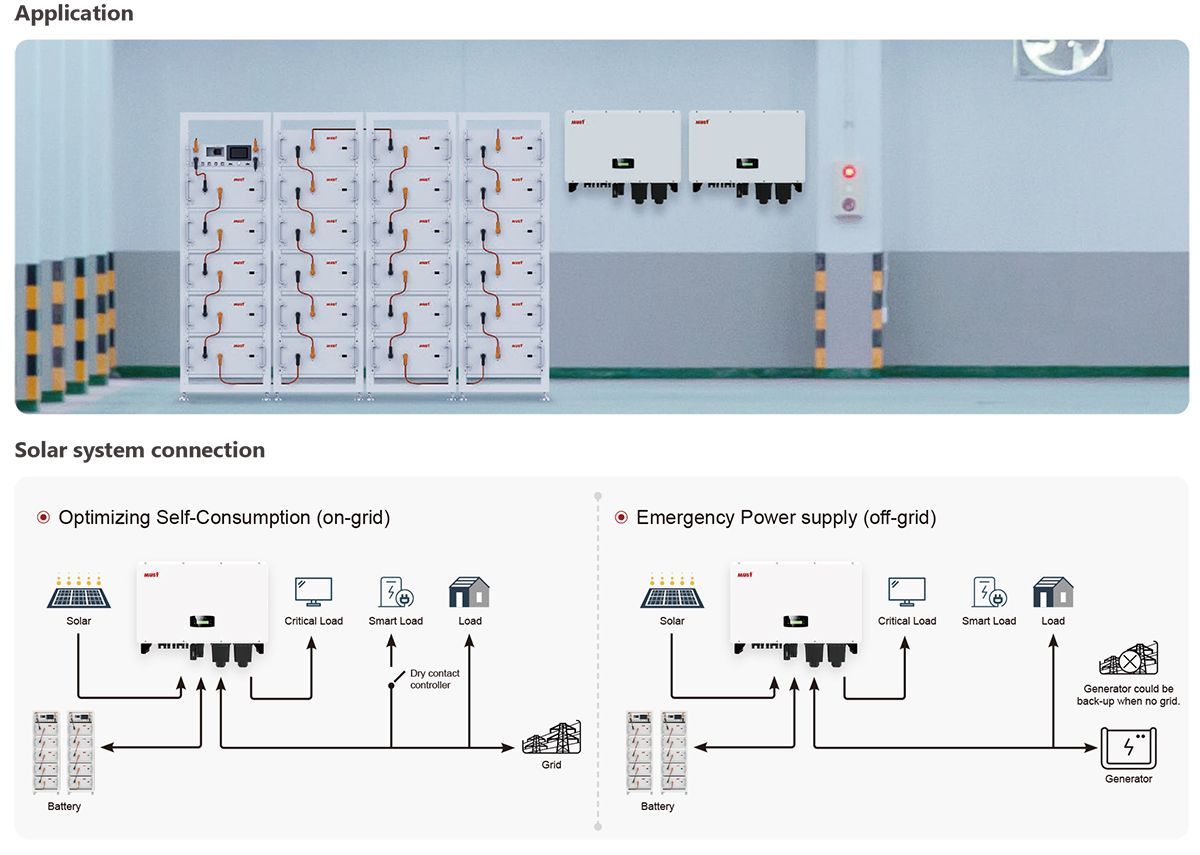

🛠 Configurable Operation Modes for On-Grid, Off-Grid, and Backup Use
Recommended for:
Small industrial and commercial buildings
Rural energy projects or mini-grid deployment
Multi-tenant residential buildings or microgrids
EV charging stations with integrated PV + storage systems

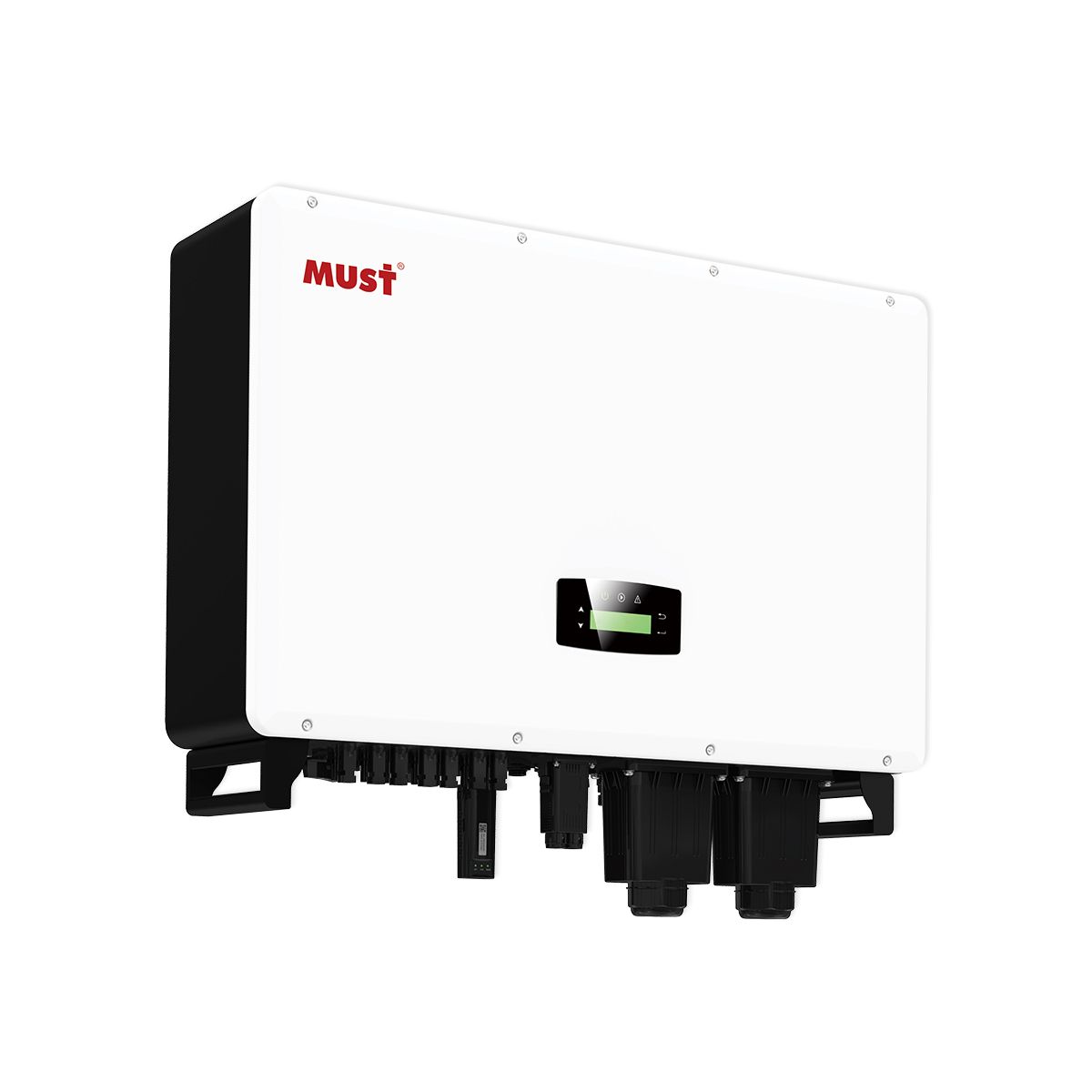

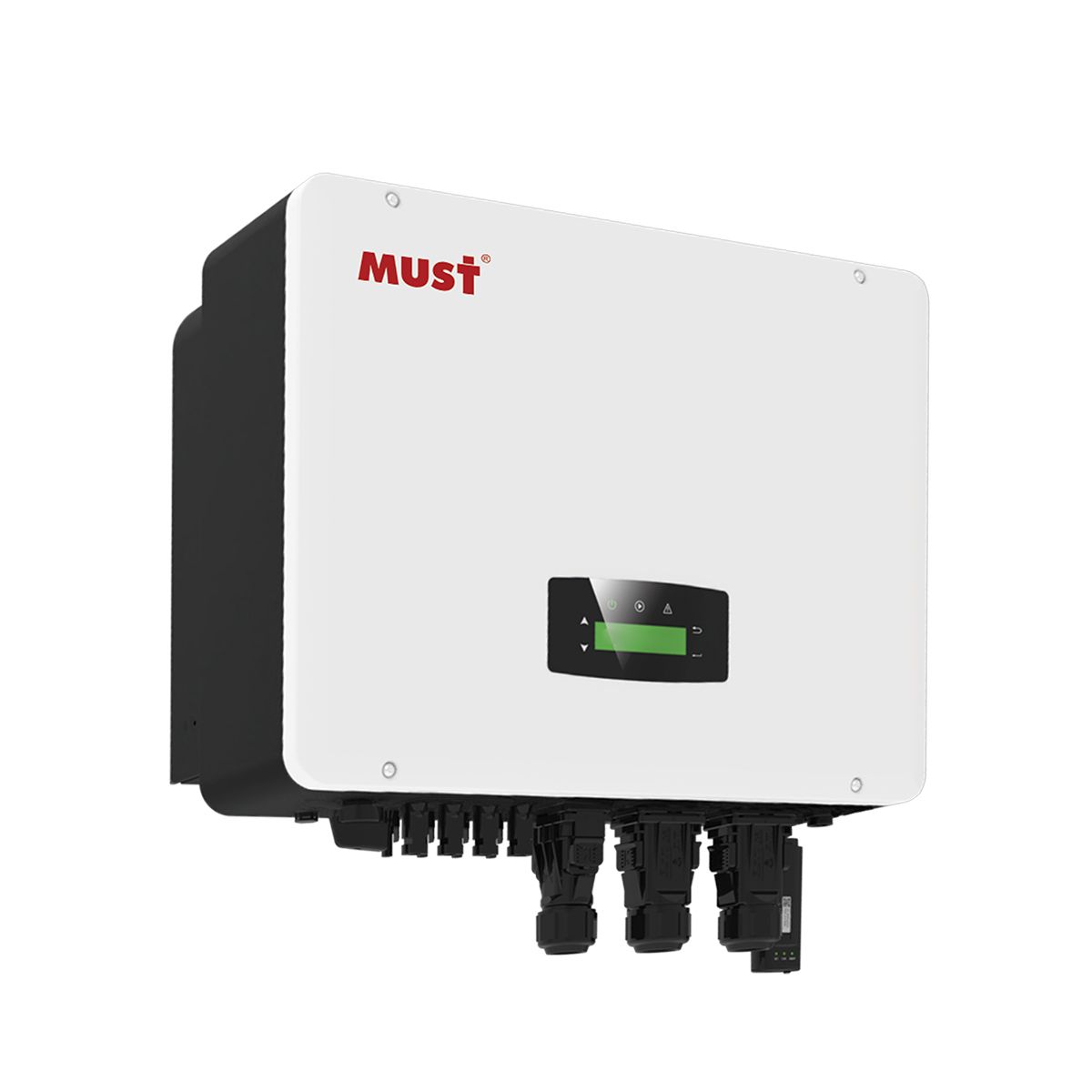

| MODEL | PH11-20KL3-EU-HV | PH11-30KL3-EU-HV | PH11-50KL3-EU-HV |
| Rated power | 20000W | 30000W | 50000W |
| PV INPUT | |||
| Max. Dc Input Power | 30KW | 45KW | 75KW |
| Max. PV Voltage | 1000V | ||
| Rated DC input Voltage | 620V | ||
| DC Input Voltage Range | 150-1000V | ||
| MPPT Voltage Range | 150-850V | ||
| Full MPPT Range | 500-850V | ||
| Start-up Voltage | 160V | ||
| Max.DC input Current | 32A*2 | 40A*2 | 40A*4 |
| Max.Short Current | 48A*2 | 60A*2 | 48A*4 |
| No. of MPPT Tracker/Strings | 2/4 | 2/4 | 4/8 |
| BATTERY PORT | |||
| Battery Nominal Voltage | 500V | 550V | 500V |
| Battery Voltage Range | 150-800V | ||
| Max. Charge/Discharge Current | 50A | 60A | 120A |
| Max. Charge/Discharge Power | 20KW | 30KW | 50KW |
| Charging Curve | 3 Stages | ||
| Compatible Battery Type | Li-ion / Lead-acid / Sodium metal chloride battery | ||
| AC GRID | |||
| Nominal AC Output Power | 20KW | 30KW | 50KW |
| Max. AC Input/Output Power | 30KVA/22KVA | 45KVA/33KVA | 100KVA/55KVA |
| Max. AC Output Current | 32A | 48A | 83.38A |
| Nominal AC Voltage | 230V/400V | ||
| Nominal AC Frequency | 50Hz/60Hz | ||
| Power Factor | 1(-0.8-0.8) adjustable | ||
| Current THD | <3% | ||
| AC LOAD OUTPUT (BACK-UP) | |||
| Nominal Output Power | 20000VA | 30000VA | 55000VA |
| Nominal Output Voltage | 230V/400V | ||
| Nominal Output Frequency | 50Hz/60Hz | ||
| Nominal Output Current | 29A | 43.5A | 72.5A |
| Peak Output Power | 22000VA, 60s | 33000VA, 60s | 55000VA, 60s |
| THDV (with linear load) | 3% | ||
| Switching Time | <10ms | ||
| EFFICIENCY | |||
| Europe Efficiency | 97.80% | 98.10% | 98.30% |
| Max. Efficiency | 98.30% | 98.50% | 98.60 % |
| Battery Charge/Discharge Efficiency | 98.00% | 98.00% | 99.00% |
| PROTECTION | |||
| Reverse Polarity Protection | Yes | ||
| Over Current/ Voltage Protection | Yes | ||
| Anti-islanding Protection | Yes | ||
| AC Short-ciruit Protection | Yes | ||
| Leakage Current Detection | Yes | ||
| Ground Fault Monitoring | Yes | ||
| Grid Monitoring | Yes | ||
| Enclosure Protect Level | IP65 | IP65 | IP66 |
| AC/DC surge protection | Type II | ||
| GENERAL DATA | |||
| Dimensions (W x H x D, mm) | 558*535*260 | 979*610*310 | |
| Weight (kg) | 29 | 36 | 70 |
| Topology | Transformerless | ||
| Cooling Concept | Intelligent Fan | ||
| Relative Humidity | 0-100% | ||
| Operating Temperature Range (°C) | -25°C to 60°C | ||
| Operating Altitude (m) | <4000m | ||
| Standby Consumption (W) | <100W | ||
| Display & Communication Interfaces | LCD, LED, RS485, CAN, Wi-Fi, GPRS, 4G | ||
| CERTIFICATION & STANDARDS | |||
| EN50549-1, IEC62109-1, IEC62109-2, EN61000-6-3 | |||
