Hybrid Solar Inverter
PH1100 US Series (Split Phase 5-10KW)
* On/Off Grid Hybrid Inverter
* Split Phase Inverter
* Max. 6 pcs parallel
* IP66
Split Phase Hybrid Solar Inverter | AC 240/120V | DC 48V | PV 370V
PH1100 US is brand new split phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and highpower density, this series supports 1.3 DC/AC ratio, saving device investment. It’s applicable to 110VAC/120VAC markets demands, which matches AC 110VAC/120V single phase, or two phase 220V/240V; Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
PH1800 PRO Series (3-5.5KW)
* High Frequency Inverter
* Hybrid Solar Inverter
* PV 450V | DC 24/48V
* MPPT 80/100A
High Frequency Hybrid Solar Inverter 3-5.2KW | DC 24V,48V | PV 450V
PH1800 PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PH1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430V, which can help customers make full use of solar energy.
| Model | Certification & Standards |
| PH18-3024PRO, PH18-5248PRO | Rohs-2011/65/EU, 2015/863/EU |
| PH18-3524PRO, PH18-5548PRO | Rohs-2011/65/EU, 2015/863/EU |
| PH18-5248PRO, PH18-3024PRO | CE-LVD(EN IEC62109-1:2010, EN IEC62109-2:2011) |
| CE-LVD(BS IEC62109-1:2010, BS EN IEC62109-2:2011); UKCA | |
| PH18-3524PRO, PH18-5548PRO | EN IEC62368-1:2018 |
| CE-LVD(EN IEC62109-1:2010, EN IEC62109-2:2011) | |
| CE-LVD(BS IEC62109-1:2010, BS EN IEC62109-2:2011); UKCA |
PH1800 PRO Series (8-10KW)
* Hybrid Solar Inverter
* Cold Start Function
* PV 450V | DC 48V
* MPPT 80/100A
High Frequency Hybrid Solar Inverter
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

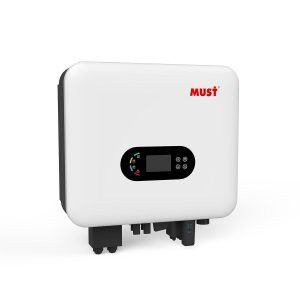

PH1100 PRO Series (3.6-6KW)
* Hybrid Solar Inverter
* European Inverter
* MPPT voltage range 120V~500V
* IP65
ON/OFF Grid High Frequency Hybrid Solar Inverter 3.6~6KW | Single Phase | 230VAC
This is a flexible and intelligent energy storage solar inverter with a wide range of MPPT Voltage. Combining functions of off grid and on grid. This hybrid solar inverter can power all kinds of appliances in home or office, and can also be used in power stations.
| Model | Certification & Standards |
| PH11-4048PRO, PH11-5048PRO, PH11-6048PRO | CE-EMC+LVD(EN6100-6-3: 2007, EN6100-6-1:2017+EN IEC62109-1:2010, EN IEC62109-2:2011) |
| CE-LVD(EN62477-1:2022) | |
| IEC60529; IP65 | |
| EN50549-1:2019 | |
| Poland Type A, (NC RfG:2016, PSE:2018, PTPiREE:2021) | |
| C10/C11 |
PH1100 LV Series (AC120V: 3.6/4KW)
* On/Off Hybrid Inverter
* Americas Inverter
* DC 48V | PV 500V
* MPPT efficiency 99.8%
High Frequency On/Off Hybrid Solar Inverter 3.6/4KW | AC 120V | PV 500V | IP65
This is a flexible and intelligent energy storage solar inverter with a wide range of MPPT Voltage.
Combining functions of off grid and on grid. This hybrid solar inverter can power all kinds of appliances in home or office, and can also be used in power stations.
PH1800 LV Series (AC:120V 3/6KW)
* On/Off Hybrid Inverter
* Americas Inverter
* DC 24/48V | PV 450/250V
* MPPT 100/80A
High Frequency On/Off Hybrid Solar Inverter 3~6KW | AC 120V | PV 450V/250V
PH1800 LV Series is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
PH3000 Series (10-12KW)
* Low Frequency Inverter
* Hybrid Solar Inverter
* Three-phase
* PV 145V | DC 48V
Low Frequency On/Off Grid Hybrid Solar Inverter
This model PH3000 Three-phase is a flexible and intelligent energy storage inverter which utilizes solar power, utility power, and battery power source to supply continuous power. This is a multi-functional hybrid inverter which can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner. The system generates electricity when it has sufficient sunshine, supplying power to your home and feeding any surplus power back to the Grid.
| Model | Certification & Standards |
| PH30-12048T, PH30-12048S | CE-EMC+LVD(EN6100-6-4: 2007, EN6100-6-2:2017+EN IEC62109-1:2010, EN IEC62109-2:2011) |
| PH30-10048T/12048T, PH30-10048S/12048S | CE-LVD(IEC62109-1:2010, EN IEC62109-2:2011) |

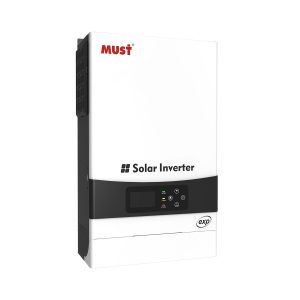

PH1900 EXP Series (4/6KW)
* Hybrid Solar Inverter
* Parallel 3 units
* DC 24/48V | PV 500V
* MPPT 100/120A
On/Off Grid Hybrid Solar Inverter DC 24/48V | PV 500V | MPPT 100/120A
PH1900 EXP is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PH1900 EXP Series can run without battery. The Maximum PV array open circuit voltage can reach 500V and MPPT voltage is 90~430V, which can help customers make full use of solar energy.
PH1900 EXP Series (6-12kW)
* Dual Output
* Parallel 6 Units
* PV 500V (450V for parallel)
* MPPT 120/150A
Dual Output Hybrid Solar Inverter
PH1900 EXP is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PH1900 EXP Series can run without battery. The Maximum PV input voltage can reach 500V and MPPT voltage range is 90~450Vdc, built-in two MPPTs solar charge controller, which can help customers make full use of solar energy.
