Description
Key Features
-
Native 110V/120V Output: Specifically engineered for 110VAC/120VAC applications, making it perfect for use in North America, Latin America, and other 110V regions.
-
Space-Saving Wall Mount: Features a slim flat design (132mm depth) that can be easily mounted on walls in RVs, cabins, or utility rooms, unlike bulky tower inverters.
-
3x Surge Capability: The heavy-duty transformer design provides a peak surge of up to 3000VA (1000W model), allowing it to start demanding loads like small fridges, pumps, and power tools.
-
Wide Input Voltage Range: Accepts grid voltages from 70VAC to 140VAC, making it highly resilient to brownouts and unstable grid conditions often found in remote areas.
-
High-Current Charging: Includes a powerful AC Charger (up to 30A) with a 3-stage charging algorithm, optimizing battery health and reducing charging time.
-
Smart LCD Display: The intuitive LED+LCD interface provides real-time monitoring of input/output voltage, battery level, and load percentage, keeping you informed of system status.
Applications
-
RV & Mobile Homes: The wall-mount design and 120V output fit perfectly in recreational vehicles.
-
Latin American Homes: Ideal backup power for homes in 110V/120V grid countries (e.g., Mexico, Colombia).
-
Remote Cabins: Reliable power source for off-grid cabins using 12V battery banks.

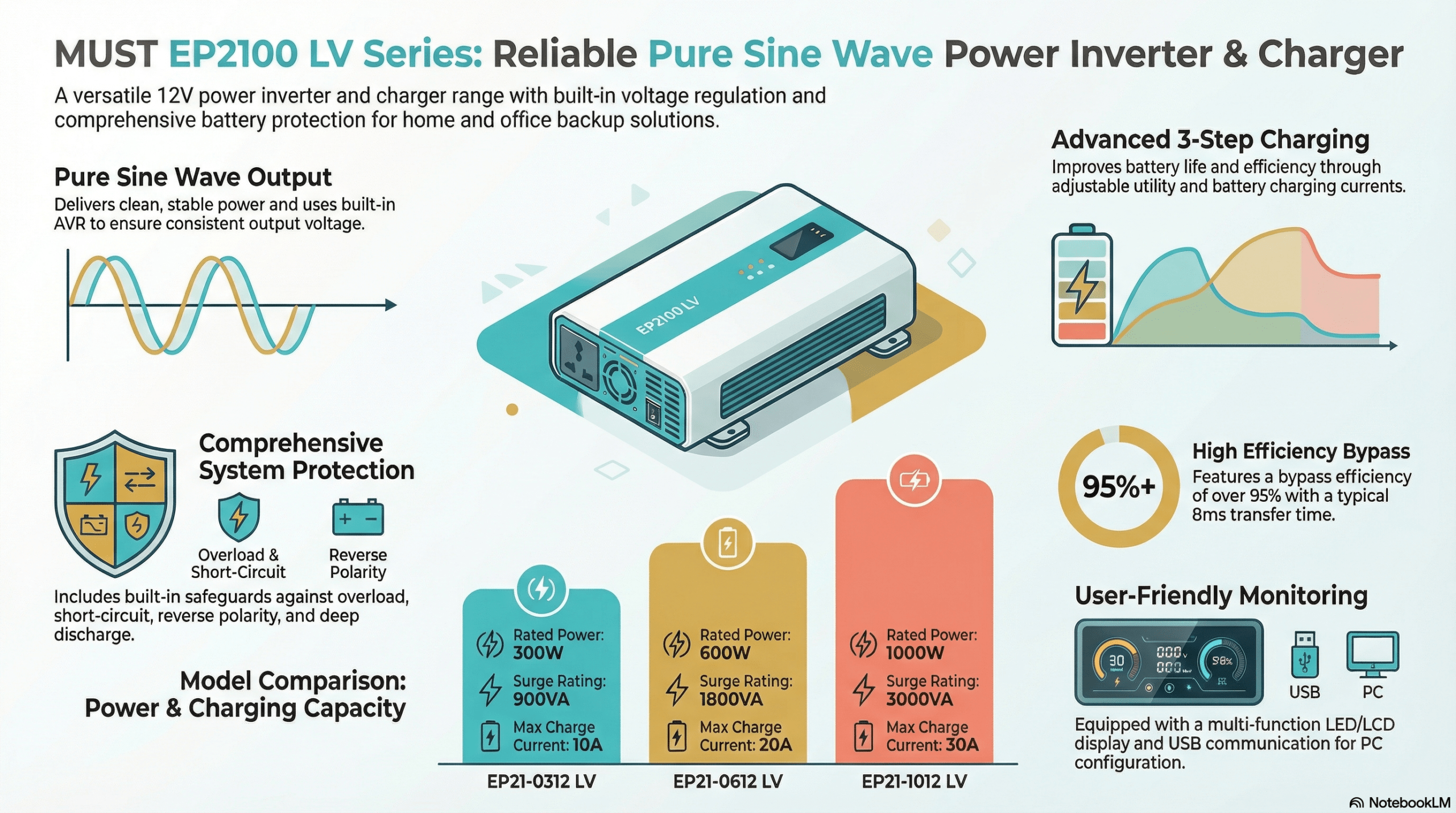

Core Specifications Table
| Model | EP21-0312 LV | EP21-0612 LV | EP21-0812 LV | EP21-1012 LV |
| Rated Power | 300W | 600W | 800W | 1000W |
| Battery Voltage | 12VDC | 12VDC | 12VDC | 12VDC |
| Surge Rating (3x) | 900VA | 1800VA | 2400VA | 3000VA |
| Output Voltage | 110V / 120VAC | 110V / 120VAC | 110V / 120VAC | 110V / 120VAC |
| Input Voltage Range | 70~140VAC | 70~140VAC | 70~140VAC | 70~140VAC |
| Max AC Charge | 10A | 20A | 25A | 30A |
| Transfer Time | 8ms (Typical) | 8ms (Typical) | 8ms (Typical) | 8ms (Typical) |
| Dimensions (mm) | 300.5*319*132 | 300.5*319*132 | 300.5*319*132 | 300.5*319*132 |
| Display | LED + LCD | LED + LCD | LED + LCD | LED + LCD |
| Communication | USB | USB | USB | USB |
