Description
Key Features
-

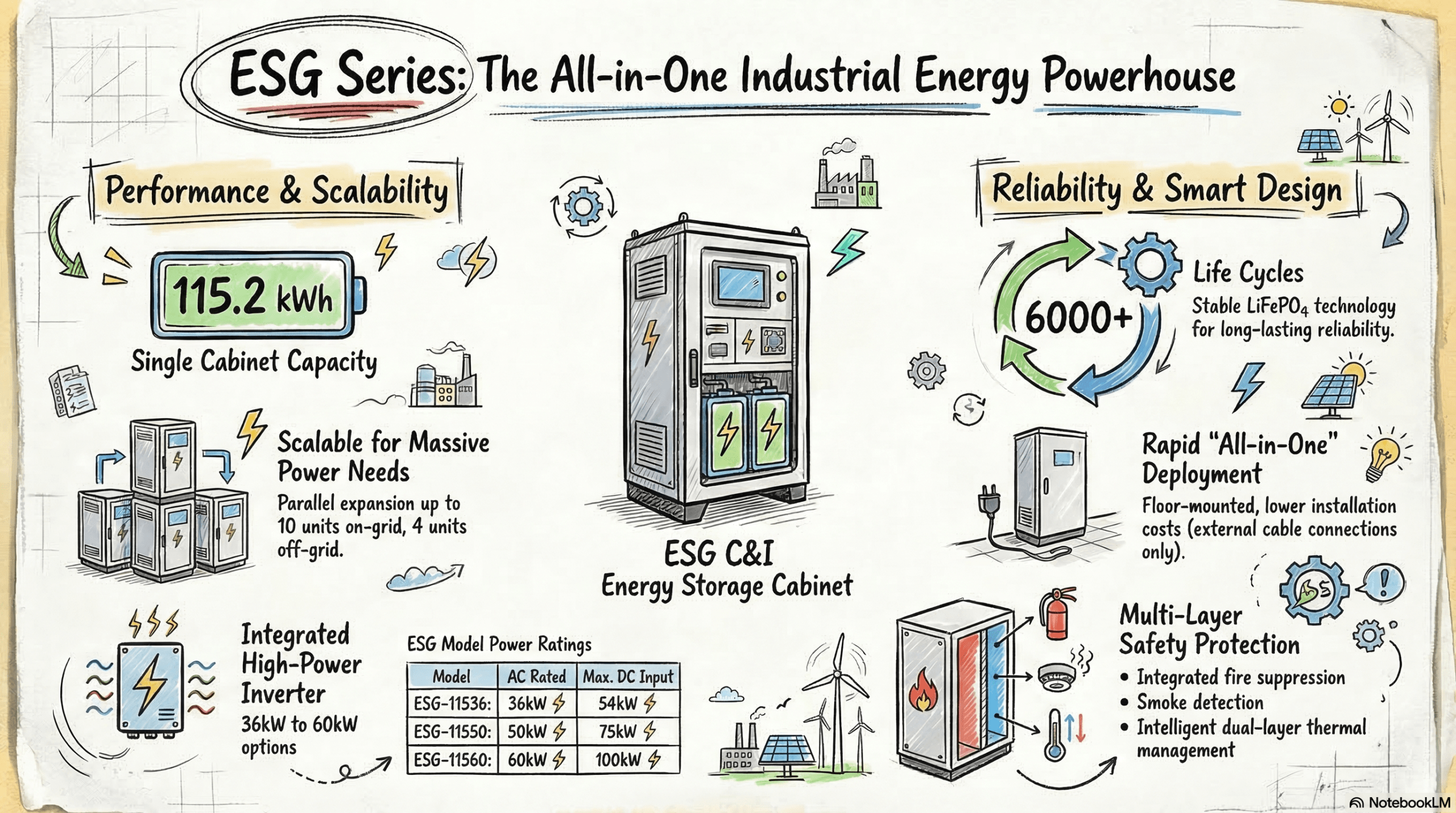

Fully Integrated All-in-One Design: Experience hassle-free deployment. The heavy-duty 36KW-60KW hybrid inverter is seamlessly integrated inside the battery cabinet. This true All-in-One floor-mounted system requires only external cable connections, significantly lowering installation costs and saving valuable facility space.
-
Massive 115.2kWh Capacity (576V): Powered by highly stable 200Ah Lithium Iron Phosphate cells, a single cabinet delivers an enormous 115.2kWh of energy at a nominal DC voltage of 576V. This deep energy reservoir easily sustains heavy commercial loads (up to 150A max discharge) for extended off-grid periods.
-
Built-in Advanced Solar Integration: The integrated high-voltage MPPT charge controller (150-1000V DC range) features 4 MPPT trackers, enabling massive commercial solar arrays (up to 100KW) to be connected directly to the cabinet for maximum renewable energy harvesting.
-
Massive C&I Scalability: Built to scale seamlessly with your operations. The smart system supports parallel expansion of up to 4 units in off-grid mode and up to 10 units in on-grid mode, unlocking a total scalable capacity exceeding 1.1 MWh.
-
Comprehensive Safety & Protection: The rugged IP54-rated cabinet ensures reliable operation in diverse environments. It comes fully equipped with an integrated fire suppression system, smoke and gas detection, and a built-in isolation transformer to meet the strictest commercial safety standards.
-
Efficient Dual-Layer Cooling: The battery enclosure utilizes a highly efficient thermal management system combining active air conditioning and intelligent air cooling. This dual-layer approach maintains optimal cell temperatures, guaranteeing an impressive 6000+ cycle life and stable operation from -20°C to 55°C.
-
Smart Touchscreen & Cloud Control: Outfitted with an intuitive built-in touch screen for local system management, alongside extensive communication interfaces (RS485, CAN, WiFi, GPRS, 4G) for remote cloud-based monitoring and fleet operation.
Applications
-
Commercial Peak Shaving: Store energy during cheap off-peak hours and deploy it during peak rate hours to drastically reduce expensive utility demand charges for factories and data centers.
-
Industrial Microgrids: Pair with large commercial solar arrays to build an independent microgrid, ensuring critical manufacturing lines remain operational during grid outages (ultra-fast switching time <10ms).
-

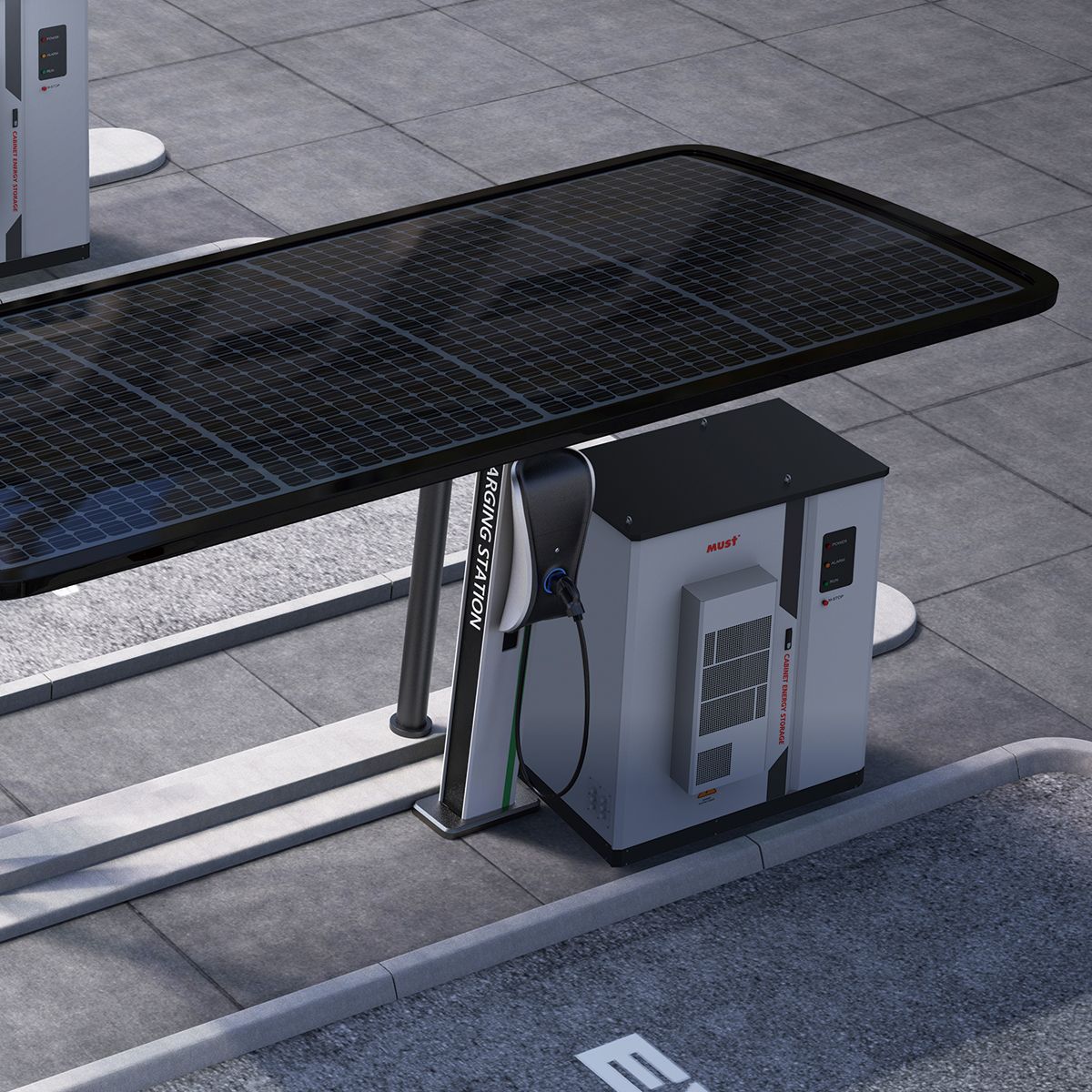

EV Charging Hubs: Provides the massive, stable energy buffer required to support multiple DC fast-charging stations without overloading the local utility grid.
Core Specifications Table
| Model | ESG-11536 | ESG-11540 | ESG-11550 | ESG-11560 |
| AC Rated Power | 36 KW | 40 KW | 50 KW | 60 KW |
| Max AC Output Current | 60 A | 66 A | 84 A | 91.2 A |
| Battery Rated Energy | 115.2 kWh | 115.2 kWh | 115.2 kWh | 115.2 kWh |
| Battery Rated Capacity | 200 Ah (LiFePO4) | 200 Ah (LiFePO4) | 200 Ah (LiFePO4) | 200 Ah (LiFePO4) |
| DC Rated Voltage | 576 V | 576 V | 576 V | 576 V |
| System Architecture | Built-in / All-in-One | Built-in / All-in-One | Built-in / All-in-One | Built-in / All-in-One |
| Nominal Output Voltage | 230V/400V (3-Phase) | 230V/400V (3-Phase) | 230V/400V (3-Phase) | 230V/400V (3-Phase) |
| Max DC Input Power(PV) | 54 KW | 60 KW | 75 KW | 100 KW |
| PV Max Voltage | 1000 V | 1000 V | 1000 V | 1000 V |
| MPPT Trackers | 4 | 4 | 4 | 4 |
| Cooling System | A/C + Air Cooling | A/C + Air Cooling | A/C + Air Cooling | A/C + Air Cooling |
| Protection Level | IP54 | IP54 | IP54 | IP54 |
| Dimensions (W*H*D) mm | 1707*2317*1222 | 1707*2317*1222 | 1707*2317*1222 | 1707*2317*1222 |
| Net Weight (kg) | 895 | 918 | 935 | 950 |
| Warranty | 10 Years | 10 Years | 10 Years | 10 Years |
