Description
Key Features
-

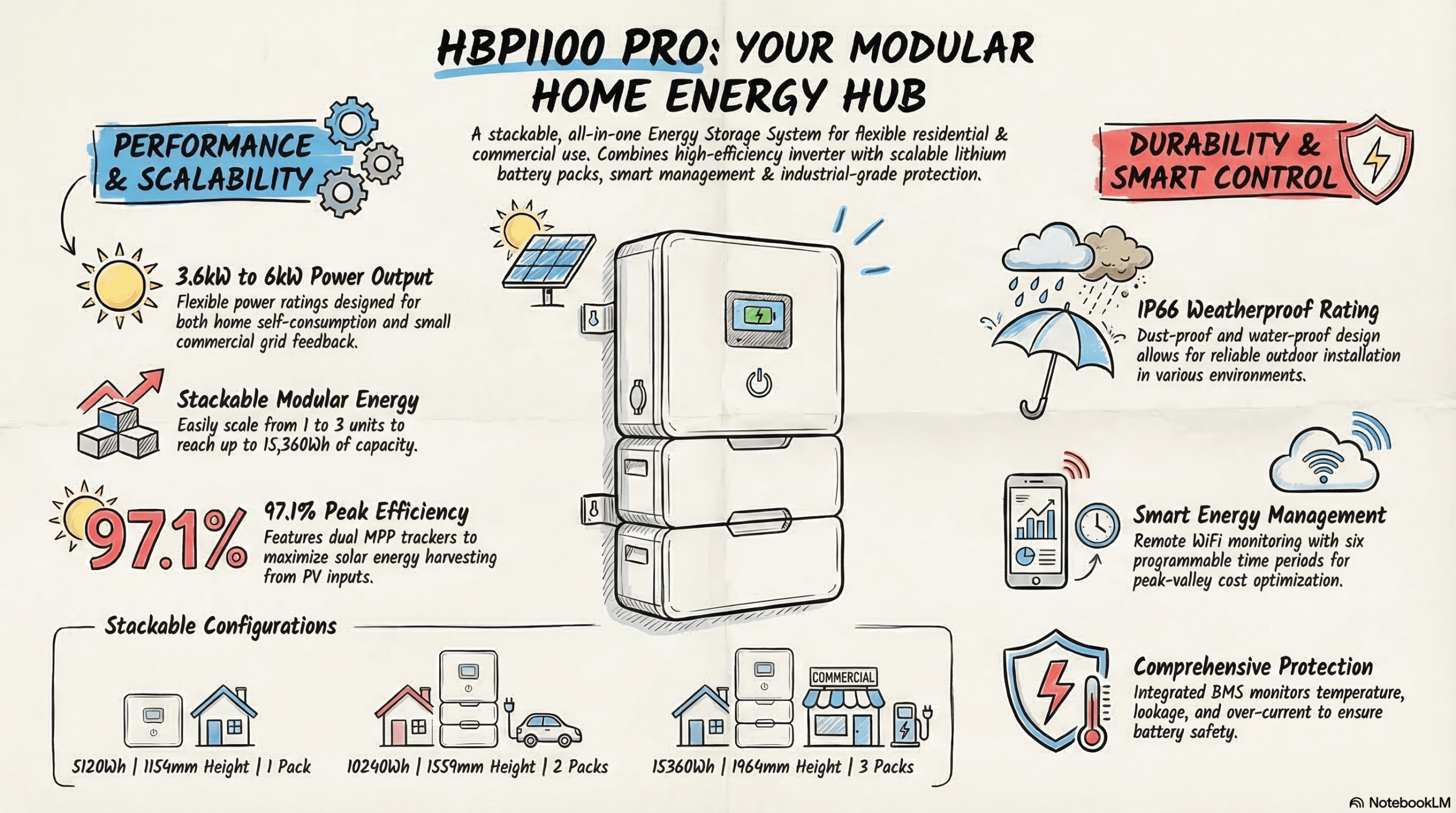

Modular Stackable Architecture: Future-proof your energy storage. The system starts with a base 5120Wh LiFePO4 module. As your energy needs grow, simply stack up to three battery modules together seamlessly to achieve 10.2kWh or 15.3kWh without messy external cabling.
-
Heavy-Duty Hybrid Performance: Delivers a robust 3.6KW to 6KW of continuous pure sine wave power. It expertly manages power flows, offering multiple working modes including load-priority, off-grid backup, and direct power selling back to the utility grid.
-
Smart Peak-Valley Optimization: Maximize your return on investment. The built-in intelligent software features six programmable time periods, allowing the system to automatically charge from the grid when rates are cheap (valley) and discharge to power your home when rates are high (peak).
-
High-Voltage Dual MPPT (500V): Harvest maximum solar energy. Features two advanced MPPT trackers with a massive 500V input threshold, allowing you to connect huge solar arrays (up to 7000W on the 6KW model) for incredibly fast recharging.
-
Extreme IP66 Weatherproofing: Built like a tank. With a certified IP66 rating, the entire stack is completely dust-tight and protected against powerful water jets. Safely install it in a garage, basement, or completely exposed on an exterior wall.
-
Generator Compatible & Smart BMS: Ensures you never run out of power. It supports seamless integration with fuel generators for automatic battery switchover during prolonged multi-day blackouts, all governed by a state-of-the-art Battery Management System.
-
Ultra-Slim Profile: With a depth of just 220mm (8.6 inches), the sleek tower design hugs the wall, saving valuable floor space while maintaining a modern, high-tech aesthetic.
Applications
-
Premium Home Battery Backup: Provides seamless, invisible backup power to keep essential circuits, refrigerators, and security systems online during grid failures.
-
Solar Self-Consumption & Arbitrage: Perfect for homes with solar panels looking to eliminate electric bills by storing daytime sunshine and leveraging Time-of-Use rate differences.
-
Semi-Outdoor Installations: The IP66 rating makes it the only choice for homes lacking indoor utility space, allowing for safe installation on patios or exterior walls.
Core Specifications Table
(Note: The system capacity is determined by stacking 1 to 3 battery modules (51.2V 100Ah / 5120Wh each) beneath the selected inverter.)
| Model | HBP11-3648 PRO | HBP11-4048 PRO | HBP11-5048 PRO | HBP11-6048 PRO |
| Nominal AC Output Power | 3600 W | 4000 W | 5000 W | 6000 W |
| Supported Battery Capacity | 5120Wh / 10240Wh | 5120Wh / 10240Wh | 10.2kWh / 15.3kWh | 10.2kWh / 15.3kWh |
| Battery Chemistry | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) |
| Grid Type & Output | Single Phase (230V) | Single Phase (230V) | Single Phase (230V) | Single Phase (230V) |
| Max Recommended PV Power | 4000 W | 5000 W | 6000 W | 7000 W |
| Max DC Voltage (PV) | 500V DC | 500V DC | 500V DC | 500V DC |
| MPPT Voltage Range | 120V ~ 500V | 120V ~ 500V | 120V ~ 500V | 120V ~ 500V |
| Number of MPP Trackers | 2 | 2 | 2 | 2 |
| Max AC Charge Current | 75 A | 85 A | 100 A | 125 A |
| Peak Efficiency | 97.1% | 97.1% | 97.1% | 97.1% |
| Protection Rating | IP66 (Outdoor Rated) | IP66 (Outdoor Rated) | IP66 (Outdoor Rated) | IP66 (Outdoor Rated) |
| System Depth (Slim Design) | 220 mm | 220 mm | 220 mm | 220 mm |
| System Height (1 Battery) | 1154 mm (5.1kWh) | 1154 mm (5.1kWh) | – | – |
| System Height (2 Batteries) | 1559 mm (10.2kWh) | 1559 mm (10.2kWh) | 1559 mm (10.2kWh) | 1559 mm (10.2kWh) |
| System Height (3 Batteries) | 1964 mm (15.3kWh) | 1964 mm (15.3kWh) | 1964 mm (15.3kWh) | 1964 mm (15.3kWh) |
| Warranty | 5 Yrs (Inverter/Battery) | 5 Yrs (Inverter/Battery) | 5 Yrs (Inverter/Battery) | 5 Yrs (Inverter/Battery) |
(Note: The HBP11-4648 PRO (4600W) model is also available within this series, sharing identical physical dimensions and supporting 5.1kWh or 10.2kWh battery configurations.)
