Description
Key Features
-

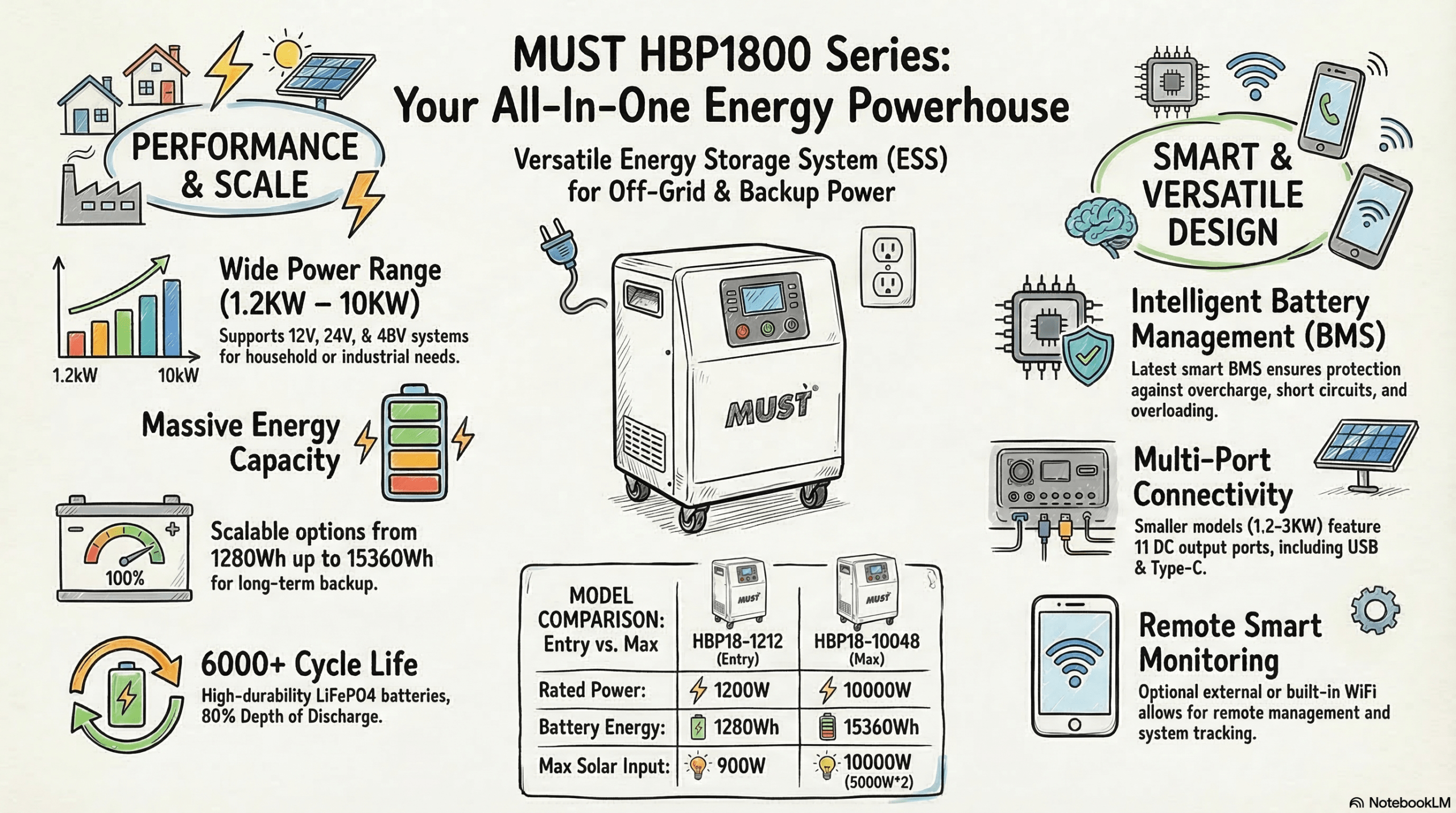

Comprehensive Power Range: Whether you need 1.2KW to keep the lights and fridge on, or a massive 10KW inverter to run heavy air conditioners and whole-house circuits, the HBP1800 series has a configuration tailored for you (offering 230V Pure Sine Wave output).
-
Dual Form Factors for Any Scenario:
-
Mobile Plug & Play (1.2KW-3KW): Features built-in wheels, 4x standard AC sockets, and multiple USB/Type-C ports. Perfect for rolling into any room for immediate, flexible power.
-
Whole-Home Modular (5.5KW-10KW): Features a stacked inverter and battery architecture with hardwired AC terminals. Ideal for integration into your home’s main electrical panel.
-
-
Massive LiFePO4 Energy Storage: Ranging from a compact 1280Wh up to an incredible 15360Wh (15.3kWh) on the flagship models. Utilizing premium Lithium Iron Phosphate chemistry, these batteries guarantee an exceptional 6000+ deep cycle life (@ 80% DOD, 25°C).
-
Extreme Solar Harvesting: Maximize your green energy. The larger models (8KW/10KW) feature advanced Dual MPPT technology capable of accepting up to 10,000W of solar input (5000W x 2) at a high voltage of 450V-500V, allowing for rapid off-grid recharging.
-
Seamless 10ms UPS Backup: Say goodbye to blackout disruptions. The built-in smart transfer switch instantly shifts your loads to battery power in a lightning-fast 10ms, keeping sensitive computers, servers, and medical devices running flawlessly.
-
Smart Monitoring & Color Display: The 5.5KW-10KW models feature an upgraded intuitive Color Display. The entire series supports remote monitoring via optional or built-in WiFi, allowing you to track solar production, battery health, and load consumption from your smartphone.
Applications
-
Mobile Emergency Backup (1.2-3KW): Roll the unit where it’s needed most during severe weather to power routers, TVs, and kitchen appliances via standard plug sockets.
-
Whole-Home Off-Grid Living (5.5-10KW): Hardwire the heavy-duty models into your breaker panel to power heavy motors, HVAC systems, and high-surge appliances completely independent of the utility grid.
-
Commercial Peak Shaving: Store cheap off-peak utility power or daytime solar energy in the massive 15.3kWh batteries to reduce expensive peak demand charges for small businesses.
Core Specifications Table
(Note: The 1.2KW~3KW models feature plug sockets and USB ports. The 5.5KW~10KW models utilize hardwired AC terminals for heavy-duty integration.)
| Model | HBP18-1212 | HBP18-3024 | HBP18-5548 | HBP18-8048 | HBP18-10048 |
| System Design | Mobile All-in-One | Mobile All-in-One | Modular / Stacked | Modular / Stacked | Modular / Stacked |
| Rated AC Power | 1200 W | 3000 W | 5500 W | 8000 W | 10000 W |
| Surge Power | 2400 W | 6000 W | 11000 W | 16000 W | 20000 W |
| Battery Energy | 1280 Wh | 3072 Wh | 7168 Wh | 15360 Wh | 15360 Wh |
| Battery Chemistry | 12.8V LiFePO4 | 25.6V LiFePO4 | 25.6V LiFePO4 | 51.2V LiFePO4 | 51.2V LiFePO4 |
| Output Waveform | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave |
| AC Output Voltage | 230V AC ±5% | 230V AC ±5% | 230V AC ±5% | 230V AC ±5% | 230V AC ±5% |
| AC Output Type | 4x AC Sockets | 4x AC Sockets | AC Terminals | AC Terminals | AC Terminals |
| DC/USB Ports | Type-C / 6x USB | Type-C / 6x USB | None | None | None |
| Max PV Input | 900 W | 1800 W | 6000 W | 8000 W (4KW*2) | 10000 W (5KW*2) |
| Max PV Voltage | 105 VDC | 160 VDC | 450 VDC | 500 VDC | 500 VDC |
| Max AC Charge | 20 A | 60 A | 100 A | 120 A | 150 A |
| Transfer Time | 10ms (Typical) | 10ms (Typical) | 10ms (Typical) | 10ms (Typical) | 10ms (Typical) |
| Cycle Life | 6000+ Cycles | 6000+ Cycles | 6000+ Cycles | 6000+ Cycles | 6000+ Cycles |
| Total Weight (kg) | 21 kg | 36 kg | 66 kg | (Data Pending) | 45 kg (Combined) |
(Note: For brevity, the HBP18-2024 model (2000W / 2560Wh) is omitted from this comparison table but retains the same mobile form factor and features as the 1212 and 3024 models.)
