Description
Key Features
-

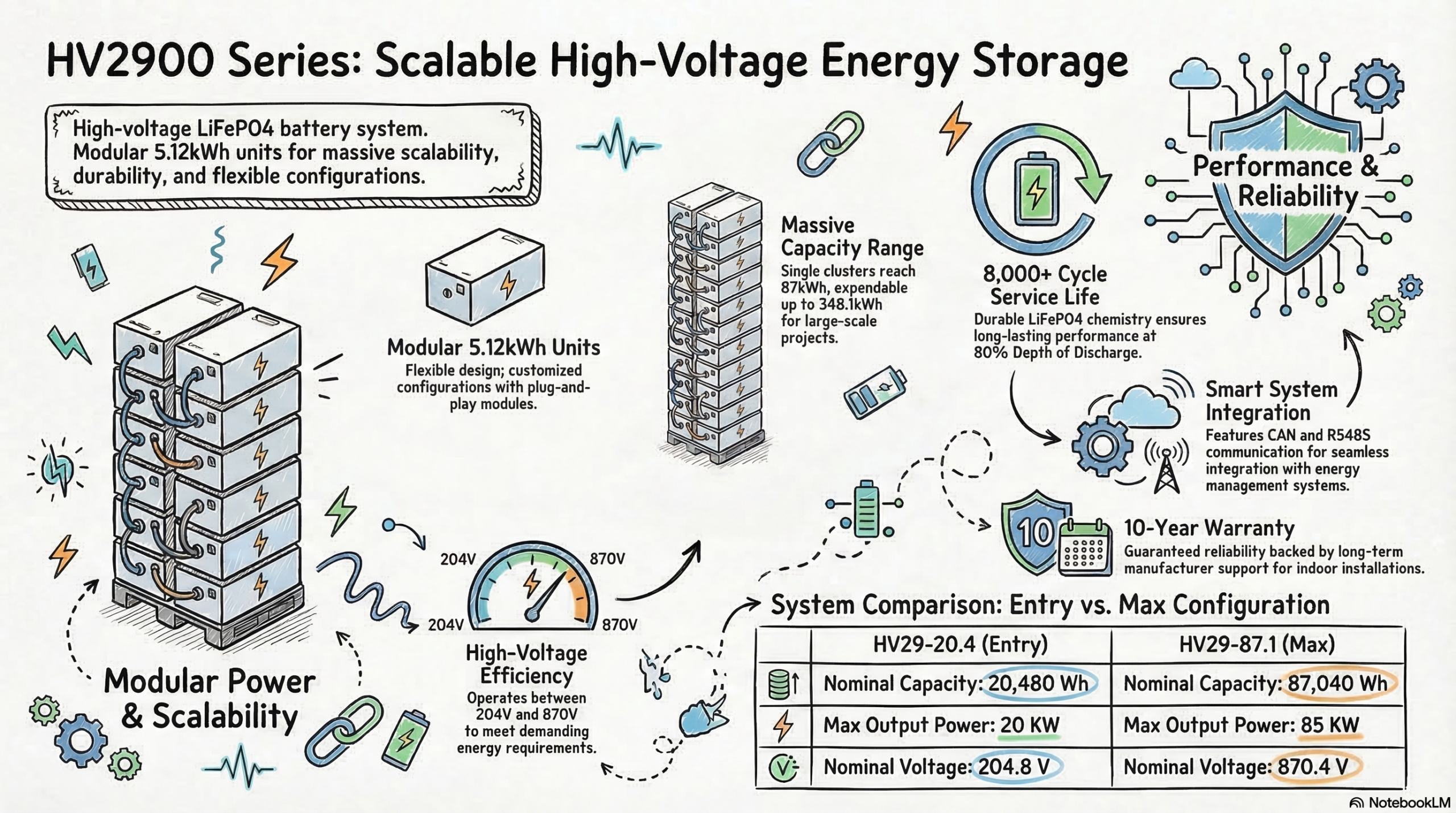

Modular High-Voltage Architecture: The system strings together modular HP2900 (5.12kWh/100Ah) batteries to increase voltage rather than just parallel capacity. Scale from 4 modules (204.8V / 20.4kWh) up to 17 modules (870.4V / 87.1kWh) in a single cabinet.
-
Massive System Expansion: Designed for the future. If a single 87kWh cluster isn’t enough, you can expand the system up to 348.1kWh, making it perfectly suited for Commercial & Industrial (C&I) peak shaving and grid independence.
-
Ultra-High Power Output: The high-voltage design allows for massive power delivery. A single 87.1kWh cluster supports up to 85KW of maximum continuous output (with a 100A charge/discharge current), effortlessly driving 3-phase industrial loads.
-
Premium Long-Life Cells: Built with highly stable LiFePO4 chemistry, providing ≥6000 deep cycles (at 80% DOD, 25°C). The system delivers a 95% roundtrip efficiency and is supported by a comprehensive 10-Year Warranty.
-
Smart HV-BOX Control: Every system is managed by the central HV-BOX, featuring a built-in 125A circuit breaker, an LCD status indicator, and CAN2.0/RS485 communication ports for seamless closed-loop integration with high-voltage inverters.
-
Plug-and-Play Cabinet Installation: The batteries and HV-BOX slide neatly into a dedicated Indoor Rack Cabinet (IP20), significantly reducing on-site wiring complexity and saving valuable installation time.
Applications
-
Commercial & Industrial (C&I): Ideal for factories, farms, and offices looking to reduce demand charges through peak shaving and load shifting.
-
Luxury Estates: Provides robust 3-phase whole-home backup for large properties with heavy HVAC or multi-EV charger loads.
-
Microgrids & Solar Farms: Pairs perfectly with high-voltage Power Conversion Systems (PCS) to store and dispatch massive amounts of solar energy.
Core Specifications Table
(Models are configured by connecting HP2900 5.12kWh/100Ah modules in series. All systems support 100A Max Continuous Current and 120A Peak for 30s.)
| Configuration | HV29-20.4 | HV29-30.7 | HV29-40.9 | HV29-51.2 | HV29-61.4 | HV29-76.8 | HV29-87.1 |
| Number of Modules | 4 Modules | 6 Modules | 8 Modules | 10 Modules | 12 Modules | 15 Modules | 17 Modules |
| Nominal Voltage | 204.8V | 307.2V | 409.6V | 512.0V | 614.4V | 768.0V | 870.4V |
| Nominal Energy | 20.48 kWh | 30.72 kWh | 40.96 kWh | 51.20 kWh | 61.44 kWh | 76.80 kWh | 87.04 kWh |
| Max Output Power | 20 KW | 30 KW | 40 KW | 50 KW | 60 KW | 75 KW | 85 KW |
| Operating Voltage | 172.8~230.4V | 259.2~345.6V | 345.6~460.8V | 432.0~576.0V | 518.4~691.2V | 648.0~864.0V | 734.4~979.2V |
|
Cabinet Dimensions (W*H*D) mm |
550*1040*700 | 550*1390*700 | 550*1850*800 | 1150*1220*700 | 1150*1390*700 | 1150*1570*800 | 1150*1850*700 |
| System Weight (kg) | 206 | 311 | 405 | 506 | 610 | 755 | 870 |
| Protection Rating | IP20 (Indoor) | IP20 (Indoor) | IP20 (Indoor) | IP20 (Indoor) | IP20 (Indoor) | IP20 (Indoor) | IP20 (Indoor) |
