Description
Key Features
-

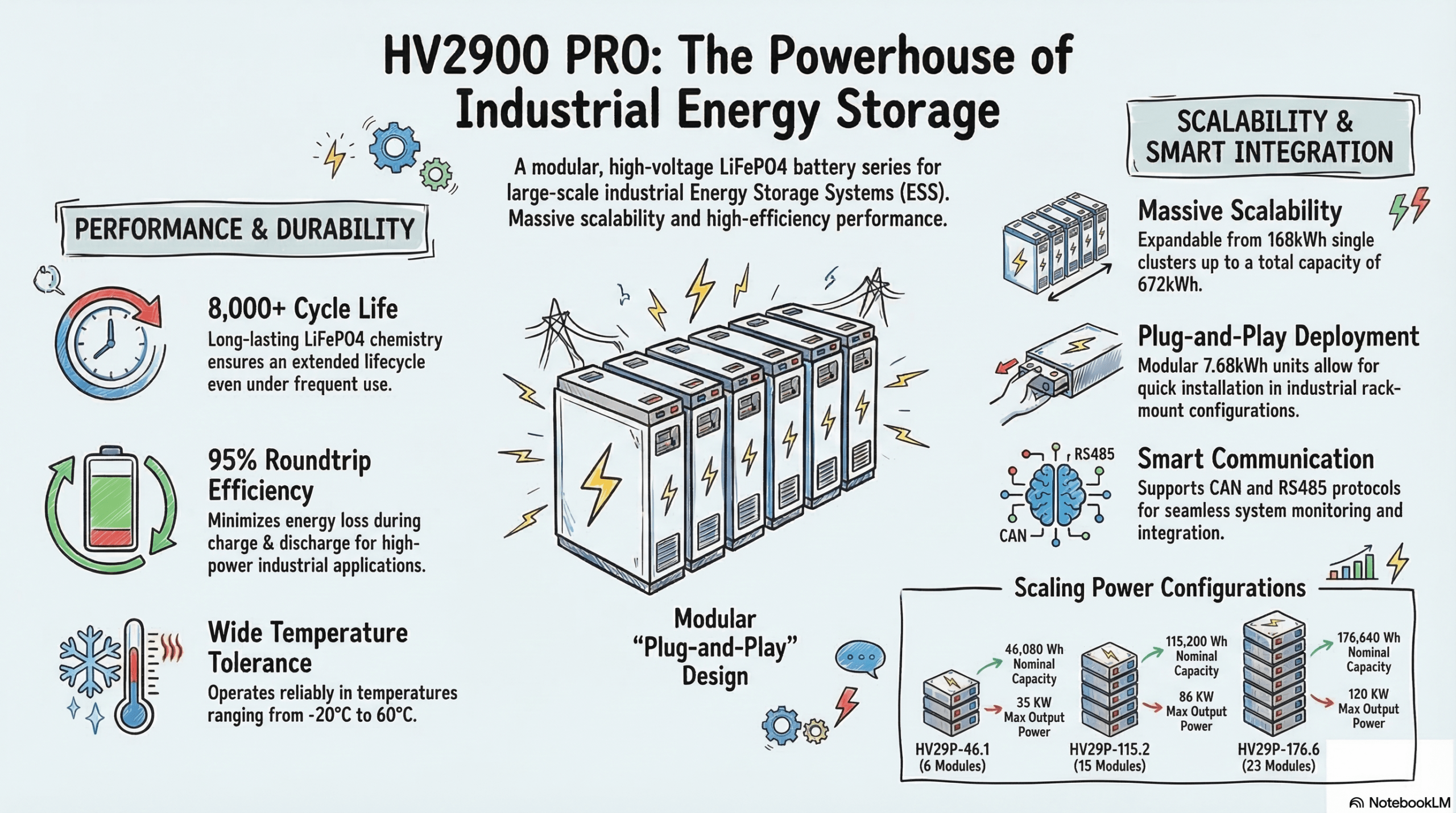

Ultra-High Voltage Modular Architecture: Connects modules in series, scaling from 6 modules (230.4V / 46.1kWh) up to 23 modules (883.2V / 176.6kWh) perfectly integrated within a custom cabinet alongside the HV-BOX.
-
Massive C&I Scalability: Future-proof your energy needs. The system supports parallel expansion up to 672kWh, making it the ultimate choice for Commercial & Industrial (C&I) peak shaving, microgrids, and load shifting.
-
Extreme Power Output: The high-voltage design translates to massive power delivery. The largest 176.6kWh cluster supports up to 130KW maximum continuous output, paired with a 150A max continuous charge/discharge current (200A peak for 10s) to effortlessly drive 3-phase industrial loads.
-
Premium Long-Life LiFePO4 Cells: Utilizes highly stable Lithium Iron Phosphate chemistry, delivering ≥6000 deep cycles (at 25°C, 80% DOD) and a 95% battery roundtrip efficiency, all backed by a reliable 10-Year Warranty.
-
Smart HV-BOX Core Control: The entire system is centrally managed by the HV-BOX, which features a built-in 220A circuit breaker, an LCD status display, and CAN2.0 / RS485 ports for seamless closed-loop communication with high-voltage 3-phase inverters.
-
Plug-and-Play Cabinet Installation: Battery modules and the control box slide into a dedicated Indoor Rack Cabinet (IP20) on standard rails, drastically reducing on-site high-voltage wiring complexity, safety risks, and installation time.
Applications
-
Commercial & Industrial (C&I): Ideal for factories, data centers, and large office buildings to reduce demand charges and achieve peak shaving.
-
Microgrids & Solar Farms: Capable of storing massive amounts of solar energy to build independent off-grid or grid-tied microgrids.
-
Luxury Estates: Provides robust, uninterrupted 3-phase backup power for huge properties running multiple central AC units and EV chargers.
Core Specifications Table
(Note: The system is configured by connecting HP2900 PRO 7.68kWh/200Ah modules in series. All systems support a 150A Max Continuous Charge/Discharge Current.)
| Configuration | HV29P-46.1 | HV29P-69.1 | HV29P-92.1 | HV29P-115.2 | HV29P-138.2 | HV29P-153.6 | HV29P-176.6 |
| Number of Modules | 6 Modules | 9 Modules | 12 Modules | 15 Modules | 18 Modules | 20 Modules | 23 Modules |
| Nominal Voltage | 230.4V | 345.6V | 460.8V | 576.0V | 691.2V | 768.0V | 883.2V |
| Nominal Energy | 46.08 kWh | 69.12 kWh | 92.16 kWh | 115.20 kWh | 138.24 kWh | 153.60 kWh | 176.64 kWh |
| Max Output Power | 35 KW | 51 KW | 69 KW | 86 KW | 100 KW | 115 KW | 130 KW |
| Operating Voltage | 194.4~259.2V | 291.6~388.8V | 388.8~518.4V | 486.0~648.0V | 583.2~777.6V | 648.0~864.0V | 745.2~993.6V |
|
Cabinet Dimensions (W*H*D) mm |
550*1920*700 | 1150*1480*700 | 1150*1920*700 | 1700*1660*700 | 1700*1920*700 | 2250*1660*700 | 2250*1660*700 |
| System Weight (kg) | 463 | 694 | 906 | 1119 | 1337 | 1495 | 1707 |
| Protection Rating | IP20 (Indoor) | IP20 (Indoor) | IP20 (Indoor) | IP20 (Indoor) | IP20 (Indoor) | IP20 (Indoor) | IP20 (Indoor) |
