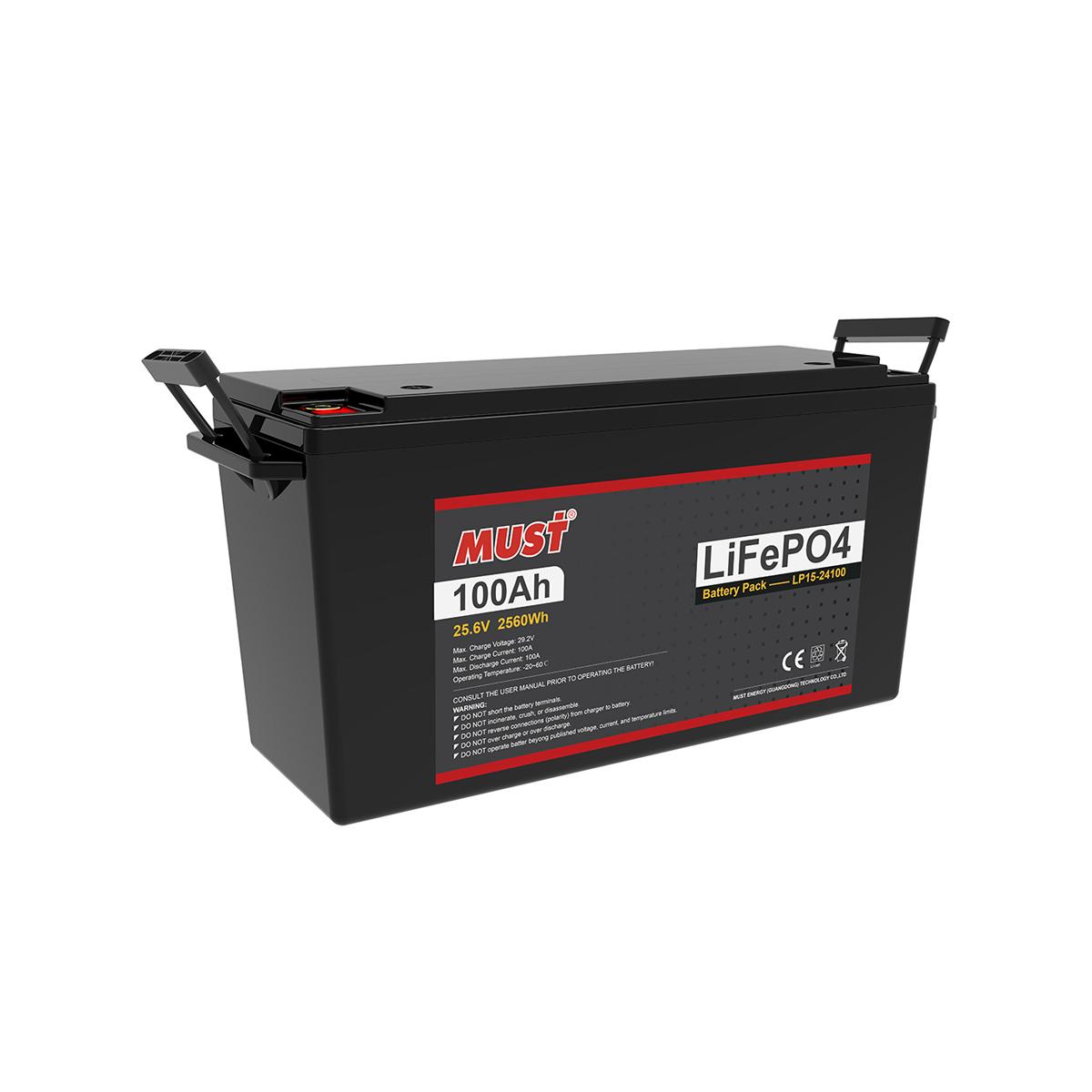

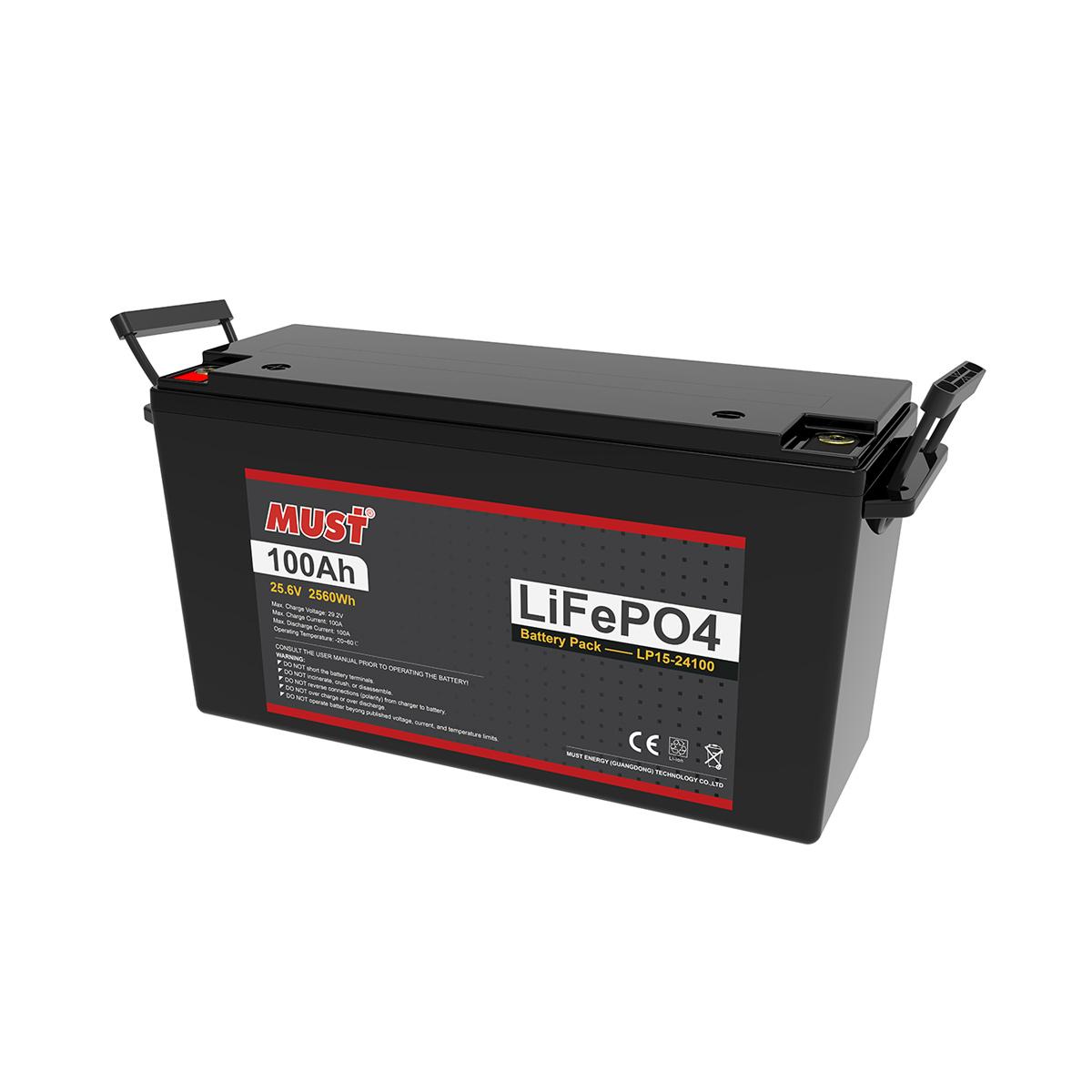

LP1500 Series (25.6V-100/120/200Ah)

LiFePO4 Battery 2560Wh/3072Wh/5120Wh

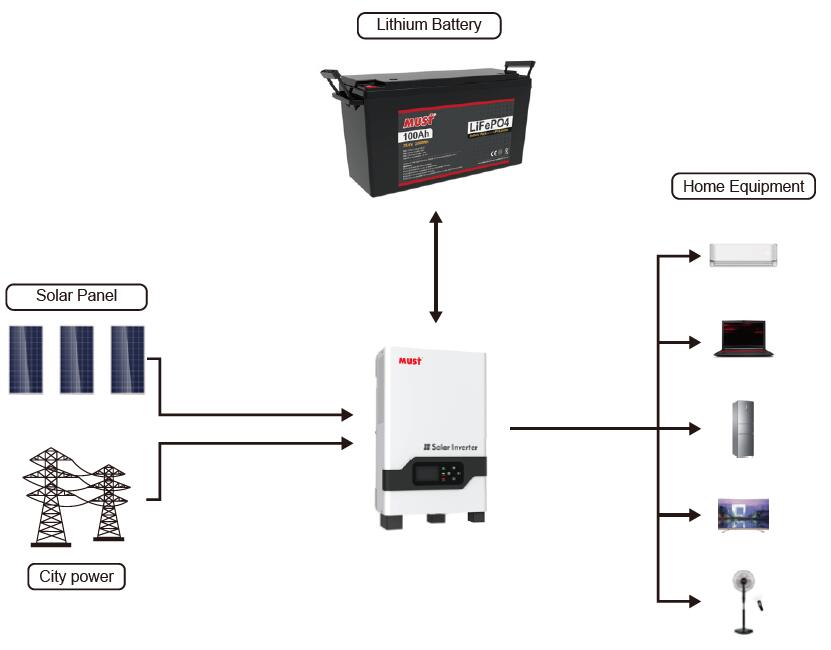

The Must LP1500 SERIES LiFePO4 battery is fit for E-mobility, Energy Storage System, Defense & Security, telecom outdoor applications,renewable energy systems, and other harsh environment applications.




High cycle life

6000 Cycles (25℃, 80% DOD) for effectively lower total of ownership cost.

Longer service life

Low maintenance batteries with stable chemistry.

Built in circuit protection

Battery Management System (BMS) is incorporated against abuse.

Better storage

up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.

Quickly recharge

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

Extreme heat tolerance

Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.


Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.


MODEL LP15-24100 LP15-24120 LP15-24200
Nominal Voltage 25.6V
Nominal Capacity 100Ah 120Ah 200Ah
Nominal Energy 2560Wh 3072Wh 5120Wh
Life Cycles 6000 Cycles (25℃, 80% DOD)
Recommended Charge Voltage 29.2V
Recommended Charge Current 20A
End Of Discharge Voltage 20V
Standard Method Charge 20A 24A 40A
Discharge 50A 60A 100A
Maximum Continuous Current Charge 50A 60A 100A
Discharge 100A 100A 100A
BMS Cut-Off Voltage Charge 30.8 V (3.85V/Cell)
Discharge 18.4 V (2s) (2.3V/Cell)
Temperature Charge -4 ~ 113 ℉ (0 ~ 45℃ )
Discharge -4 ~ 131 ℉ (-20 ~ 55 ℃ )
Storage Temperature 23~95 ℉ (-5~35℃ )
Shipment voltage ≥25.6V
Case Material ABS+PC
Dimension (L x W x H) 522x240x218mm 20.6 x 9.5 x 8.6” 522x240x218mm 20.6 x 9.5 x 8.6” 522x240x218mm 20.6 x 9.5 x 8.6”
Approx. Weight 49.6 lbs (22.5 kg) 59.5 lbs (27 kg) 99.2 lbs (45 kg)
Charge retention and capacity recovery capability Standard charge the battery, and then put aside at room temperature for 28d or 55 ℃ for 7d, Charge retention rate≥90%, Recovery rate of charge≥90
