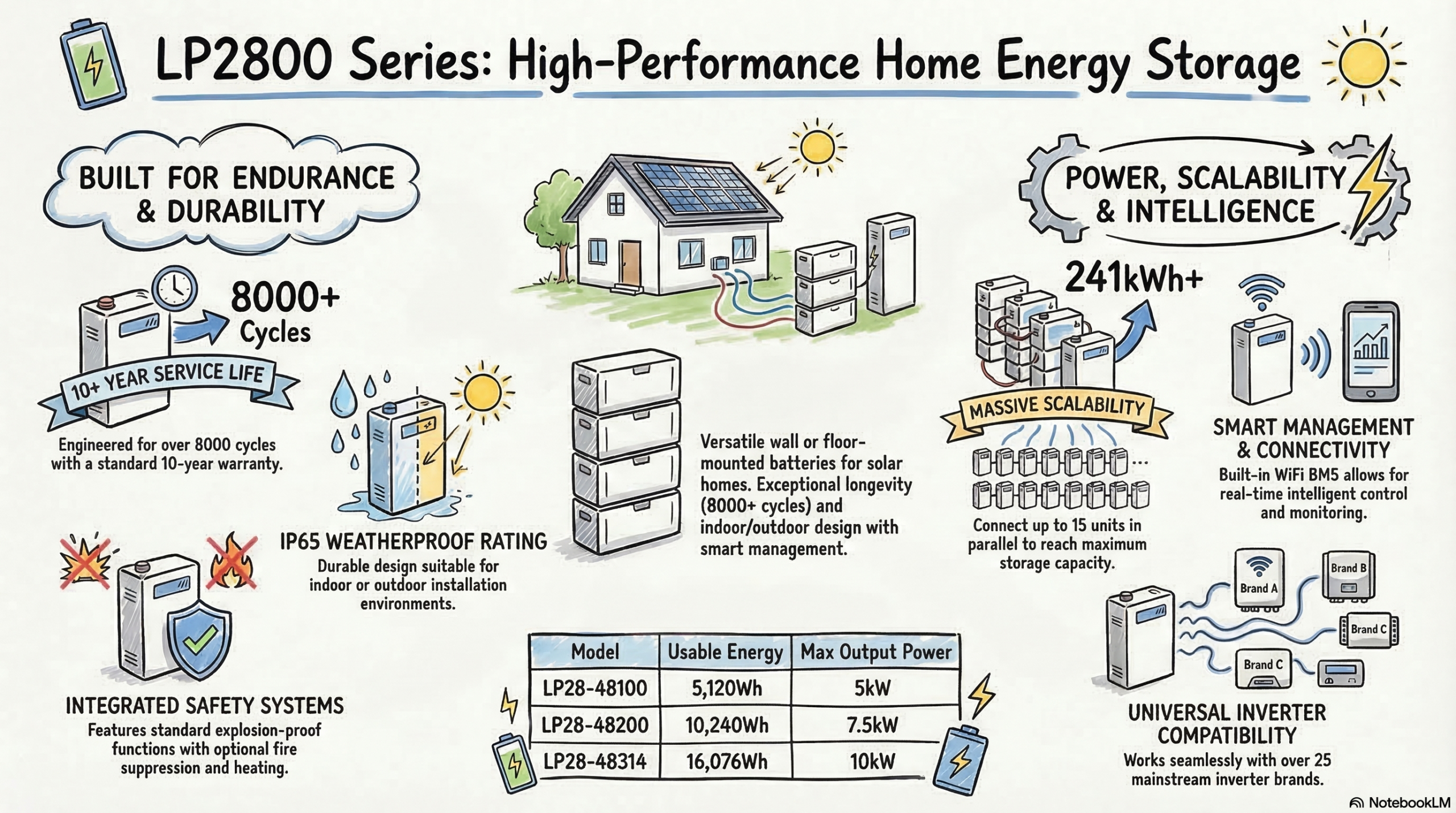

Description
Key Features
-
Unmatched Safety Standards: Safety is paramount. Every LP2800 unit comes standard with a Built-in Explosion-Proof function. For extreme environments, optional Fire Suppression and internal Heating functions (for freezing climates) are available, providing total peace of mind.
-
Massive Single-Unit Capacity: Choose from 100Ah, 200Ah, 300Ah, and the new ultra-dense 314Ah (16.07kWh) models. A single high-capacity unit can power an average home through the night, saving installation space and wiring time.
-
High Power Output (Up to 10KW): The 300Ah and 314Ah models support a massive 200A Maximum Continuous Discharge, delivering 10KW of output power to effortlessly run heavy loads like HVAC systems, well pumps, and EV chargers.
-
IP65 Indoor & Outdoor Ready: The fully sealed metal cabinet is rated IP65, protecting the battery from dust and water jets. It can be safely installed in basements, garages, or outdoors (away from direct sunlight).
-
Smart WiFi BMS: Features a built-in WiFi and BLE module. Users can monitor real-time data, cell health, and State of Charge (SOC) from anywhere using the dedicated smartphone app.
-
Exceptional 10-Year Warranty: Powered by top-tier Lithium Iron Phosphate cells, it delivers an incredible ≥8000 cycles at 25°C. MUST backs this with a comprehensive 10-Year Warranty.
-
Massive Scalability: The intelligent BMS allows up to 15 units to be connected in parallel, enabling a staggering maximum system capacity of 241.14kWh for commercial or luxury estate applications.
-
Universal Inverter Compatibility: Pre-programmed to communicate flawlessly (via CAN/RS485) with over 25 mainstream inverter brands globally.
Applications
-
High-End Residential Solar: The sleek design and high power output make it perfect for modern, energy-independent homes.
-
Harsh Environments: The IP65 rating and optional heating function make it ideal for off-grid cabins in cold or humid climates.
-
Safety-Critical Installs: The explosion-proof and fire suppression features are perfect for indoor utility rooms where safety codes are strict.
Core Specifications Table
(All models operate at 51.2V Nominal Voltage.)
| Model | LP28-48100 | LP28-48200 | LP28-48300 | LP28-48314 |
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 100Ah | 200Ah | 300Ah | 314Ah |
| Nominal Energy | 5.12 kWh (5120Wh) | 10.24 kWh (10240Wh) | 15.36 kWh (15360Wh) | 16.07 kWh (16076Wh) |
| Max Output Power | 5 KW | 7.5 KW | 10 KW | 10 KW |
| Max Cont. Charge/Discharge | 100A | 150A | 200A | 200A |
| Cycle Life | ≥8000 Cycles | ≥8000 Cycles | ≥8000 Cycles | ≥8000 Cycles |
| Dimensions (W*H*D) mm | 500 * 620 * 175 | 500 * 892.5 * 150 | 500 * 980 * 250 | 500 * 980 * 250 |
| Net Weight | ≈ 52 kg | ≈ 92 kg | ≈ 118 kg | ≈ 119 kg |
| Installation Mode | Floor / Wall-Mount | Floor-Mount Only | Floor-Mount Only | Floor-Mount Only |
| Protection Rating | IP65 | IP65 | IP65 | IP65 |
| Communication | CAN/RS485/WIFI/BLE | CAN/RS485/WIFI/BLE | CAN/RS485/WIFI/BLE | CAN/RS485/WIFI/BLE |
