Description

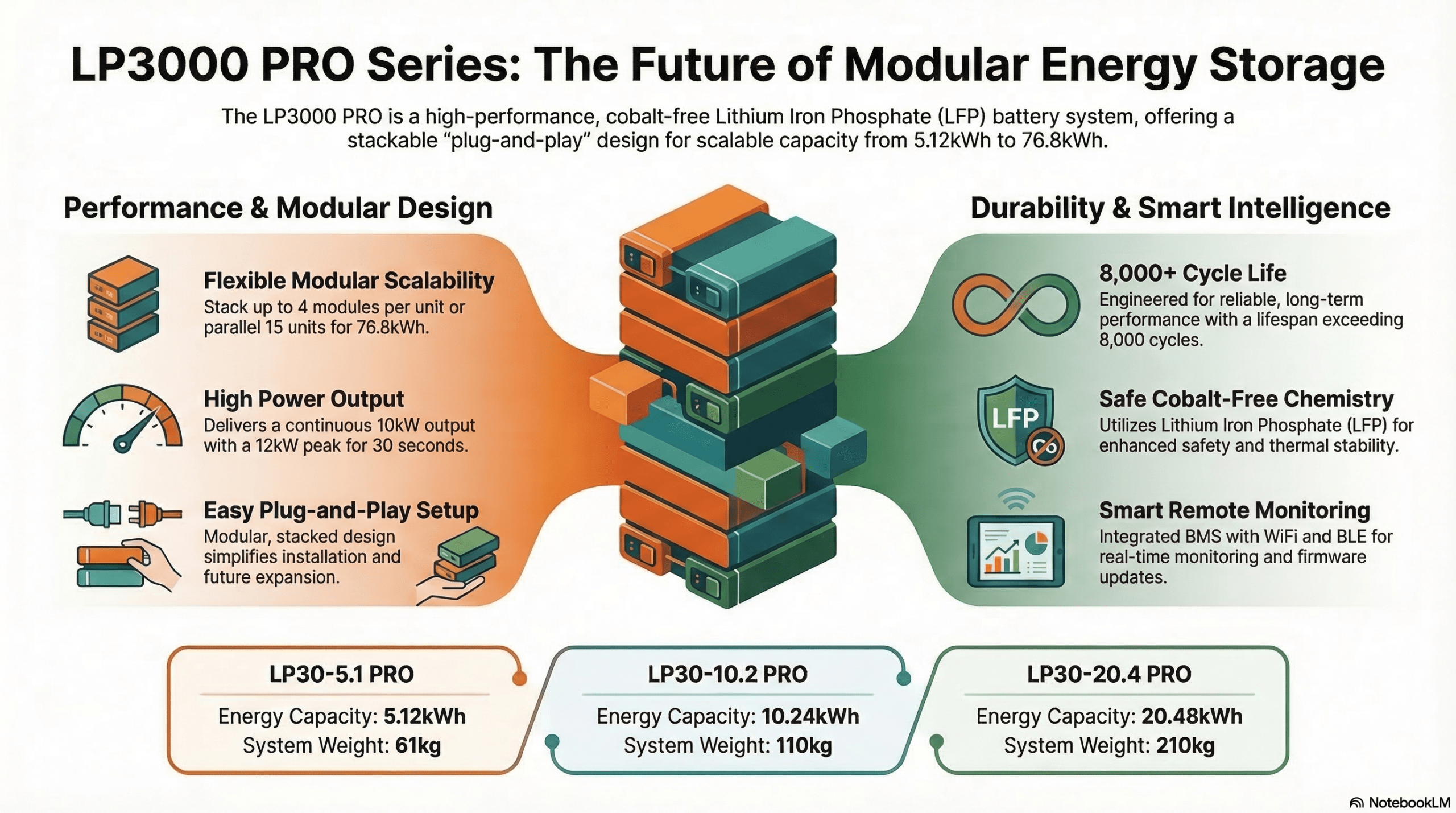

Key Features
-
Easy Plug-and-Play Stacking: The modular design simplifies setup and expansion. Modules lock together securely, eliminating the need for messy cables or custom mounting brackets, enabling rapid deployment.
-
Flexible Capacity & Expansion: A single stack supports up to 4 modules (20.48kWh). For larger energy needs, the system can be paralleled up to 15 units (76.8kWh), perfectly sizing to your household’s requirements.
-
High Power Output (10KW): Delivers a continuous power output of 10KW (for 2+ modules) and a peak surge of 12KW for 30 seconds, providing the robust energy needed to start heavy inductive loads like air conditioners and well pumps.
-
IP65 Indoor & Outdoor Ready: The fully sealed metal enclosure is IP65 waterproof and dustproof, allowing for versatile and safe installation in garages, basements, or outdoor spaces (under a canopy/shade).
-
Ultra-Long 8000+ Cycle Life: Utilizes premium Cobalt-Free Lithium Iron Phosphate (LiFePO4) chemistry, delivering over 8000 deep cycles for years of reliable, degradation-resistant performance.
-
Advanced Smart BMS: Each module features independent management with built-in WiFi and BLE. Monitor SOC, cell voltage, and temperatures in real-time, and execute remote firmware updates directly via your smartphone.
-
Wide Inverter Compatibility: Engineered to communicate seamlessly (via CAN/RS485) with over 15 of the leading hybrid inverter brands on the market.
Applications
-
Modern Home Backup: A compact 10kWh-20kWh stack provides complete energy independence and peak-shaving capabilities for average households.
-
Outdoor Installations: Perfect for properties with limited indoor space, safe to install on patios or under eaves thanks to the IP65 rating.
-
Scalable Solar Systems: Start small with a 5kWh module and effortlessly stack more modules as your energy consumption grows.
Core Specifications Table
(Models are configured by stacking the LP30 PRO-48100 5.12kWh base module. All operate at 51.2V Nominal Voltage.)
| Configuration | LP30-5.1 PRO | LP30-10.2 PRO | LP30-15.3 PRO | LP30-20.4 PRO |
| Number of Modules | 1 Module | 2 Modules | 3 Modules | 4 Modules |
| Energy Capacity | 5.12 kWh | 10.24 kWh | 15.36 kWh | 20.48 kWh |
| Usable Capacity | 4.91 kWh | 9.83 kWh | 14.75 kWh | 19.66 kWh |
| Max Output Power | 5 KW | 10 KW | 10 KW | 10 KW |
| Max Charge Current | 100 A | 150 A | 200 A | 200 A |
| Max Disch. Current | 100 A | 150 A | 200 A | 200 A |
| Dimensions (mm) | 595*230*450 | 595*230*830 | 595*230*1210 | 595*230*1590 |
| Weight (kg) | 61 | 110 | 160 | 210 |
| Protection Rating | IP65 | IP65 | IP65 | IP65 |
