Description

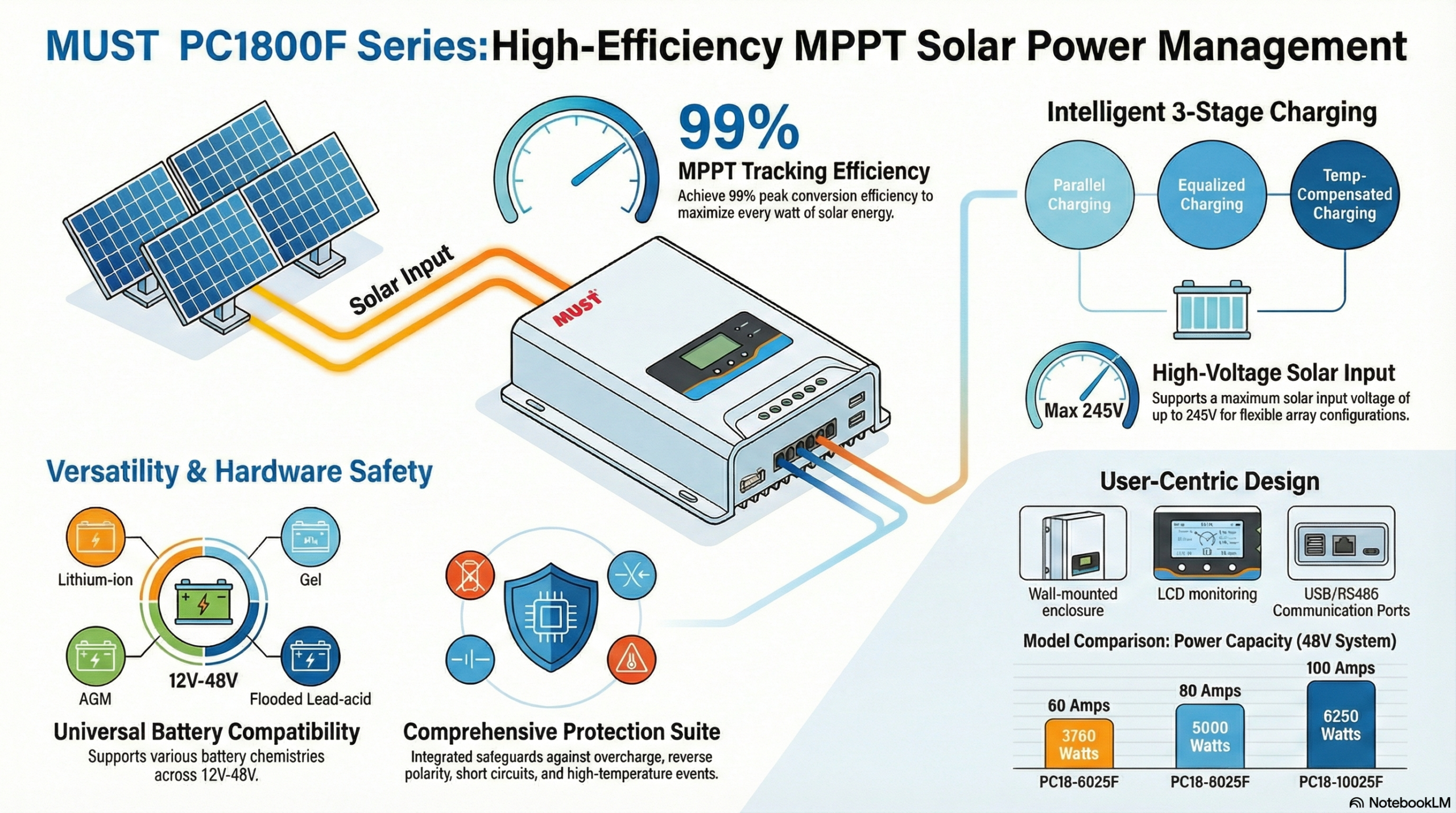

Key Features
-
Ultra-High 245V PV Input: Supports a Maximum Open Circuit Voltage (VOC) of 245V (for 24V/36V/48V systems), enabling you to connect multiple panels in series, significantly reducing cable thickness and power loss over long distances. (Note: 12V systems limited to 100V VOC).
-
Quad-Voltage Support (12/24/36/48V): Unlike standard controllers, the F-Series is compatible with 12V, 24V, 36V, and 48V systems. It automatically detects 12/24/48V, while 36V can be manually set, offering unmatched versatility.
-
Massive Power Handling:
-
60A Model: Up to 3760W PV input (48V).
-
80A Model: Up to 5000W PV input (48V).
-
100A Model: Up to 6250W PV input (48V), plus a dedicated 100A DC Load Output.
-
-
Advanced MPPT Technology: Tracks the maximum power point with >99% efficiency, ensuring every watt of solar energy is harvested, even in shading or cloudy weather. Peak conversion efficiency reaches 98%.
-
Smart Battery Charging: Features 3-Stage Charging (Bulk, Absorption, Float) with presets for AGM, Gel, Flooded, and a User mode for Lithium batteries. Includes a Battery Temperature Sensor (BTS) port for precise compensation.
-
Connectivity & Monitoring: Equipped with RS485 and USB ports, allowing for connection to PC monitoring software or external display modules for advanced data analysis.
-
Fan Cooling: Active fan cooling ensures the controller operates at full capacity even in hot environments (up to 55°C).
Applications
-
Large Off-Grid Homes: The 80A/100A models can handle substantial solar arrays (5KW+) for whole-house power.
-
Communication Base Stations: Reliable 48V charging for telecom backup systems.
-
Solar Water Pumping: High voltage input is ideal for matching with certain DC pump configurations.
Core Specifications Table
| Model | PC18-6025F | PC18-8025F | PC18-10025F |
| Rated Charge Current | 60A | 80A | 100A |
| System Voltage | 12V/24V/36V/48V | 12V/24V/36V/48V | 12V/24V/36V/48V |
| Max PV Voltage (VOC) | 245V (100V @12V) | 245V (100V @12V) | 245V (100V @12V) |
| Max PV Power (12V) | 940W | 1250W | 1560W |
| Max PV Power (24V) | 1880W | 2500W | 3120W |
| Max PV Power (48V) | 3760W | 5000W | 6250W |
| DC Load Output | Not Specified | Not Specified | 100A |
| Max Efficiency | 98% | 98% | 98% |
| Communication | RS485 / USB | RS485 / USB | RS485 / USB |
| Dimensions (mm) | 163.6 * 306.6 * 94.9 | 165 * 284 * 97 | 165 * 284 * 97 |
| Net Weight | 3 kg | 4 kg | 4 kg |
| Cooling | Fan Cooling | Fan Cooling | Fan Cooling |
(Note: While 12V/24V/48V are Auto-detected, 36V systems require manual setting.)
