Description

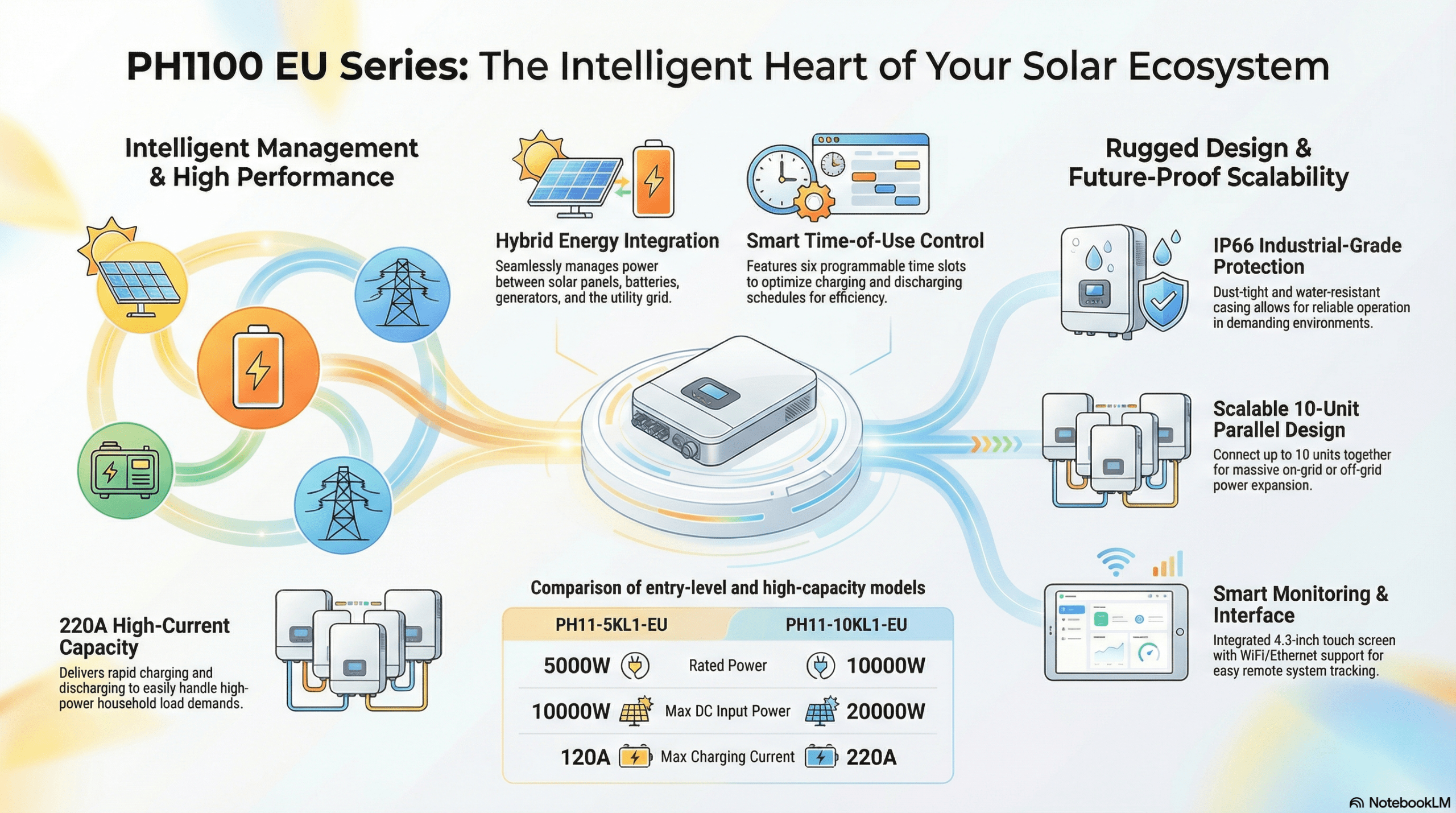

Key Features
-
High-Power Single Phase Output: Delivers continuous Single Phase power up to 10KW, making it one of the most powerful single-phase hybrid inverters available, capable of running heavy-duty household appliances (e.g., pumps, large fridges, induction cookers).
-
Super-Fast Charging: Supports a massive 220A Maximum Charging/Discharging Current, allowing for rapid battery replenishment from solar or grid during short windows of availability.
-
Massive Scalability (10 Units): Supports parallel connection of up to 10 units, enabling a maximum capacity of 100KW for larger energy demands (supports Single Phase parallel only).
-
Smart Time-of-Use Control: Features 6 programmable time slots for charging and discharging, allowing users to shift energy usage to cheaper tariff periods (Peak Shaving) effectively.
-
Robust IP66 Protection: Designed with a sealed IP66 enclosure and intelligent fan cooling, ensuring durability in harsh outdoor environments (rain, dust, humidity).
-
Flexible Retrofit (AC Couple): Easily integrates with existing grid-tied solar systems via AC Coupling, adding battery storage capabilities without replacing the original inverter.
Applications
-
Large Residential Properties: Ideal for larger homes with Single Phase grid connections requiring substantial backup power.
-
Energy Storage Upgrades: Perfect for retrofitting existing solar homes to store energy for night-time use.
-
Outdoor Installations: Can be securely mounted on exterior walls or in exposed areas thanks to its high IP66 weatherproof rating.
Core Specifications Table
| Model | PH11-5KL1-EU | PH11-6KL1-EU | PH11-8KL1-EU | PH11-10KL1-EU |
| Grid Type | Single Phase | Single Phase | Single Phase | Single Phase |
| AC Rated Power | 5000W | 6000W | 8000W | 10000W |
| Nominal Voltage | 220/230/240VAC | 220/230/240VAC | 220/230/240VAC | 220/230/240VAC |
| Battery Voltage | 48VDC | 48VDC | 48VDC | 48VDC |
| Max PV Voltage | 600V | 600V | 600V | 600V |
| MPPT Trackers | 2 | 2 | 2 | 2 |
| Max PV Input Power | 10000W | 12000W | 16000W | 20000W |
| Max Charge Current | 120A | 150A | 190A | 220A |
| Dimensions (mm) | 446*692*260 | 446*692*260 | 446*692*260 | 446*692*260 |
| Net Weight | 38 kg | 38 kg | 38 kg | 38 kg |
| Protection | IP66 | IP66 | IP66 | IP66 |
