Description

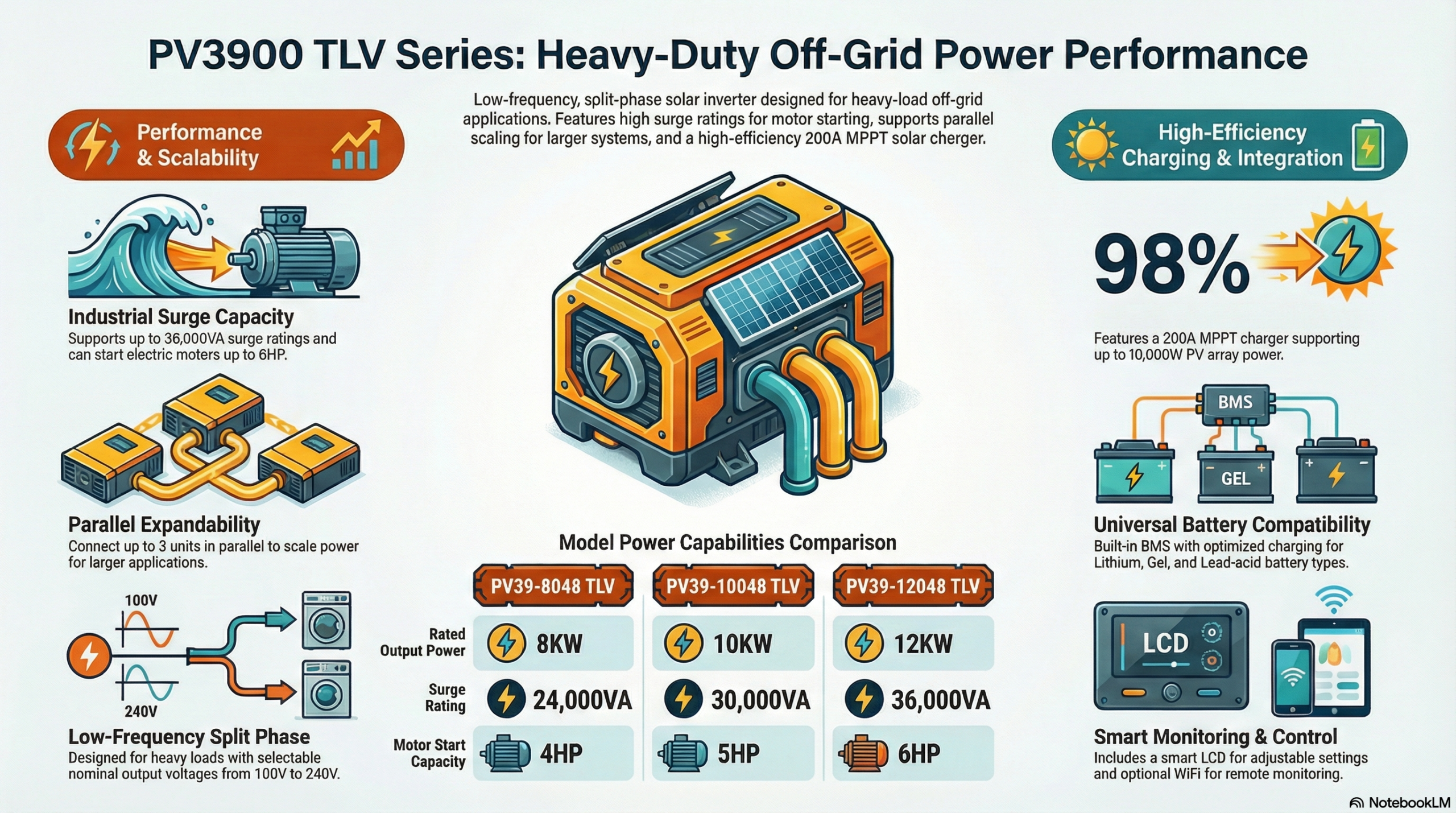

Key Features
-
Split Phase Output: Capable of delivering 110V/120V for standard appliances and 220V/240V for heavy-duty equipment, providing flexible power options for diverse regional standards (North America/Latin America).
-
Industrial Low Frequency Design: The heavy-duty transformer architecture ensures robust performance and isolates the battery from the load, offering superior protection against voltage spikes and surges.
-
Massive 200A Solar Charging: Equipped with a high-capacity 200A MPPT controller that supports up to 10,000W of solar input, maximizing energy harvest to keep large 48V battery banks charged.
-
Extreme Surge Capability: With a 300% surge rating (up to 36KW on the 12KW model), it effortlessly starts demanding motor loads (4HP-6HP) that would overwhelm high-frequency inverters.
-
Smart Hybrid Charging: Features a powerful high-current AC charger (up to 140A), allowing for rapid battery top-ups from a generator or grid utility.
-
Expandable System: Supports Parallel operation of up to 3 units, allowing users to scale up power capacity for larger energy requirements.
Applications
-
North American Off-Grid: Ideal for US/Canada/Mexico homes needing both 120V for lights/plugs and 240V for dryers/pumps.
-
Heavy Motor Loads: Perfect for running well pumps, compressors, and large power tools in remote workshops.
-
Remote Cabins: Provides reliable, generator-friendly power for locations far from the utility grid.
Core Specifications Table
| Model | PV39-8048 TLV | PV39-10048 TLV | PV39-12048 TLV |
| Technology | Low Frequency (Transformer) | Low Frequency (Transformer) | Low Frequency (Transformer) |
| Rated Power | 8000W | 10000W | 12000W |
| System Voltage | 48VDC | 48VDC | 48VDC |
| Output Voltage | 100/110/120/220/240 VAC | 100/110/120/220/240 VAC | 100/110/120/220/240 VAC |
| Surge Power | 24000VA | 30000VA | 36000VA |
| Motor Capability | 4HP | 5HP | 6HP |
| Max PV Voltage | 250VDC | 250VDC | 250VDC |
| MPPT Voltage Range | 64~235VDC | 64~235VDC | 64~235VDC |
| Max PV Power | 10000W | 10000W | 10000W |
| Max Solar Charge | 200A | 200A | 200A |
| Max AC Charge | 100A | 120A | 140A |
| Machine Dim (mm) | 439*661*233 | 439*661*233 | 439*661*233 |
| Package Dim (mm) | 782*315*521 | 782*315*521 | 782*315*521 |
| Net Weight | 55 kg | 62 kg | 69 kg |
| Gross Weight | 73 kg | 80 kg | 87 kg |
