Description
Key Features
-

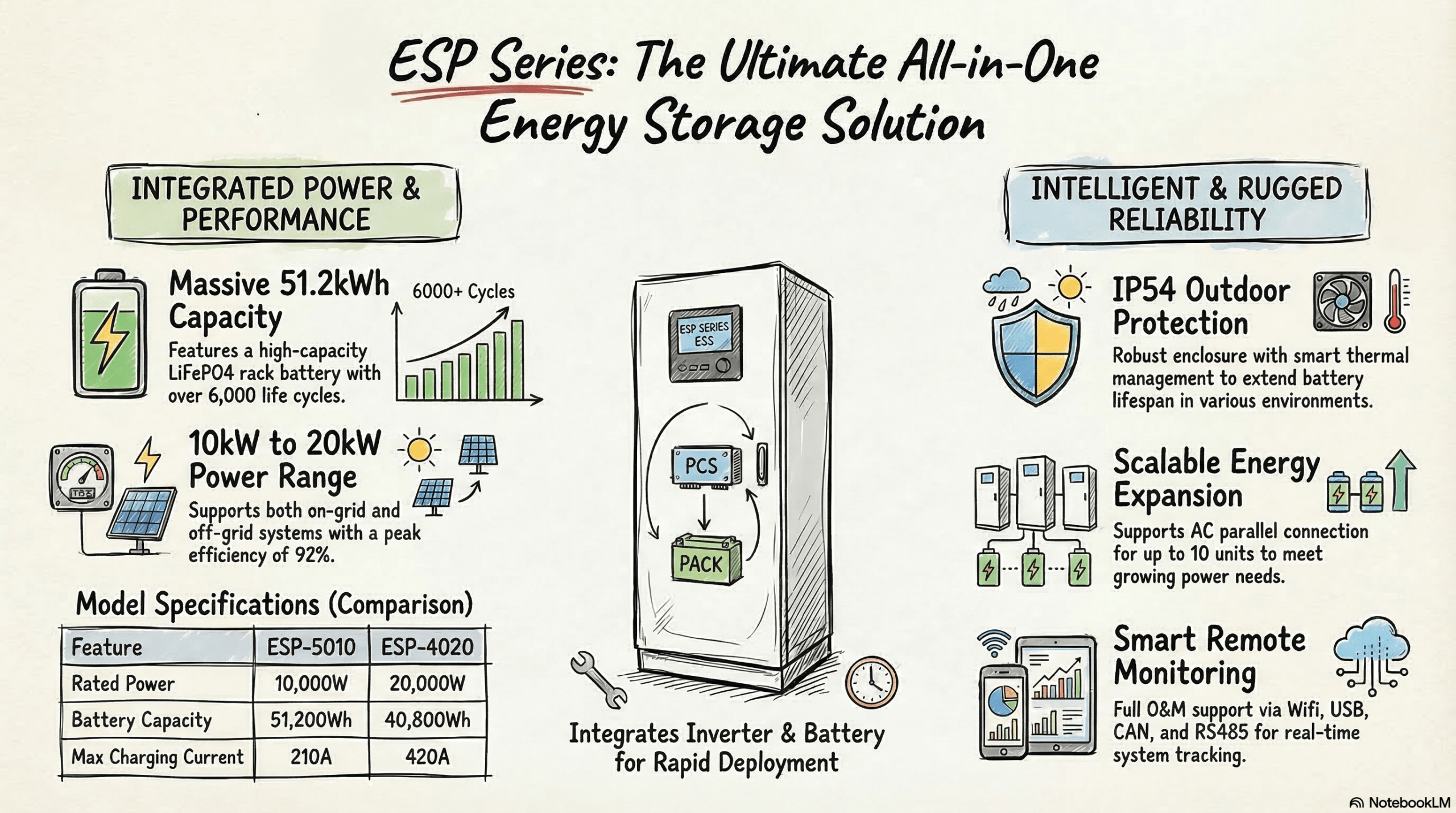

True All-in-One Design: Combines the Power Conversion System (PCS) and Battery PACK into a single, compact footprint (650*2050*700mm). This drastically reduces installation time, labor costs, and saves valuable space in your garage or utility room.
-
Massive Built-in Capacity: Equipped with high-grade 51.2V 200Ah LiFePO4 modules. The ESP-5010 offers a staggering 51.2kWh, while the ESP-4020 delivers 40.8kWh of energy, providing days of backup power for a standard home during grid outages.
-
Heavy-Duty Hybrid Inverter: Features a robust single-phase inverter (10KW or 20KW) with dual MPPT trackers (Max 500V DC input), supporting seamless transitions between on-grid savings and off-grid independence.
-

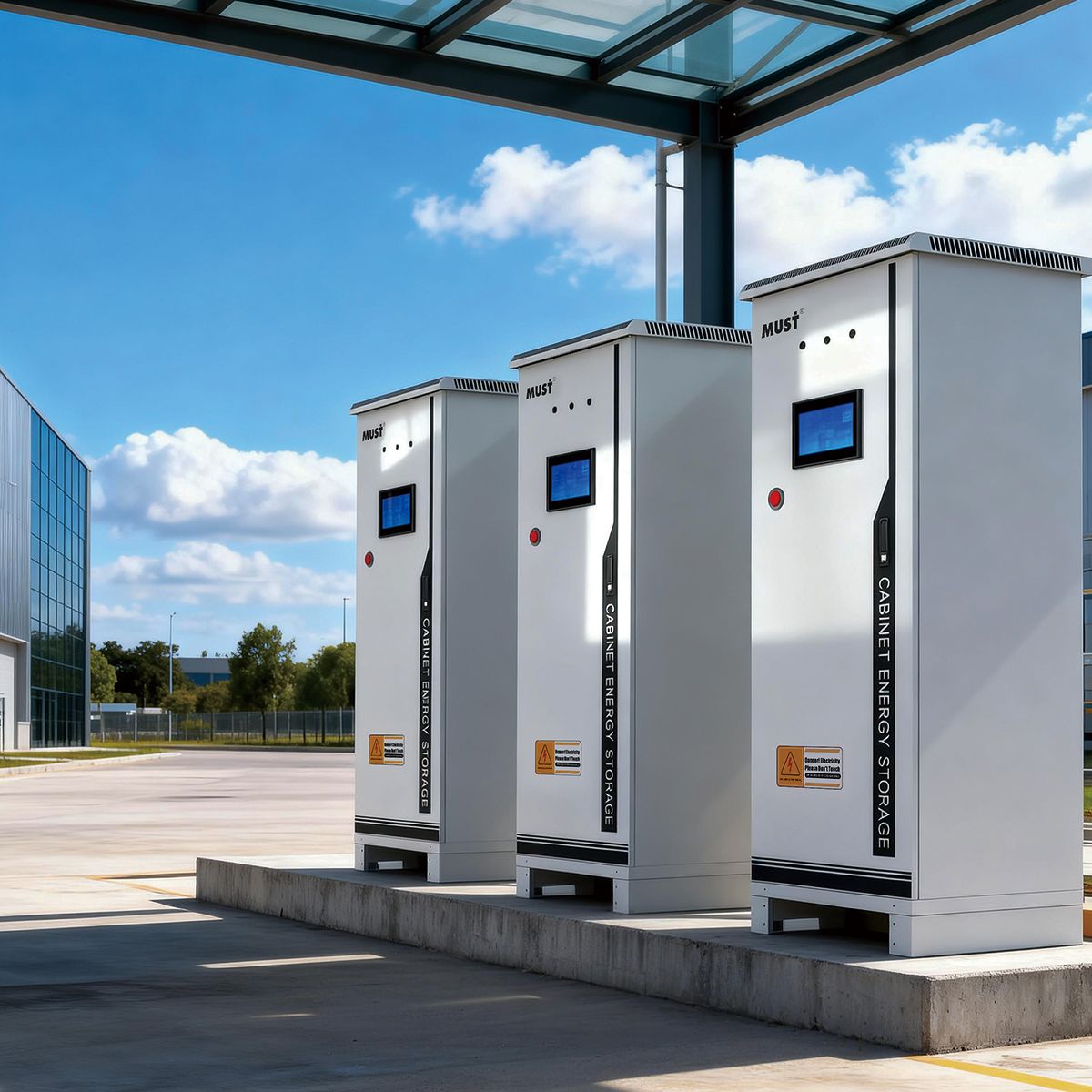

Industrial-Grade Expansion: The advanced control system allows up to 10 units to be connected in parallel on the AC side, enabling massive capacity and power scaling for Commercial & Industrial (C&I) projects.
-
Intelligent Thermal Management: A built-in smart cooling system actively regulates internal temperatures, ensuring optimal performance under heavy loads and extending the battery cycle life to ≥6000 cycles.
-
Rugged IP54 Protection: The fully sealed enclosure is IP54 rated against dust and moisture, with optional C3/C5 anti-corrosion upgrades available, making it highly resilient in demanding environments.
-
Comprehensive Warranties: MUST stands behind this premium system with a 5-Year Warranty on the Inverter and a 10-Year Warranty on the Lithium Batteries.
Applications
-
Luxury Residential Backup: A single unit provides enough power and storage to run whole-house loads, including heavy appliances, entirely off-grid.
-
Small Commercial (C&I): Ideal for offices, retail stores, and workshops to maximize solar self-consumption and eliminate peak demand charges.
-
Microgrids: The massive parallel capability makes it the perfect foundation for community or farm-scale solar microgrids.
Core Specifications Table
| Model | ESP-5010 | ESP-4020 |
| Rated AC Output Power | 10,000 W (10 KW) | 20,000 W (20 KW) |
| Nominal Output Voltage | 220V / 230V / 240V (Single Phase) | 220V / 230V / 240V (Single Phase) |
| Battery Total Capacity | 51.2 kWh (51200Wh) | 40.8 kWh (40800Wh) |
| Battery Configuration | 5 * (51.2V 200Ah Modules) | 4 * (51.2V 200Ah Modules) |
| Max PV Input Power | 10,000 W | 20,000 W |
| Max PV Input Voltage | 500V DC | 500V DC |
| MPPT Trackers | 2 | 2 |
| Cycle Life | 6000 Cycles (@ 80% DOD, 25°C) | 6000 Cycles (@ 80% DOD, 25°C) |
| AC Parallel Support | Up to 10 Units | Up to 10 Units |
| Dimensions (W*H*D) mm | 650 * 2050 * 700 | 650 * 2050 * 700 |
| Protection Level | IP54 | IP54 |
| Display & Comms | LED + LCD / Wifi, USB, CAN, RS485 | LED + LCD / Wifi, USB, CAN, RS485 |
| Warranty | Inverter: 5 Yrs / Battery: 10 Yrs | Inverter: 5 Yrs / Battery: 10 Yrs |
