Description
Key Features
-
Stable Backup Power: Equipped with a 1.2KVA (720W) or 2.4KVA (1440W) modified sine wave inverter, it provides stable and efficient power for basic home electronics, including TVs, desktop computers, Wi-Fi routers, fans, and lighting systems.
-
High-Capacity LiFePO4 Battery: Choose between 1280Wh (12V system) and 2560Wh (24V system) deep-cycle Lithium Iron Phosphate batteries. Engineered for longevity, these premium cells deliver over 4000 cycles at 80% Depth of Discharge (DOD).
-
Rapid AC Charging & Fast Transfer: Built-in with a maximum 20A AC Charger, it replenishes the massive battery bank quickly when the grid is active. In the event of a blackout, the system switches to battery power in just 15-20ms, ensuring your devices stay powered on.
-
Compact & Portable Design: Encased in a sleek, lightweight chassis, it is easy to carry and requires minimal footprint. It’s ideal for tucking away in a closet, placing under a desk, or transporting in a vehicle for remote cabin use.
-
Smart LCD Monitoring: The integrated, easy-to-read LCD screen displays real-time system status, including load wattage, input/output voltage, and remaining battery level, giving you complete control over your power usage.
-
Comprehensive Protection System: Features multi-level electronic protections against overcharge, deep discharge, short circuits, and overload, guaranteeing a safe operating environment for your home.
Applications
-
Home Emergency Backup: Keeps essential household appliances running, food fresh, and lights on during severe weather or grid blackouts.
-
Office & Retail Power: Acts as a heavy-duty backup for workstations, point-of-sale (POS) systems, and network servers to prevent data loss.
-
Off-Grid Cabins: A reliable stationary power source for remote locations requiring lighting and entertainment power.

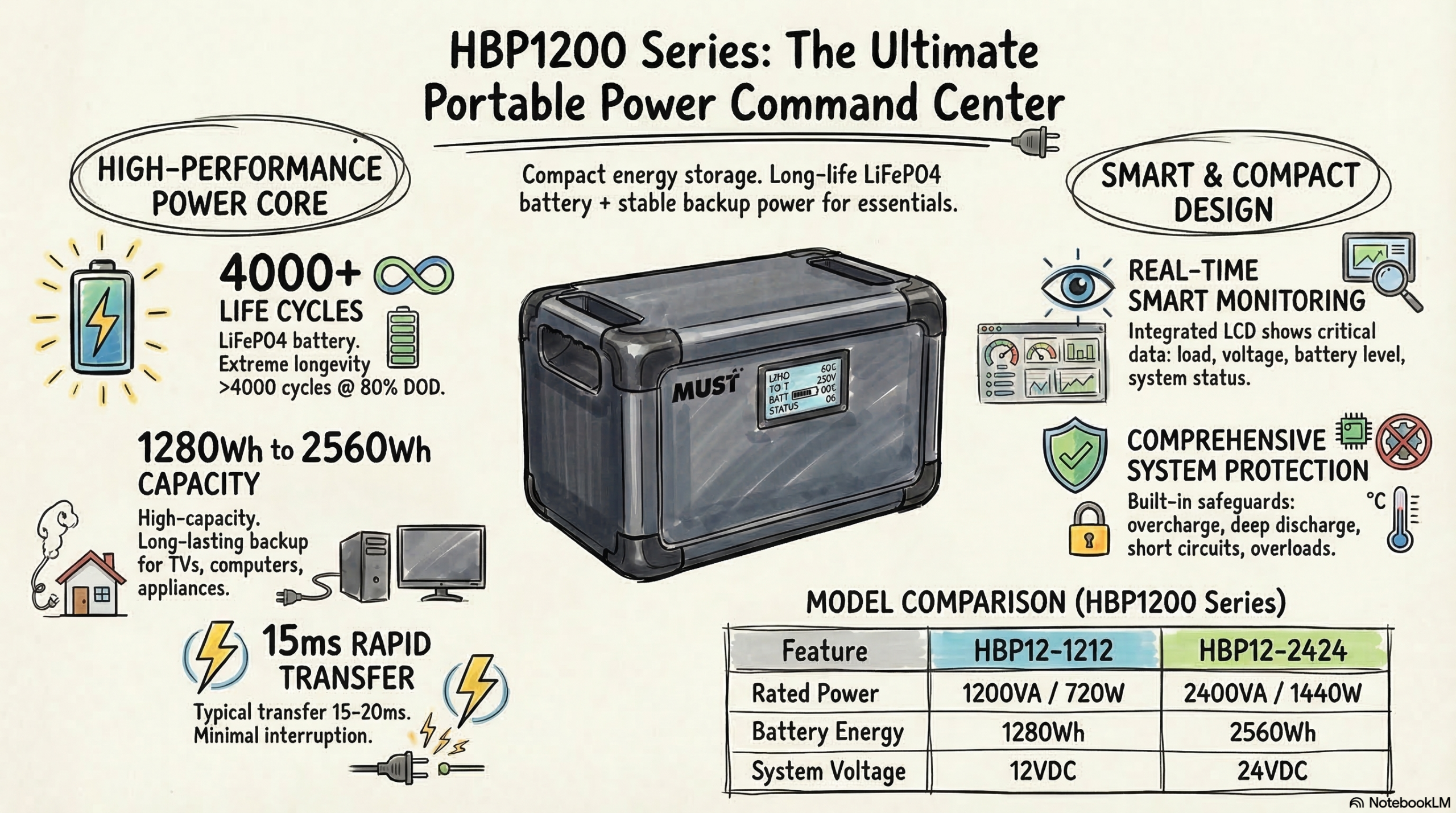

Core Specifications Table
| Model | HBP12-1212 | HBP12-2424 |
| Rated Output Power (VA) | 1200 VA | 2400 VA |
| Active Output Power (W) | 720 W | 1440 W |
| Battery Energy | 1280 Wh | 2560 Wh |
| Battery Nominal Voltage | 12.8V DC | 25.6V DC |
| Battery Capacity (Cell) | 100Ah (LiFePO4) | 100Ah (LiFePO4) |
| Output Waveform | Modified Sine Wave | Modified Sine Wave |
| AC Output Voltage Range | 230VAC +10% / -18% (50/60Hz) | 230VAC +10% / -18% (50/60Hz) |
| AC Input Voltage Range | 90 ~ 280VAC (Selectable) | 90 ~ 280VAC (Selectable) |
| Max AC Charge Current | 20A | 20A |
| Transfer Time | Typical 15-20ms (40ms max) | Typical 15-20ms (40ms max) |
| Cycle Life | 4000+ Cycles (@ 80% DOD) | 4000+ Cycles (@ 80% DOD) |
| Dimensions (W*H*D) mm | 316 * 343 * 282 | 436 * 383 * 282 |
| Net Weight (kg) | 22 kg | (Data Pending) |
| Warranty | Inverter: 2 Years / Battery: 5 Years | Inverter: 2 Years / Battery: 5 Years |
