Description

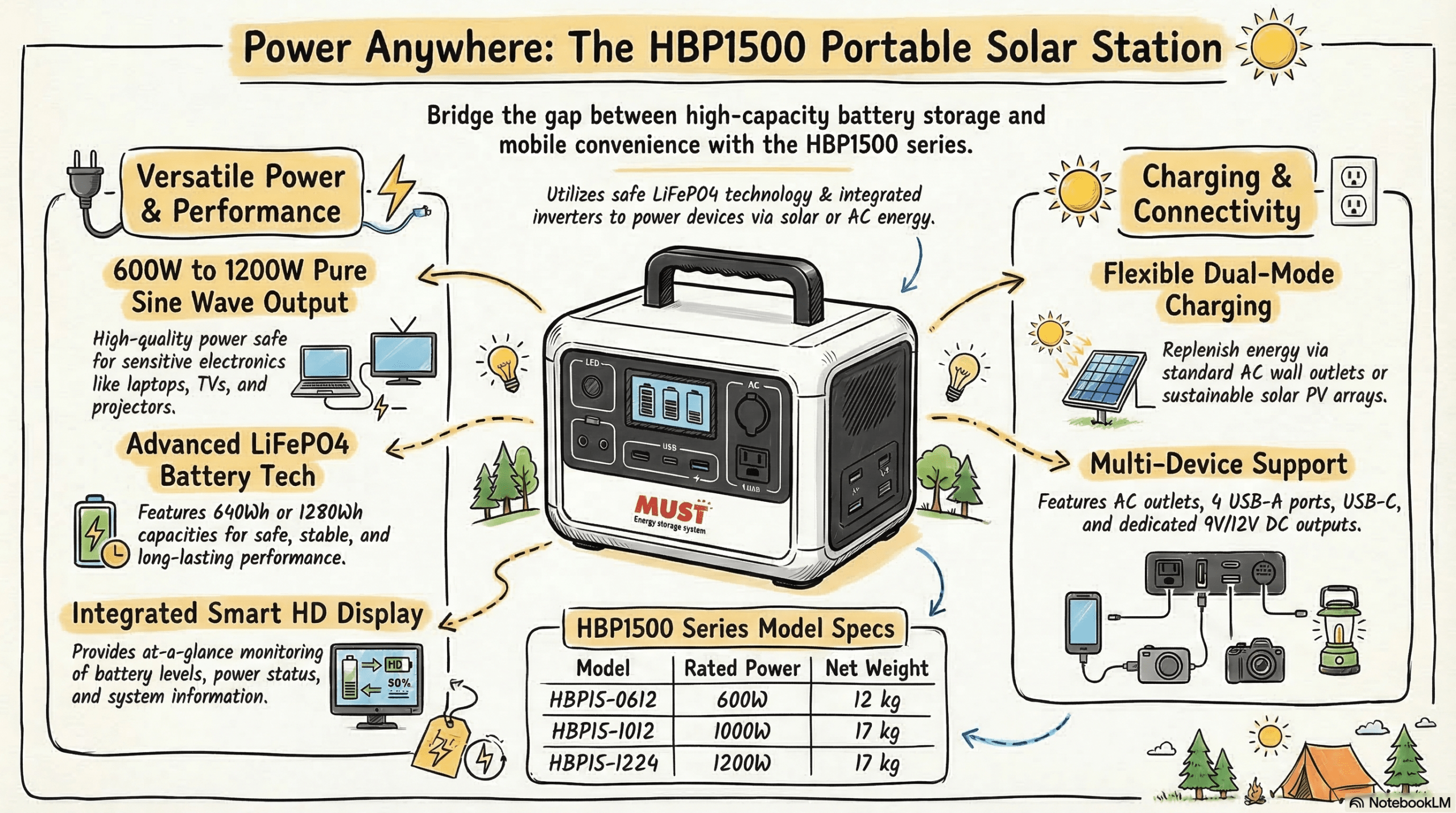

Key Features
-
Premium Pure Sine Wave Output: Delivers clean, stable, and interference-free AC power (600W, 1000W, or 1200W). It safely runs delicate electronics like laptops, drones, medical CPAP machines, and high-fidelity audio equipment without damage or noise.
-
Safe & Durable LiFePO4 Battery: Utilizes premium Lithium Iron Phosphate (LiFePO4) chemistry known for exceptional thermal stability and long-lasting cycle life. Choose between 640Wh and 1280Wh capacities to match your endurance needs.
-
Flexible Dual Fast Charging: Stay powered up off the grid. The built-in advanced MPPT controller supports massive solar arrays (up to 1200W) for rapid green energy harvesting, while also supporting standard AC wall charging (up to 20A) for quick replenishment at home.
-
Multi-Port Charging Hub: Eliminate the need for extra adapters. Equipped with a versatile array of outputs including standard AC sockets, 4x USB-A ports (5V/2.1A), 1x USB-C port, and dual DC outputs (9V/12V) to charge multiple devices simultaneously.
-
Compact & Ultra-Portable: Weighing between 12kg and 17kg with a streamlined footprint (225304335mm), its lightweight and ergonomic design makes it perfectly suited for car camping, RVs, and easy storage in small spaces.
-
Smart HD Display: The intuitive front-panel LCD and LED indicators provide real-time visibility into battery capacity, load status, input/output wattage, and critical system alerts at a single glance.
Applications
-
Outdoor Exploration & Camping: A quiet, fume-free power source for portable fridges, lighting, projectors, and keeping all your smart devices fully charged in the wild.
-
Home Emergency Backup: Essential protection during power outages. With a transfer time of <10ms, it acts as a reliable mini-UPS to keep your Wi-Fi routers, communication devices, and emergency lights running seamlessly.
-
Mobile Workstations: Provides stable, pure sine wave electricity for remote workers, outdoor photographers, and mobile professionals relying on sensitive computing equipment.
Core Specifications Table
| Model | HBP15-0612 | HBP15-1012 | HBP15-1224 |
| Rated Output Power | 600 W (600 VA) | 1000 W (1000 VA) | 1200 W (1200 VA) |
| Output Waveform | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave |
| Battery Energy | 640Wh / 1280Wh | 1280 Wh | 1280 Wh |
| Nominal System Voltage | 12V DC | 12V DC | 24V DC |
| Battery Chemistry | 12.8V LiFePO4 | 12.8V LiFePO4 | 25.6V LiFePO4 |
| AC Output Voltage | 230V RMS (+10/-18%) | 230V RMS (+10/-18%) | 230V RMS (+10/-18%) |
| Max PV Array Power | 600 W | 600 W | 1200 W |
| MPPT Operating Voltage | 15 ~ 75V DC | 15 ~ 75V DC | 30 ~ 75V DC |
| Max AC Charge Current | 20A | 20A | 15A |
| Max PV Charge Current | 40A | 40A | 40A |
| USB Ports | 4 * USB-A / 1 * USB-C | 4 * USB-A / 1 * USB-C | 4 * USB-A / 1 * USB-C |
| DC Outputs | 9V 1A + 12V 1A | 9V 1A + 12V 1A | 9V 1A + 12V 1A |
| Transfer Time | Typical < 10ms (20ms max) | Typical < 10ms (20ms max) | Typical < 10ms (20ms max) |
| Operation Temperature | 0°C ~ 45°C | 0°C ~ 45°C | 0°C ~ 45°C |
| Dimensions (W*H*D) mm | 225 * 304 * 335 | 225 * 304 * 335 | 225 * 304 * 335 |
| Net Weight (kg) | 12 kg | 17 kg | 17 kg |
