Description
Key Features
-

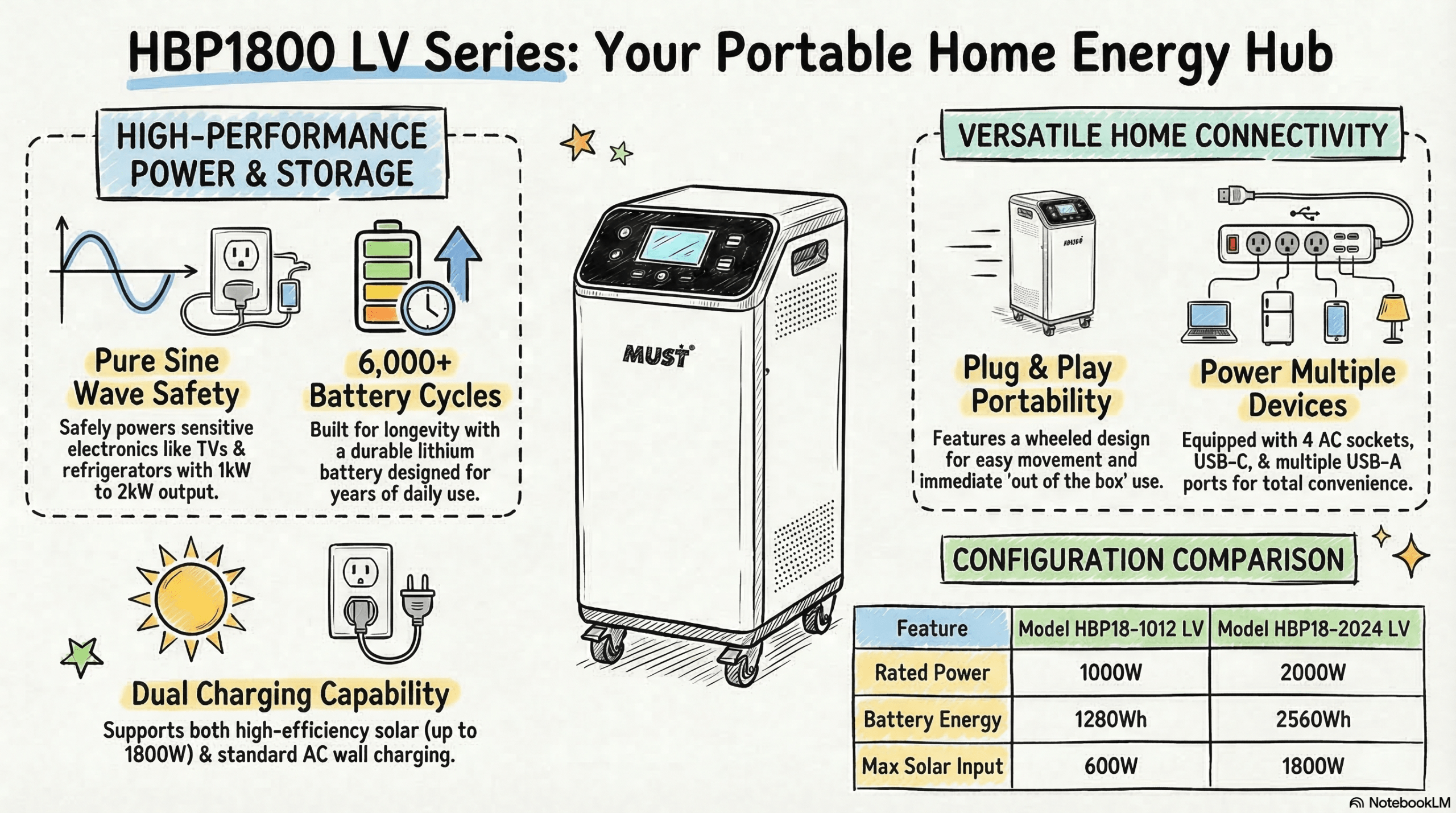

Convenient Mobile All-in-One Design: Designed as a free-standing, integrated mobile unit equipped with durable caster wheels. It offers the massive power of a home backup system with the flexibility to easily roll it exactly where you need it—from the living room to the garage, or out to the patio.
-
Safe 120V Pure Sine Wave Power: Available with a 1000W or 2000W inverter to deliver clean, utility-grade 120V AC power. It safely and quietly runs sensitive electronics, TVs, refrigerators, and heavy-duty household appliances without risking damage.
-
High-Capacity LiFePO4 Battery: Choose between 1280Wh and 2560Wh capacities to meet your daily and backup power needs. Built with premium Lithium Iron Phosphate chemistry, it provides exceptional safety, thermal stability, and a staggering 6000+ deep cycles.
-
Rapid Dual Charging Setup: The system features a powerful 40A AC wall charger and an advanced MPPT controller supporting massive solar arrays (up to 1800W for the 24V model). Combined charging ensures quick energy replenishment whether plugged into the wall or connected to solar panels.
-
Seamless 10ms UPS Backup: In the event of a grid failure, the system acts as an Uninterruptible Power Supply (UPS), switching to battery power in a lightning-fast 10ms to keep essential desktop computers, routers, and medical devices online without interruption.
-
Simultaneous Multi-Device Hub: Power multiple devices simultaneously with ease. It features 4x 120V AC sockets, 1x USB Type-C, and 6x USB-A ports (including dual 12V outputs) for comprehensive plug-and-play convenience.
Applications
-
Mobile Home Emergency Backup: Easily roll the unit to your kitchen to keep the refrigerator running, or to the home office to maintain network connectivity during severe weather and grid blackouts.
-
Flexible Home Energy Storage: Store energy to meet daily household power needs, maximizing self-consumption without the hassle of a complex, permanently wired battery system.
-
Off-Grid & Remote Power: A safe, fume-free, and high-capacity alternative to traditional gas generators, perfect for off-grid cabins, workshops, and extended outdoor use where heavy-duty power is required.
Core Specifications Table
| Model | HBP18-1012 LV | HBP18-2024 LV |
| System Design | Mobile All-in-One ESS (Wheeled) | Mobile All-in-One ESS (Wheeled) |
| Rated AC Output Power | 1000 W | 2000 W |
| Output Waveform | Pure Sine Wave | Pure Sine Wave |
| Battery Energy (Capacity) | 1280 Wh | 2560 Wh |
| Nominal System Voltage | 12V DC | 24V DC |
| Battery Specification | 12.8V 100Ah (LiFePO4) | 25.6V 100Ah (LiFePO4) |
| AC Output Voltage | 120V AC ±5% (50/60Hz) | 120V AC ±5% (50/60Hz) |
| AC Input Voltage Range | 74 ~ 145VAC (UL Standard) | 107 ~ 132VAC (UL Standard) |
| Max Solar Power Input | 600 W | 1800 W |
| PV MPPT Voltage Range | 15 ~ 75V DC | 30 ~ 128V DC |
| AC Charge Current | 40A (±4A) | 40A (±4A) |
| UPS Transfer Time | Typical 10ms (20ms max) | Typical 10ms (20ms max) |
| Cycle Life | 6000+ Cycles (@ 80% DOD) | 6000+ Cycles (@ 80% DOD) |
| AC Sockets | 4 * 120V AC Sockets | 4 * 120V AC Sockets |
| USB & DC Outputs | 1Type-C, 2USB-A(12V), 4*USB-A(5V) | 1Type-C, 2USB-A(12V), 4*USB-A(5V) |
| Dimensions (W*H*D) mm | 359 * 499 * 234 | 420 * 497 * 280 |
| Net Weight (kg) | 21 kg | 30 kg |
| Warranty | Inverter: 2 Years / Battery: 5 Years | Inverter: 2 Years / Battery: 5 Years |
