Description
Key Features
-

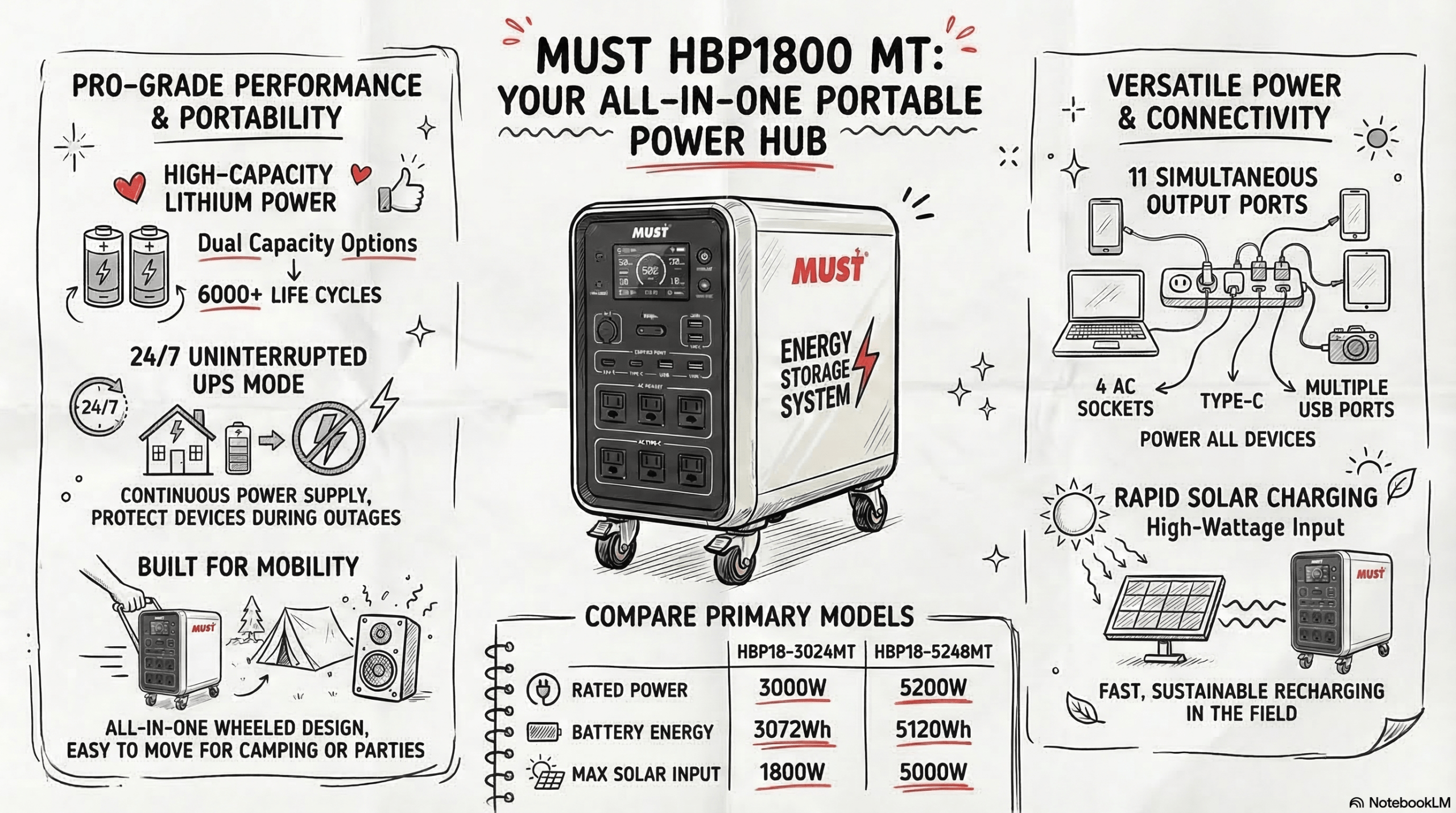

Heavy-Duty Pure Sine Wave Power: Choose between a 3KW or 5.2KW inverter to deliver clean, stable 230V AC power. The pure sine wave output is completely safe for sensitive electronics while providing enough muscle to drive heavy household loads.
-
Massive & Long-Lasting LiFePO4 Storage: Built with premium Lithium Iron Phosphate cells, providing reliable capacities of 3072Wh or 5120Wh. Enjoy exceptional longevity with over 6000 deep cycles (@ 80% DOD, 25°C), ensuring a decade of dependable service.
-
Advanced Dual Charging & High PV Input: Maximize your green energy independence. The high-voltage MPPT controller supports up to 1800W (on the 3KW model) or a massive 5000W (on the 5.2KW model) of solar input, alongside fast AC grid charging for rapid energy replenishment.
-
Seamless 10ms UPS Functionality: Protect your home from unpredictable outages. The system automatically switches to battery power in a lightning-fast 10ms, ensuring that desktop computers, servers, and medical devices remain online without interruption.
-
The Ultimate 11-Port Charging Hub: Power all your devices simultaneously. Features an impressive array of outputs including 4x 230V AC sockets, 1x Type-C port, 4x USB-A (5V), and 2x USB (12V) DC outputs, offering unparalleled plug-and-play convenience.
-
Smart App Control: Manage your energy from anywhere. The system supports remote monitoring and control via a dedicated app, allowing you to track battery levels, solar generation, and adjust settings on the fly.
Applications
-
Mobile Whole-Room Backup: Easily move the unit to power essential kitchen appliances, living room entertainment, and home office setups during prolonged blackouts.
-
Off-Grid Living & Tiny Homes: A powerful, self-contained energy hub that seamlessly integrates with rooftop solar panels to provide independent electricity for remote cabins.
-
Events & Job Sites: Roll it out to provide silent, fume-free, high-wattage power for outdoor parties, food trucks, or remote construction tools.
Core Specifications Table
| Model | HBP18-3024MT | HBP18-5248MT |
| System Design | Mobile All-in-One ESS | Mobile All-in-One ESS |
| Rated AC Output Power | 3000 W | 5200 W |
| Output Waveform | Pure Sine Wave | Pure Sine Wave |
| Battery Energy (Capacity) | 3072 Wh | 5120 Wh |
| Nominal System Voltage | 24V DC | 48V DC |
| Battery Specification | 25.6V 120Ah (LiFePO4) | 51.2V 100Ah (LiFePO4) |
| AC Output Voltage | 230V AC ±5% (50/60Hz) | 230V AC ±5% (50/60Hz) |
| AC Input Voltage Range | 90 ~ 280VAC | 170 ~ 280VAC |
| Max Solar Power Input | 1800 W | 5000 W |
| PV MPPT Voltage Range | 30 ~ 128V DC | 150 ~ 430V DC |
| AC Charge Current | 60A | 80A |
| UPS Transfer Time | Typical 10ms (20ms max) | Typical 10ms (20ms max) |
| Cycle Life | 6000+ Cycles | 6000+ Cycles |
| AC Sockets | 4 * 230V AC Sockets | 4 * 230V AC Sockets |
| USB & DC Outputs | 1Type-C, 2USB(12V), 4*USB(5V) | 1Type-C, 2USB(12V), 4*USB(5V) |
| Dimensions (W*H*D) mm | 277 * 509 * 452 | 302 * 628 * 493 |
| Net Weight (kg) | 37 kg | 56 kg |
| Warranty | Inverter: 2 Years / Battery: 5 Years | Inverter: 2 Years / Battery: 5 Years |
