Description
Key Features
-

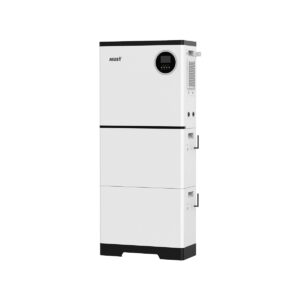

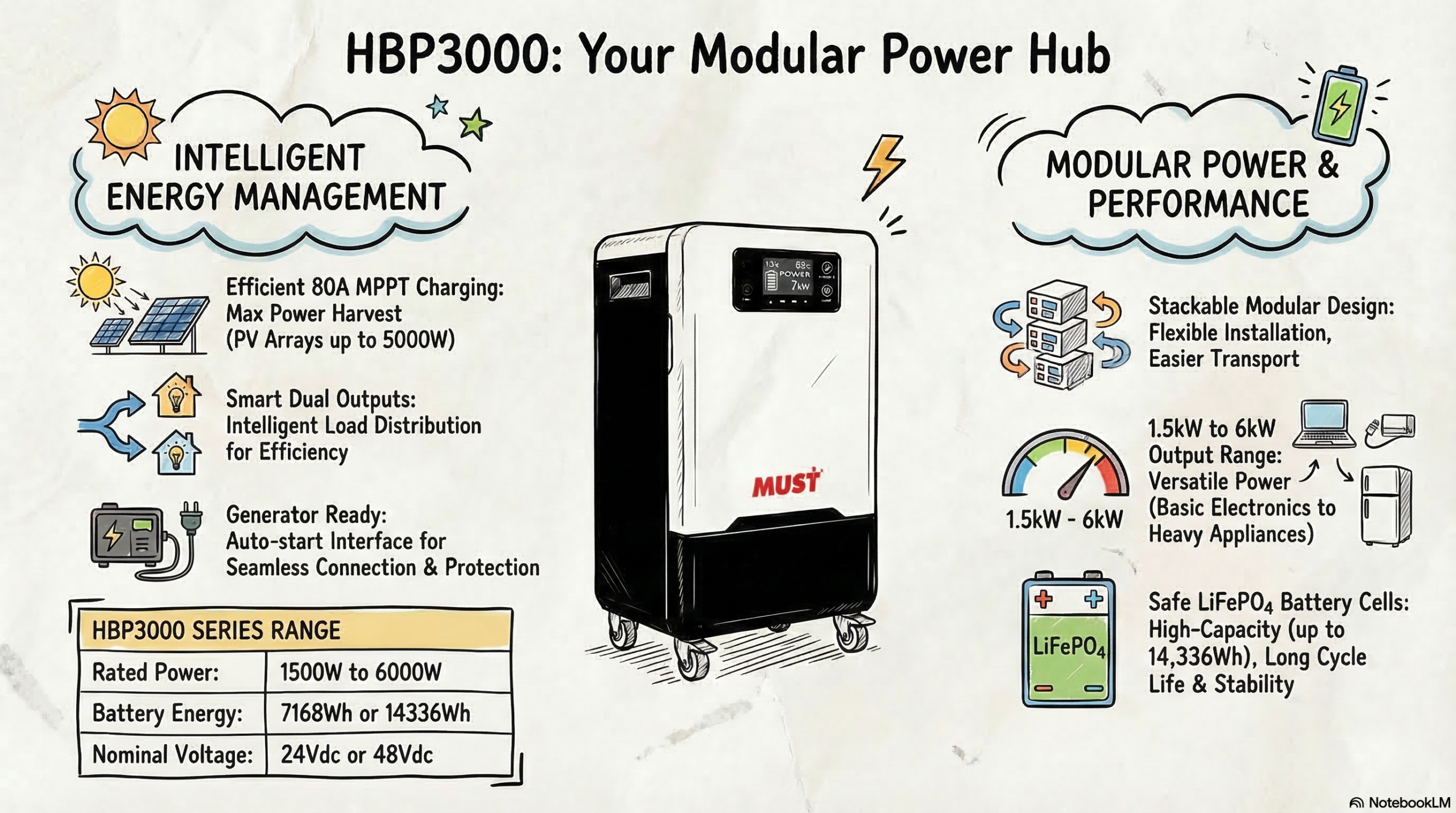

Flexible Stackable Design: The modular, stackable architecture combines the inverter and battery into a sleek, unified tower. This not only saves floor space but also allows for flexible installation and easy transport compared to traditional heavy cabinets.
-
Massive LiFePO4 Capacity: Equipped with highly reliable, high-capacity Lithium Iron Phosphate cells. The 24V models feature a massive 7168Wh battery, while the heavy-duty 48V models boast an incredible 14336Wh (14.3kWh) of energy storage, ensuring prolonged backup times.
-
Smart Dual AC Output: Optimize your power usage. The system features dual AC outputs (Terminal & Socket) that enable intelligent load distribution, allowing you to prioritize critical appliances and improve overall power efficiency during outages.
-
Efficient Solar Integration: Harvest solar energy rapidly. The built-in 80A MPPT charge controller supports up to 2500W (on 24V models) or 5000W (on 48V models) of PV input with a high 245V maximum open-circuit voltage, maximizing your green energy yield.
-
Generator Auto-Start Ready: Never worry about depleted batteries during extended blackouts. The system is fully compatible with fuel generators and includes an auto-start interface to automatically trigger the generator when battery levels drop.
-
Intelligent BMS & Protection: A built-in Battery Management System meticulously monitors battery status in real-time, providing comprehensive multi-level protection to ensure a safe, stable, and long-lasting operational lifespan.
Applications
-
Comprehensive Home Backup: Seamlessly switches to battery power in under 10ms, keeping sensitive electronics, refrigerators, and essential lighting running smoothly during severe weather and grid blackouts.
-
Off-Grid Cabins & Homes: Combine with a solar array and a backup generator to create a completely independent, reliable microgrid for remote living.
-
Smart Load Prioritization: Utilize the dual output feature to automatically separate and manage essential circuits (like security systems and fridges) from non-essential loads when running on battery power.
Core Specifications Table
| Model | HBP30-1524 | HBP30-3024 | HBP30-5048 | HBP30-6048 |
| System Design | Stackable All-in-One ESS | Stackable All-in-One ESS | Stackable All-in-One ESS | Stackable All-in-One ESS |
| Rated AC Output Power | 1500 W | 3000 W | 5000 W | 6000 W |
| Output Waveform | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave |
| Battery Energy (Capacity) | 7168 Wh | 7168 Wh | 14336 Wh | 14336 Wh |
| Nominal System Voltage | 24V DC | 24V DC | 48V DC | 48V DC |
| Battery Specification | 25.6V 280Ah (LiFePO4) | 25.6V 280Ah (LiFePO4) | 51.2V 280Ah (LiFePO4) | 51.2V 280Ah (LiFePO4) |
| AC Output Voltage | 220V/230V/240V ±10% | 220V/230V/240V ±10% | 220V/230V/240V ±10% | 220V/230V/240V ±10% |
| AC Output Connections | Terminal & Socket (Dual) | Terminal & Socket (Dual) | Terminal & Socket (Dual) | Terminal & Socket (Dual) |
| Max PV Array Power | 2500 W | 2500 W | 5000 W | 5000 W |
| Max PV Open Circuit Voltage | 245V DC | 245V DC | 245V DC | 245V DC |
| PV MPPT Voltage Range | 30 ~ 230V DC | 30 ~ 230V DC | 60 ~ 230V DC | 60 ~ 230V DC |
| Max PV Charge Current | 80 A | 80 A | 80 A | 80 A |
| Max AC Charge Current | 25 A | 40 A | 35 A | 40 A |
| UPS Transfer Time | 10ms (max) | 10ms (max) | 10ms (max) | 10ms (max) |
| Dimensions (W*H*D) mm | 600 * 617 * 470 | 600 * 617 * 470 | 600 * 754 * 470 | 600 * 754 * 470 |
| Warranty | Inverter: 2 Yrs / Battery: 5 Yrs | Inverter: 2 Yrs / Battery: 5 Yrs | Inverter: 2 Yrs / Battery: 5 Yrs | Inverter: 2 Yrs / Battery: 5 Yrs |
