Description
✅ Key Features:
Vertical-mounted design for high capacity and stability
Max output power: 7.5KW / 10KW
Built-in Smart BMS with LCD + WiFi remote monitoring
Long lifespan: 6000+ cycles @ 80% DOD, 25°C
Parallel up to 40 units
CAN & RS485 communication ready
Best suited for large villas, off-grid homes, commercial solar storage, and microgrids
High energy density LiFePO₄ cells ensure durability and safety
⚡ Ideal For
• Residential solar ESS
• Commercial backup systems
• Off-grid power stations
• Modular rack systems and hybrid inverter setups
The LP1600 Series brings safety, scalability, and smart control into one powerful energy storage solution — made to evolve with your energy needs.
| Technical Data | LP16-24100 | LP16-24200 | LP16-24300 | LP16-48100 | LP16-48200 | LP16-48300 | LP16-48320 | |
| Nominal Voltage | 25.6V | 51.2V | ||||||
| Nominal Capacity | 100Ah | 200Ah | 300Ah | 100Ah | 200Ah | 300Ah | 320Ah | |
| Nominal energy | 2560Wh | 5120Wh | 7680Wh | 5120Wh | 10240Wh | 15360Wh | 16384Wh | |
| Max. output power | 2.5KW | 3.5KW | 5KW | 5KW | 7.5KW | 10KW | 7.5KW | |
| Life Cycles | 6000 cycles @ 80% DOD, 25°C | |||||||
| Recommended Charge Voltage | 29.2V | 58.4V | ||||||
| Recommended Charge Current | 20A | 40A | 60A | 20A | 40A | 60A | 60A | |
| End Of Discharge Voltage | 22V | 44V | ||||||
| Standard Method | Charge | 20A | 40A | 60A | 20A | 40A | 60A | 60A |
| Discharge | 50A | 100A | 150A | 50A | 100A | 150A | 100A | |
| Maximum Continuous Current | Charge | 100A | 150A | 200A | 100A | 150A | 200A | 150A |
| Discharge | 100A | 150A | 200A | 100A | 150A | 200A | 150A | |
| BMS Cut-Off Voltage | Charge | 29.2 V (3.65V/Cell) | 58.4 V (3.65V/Cell) | |||||
| Discharge | 22.0V (2s) (2.75V/Cell) | 44.0V (2.75V/Cell) | ||||||
| Temperature | Charge | 0~50°C | ||||||
| Discharge | -20~60°C | |||||||
| Storage Temperature | -5~35°C | |||||||
| Shipment Voltage | ≥25.6V | ≥51.2V | ||||||
| Safety Function | Over-charge, Over-discharge, Over-current, Low/High-temperature, Short-circuit Protections | |||||||
| Module Parallel | Up to 40 units | |||||||
| Communication | CAN2.0/RS232/RS485 | |||||||
| IP Protection level | IP21 | |||||||
| Case Material | SPCC | |||||||

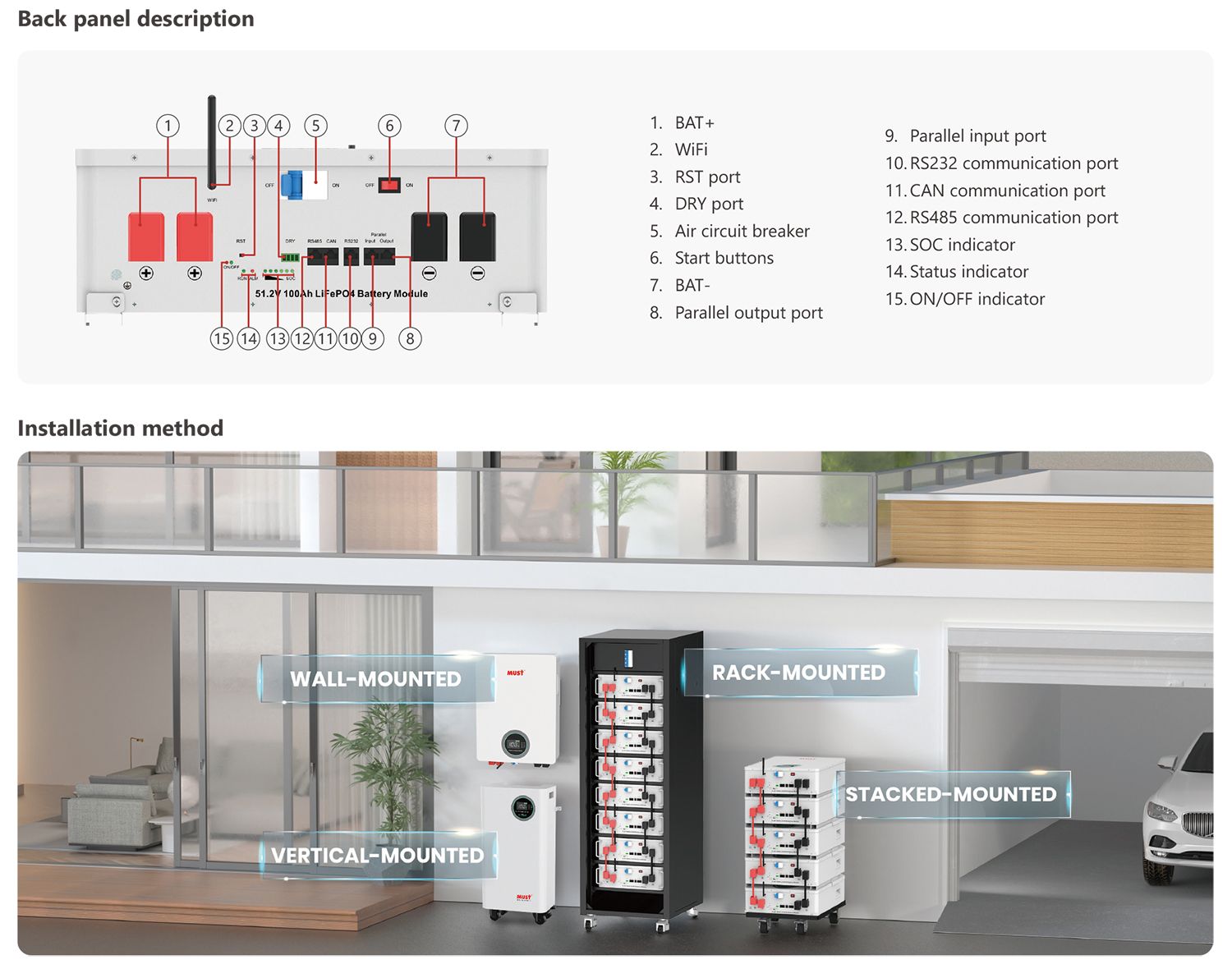

| Installation Mode | Wall-mounted, Stacked-mounted, Rack-mounted(optional) | Vertical-mounted | ||||||
| Machine Dimension (W*H*D) (mm) | 442*485.5*177 | 442*486.5*250 | 442*495*230 | 442*625.5*177 | 442*686.5*250 | 490*923*265 | ||
| Package Dimension (W*H*D) (mm) | carton box | 557*227*547 | 557*300*547 | / | 688*227*557 | non | / | |
| wooden box | 555*340*565 | 555*410*565 | 600*570*405 | 700*570*350 | 759*405*569 | 1000*450*565 | ||
| N.W (kg) | 27 | 44 | 68 | 45 | 80 | 117 | ||
| G.W (kg) | carton box | 30 | 48 | / | 48 | non | / | |
| wooden box | 40 | 57 | 85 | 58 | 97 | 137 | ||
| * Variations in dimensions and weights may occur due to production batches. | ||||||||
| Charge Retention And Capacity Recovery Capability | Standard charge the battery, and then put aside at room temperature for 28d or 55°C for 7d, Charge retention rate≥90%, Recovery rate of charge≥90% |
|||||||
| Warranty | 5 years | |||||||
| Certification & Standards | CE-EMC (EN 61000-6-3: 2007+A1: 2011+AC: 2012 EN IEC 61000-6-1: 2019) IEC62619-1:2018; IEC62619:2022; IEC62619:2017; UN38.3/ MSDS | |||||||
