Description
Key Features
-

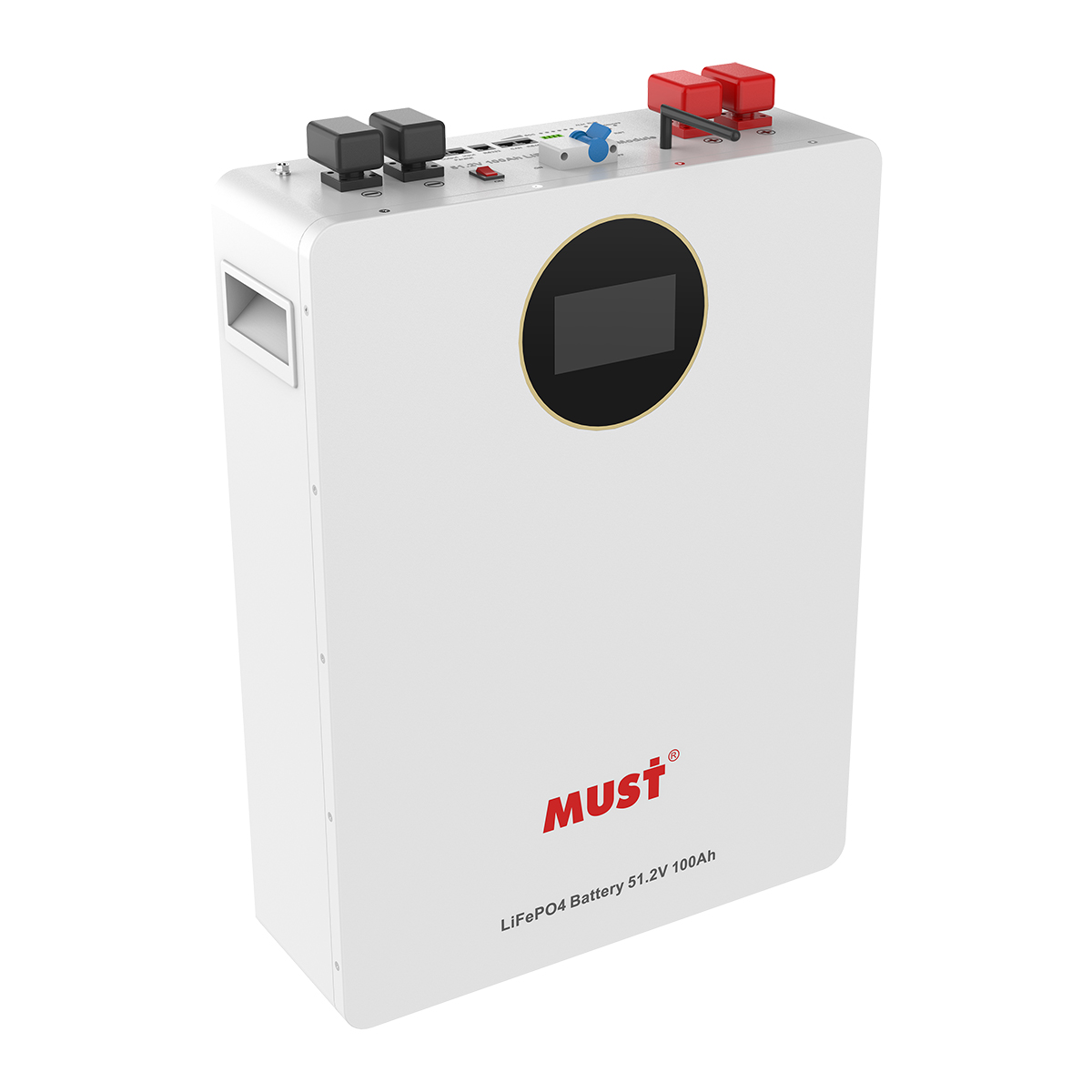

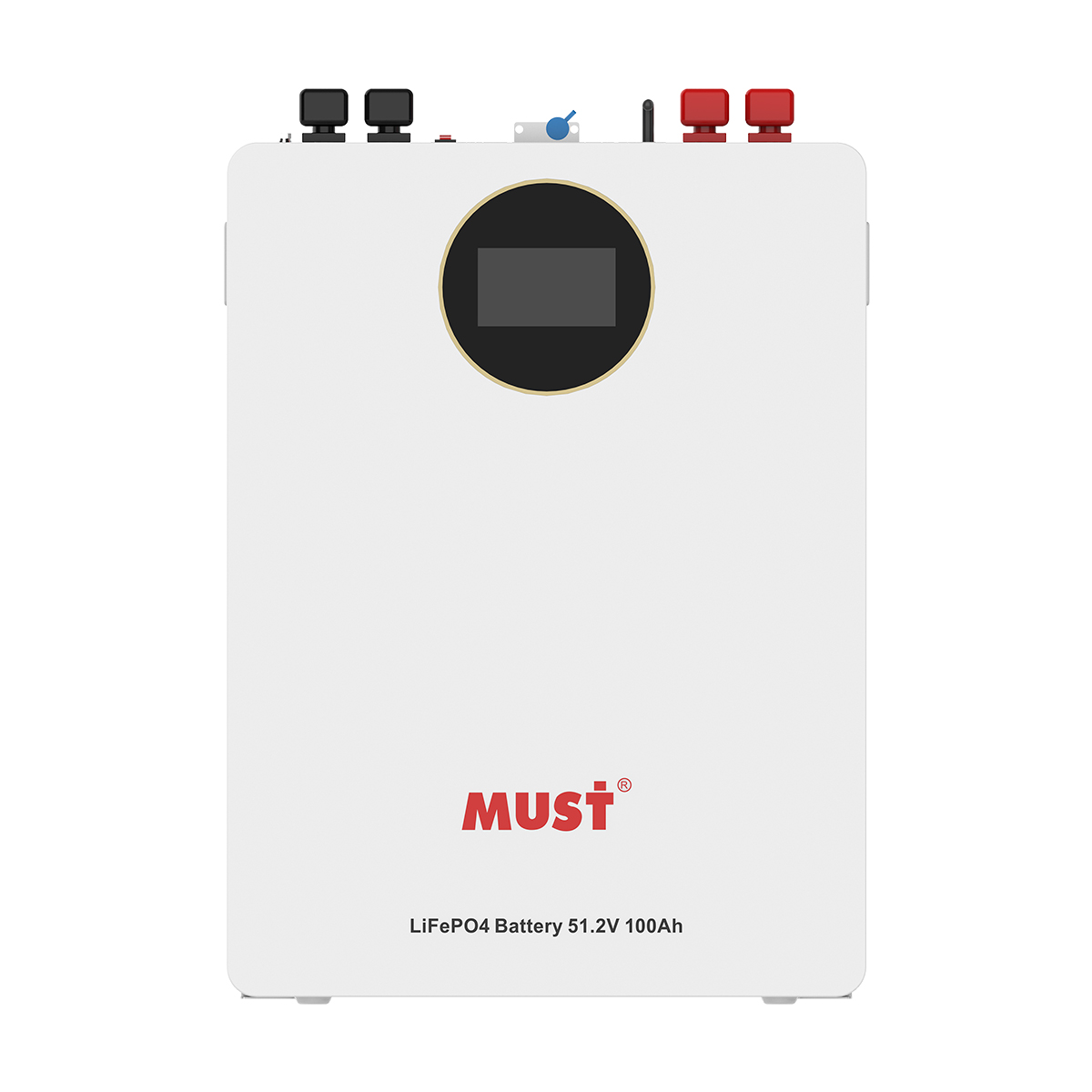

4.3-Inch HD Touch Screen: Features an intuitive LCD Touch Display on the front panel, allowing for instant visualization of SOC, voltage, current, and detailed cell status without opening an app.
-
Built-in Fire Suppression: Equipped with an automatic aerosol fire suppression device inside the chassis, providing an extra layer of protection for your home and family against thermal runaway.
-
Top-Facing Terminals: Terminals are strategically placed on the top of the unit (rather than the front), making cable management significantly cleaner and easier, especially when stacking multiple units vertically.
-
Flexible Installation Modes: The versatile chassis supports Wall-Mounting, stable Floor Stacking (with brackets), or Vertical Standing, fitting perfectly into any garage or utility room layout.
-
Smart Connectivity: Integrated WiFi and Bluetooth modules enable real-time remote monitoring and firmware updates via the MUST Energy App.
-
High-Power Output: The 48V 200Ah model delivers up to 7.5KW of continuous output power, easily supporting whole-home backup loads including air conditioners.
-
Seamless Compatibility: Standard CAN/RS485/RS232 ports ensure plug-and-play communication with major hybrid inverters (Deye, Victron, Growatt, etc.).
-
Long-Lasting Performance: Rated for ≥6000 cycles with a premium LiFePO4 chemistry, ensuring reliable operation for over 10 years.
Applications
-
Smart Home Storage: The touch screen and clean design make it a high-tech addition to modern solar homes.
-
Safety-Critical Installs: Ideal for indoor installations (basements, utility rooms) where fire safety is a top priority.
-
Expandable Systems: Perfect for users starting with 5kWh-10kWh who plan to stack more units later.
Core Specifications Table
(Models grouped by Voltage. Values separated by “/” indicate capacity options.)
| Model | LP16-24100T | LP16-24200T / 24300T | LP16-48100T | LP16-48200T |
| Nominal Voltage | 25.6V | 25.6V | 51.2V | 51.2V |
| Capacity | 100Ah | 200Ah / 300Ah | 100Ah | 200Ah |
| Nominal Energy | 2.56kWh | 5.12kWh / 7.68kWh | 5.12kWh | 10.24kWh |
| Max Output Power | 2.5KW | 3.5KW / 5KW | 5KW | 7.5KW |
| Max Cont. Charge | 100A | 150A / 200A | 100A | 150A |
| Max Cont. Discharge | 100A | 150A / 200A | 100A | 150A |
| Dimensions (mm) | 442*486*177 | 442*487*250 / 442*495*230 | 442*626*177 | 442*687*250 |
| Net Weight (kg) | 27 | 45 / 58 | 45 | 81 |
| Display | 4.3″ Touch | 4.3″ Touch | 4.3″ Touch | 4.3″ Touch |
| Safety Feature | Fire Suppression | Fire Suppression | Fire Suppression | Fire Suppression |
(Note: All models support up to 15 units in parallel.)
