Description
Key Features
-

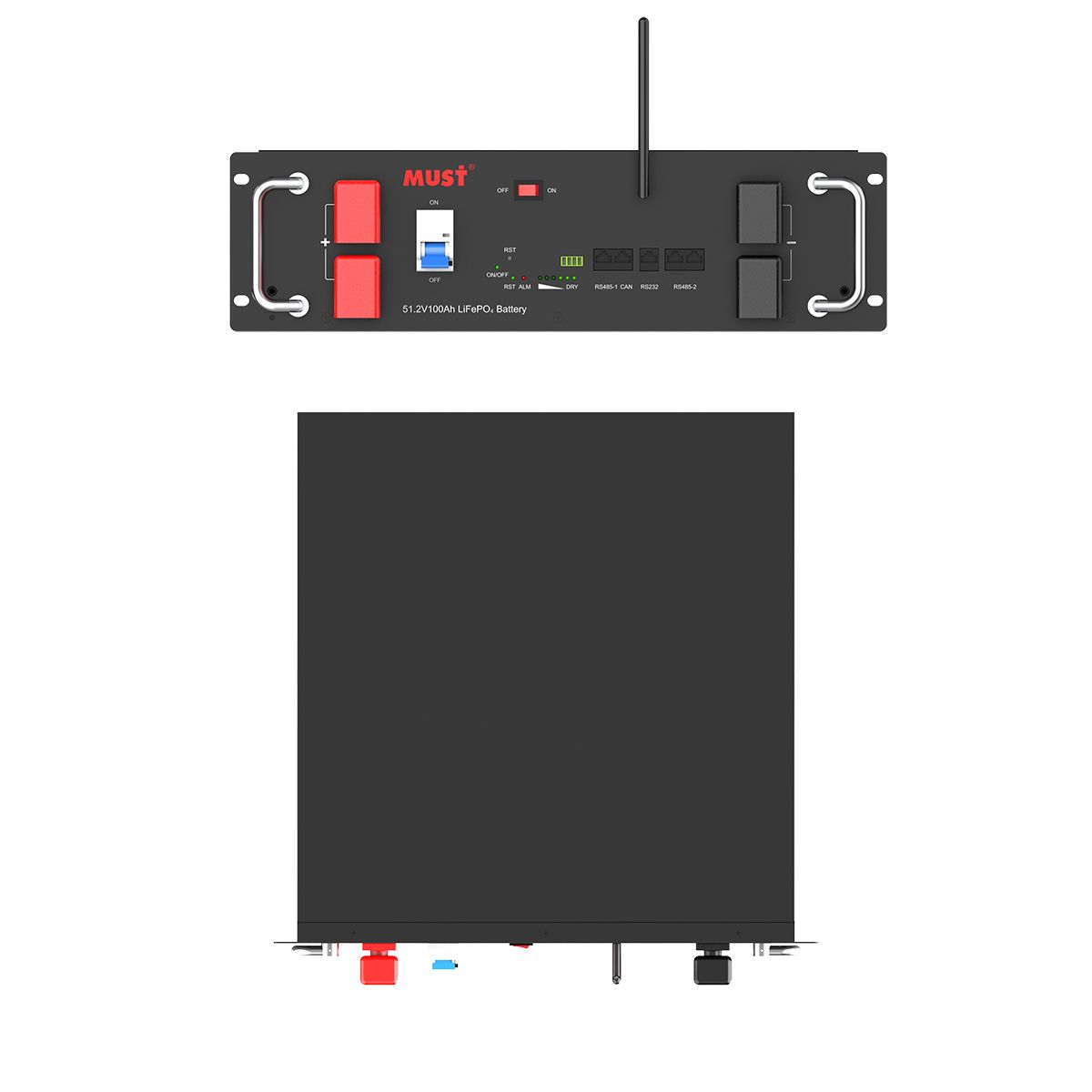

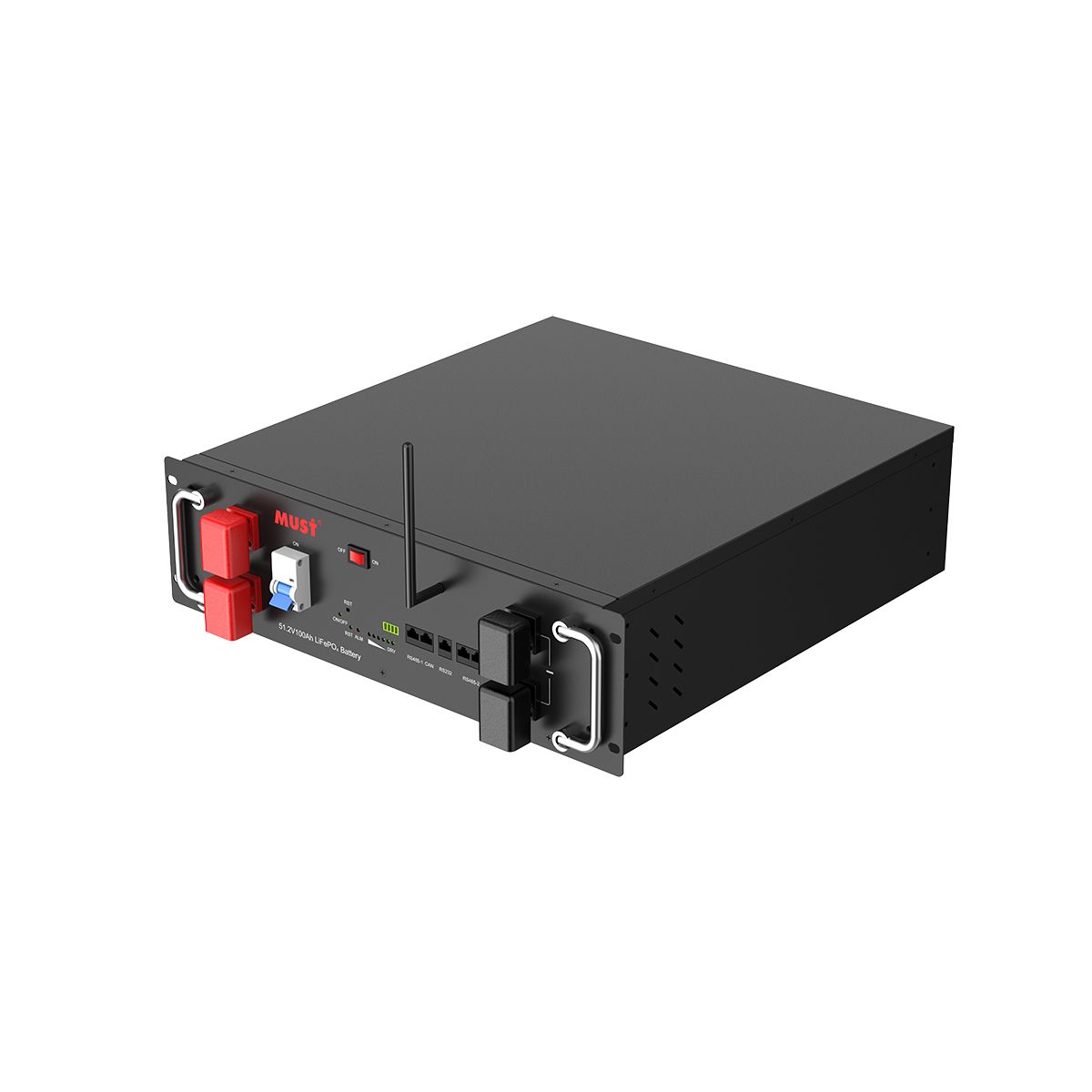

Standard 19-Inch Rack Design: The slim, rack-mountable chassis (440mm width) allows multiple modules to be neatly stacked inside standard equipment cabinets. This highly integrated design dramatically reduces wiring complexity and installation footprint.
-
Exceptional Longevity: Engineered with top-tier LiFePO4 cells to deliver an industry-leading ≥8000 cycles (at 25°C). MUST backs this premium performance with a standard 10-Year Warranty, ensuring decades of reliable operation.
-
High Power & Fast Charging: The 200Ah module supports a powerful 150A Continuous Charge/Discharge Current, translating to a robust 7.5KW Max Output Power, perfectly matching the demands of large 5KW-8KW hybrid inverters.
-
Massive Parallel Scalability: The smart BMS allows up to 15 units to be connected in parallel, enabling seamless capacity expansion from 5kWh all the way up to 153.6kWh for commercial-scale energy needs.
-
Smart WiFi BMS: Features an intelligent Battery Management System with optional WiFi connectivity, providing real-time monitoring of cell health, voltage, and system protection directly from your smartphone or PC.
-
Universal Inverter Integration: Equipped with standard CAN and RS485 communication ports, ensuring flawless plug-and-play compatibility with major inverter brands globally.
Applications
-
Telecom & IT Server Rooms: The 19-inch format is ideal for telecom base stations and data centers requiring ultra-reliable 48V backup power.
-
Premium Home Energy Storage: Perfect for homeowners building custom, cabinet-housed solar storage systems in garages or utility rooms.
-
Commercial Peak Shaving: Parallel multiple 10kWh units in a server rack to reduce expensive peak demand charges for small businesses.
Core Specifications Table
| Model | LP29-48100 PRO | LP29-48200 PRO |
| Nominal Voltage | 51.2V | 51.2V |
| Nominal Capacity | 100Ah | 200Ah |
| Nominal Energy | 5.12 kWh (5120Wh) | 10.24 kWh (10240Wh) |
| Max Output Power | 5 KW | 7.5 KW |
| Max Continuous Charge | 100A | 150A |
| Standard Discharge Current | 50A | 150A |
| Cycle Life | ≥8000 Cycles (@25°C+2°C) | ≥8000 Cycles (@25°C+2°C) |
| Installation Mode | 19-Inch Rack Mount | 19-Inch Rack Mount |
| Dimensions (W*H*D) mm | 440 * 133 * 470 | 440 * 222 * 600 |
| Net Weight | ≈ 44.5 kg | ≈ 83 kg |
| Communication | RS485 / CAN / WIFI (Optional) | RS485 / CAN / WIFI (Optional) |
| Warranty | 10 Years | 10 Years |
