Description

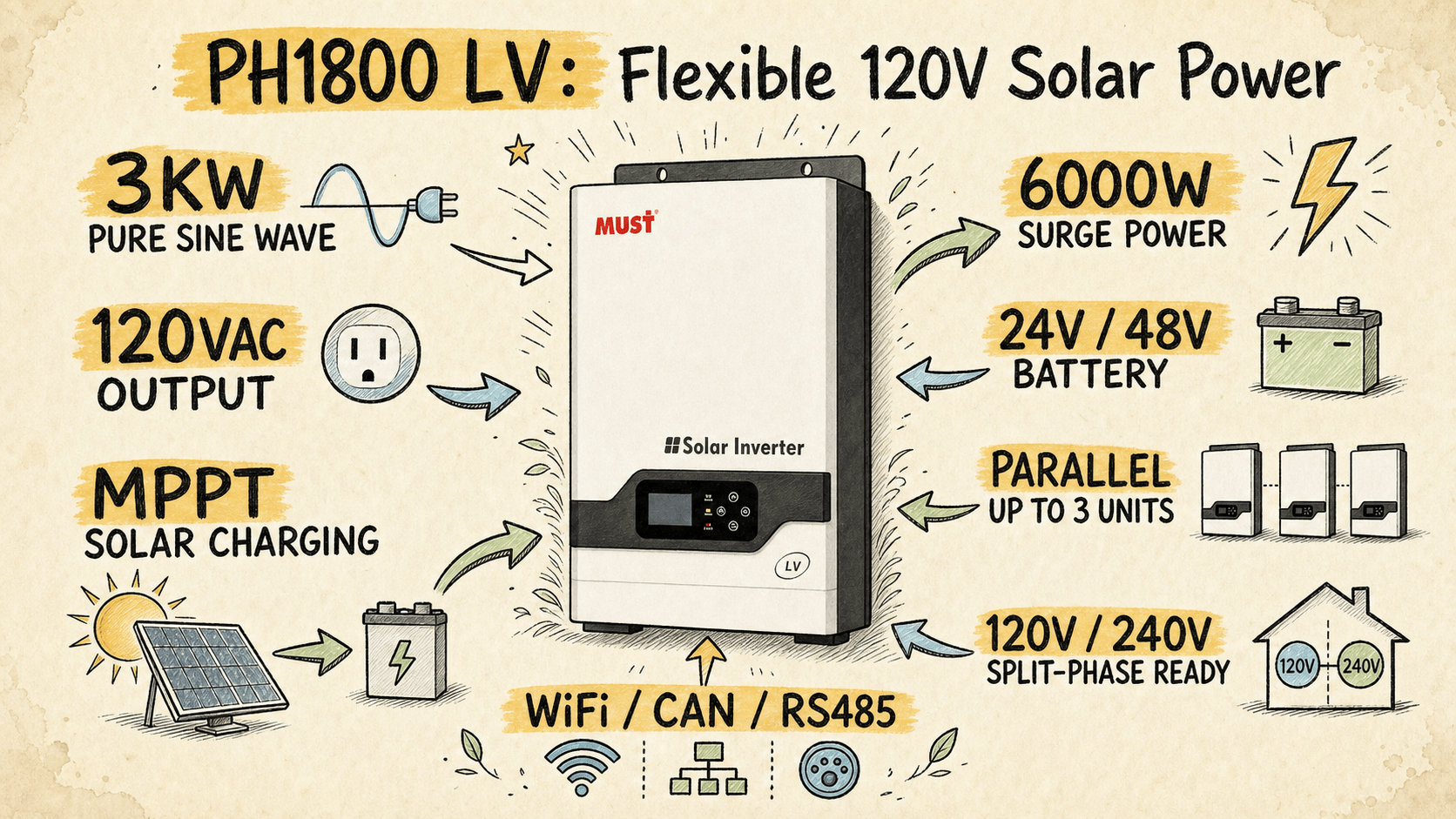

Key Features
-
Native 120V Output: Delivers reliable 110V/120VAC pure sine wave power, perfect for RVs, cabins, and homes in 120V grid regions.
-
Split Phase Capable (120V/240V): Supports connecting 2 units in parallel to create a standard 120V/240V Split Phase system, allowing you to run powerful 240V loads (like dryers and pumps) while balancing 120V lights and outlets.
-
Parallel Expansion: Supports parallel operation of up to 3 units, enabling a total system capacity of 9KW for growing power needs.
-
High Voltage MPPT (3024 Model): The 24V battery model surprisingly features a 450VDC Maximum PV Voltage, allowing for longer solar strings and simplified wiring compared to standard low-voltage inverters.
-
High Current Charging:
-
PH18-3024 LV: Up to 100A Solar Charge.
-
PH18-3048 LV: Up to 140A Maximum Total Charge (Solar + AC), ensuring rapid battery top-up.
-
-
Generator Compatible: Works seamlessly with diesel or gasoline generators to ensure continuous power during long outages.
Applications
-
North American RVs & Cabins: The 120V output and 450V PV input (24V model) are ideal for efficient off-grid living with limited roof space but high power needs.
-
Small Home Backup: Parallel two units to back up a standard US home panel (120/240V) during blackouts.
-
Latin American Markets: Perfect for 110V/120V countries requiring stable solar power with generator support.

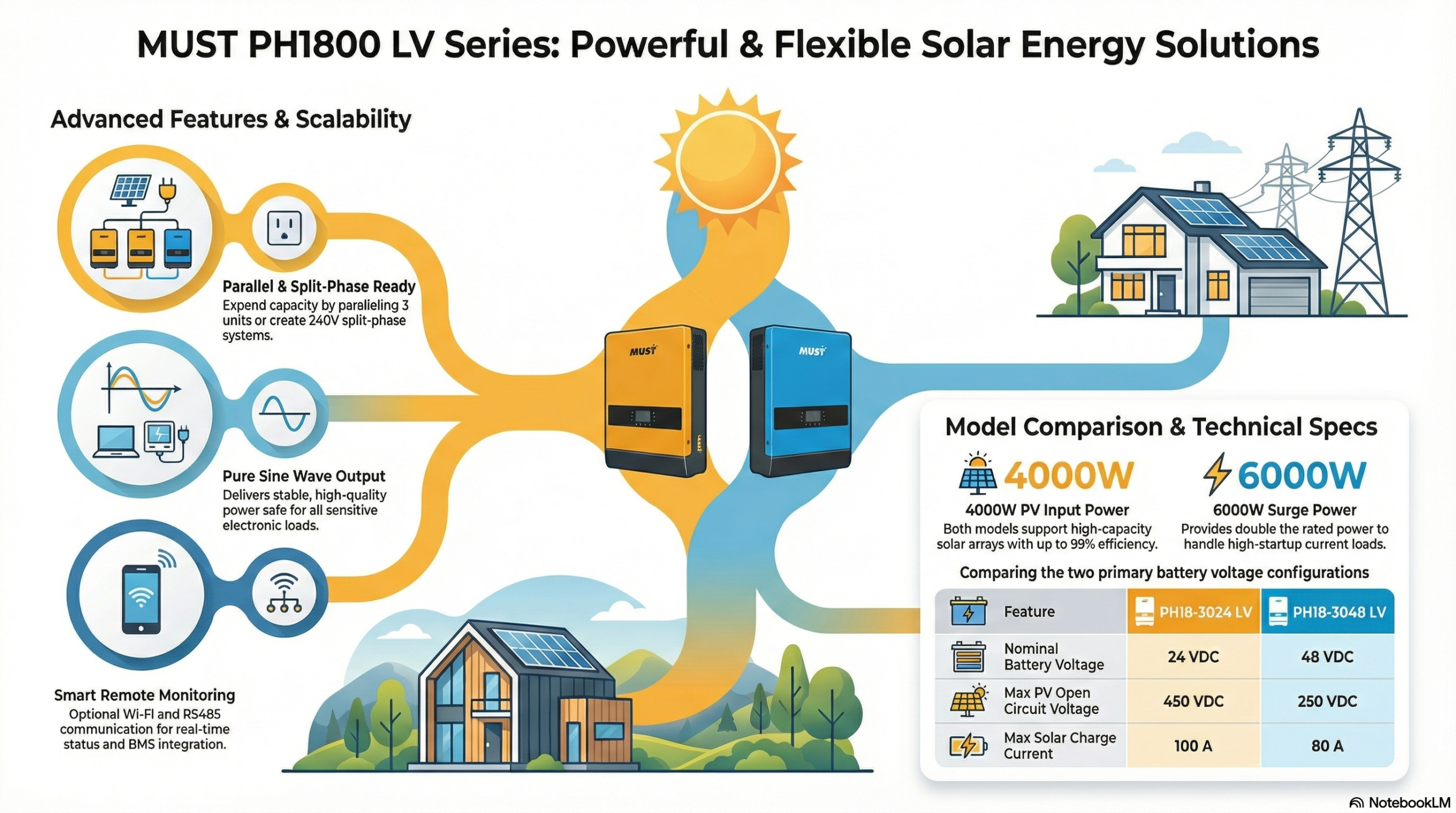

Core Specifications Table
| Model | PH18-3024 LV | PH18-3048 LV |
| Rated Power | 3000W | 3000W |
| Nominal Voltage | 120VAC | 120VAC |
| Battery Voltage | 24VDC | 48VDC |
| Surge Power | 6000W | 6000W |
| Max PV Voltage (VOC) | 450VDC | 250VDC |
| MPPT Voltage Range | 90~430VDC | 60~200VDC |
| Max PV Input Power | 4000W | 4000W |
| Max Solar Charge | 100A | 80A |
| Max AC Charge | 80A | 60A |
| Max Total Charge | 100A | 140A |
| Parallel Capability | Yes (Up to 3 units) | Yes (Up to 3 units) |
| Split Phase Support | Yes (with 2 units) | Yes (with 2 units) |
| Dimensions (mm) | 329*485*134 | 329*485*134 |
| Net Weight | 12 kg | 12 kg |
