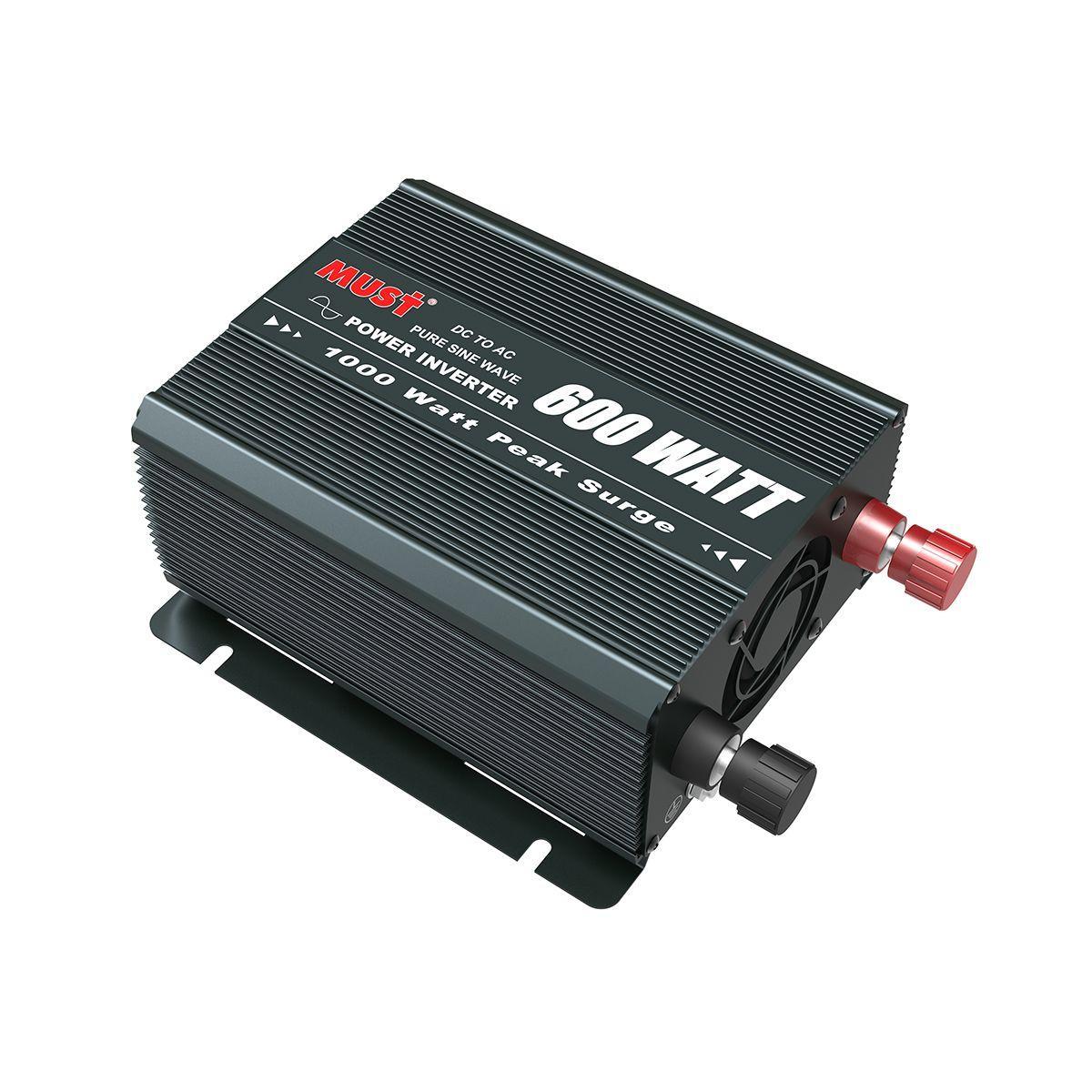

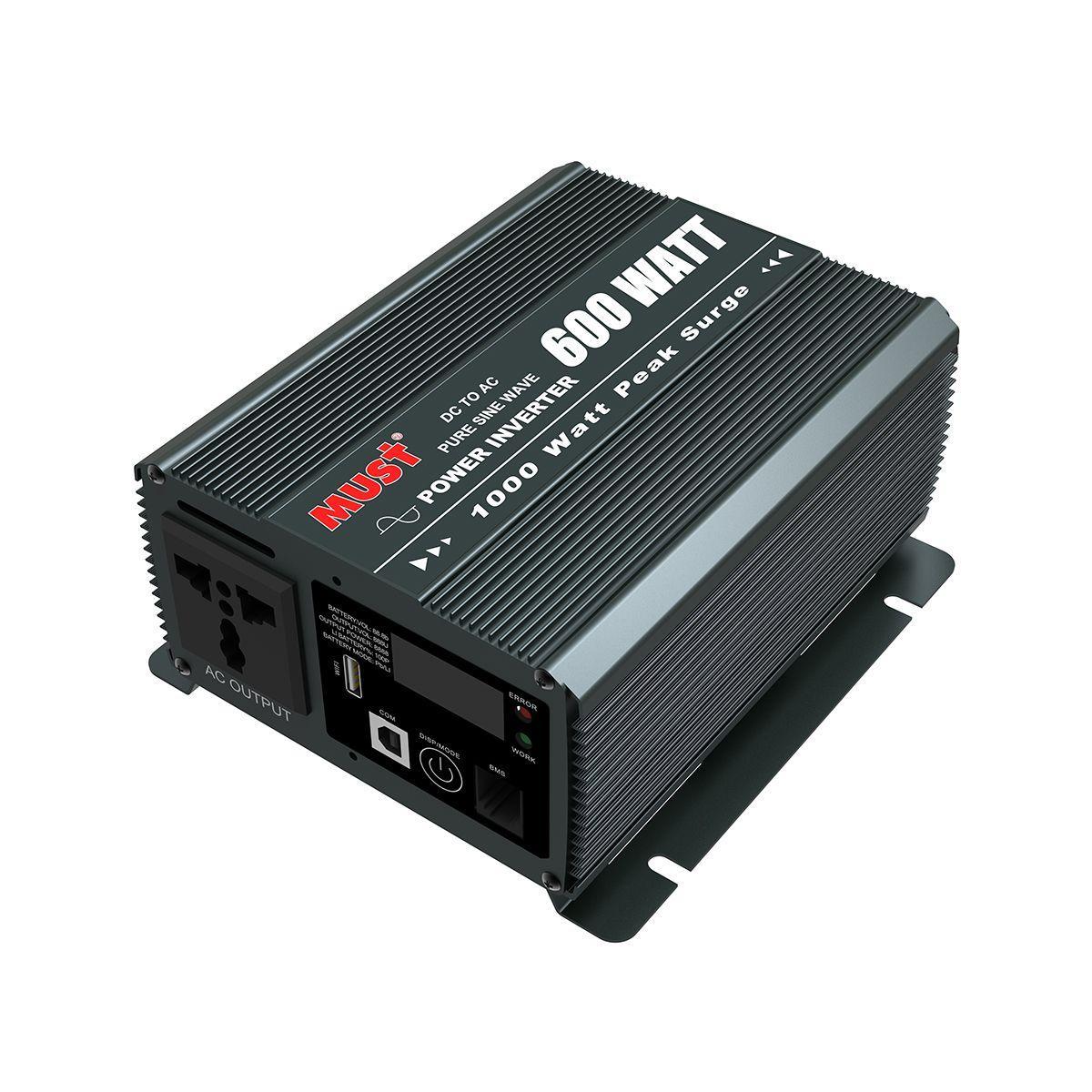

PI1500 Series (600W)

Pure Sine Wave Inverter

PI15 series is a pure sine wave inverter, high frequency machine solution, the product is small size, the solution is reliable and stable, the main function is to invert the DC 12VDC battery or 24VDC battery to AC 230VAC or AC 120VAC output, mainly used for emergency use Electricity, car inverter, outdoor electricity and other occasions.

Model Certification & Standards
PI15-0624 LV CE-LVD(EN 62477-1:2012/A11: 2014)
PI15-0612, PI15-0624 CE-EMC+LVD(EN6100-6-3: 2007, EN6100-6-1:2017+EN IEC62109-1:2010, EN IEC62109-2:20110);UKCA-LVD



• Input Voltage 12V / 24V DC optional

• Output Voltage 120V / 230V AC optional

• Portable power for AC products, AC outlets for connecting multiple loads

• High efficiency converts virtually all of the battery’s power to AC

• Mounting brackets for convenient installation

• WIFI/BMS Optional

• Overload and over temperature shut down

• Low voltage and over voltage alarm/cut off

• Input reverse protection

• Short circuit protection


MODEL PI15-0612 PI15-0612LV PI15-0624 PI15-0624LV
Battery DC Input
Input Voltage 12VDC 24VDC
Low Voltage Protect Delay 2 seconds
Low Voltage Protect 10.5VDC(PB) 11.6VDC(LI) 21.0VDC(PB) 23.2VDC(LI)
Low Voltage Warning 11.5VDC(PB) 12.0VDC(LI) 23.0VDC(PB) 24.0VDC(LI)
Low Voltage Restoring 12.5VDC(PB) 12.8VDC(LI) 25.0VDC(PB) 25.6VDC(LI)
Over Voltage Restoring 14.7VDC(PB) 14.5VDC(LI) 29.4VDC(PB) 29.0VDC(LI)
Over Voltage Protect 15.0VDC(PB) 14.8VDC(LI) 30.0VDC(PB) 29.6VDC(LI)
Note: Parameters (PB) Lead-acid Battery / (Li) LiFePO4 Lithium Battery Pack-12V(4 Series) 24V(8 Series)
Inverter AC Output
Default Power 600W
Peak Power 1200W
Output AC Voltage 230V 120V 230V 120V
Output AC Frequency 50Hz 60Hz 50Hz 60Hz
Output Wave Pure Sine Wave
Output Wave THD < 3%
USB Output USB A type – 5V 1.5A
Battery Input Protection Low Voltage Protection, Over Voltage Protection, Reverse Protection
Inverter Output Protection Output Overload, Short-Circuit, Over Temperature Protection
LED Display Red: Error ; Green: System OK
LED Digital Display Display Battery Voltage, Output Power, Output Voltage, Error Numbers
PC(Default) USB B type Socket
WIFI(Optional) USB A type Socket
BMS to Li Battery(Optional) RJ11 type Socket
Peak Conversion efficiency 91%
Protection Degree IP20
Working Environment Indoor Fan cooling
Environmental temperature 0~45°C
Ambient humidity 20%–90%, No condensation
Altitude ≤3000m
