PV19-6548 EXP (6.5KW)

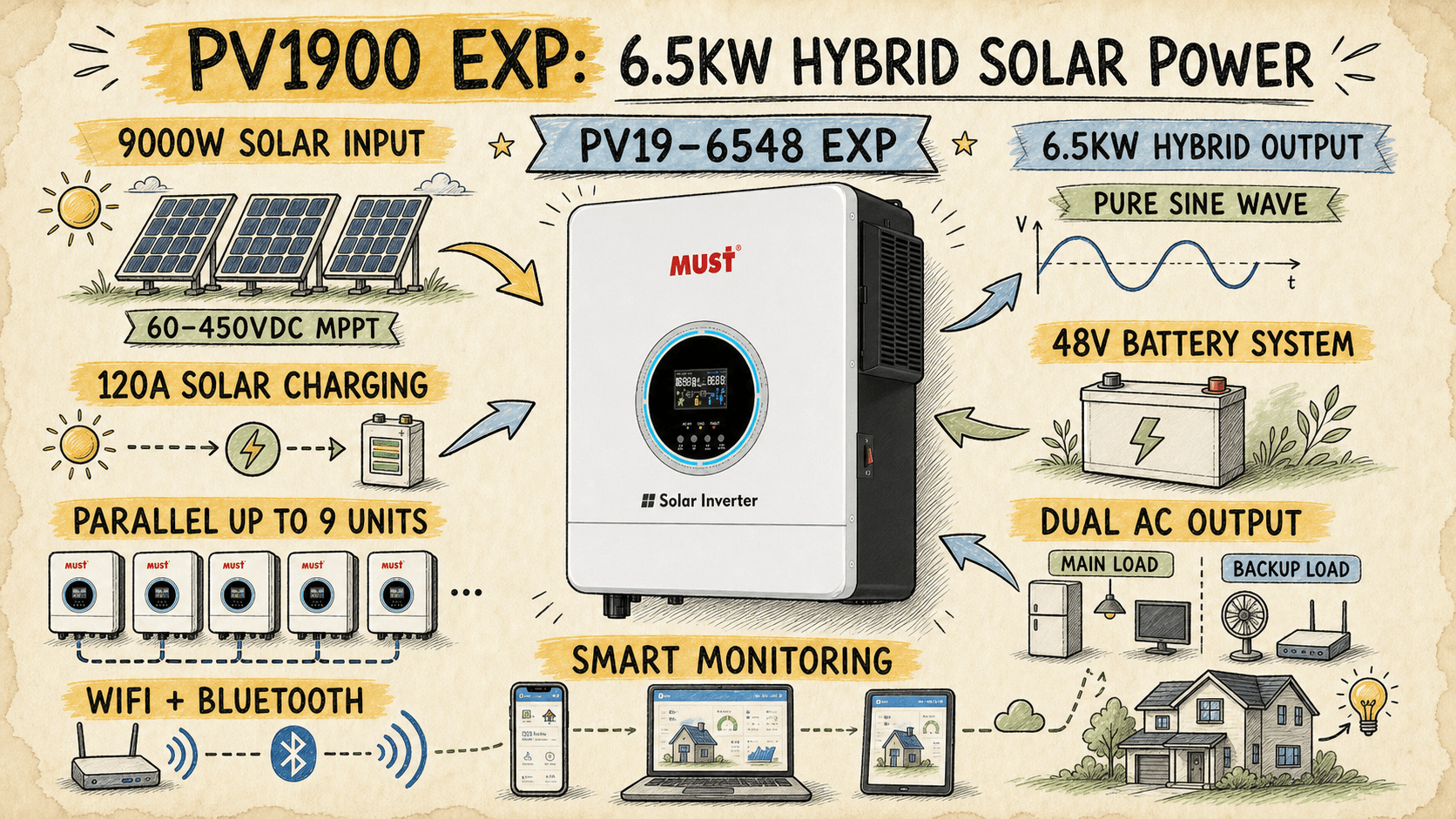

6.5KW Hybrid Power | Dual Output | 9KW PV | WiFi & Bluetooth

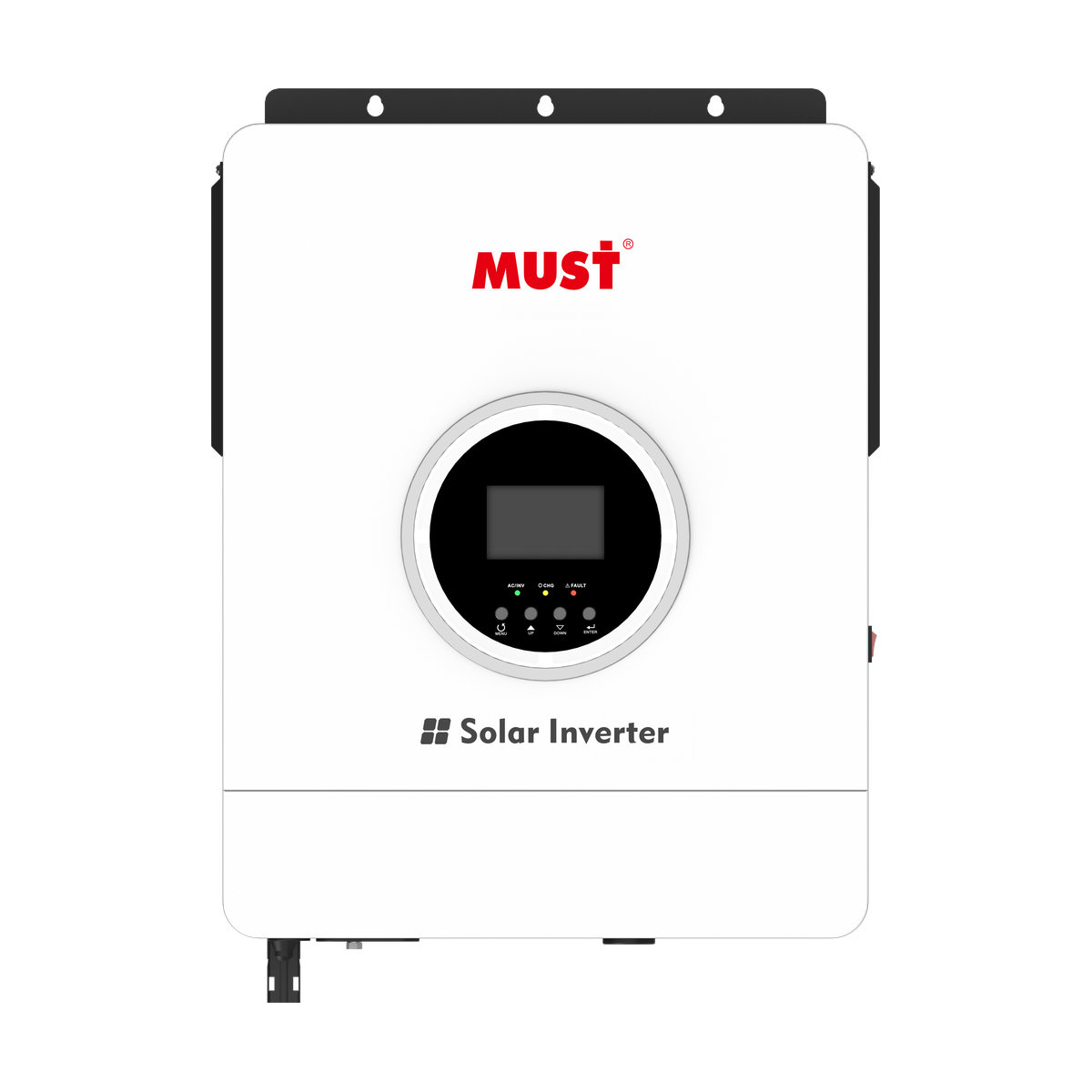

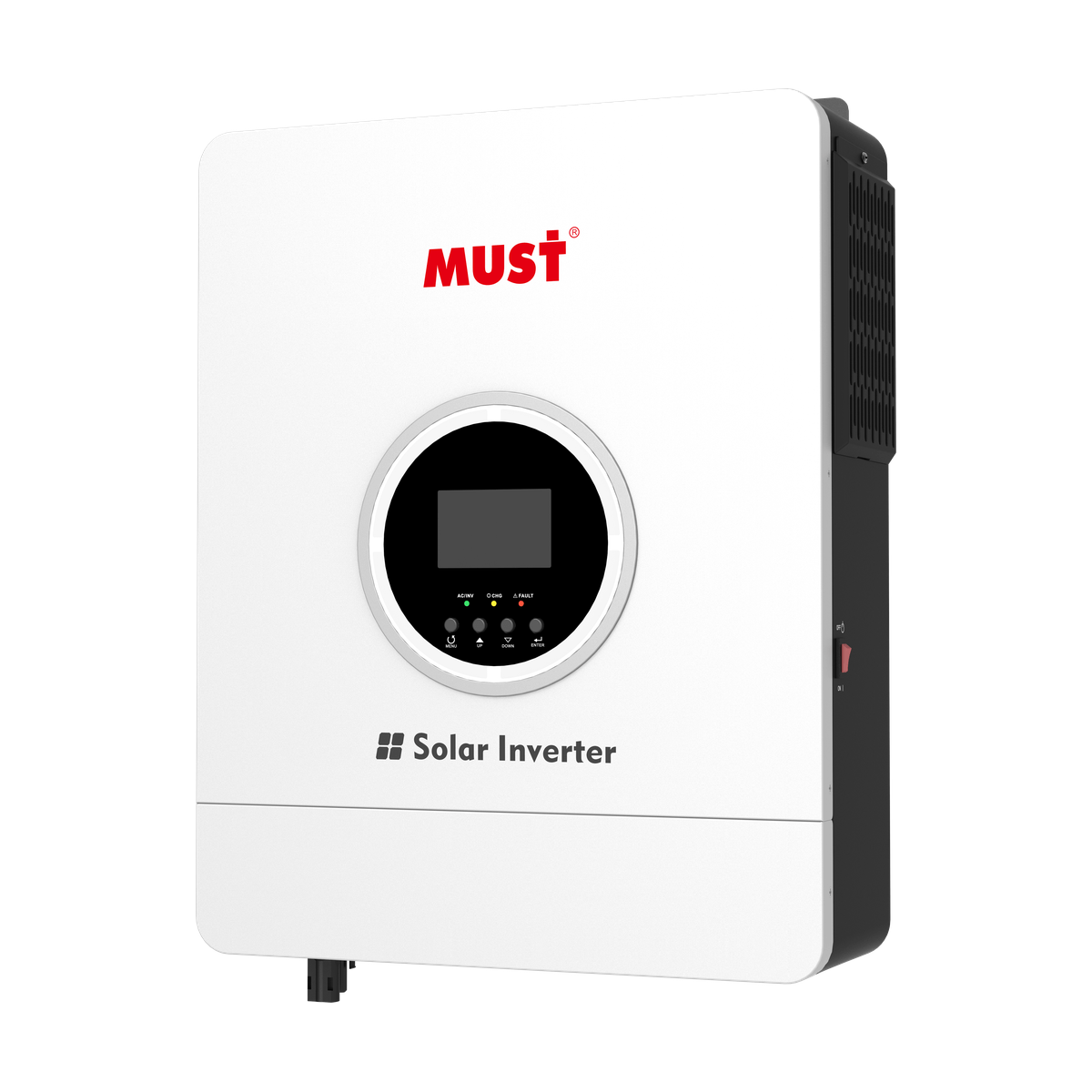

The PV19-6548 EXP is a high-frequency hybrid solar inverter designed for dependable residential and light commercial off-grid power. It delivers 6000W in battery mode and up to 6500W continuous output when solar power is available, supplying clean pure sine wave electricity for appliances, refrigeration, pumps and sensitive electronics. The 48V platform supports up to 9000W of PV input, a 500VDC maximum PV voltage and fast 120A MPPT solar charging. Dual AC outputs separate critical and non-critical loads, while optional dual AC inputs simplify utility and generator integration. Built-in WiFi, Bluetooth, RS-485 and CAN provide flexible monitoring and battery communication. Standard parallel operation of three units, with optional expansion to nine units, makes the system ready for future growth.

Category:
Description

Description

Key Features

  • 6.5KW Hybrid Output: Delivers 6000W in battery mode and up to 6500W continuous output when PV input exceeds 1000W, with stable pure sine wave power.
  • High-Efficiency 9KW Solar Input: Supports up to 9000W PV power, 500VDC maximum open-circuit voltage and a wide 60-450VDC MPPT operating range.
  • Fast PV and AC Charging: Provides up to 120A solar charging, 100A AC charging and 120A maximum combined charging current for rapid battery recovery.

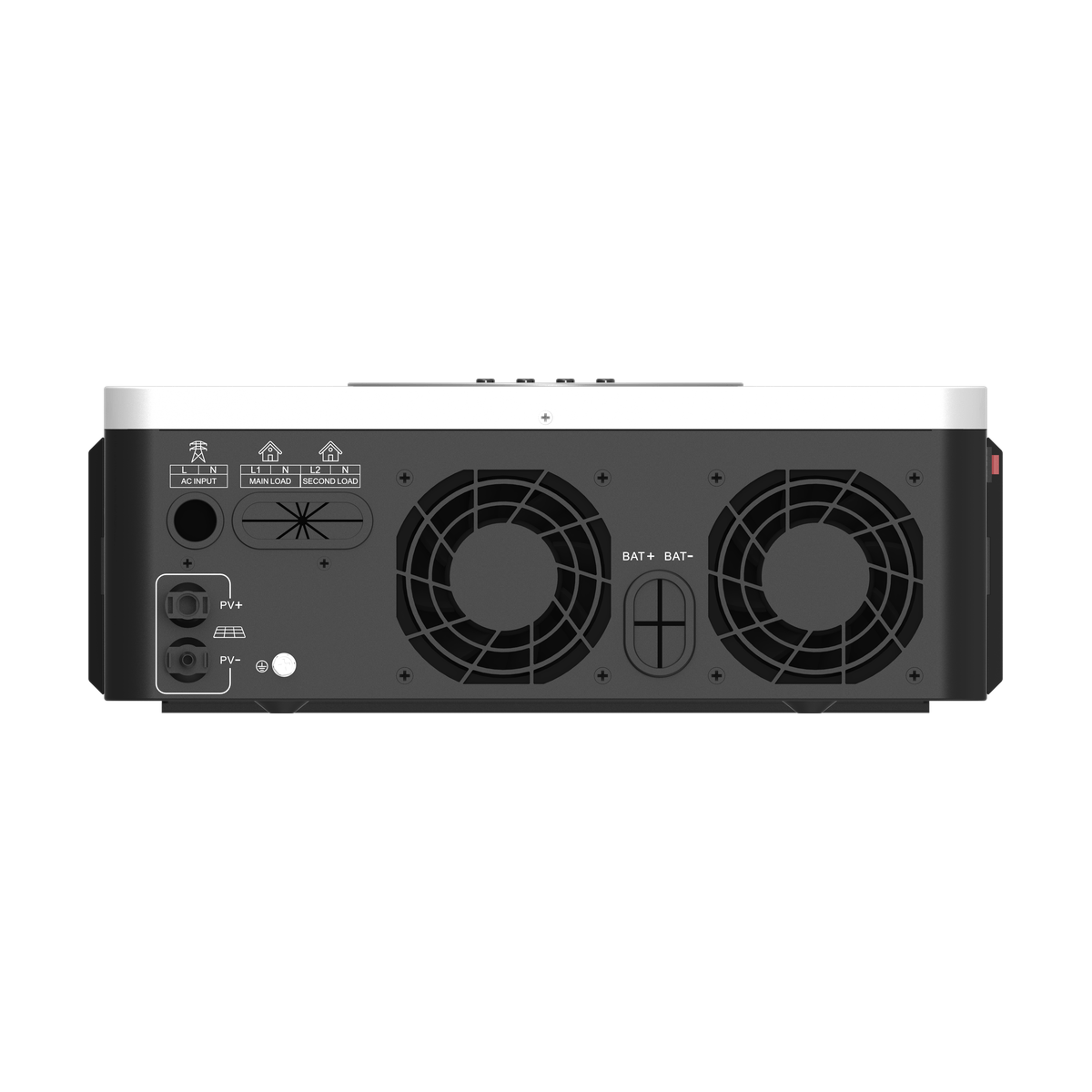

  • Dual Output Load Management: Separate main and backup AC outputs help prioritize critical appliances and improve battery runtime.
  • Flexible Power Sources: Optional dual AC inputs support utility and generator integration, while battery-free load operation increases system flexibility.
  • Smart Visualization and Monitoring: Built-in WiFi and Bluetooth provide convenient remote monitoring, complemented by RS-485 and CAN communication.
  • Scalable Parallel Expansion: Supports up to 3 units in parallel as standard and optional expansion to 9 units for larger residential or commercial systems.
  • Comprehensive Protection: Integrated overload, over-temperature, short-circuit, high-voltage and low-voltage protection, plus an anti-dust kit.

Applications

  • Residential Solar Backup: Reliable whole-home or essential-load power during grid interruptions.
  • Off-Grid Homes and Farms: High PV capacity and flexible generator support for remote properties.
  • Shops and Workshops: Stable pure sine wave output for lighting, tools, refrigeration and office equipment.
  • Expandable Energy Systems: Parallel operation provides a practical growth path for larger power requirements.

Core Specifications Table

Model PV19-6548 EXP
Series PV1900 EXP
Nominal Battery System Voltage 48VDC
Rated Output Power – Battery Mode 6000W
Rated Output Power – PV Input > 1000W 6500W
Output Waveform Pure Sine Wave
AC Output Regulation 230VAC ±5% (Setting)
Peak Inverter Efficiency 92.5%
Transfer Time 10ms (UPS / VDE4105) / 20ms (APL)
AC Input Voltage 230VAC ±5%
Selectable AC Input Range 170-280VAC (UPS) / 90-280VAC (APL) / 184-253VAC (VDE4105)
Frequency Range 50Hz / 60Hz Auto Sensing
Solar Charging Rated Power 9000W
Maximum PV Input Voltage (Voc) 500VDC Max
MPPT Voltage Range 60-450VDC
Maximum PV Input Current 28A
Maximum Solar Charge Current 120A
Maximum AC Charge Current 100A
Maximum Combined Charge Current 120A
Parallel Operation Up to 3 Units Standard / Up to 9 Units Optional
Protection Degree IP21

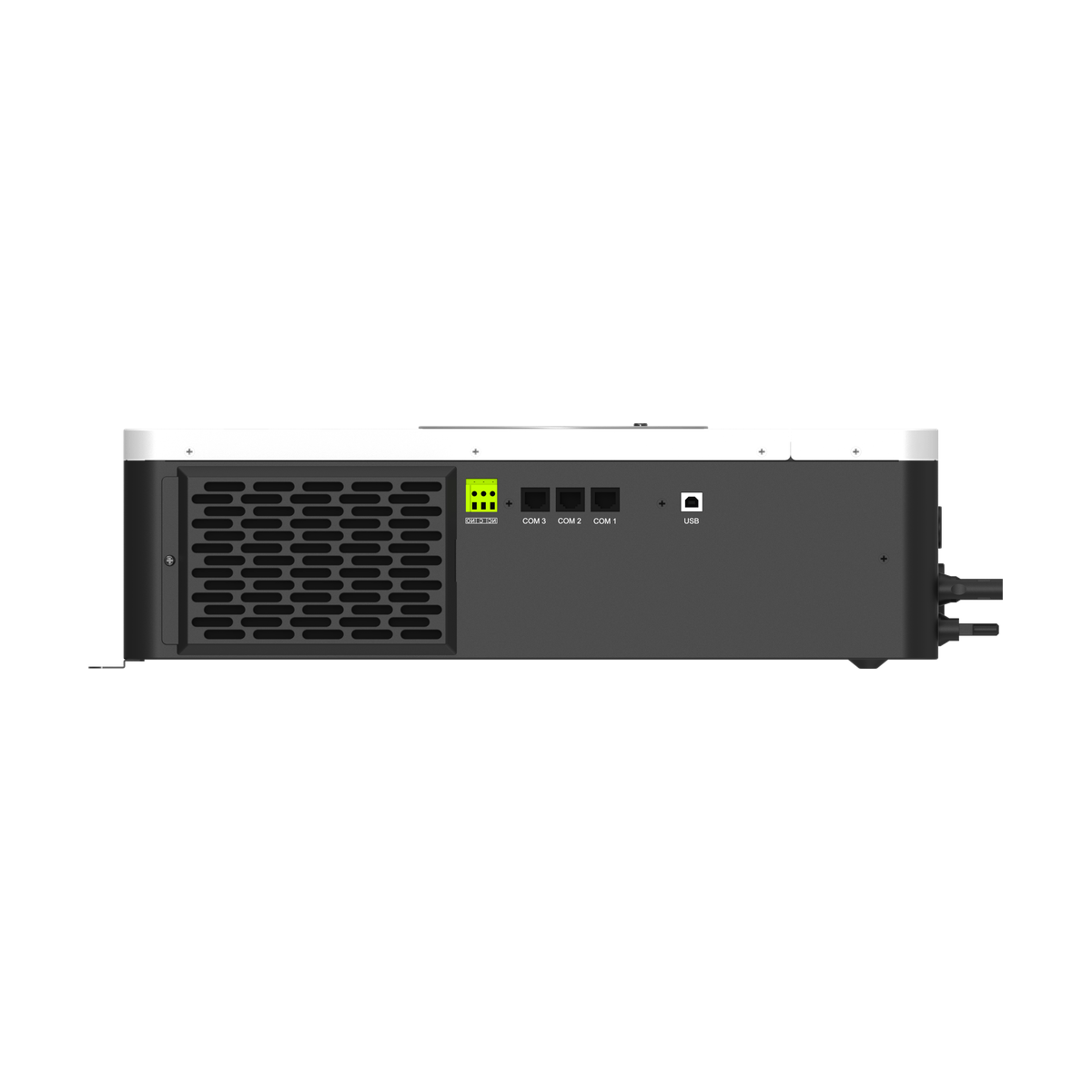

Communication WiFi / Bluetooth / RS-485 / CAN
Operating Temperature -10°C to +50°C
Machine Dimensions 331 × 455 × 137.5mm
Net Weight 10.3kg
Warranty 2 Years
Certification CE
