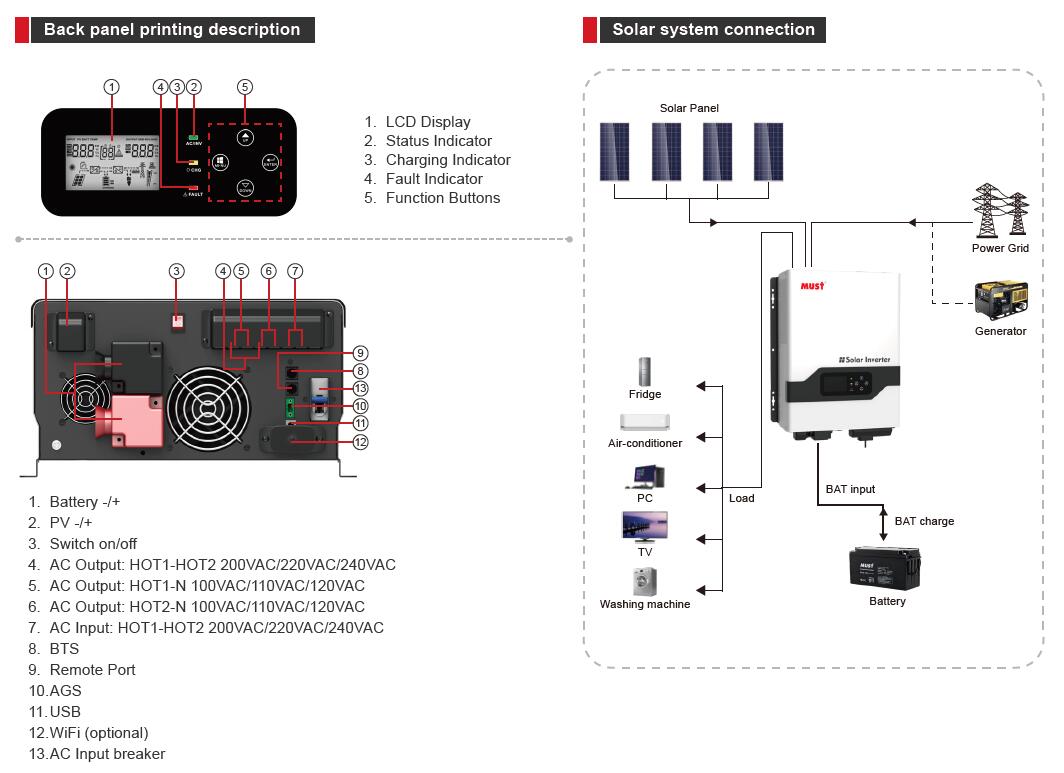

Description
Features:
• Pure sine wave output
• Friendly user interface; MFD (multi-function display)
• 3 Steps charging
• Overload and short-circuit protection
• Set charging voltage/charging current.
• Battery low voltage shutdown point can be set to 10/10.5/11/11.5V
• Set utility priority/ Battery priority
• Set utility input wide/narrow range
• Inverter voltage can be set to 100/110/120; frequency can be set to 50/60Hz
• Set utility charging on/off switch
• Built-in 80A MPPT charger
• Acid or Lithium Select
• WiFi port (optional)
Specification:
| MODEL | PV33- 1012 TLV | PV33- 1512 TLV | PV33- 1524 TLV | PV33- 2012 TLV | PV33- 2024 TLV | PV33- 3024 TLV | PV33- 3048 TLV | |
|---|---|---|---|---|---|---|---|---|
| Inverter Output | ||||||||
| Rated power | 1KW | 1.5KW | 2KW | 3KW | ||||
| Power factor | 1 | |||||||
| Wave form | Pure sine wave | |||||||
| Output voltage RMS | 100V / 110V / 120VAC (200V / 220V / 240VAC) ±10% | |||||||
| Output frequency | 50Hz or 60Hz (±0.3Hz) | |||||||
| Inverter efficiency (peak) | >80% | |||||||
| Line mode efficiency | >95% | |||||||
| Overload | 100%<Load<110% (alarm 5min then stop outputand fault code 07) 110%<Load<125% (alarm 60s then stop output and fault code 07) Load > 125% (alarm 10s then stop output and fault code 07) | |||||||
| Surge rating | 3000VA | 4500VA | 6000VA | 9000VA | ||||
| Capable of starting electric motor | 1P | 1P | 1.5P | 1.5P | ||||
| Battery | ||||||||
| Battery voltage | 12VDC/24VDC | 24VDC/48VDC | ||||||
| Minimum start voltage | 11VDC / 22VDC / 44VDC | |||||||
| Low battery cut off | low voltage fault code 04
(10 / 10.5 / 11 / 11.5V) for 12V model (21 / 21 / 22 / 23V) for 24V model (40 / 42 / 44 / 46V) for 48V model |
|||||||
| Low battery alarm | Add 0.5/battery: (low battery alarm one second one time) (10 / 10.5 / 11 / 11.5V) +0.5VDC for 12V model
(21 / 21 / 22 / 23V) +1VDC for 24V model (40 / 42 / 44 / 46V) +2VDC for 48V model |
|||||||
| High voltage alarm | Add +1V/battery: (high voltage one second one time / after 30s fault 03) (13.8-14.5V) +1VDC for 12V model
(27.6-29V) +2VDC for 24V model (55.2-58V) +4VDC for 48V model |
|||||||
| Save mode | Load ≤40W(110V) / 80W(220V) | |||||||
| AC Input Mode | ||||||||
| Input waveform | Pure sine wave | |||||||
| Nominal input voltage | 200Vac / 220Vac / 240Vac | |||||||
| Max input voltage | 270Vac MAX | |||||||
| Input frequency | 50Hz / 60Hz (auto sensing) | |||||||
| Efficiency (AC mode) | >95% (load, full battery) | |||||||
| Transfer time AC to DC | 15ms(typical) | |||||||
| Solar Charger | ||||||||
| Maximum PV Array Power | 1250W | 1250W | 2500W | 1250W | 2500W | 2500W | 5000W | |
| Maximum PV Charge Current | 80A±4A | |||||||
| DC Voltage | 12V / 24V | 24V / 48V | ||||||
| MPPT Range @ Operating Voltage | 16~95VDC @ 12V / 30~130VDC @ 24V | 30~130VDC @ 24V / 60~130VDC @48V | ||||||
| Maximum Solar Input Voltage | 100±2Vdc / 145±2Vdc | 145±2Vdc | ||||||
| Maximum Efficiency | >98% | |||||||
| Standby Power Consumption | <2W | |||||||
| Charge Mode | ||||||||
| Max charge current (±5A) | 12V | 30A | 45A | 60A | / | |||
| 24V | 20A | 25A | 30A | 40A | ||||
| 48V | / | / | / | 20A | ||||
| Min charge current 10A. Change by every 5A | ||||||||
| Dimensions | ||||||||
| Dimensions (W*H*D) | 359.2*443*188mm | |||||||
| Ship Dimensions (W*H*D) | 457*598*308mm | |||||||
| Net Weight (Solar CHG)(kg) | 17.2 | 17.7 | 21.8 | 20.7 | 25.2 | 25.5 | ||
| Shipping Weight (Solar CHG)(kg) | 20 | 20.7 | 24.8 | 23.5 | 28.2 | 28.2 | ||
| MODEL | PV33- 4024 TLV | PV33- 4048 TLV | PV33- 5048 TLV | PV33- 6048 TLV | |
|---|---|---|---|---|---|
| Inverter Output | |||||
| Rated power | 4KW | 5KW | 6KW | ||
| Power factor | 1 | ||||
| Wave form | Pure sine wave | ||||
| Output voltage RMS | 100V / 110V / 120VAC (200V / 220V / 240VAC) ±10% | ||||
| Output frequency | 50Hz or 60Hz (±0.3Hz) | ||||
| Inverter efficiency (peak) | >80% | ||||
| Line mode efficiency | >95% | ||||
| Overload | 100%<Load<110% (alarm 5min then stop outputand fault code 07) 110%<Load<125% (alarm 60s then stop output and fault code 07) Load > 125% (alarm 10s then stop output and fault code 07) | ||||
| Surge rating | 12000VA | 15000VA | 18000VA | ||
| Capable of starting electric motor | 2P | 3P | |||
| Battery | |||||
| Battery voltage | 24VDC/48VDC | 48VDC | |||
| Minimum start voltage | 11VDC / 22VDC / 44VDC | ||||
| Low battery cut off | low voltage fault code 04
(10 / 10.5 / 11 / 11.5V) for 12V model (21 / 21 / 22 / 23V) for 24V model (40 / 42 / 44 / 46V) for 48V model |
||||
| Low battery alarm | Add 0.5/battery: (low battery alarm one second one time) (10 / 10.5 / 11 / 11.5V) +0.5VDC for 12V model
(21 / 21 / 22 / 23V) +1VDC for 24V model (40 / 42 / 44 / 46V) +2VDC for 48V model |
||||
| High voltage alarm | Add +1V/battery: (high voltage one second one time / after 30s fault 03) (13.8-14.5V) +1VDC for 12V model
(27.6-29V) +2VDC for 24V model (55.2-58V) +4VDC for 48V model |
||||
| Save mode | Load ≤40W(110V) / 80W(220V) | ||||
| AC Input Mode | |||||
| Input waveform | Pure sine wave | ||||
| Nominal input voltage | 200Vac / 220Vac / 240Vac | ||||
| Max input voltage | 270Vac MAX | ||||
| Input frequency | 50Hz / 60Hz (auto sensing) | ||||
| Efficiency (AC mode) | >95% (load, full battery) | ||||
| Transfer time AC to DC | 15ms(typical) | ||||
| Solar Charger | |||||
| Maximum PV Array Power | 2500W | 5000W | 5000W | 5000W | |
| Maximum PV Charge Current | 80A±4A | ||||
| DC Voltage | 24V / 48V | 24V / 48V | |||
| MPPT Range @ Operating Voltage | 30~130VDC @ 24V / 60~130VDC @48V | 60~130VDC @48V | |||
| Maximum Solar Input Voltage | 145±2Vdc | 145±2Vdc | |||
| Maximum Efficiency | >98% | ||||
| Standby Power Consumption | <2W | ||||
| Charge Mode | |||||
| Max charge current (±5A) | 12V | / | / | / | |
| 24V | 60A | / | / | ||
| 48V | 30A | 35A | 40A | ||
| Min charge current 10A. Change by every 5A | |||||
| Dimensions | |||||
| Dimensions (W*H*D) | 361.8*543.5*188.5mm | ||||
| Ship Dimensions (W*H*D) | 457*698*308mm | ||||
| Net Weight (Solar CHG)(kg) | 38.9 | 36.5 | 38 | 39 | |
| Shipping Weight (Solar CHG)(kg) | 43 | 40.7 | 39.2 | 40.2 | |
