Description

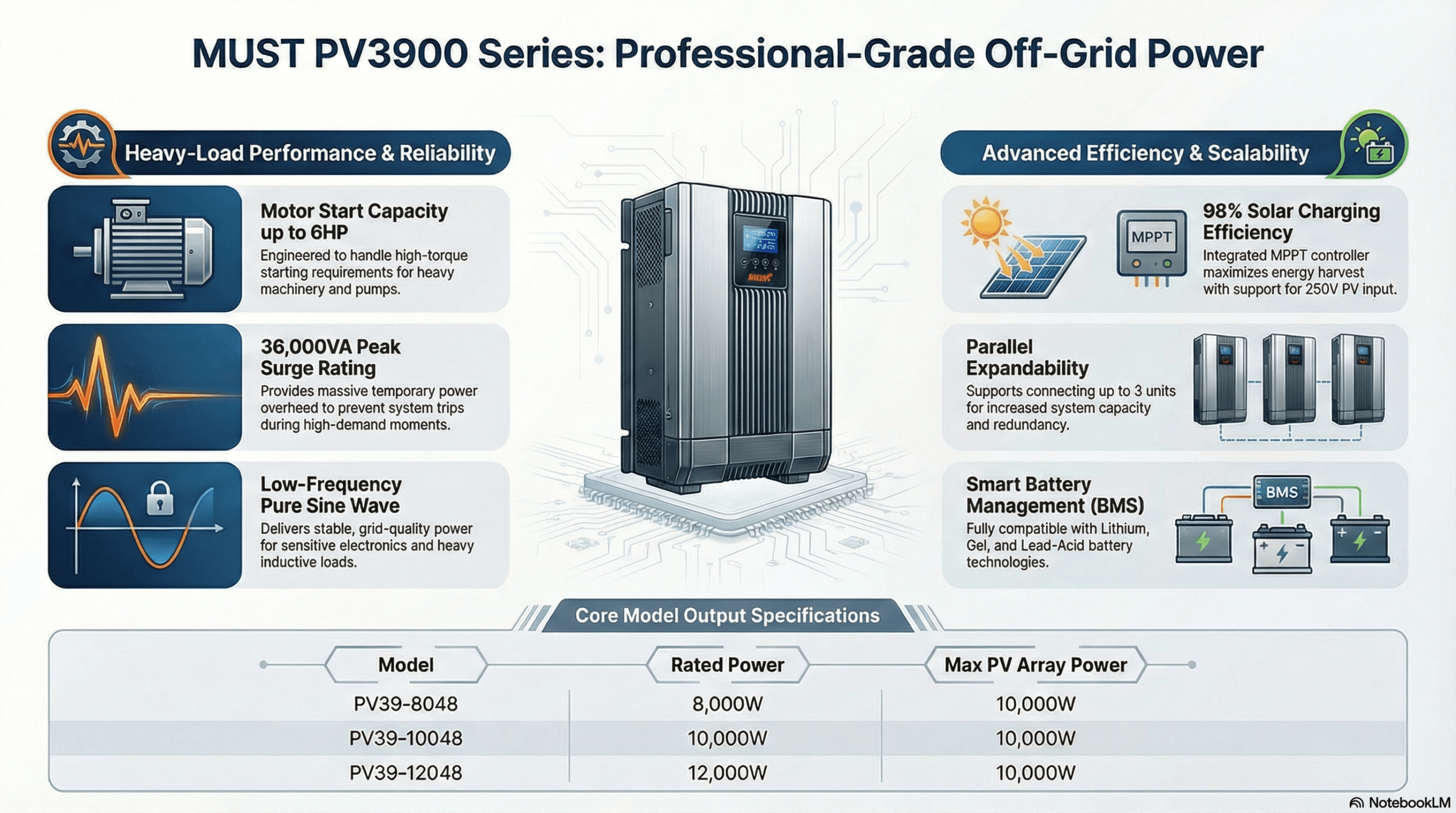

Key Features
-
Robust Low Frequency Design: Built with a heavy-duty transformer, it offers exceptional shock resistance and stability, making it ideal for powering sensitive and heavy inductive loads that would trip standard inverters.
-
Massive 200A MPPT Charging: Features a high-current 200A MPPT solar charge controller, supporting a maximum PV array power of 10000W, ensuring rapid battery charging even with large battery banks.
-
Extreme Surge Capability: Delivers a 300% surge rating (up to 36KW on the 12KW model), allowing it to handle peak startup currents of heavy motors (4HP-6HP) without breaking a sweat.
-
Smart Hybrid Charging: Combines solar and utility charging with a Maximum AC Charge Current up to 140A, ensuring your batteries are always ready, rain or shine.
-
Expandable Capacity: Supports parallel operation of up to 3 units, enabling you to scale your system power up to 36KW for larger energy needs.
-
Generator & Lithium Friendly: Fully compatible with diesel generators and features diverse battery settings (Lead-acid, Gel, Lithium) with BMS integration.
Applications
-
Heavy Motor Loads: Perfectly suited for water pumps, large refrigerators, air compressors, and AC units that require high starting torque.
-
Remote Estates & Farms: Reliable power for large off-grid properties running agricultural equipment or workshops.
-
Unstable Grid Areas: Acts as a fortress against voltage spikes and dirty power, protecting your household appliances.
Core Specifications Table
| Model | PV39-8048 | PV39-10048 | PV39-12048 |
| Technology | Low Frequency (Transformer) | Low Frequency (Transformer) | Low Frequency (Transformer) |
| Rated Power | 8000W | 10000W | 12000W |
| System Voltage | 48VDC | 48VDC | 48VDC |
| Surge Power (20ms) | 24000VA | 30000VA | 36000VA |
| Motor Capability | 4HP | 5HP | 6HP |
| Max PV Voltage | 250VDC | 250VDC | 250VDC |
| MPPT Voltage Range | 64~235VDC | 64~235VDC | 64~235VDC |
| Max PV Power | 10000W | 10000W | 10000W |
| Max Solar Charge | 200A | 200A | 200A |
| Max AC Charge | 100A | 120A | 140A |
| Machine Dim (mm) | 439*661*223 | 439*661*223 | 439*661*223 |
| Package Dim (mm) | 782*304*521 | 782*304*521 | 782*304*521 |
| Net Weight | 59 kg | 68 kg | 75 kg |
| Gross Weight | 76 kg | 85 kg | 92 kg |
