Description
Key Features
-

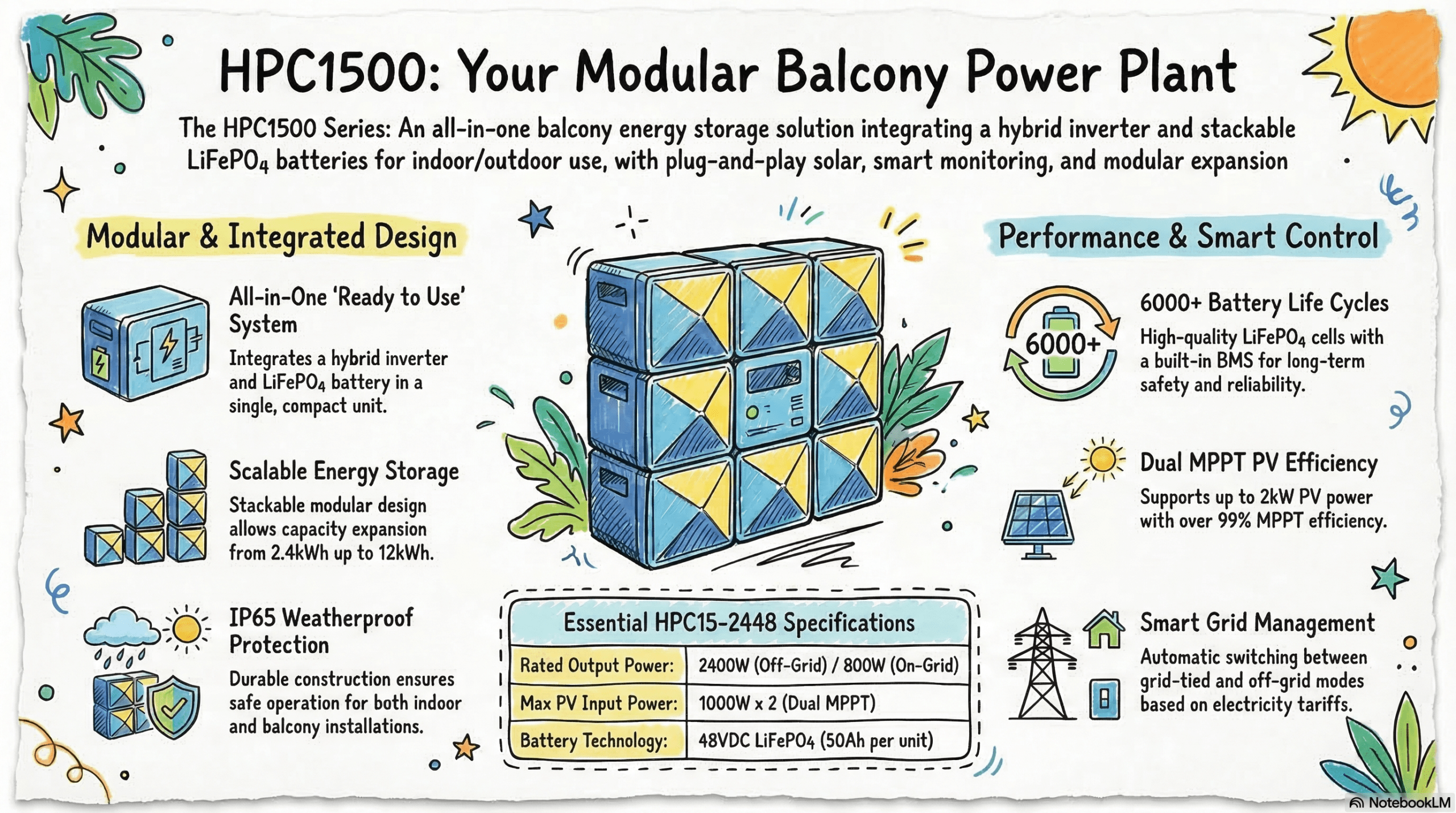

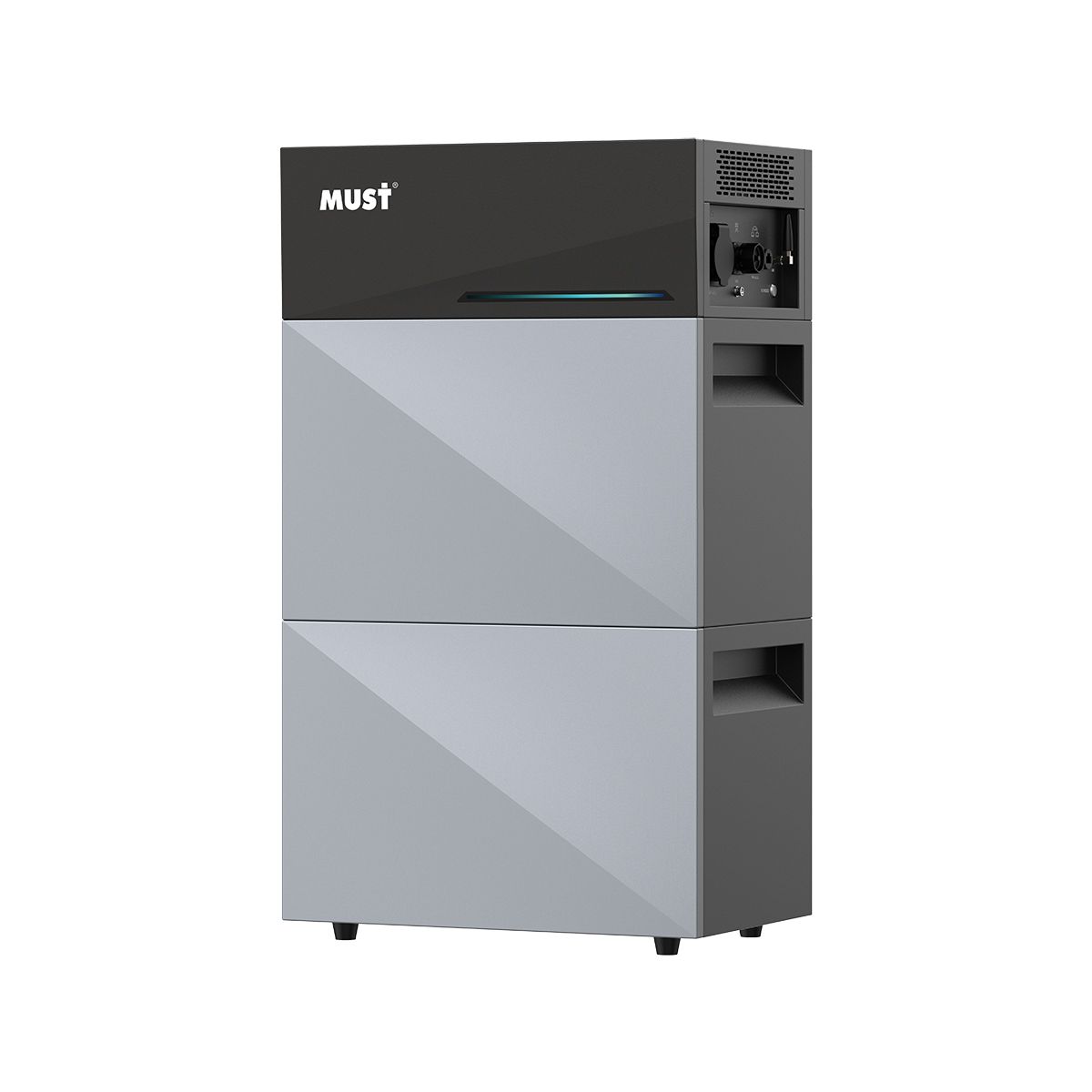

Integrated Hybrid All-in-One Design: A streamlined, ready-to-use solution that flawlessly combines a hybrid inverter and LiFePO4 battery storage, eliminating the need for complex external wiring.
-
Versatile On/Off-Grid Operation: Seamlessly switches modes. It feeds up to 800W of clean energy into your home’s grid to offset daily usage, while providing a powerful 2400W (3600W Peak) pure sine wave backup power during off-grid or blackout scenarios.
-
Flexible Modular Expansion: Start small and grow as your needs increase. The stackable battery design lets you easily scale your storage capacity from a single 2400Wh module up to five modules, achieving a total of 12kWh.
-
High-Efficiency Dual MPPT: Equipped with dual Maximum Power Point Tracking (MPPT) inputs capable of handling up to 2000W of solar power (1000W x 2), ensuring maximum energy harvest even in partially shaded balcony environments.
-
Ultra-Durable LiFePO4 Battery: Powered by top-tier Lithium Iron Phosphate cells governed by a comprehensive built-in BMS, delivering exceptional safety and an ultra-long lifespan of over 6000 cycles (@ 80% DOD).
-
Rugged IP65 Protection: Built to withstand the elements. The IP65 ingress protection rating ensures the system is fully dust-tight and highly water-resistant, making it perfect for both indoor and outdoor balcony installations.
-
Smart Energy Management & App Control: Configure power priorities for self-consumption or grid feed-in. The system intelligently switches between grid and off-grid modes based on tariffs, all manageable via an intuitive app using built-in WiFi and Bluetooth connectivity.
Applications
-
Apartment Balconies & Terraces: Turn your balcony into a mini power plant to capture solar energy, lower energy bills, and increase household self-sufficiency.
-
Smart Home Energy Management: Automatically store cheap off-peak electricity or excess solar power, and discharge it during expensive peak hours to optimize savings.
-
Reliable Home Backup: Provides an automatic, silent 2400W backup power supply to keep essential appliances running smoothly during grid failures.
Core Specifications Table
| Model | HPC15-2448 |
| System Type | Hybrid Balcony Solar Storage System |
| Rated AC Power (On-Grid) | 800 W |
| Rated AC Power (Off-Grid) | 2400 W (3600 W Peak) |
| AC Output Voltage / Freq. | 230V RMS (Pure Sine Wave) / 50Hz |
| Battery Energy (Per Unit) | 2400 Wh |
| Battery Capacity (Per Unit) | 48V 50Ah |
| Battery Chemistry | LiFePO4 (LFP) |
| Scalability (Stackable) | 1 to 5 Modules (2400Wh ~ 12000Wh) |
| Cycle Life | 6000 Cycles (@ 80% DOD, 25°C) |
| Max PV Input Power | 2000 W (1000W x 2) |
| PV Operating Voltage | 12 ~ 100V DC |
| MPPT Trackers | 2 |
| Communication | WIFI / Bluetooth |
| Protection Rating | IP65 (Indoor & Outdoor) |
| Operating Temperature | -20°C ~ 50°C |
| Dimensions (W*H*D) mm | Inverter: 449*170*281 / Battery: 449*296*281 |
| Net Weight (kg) | Inverter: 14 kg / Battery: 25 kg (per module) |
