Description
Key Features
-
Ultimate Installation Flexibility: One battery, multiple mounting styles. Supports standard 19-inch Rack Mounting, space-saving Wall Mounting, modular Stacking, or Vertical Standing (with optional wheels on larger models) to fit any garage or utility room.
-
Massive Energy Density: Offers a wide range of capacities from 100Ah (2.5kWh) up to an industry-leading 600Ah (30.72kWh) in a single cabinet, reducing the number of units needed for large systems.
-
Industrial-Grade Scalability: Advanced BMS allows for the parallel connection of up to 15 units, enabling system expansion up to hundreds of kWh for commercial applications.
-
Smart Connectivity: Built-in WiFi and Bluetooth modules allow users to monitor battery health, SOC, and cycles in real-time via a smartphone app.
-
Universal Inverter Compatibility: Equipped with CAN2.0, RS485, and RS232 ports, ensuring seamless communication and closed-loop control with most major hybrid inverter brands (e.g., Victron, Growatt, Deye, MUST).
-
High-Discharge Power: The 48V models support continuous discharge currents of 100A to 200A, capable of driving high-power inverters (5KW-10KW) without throttling.
-
Long Lifespan: Rated for ≥6000 cycles at 80% DOD, providing over 10-15 years of daily service.
Applications
-
Home Energy Storage: Stackable design fits neatly in corners, storing solar power for night use.
-
Commercial Backup: Parallel capability supports large loads in offices or server rooms.
-
Off-Grid Systems: High capacity 48V models (300Ah/400Ah/600Ah) reduce wiring complexity for large off-grid arrays.
Core Specifications Table
(Models grouped by Voltage. Values separated by “/” indicate capacity options.)
| Model | LP16-24100 | LP16-24200 / 24300 | LP16-48100 / 48200 | LP16-48300 / 48320 | LP16-48410 / 48600 |
| Nominal Voltage | 25.6V | 25.6V | 51.2V | 51.2V | 51.2V |
| Capacity | 100Ah | 200Ah / 300Ah | 100Ah / 200Ah | 300Ah / 320Ah | 410Ah / 600Ah |
| Energy | 2.56kWh | 5.12kWh / 7.68kWh | 5.12kWh / 10.24kWh | 15.36kWh / 16.38kWh | 20.99kWh / 30.72kWh |
| Max Cont. Discharge | 100A | 150A / 200A | 100A / 150A | 200A | 200A |
| Max Output Power | 2.5KW | 3.5KW / 5KW | 5KW / 7.5KW | 10KW | 10KW |
| Dimensions (mm) | 442*486*177 | 442*487*250 / 442*495*230 | 442*626*177 / 442*687*250 | 490*923*265 | 600*1093*264 / 744*1093*264 |
| Net Weight (kg) | 27 | 45 / 58 | 45 / 81 | 117 / N/A | 170 / 208 |
| Communication | CAN/RS485 | CAN/RS485 | CAN/RS485 | CAN/RS485 | CAN/RS485 |
| Protection Level | IP21 | IP21 | IP21 | IP21 | IP21 |

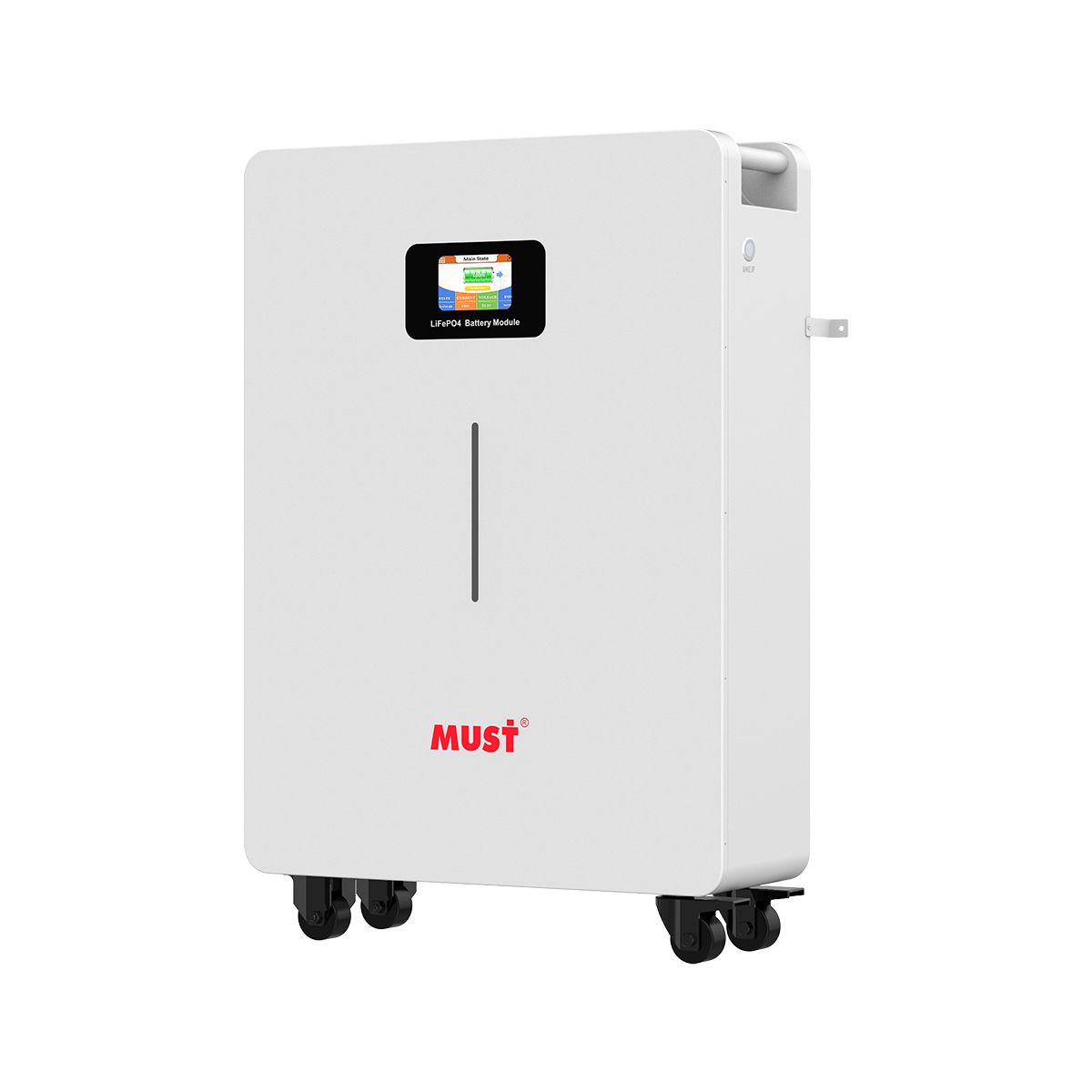

(Note: Dimensions vary significantly across models. The 300Ah+ models are floor-standing/vertical types due to size/weight.)
