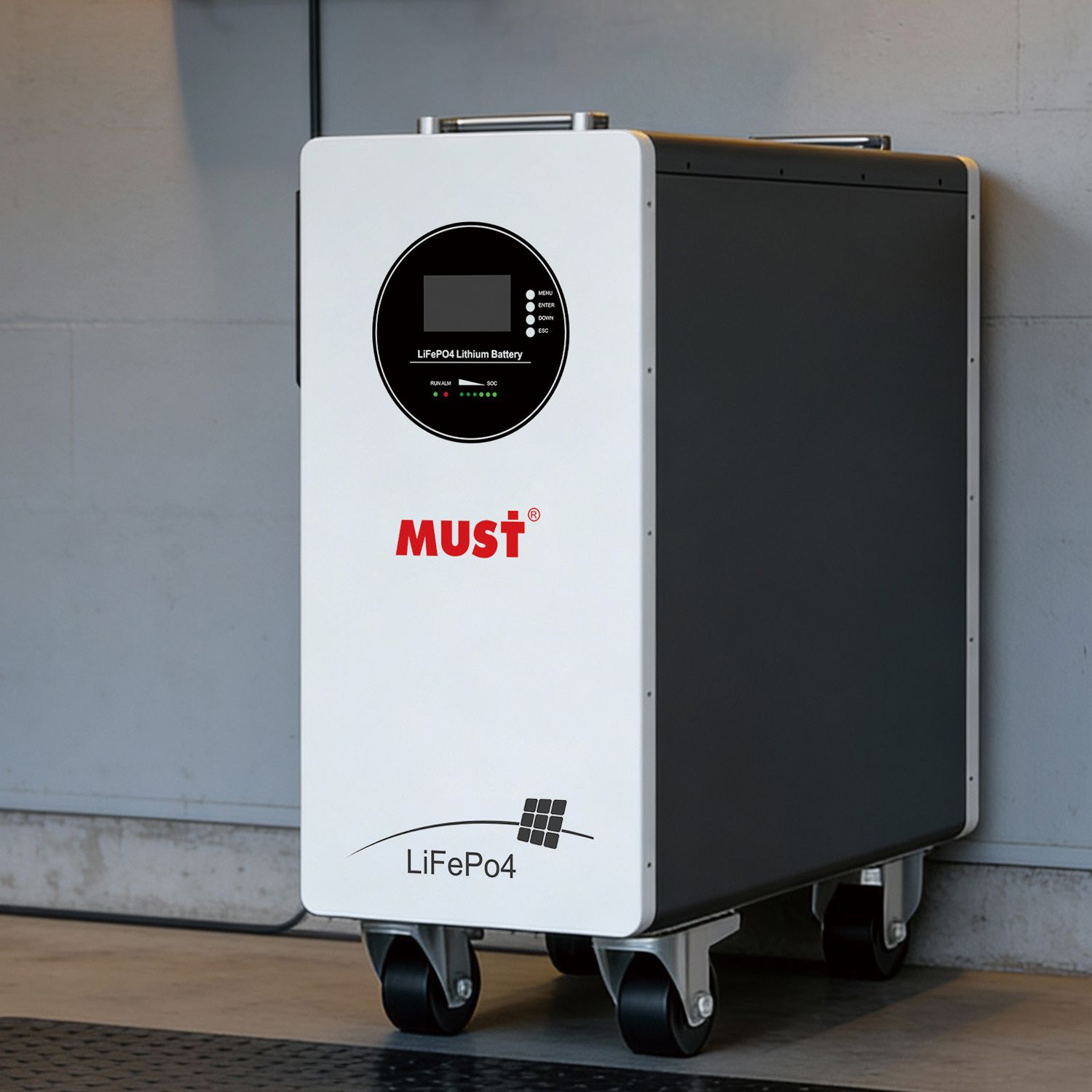

LP2100 Series 14.33~16.07kWh

High-Power LiFePO4 Cabinet Battery | 10kW Peak Performance & Smart Wi-Fi Monitoring

The LP2100 Series is a high-capacity, heavy-duty cabinet battery designed to provide massive, stable continuous energy for residential and light commercial loads. It excels in high-demand environments, delivering a steady 8kW continuous output per module, with the ability to surge to a 10kW peak output for 10 seconds to handle motor startup loads. It features smart automatic reboot tracking following undervoltage events, ensuring high off-grid stability.

Category: Tag:
Description

Description

  • High Peak Power Delivery: Delivers 8kW of steady continuous output alongside a 10kW surge rating for up to 10 seconds.
  • Auto-Recovery Intelligence: Smart BMS automatically reboots the system after undervoltage triggers, avoiding manual system resets.
  • Integrated Smart Wi-Fi: Native wireless telemetry enables remote monitoring, cloud-based diagnosis, and over-the-air firmware upgrades.
  • Scalable Multi-Cluster Linking: Supports parallel grouping of up to 15 high-capacity units to build large-scale energy reserves.
  • Industrial Grade Shell: Heavy SPCC steel enclosure designed to protect internal high-safety LFP cells over 6000+ cycles.
Parameter Specification
System Voltage Platform 51.2V DC
Model Variations LP21-48280 (280Ah) / LP21-48300 (300Ah) / LP21-48314 (314Ah)
Nominal Energy Portfolio 14,336Wh / 15,360Wh / 16,076Wh
Max Continuous Charge/Discharge Up to 200A continuous power transfer
Physical Machine Size (W*H*D) 260x733x633 mm
Net Weight (N.W.) 118kg
Communication Array CAN2.0 / RS232 / RS485 / Wi-Fi
Standard Warranty 5 Years
