Description

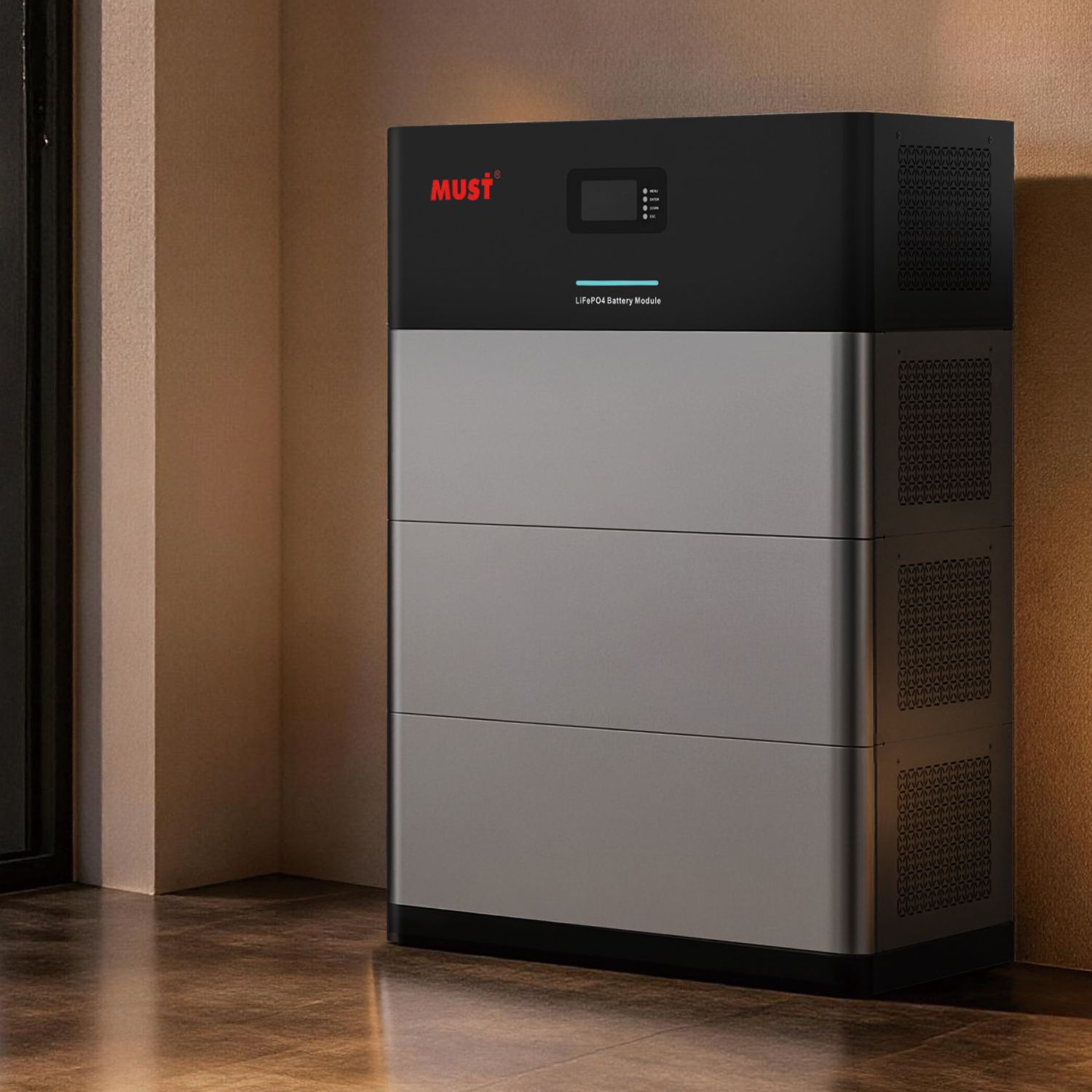

Designed with an aesthetic vertical tower structure, the MP3000 minimizes installation space and avoids messy external cabling with its clean floor-mounted configuration. Integrated with an automotive-grade intelligent BMS, robust multi-layer safety protections, an informative LCD display, and multi-protocol communication (CAN, RS485, BLE, WiFi), the system is broadly compatible with mainstream 48V low-voltage inverters. It provides an efficient and dependable energy foundation for solar self-consumption, peak-shaving, emergency backup power, and resilient off-grid operation.
Key Features
-
Safe Low-Voltage Architecture (48V/51.2V DC):
-
Employs an extra-low voltage design that eliminates high-voltage hazards, ensuring maximum safety during installation, maintenance, and daily operation.
-
Ideal for small commercial sites, retail shops, offices, residential villas, and modern apartments.
-
-
Flexible Modular Expansion (5.12 to 20.48 kWh):
-
Modular unit provides 5.12 kWh per module, supporting 1 to 4 stackable battery modules in parallel.
-
Enables smooth capacity expansion from 5 kWh to 20 kWh, allowing users to scale their storage system as household energy demand increases.
-
-
Space-Saving Tower-Style Stackable Assembly:
-
Vertical tower profile significantly reduces floor space requirements while maintaining a clean, modern aesthetic.
-
Weighing approximately 49–50 kg per battery module, the hardware allows convenient two-person handling and fast on-site installation.
-
-
High-Safety LiFePO4 Chemistry & Extended Durability:
-
Powered by premium lithium iron phosphate (LiFePO4) cells known for exceptional thermal and chemical stability.
-
Features a design lifespan of 15+ years and 6,000+ cycle life (rated cycle life ≥ 4,500 cycles at 25°C, 80% DOD).
-
-
Intelligent BMS & Multi-Layer Active Protection:
-
Built-in smart Battery Management System continuously monitors cell health, current balance, and operating conditions.
-
Provides hardware-level protections against overvoltage, undervoltage, overcurrent, over-temperature, and short circuits.
-
-
Comprehensive LCD Display & Multi-Protocol Connectivity:
-
Equipped with an intuitive LCD screen and LED indicators showing real-time SOC, system voltage, current, cell voltage, cell temperature, PCBA temperature, and SOH.
-
Features native CAN, RS485 (Modbus RTU), Bluetooth (BLE), and WiFi connectivity for seamless local commissioning and mobile cloud monitoring.
-
-
Broad Low-Voltage Inverter Compatibility:
-
Seamlessly integrates with mainstream 48V/51.2V low-voltage hybrid and off-grid inverters (5kW, 8kW, 10kW).
-
Fully adapted for self-consumption optimization, peak shaving, UPS emergency backup, and long-term stable off-grid microgrids.
-
Technical Specifications
| Category | Parameter | 1P Configuration | 2P Configuration | 3P Configuration | 4P Configuration |
| Model & Setup | Model Identifier | MP30-48100 | MP30-48100 | MP30-48100 | MP30-48100 |
| Number of Modules | 1 Module | 2 Modules | 3 Modules | 4 Modules | |
| Cell Type & Rating | LiFePO4 Cell, 3.2V 102Ah | LiFePO4 Cell, 3.2V 102Ah | LiFePO4 Cell, 3.2V 102Ah | LiFePO4 Cell, 3.2V 102Ah | |
| Cell Configuration | 1P16S | 2P16S | 3P16S | 4P16S | |
| Single Module Specs | 5.12 kWh / 49 kg | 5.12 kWh / 49 kg | 5.12 kWh / 49 kg | 5.12 kWh / 49 kg | |
| Electrical Performance | Total System Energy | 5.12 kWh | 10.24 kWh | 15.36 kWh | 20.48 kWh |
| Maximum Output Power | 5.0 kW | 7.5 kW | 7.5 kW | 7.5 kW | |
| Nominal System Voltage | 51.2 Vdc | 51.2 Vdc | 51.2 Vdc | 51.2 Vdc | |
| Operating Voltage Range | 44.8 – 57.6 Vdc | 44.8 – 57.6 Vdc | 44.8 – 57.6 Vdc | 44.8 – 57.6 Vdc | |
| Rated Charge / Discharge Current | 50 A / 50 A | 75 A / 75 A | 100 A / 100 A | 125 A / 125 A | |
| Max. Charge / Discharge Current | 100 A / 100 A | 150 A / 150 A | 150 A / 150 A | 150 A / 150 A | |
| Display & Interfaces | Display Screen | LCD (SOC, System Voltage, Current, Cell Voltage, Cell Temp, PCBA Temp, SOH) & LED Indicators | |||
| Communication Ports | CAN / RS485 / BLE (Bluetooth) / WIFI | ||||
| Inverter Compatibility | Mainstream 48V/51.2V low-voltage inverters (5kW / 8kW / 10kW), Modbus RTU supported | ||||
| Protections | Active Protection Suite | Overvoltage, Undervoltage, Overcurrent, Temperature, Short-Circuit Protection | |||
| Mechanical Dimensions | System Dimensions (W × H × D) | 390 × 250 × 623 mm | 390 × 655 × 623 mm | 390 × 860 × 623 mm | 390 × 1455 × 623 mm |
| Total System Weight | 57.5 kg | 106.5 kg | 155.5 kg | 204.5 kg | |
| Environmental & Standards | Installation Mounting / Site | Floor-Mounted; Indoor (away from direct sunlight) | |||
| Operating Temperature | Battery Discharging: -20°C to 55°C | Battery Charging: 0°C to 50°C | ||||
| Cycle Life & Design Life | ≥ 4,500 Cycles (@ 25°C±2°C, 80% DOD); 6,000+ Cycles / 15+ Years Design Lifespan | ||||
| Ingress Protection Rating | IP20 | ||||
| Operating Humidity Range | 10% – 85% RH | ||||
| Max. Operating Altitude | ≤ 3,000 m (derated operation above 2,000 m) | ||||
| Cooling Method | Natural Cooling | ||||
| Safety Certifications | CE, UN38.3 |
