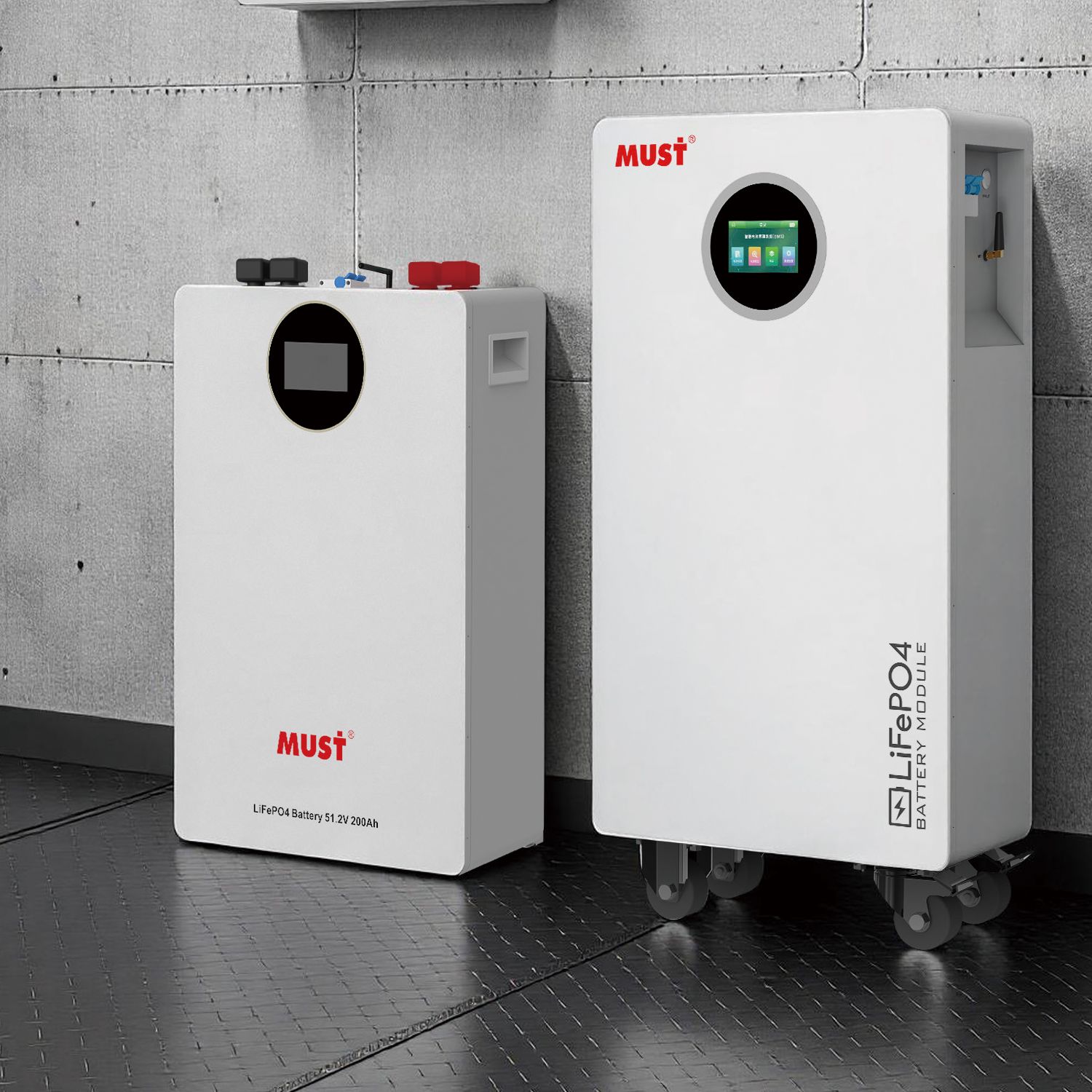

LP1600T Series 2.56~15.36kWh

Integrated Enclosure LiFePO4 Module | Top Terminal Access & Automated Safety

The LP1600T Series features a heavy-duty, high-strength integrated enclosure design built to provide superior mechanical stability and enduring reliability. Equipped with a 4.3-inch high-definition touch status terminal alongside top-facing electrical interfaces, it makes wall, stacked, or floor placement swift and intuitive. It includes an automated emergency fire suppression unit, making it a secure power component for resilient homes and businesses.

Category: Tag:
Description

Description

  • High-Strength Monocoque Chassis: Integrated structural frame offering excellent vibration mitigation and physical protection.
  • Top-Facing Terminal Block: Ergonomic top connection interface streamlines physical wire running and multi-chassis stack coupling.
  • Automated Emergency Safety: Built-in fire response module triggers autonomously to safeguard surrounding property.
  • HD Touch Interface: High-definition 4.3-inch touchscreen menu provides localized control maps at your fingertips.
  • High-Node Expansion: Allows modular parallel clustering of up to 15 systems to fulfill broad capacity tasks.
Parameter Specification
Nominal Voltage Line 25.6V (LP16-24100T to 24300T) / 51.2V (LP16-48100T to 48300T)
Capacity Selections 100Ah / 200Ah / 300Ah
Peak Module Output Power From 2.5kW up to 10kW continuous
Cycle Performance Durability ≥ 6000 cycles @ 25°C ± 3°C
Enclosure Rating / Shell IP21 / SPCC Industrial Steel
Operating Altitude Profile ≤ 4000m
Hardware Ports CAN2.0 / RS232 / RS485 / Wi-Fi / Bluetooth
Standard Warranty 5 Years

Related Products

    LP2200 Series 2.56~10.24kWh
    Read more
    Quick view

    LP2200 Series 2.56~10.24kWh

    IP67 Heavy-Duty LiFePO4 Battery Pack | Industrial Traction & Harsh Environment Ready

    The LP2200 Series is an ultra-rugged, industrial-grade lithium iron phosphate battery pack engineered for motive power and harsh, wet environments. Sealing its internal architecture inside an IP67 dust and waterproof enclosure, it is perfectly suited for golf carts, RVs, automated guided vehicles (AGVs), forklifts, and electric marine vessels. It operates reliably across a wide temperature window (-20℃ to 60℃), delivering over 6000 cycles with a 12-year structural design life.

    Read more
    LP2900 PRO Series 5.12~10.24kWh
    Read more
    Quick view

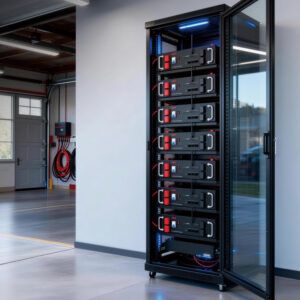

    LP2900 PRO Series 5.12~10.24kWh

    Standard 19-inch Rack-Mount LiFePO4 Module | High Integration Off-Grid Scalability

    The LP2900 PRO Series is a server rack-optimized lithium iron phosphate battery system designed for seamless off-grid and backup power setups. Configured in a standard 19-inch format, its highly integrated design reduces wiring complexity and cuts down on deployment labor costs. Featuring an advanced smart Wi-Fi BMS and supporting up to 15 parallel connections, it delivers a highly stable, space-saving power system with an 8000+ cycle lifespan.

    Read more
    LP2100 PRO Series 14.33~16.07kWh
    Read more
    Quick view

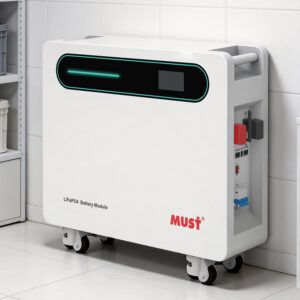

    LP2100 PRO Series 14.33~16.07kWh

    Premium High-Power LiFePO4 System | 4.3-inch Touchscreen & LED Status Strip

    The LP2100 PRO Series upgrades the core performance of high-capacity energy storage with a high-strength integrated enclosure and an advanced user interface. Featuring a vivid 4.3-inch color touchscreen control panel paired with a responsive multi-color LED light strip, users can read operational safety metrics instantly from across the room. It provides a robust 8kW continuous and 10kW peak power capability, matching the needs of modern luxury estates and micro-business sites.

    Read more
    New
    LP3000 Series 5.12~40.96kWh
    Read more
    Quick view

    LP3000 Series 5.12~40.96kWh

    High-Power Plug-and-Play Low Voltage System | Stackable Design & Massive 307kWh Scaling

    The LP3000 Series is a versatile, high-capacity low-voltage battery system featuring a tool-free, plug-and-play stackable design for quick installation. Each stack can accommodate up to 8 standalone modules, and the system can expand up to 60 units in parallel to build a massive 307.2kWh energy network. Built with cobalt-free LiFePO4 cells and rated at IP65, it safely delivers 10kW continuous output and an impressive 12kW peak surge for reliable power indoor or outdoor.

    Read more
    LP1600SE Series 2.56~5.12kWh
    Read more
    Quick view

    LP1600SE Series 2.56~5.12kWh

    Auto-Networking LiFePO4 Battery | Slim Design & Long 10-Year Calendar Life

    The LP1600SE Series is an elegantly engineered, slim-profile lithium iron phosphate battery module optimized for straightforward residential installations. It introduces advanced auto-networking capabilities that completely eliminate the need for manual DIP switch addressing, ensuring a hassle-free setup and quick maintenance. Boasting a robust 10-year calendar design life with minimized degradation metrics, it represents an outstanding long-term option for reliable micro-grid management.

    Read more
    New
    LP2800 Series 5.12~16.07kWh
    Read more
    Quick view

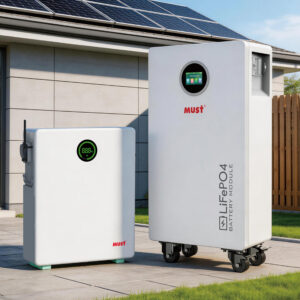

    LP2800 Series 5.12~16.07kWh
