Description

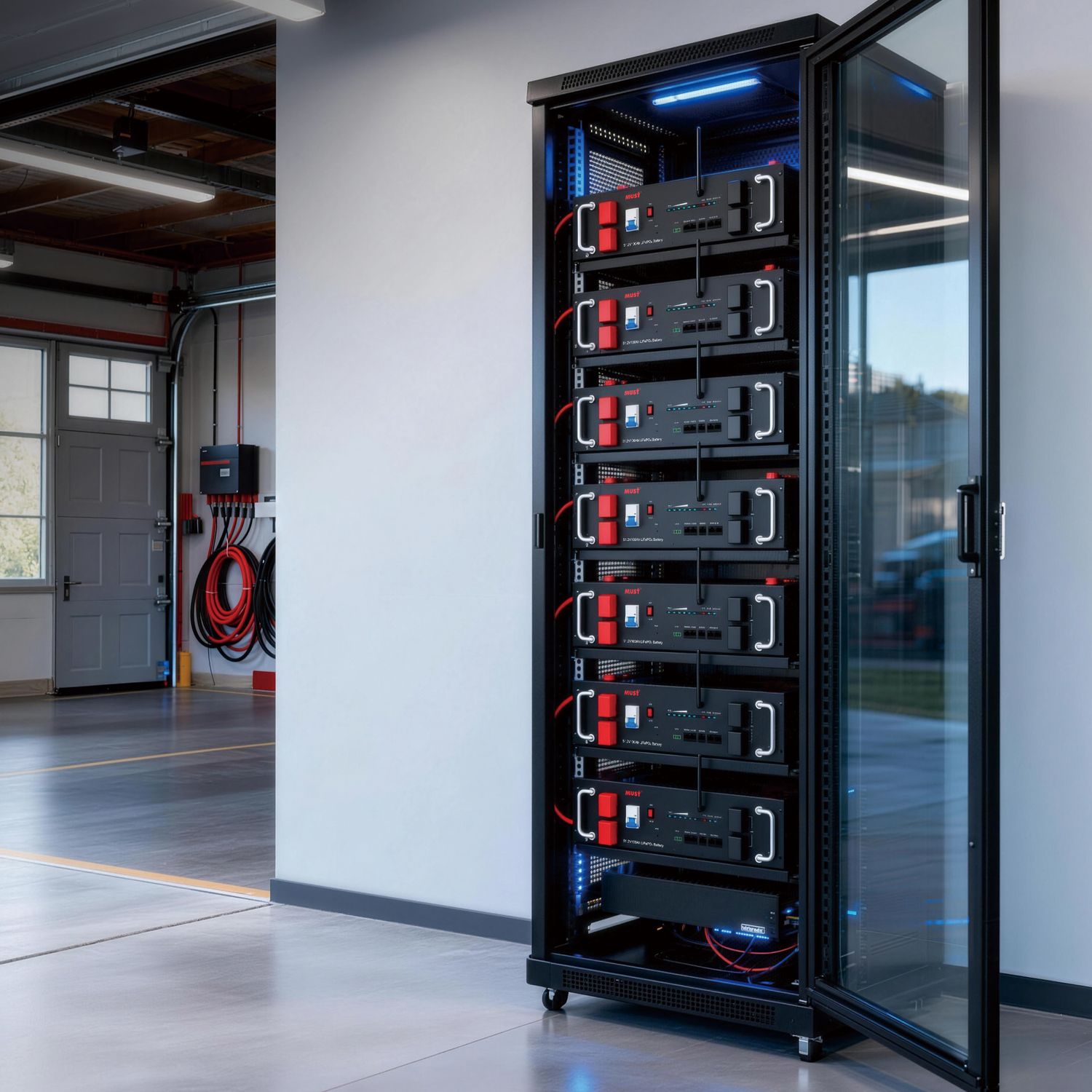

- Standard 19-inch Server Rack Design: Slides easily into standard power enclosures, saving floor space in server rooms or off-grid hubs.
- Reduced Wiring Complexity: High structural integration simplifies cabinet wire runs and lowers installation costs.
- Smart Wi-Fi BMS Controller: Real-time cellular tracking and smart monitoring keep system operation secure.
- Modular Storage Scaling: Easily networks up to 15 units in parallel to handle growing capacity demands.
- 10-Year Long-Term Reliability: Delivers more than 8000 active discharge cycles, backed by a 10-year standard warranty.
| Parameter | Specification |
| Nominal Voltage Platform | 51.2V DC |
| Model Options Portfolio | LP29-48100 PRO (100Ah) / LP29-48200 PRO (200Ah) |
| Total Modular Energy | 5120Wh / 10240Wh |
| Max Continuous Charge Current | 100A (48100 PRO) / 150A (48200 PRO) |
| Max Output Power Rating | 5kW continuous / 7.5kW continuous |
| Chassis Mechanical Size | 100 PRO: 440x133x470 mm
200 PRO: 440x222x600 mm |
| Data Communication Ports | RS485 / CAN / Wi-Fi (optional) |
| Standard Warranty | 10 Years |
