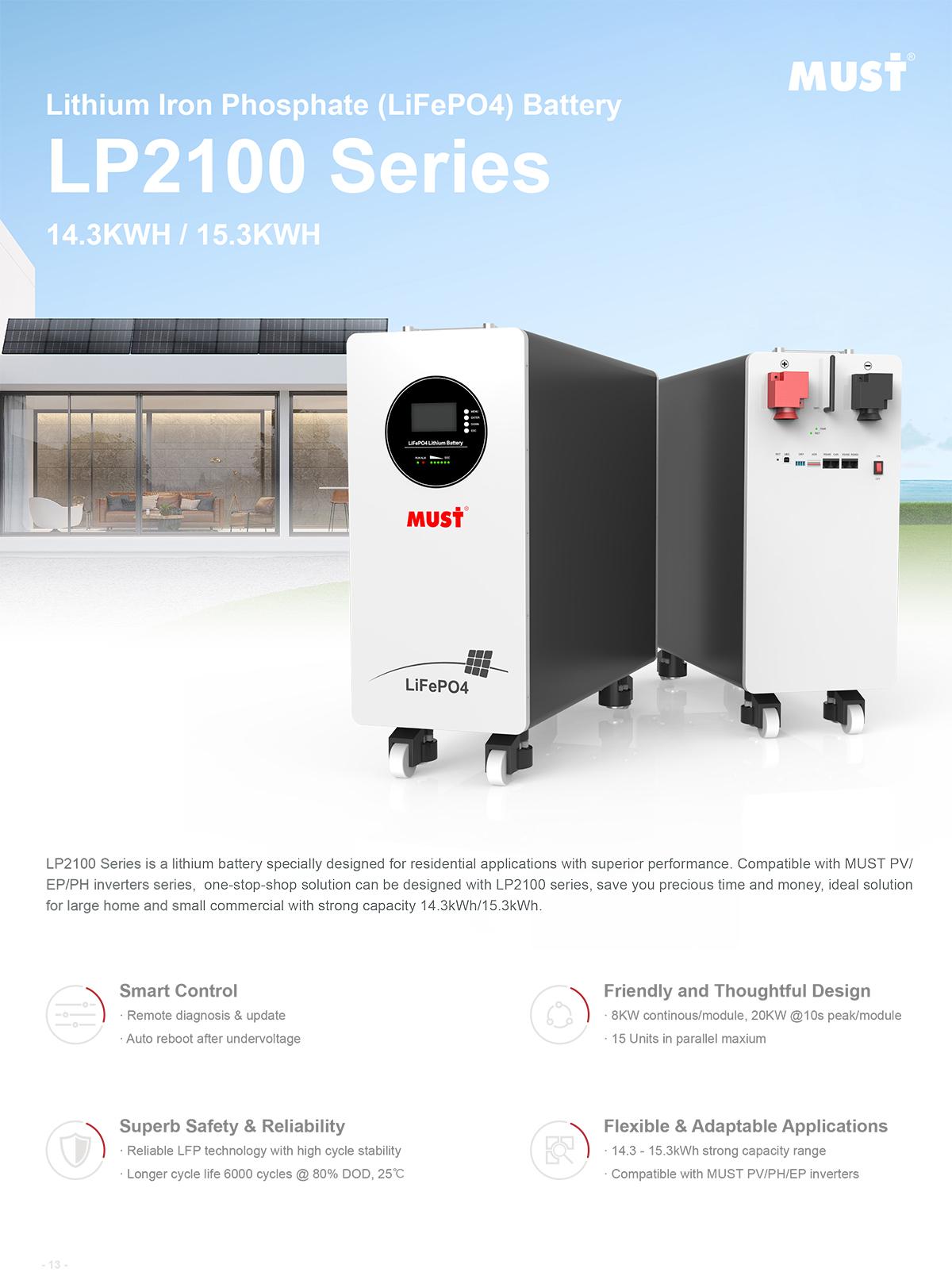

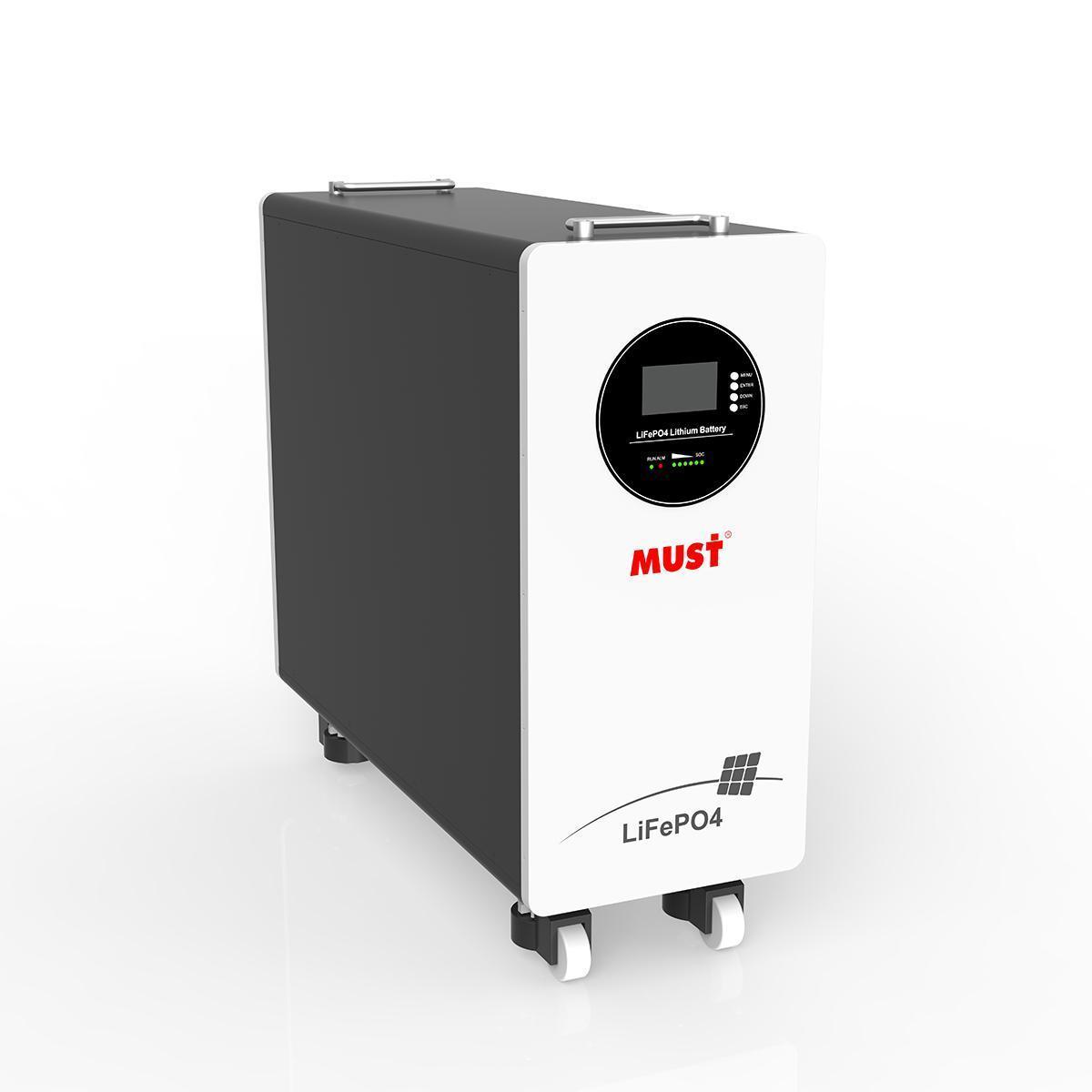

LP2100 Series (51.2V-280/300Ah)

LiFePO4 Battery 14336Wh/15360Wh

LP2100 Series is a lithium battery specially designed for residential applications with superior performance. Compatible with MUST PV/EP/PH inverters series, one-stop-shop solution can be designed with LP2100 series, save you precious time and money, ideal solution for large home and small commercial with strong capacity 14.3kWh/15.3kWh.

Description

Description

Technical Data LP21-48280 LP21-48300
Nominal Voltage 51.2V
Nominal Capacity 280Ah 300Ah
Nominal energy 14336Wh 15360Wh
Life Cycles 6000 cycles @ 80% DOD, 25℃
Recommended Charge Voltage 57.6V
Recommended Charge Current 56A 60A
End Of Discharge Voltage 44V
Standard Charge Current 56A 60A
Standard Discharge Current 140A 150A
Maximum Continuous Charge Current 200A 200A
Maximum Continuous Discharge Currentt 200A 200A
BMS Cut-Off Voltage Charge 58.4 V (3.65V/Cell)
BMS Cut-Off Voltage Discharge 22.0V (2s) (2.75V/Cell)
Temperature Charge -4 ~ 113 ℉ (0 ~ 45℃ )
Temperature Discharge -4 ~ 131 ℉ (-20 ~ 55 ℃ )
Storage Temperature 23~95 ℉ (-5~35℃ )
Shipment voltage ≥25.6V
Module Parallel Up to 15 units
Communication CAN2.0/RS232/RS485
Case Material SPPC
Dimension (L x W x H) 733*260*635mm
Approx. Weight 115kg 120kg
Charge Retention And Capacity Recovery Capability Standard charge the battery, and then put aside at room temperature for 28d or 55 ℃ for 7d, Charge retention rate≥90%, Recovery rate of charge≥90
