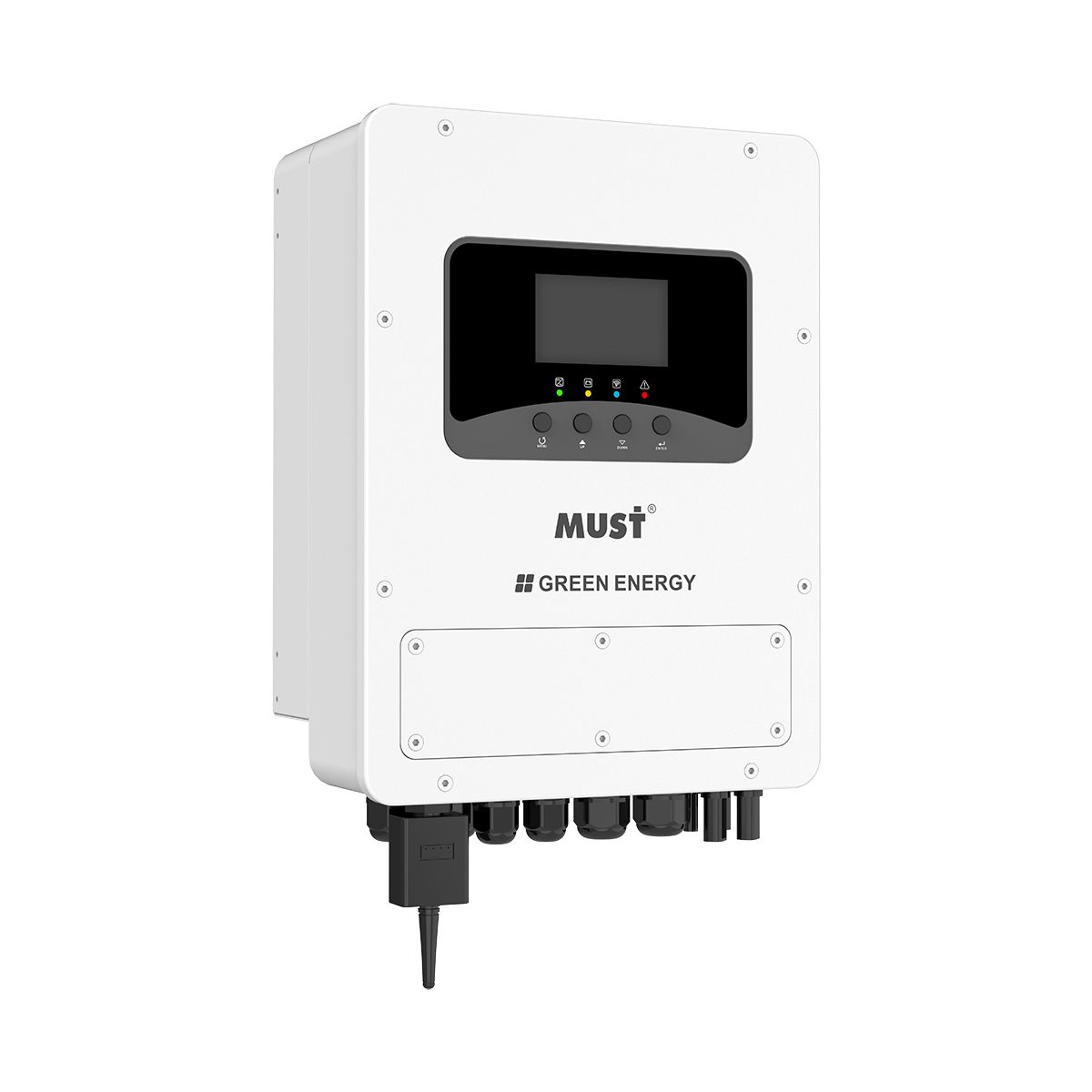

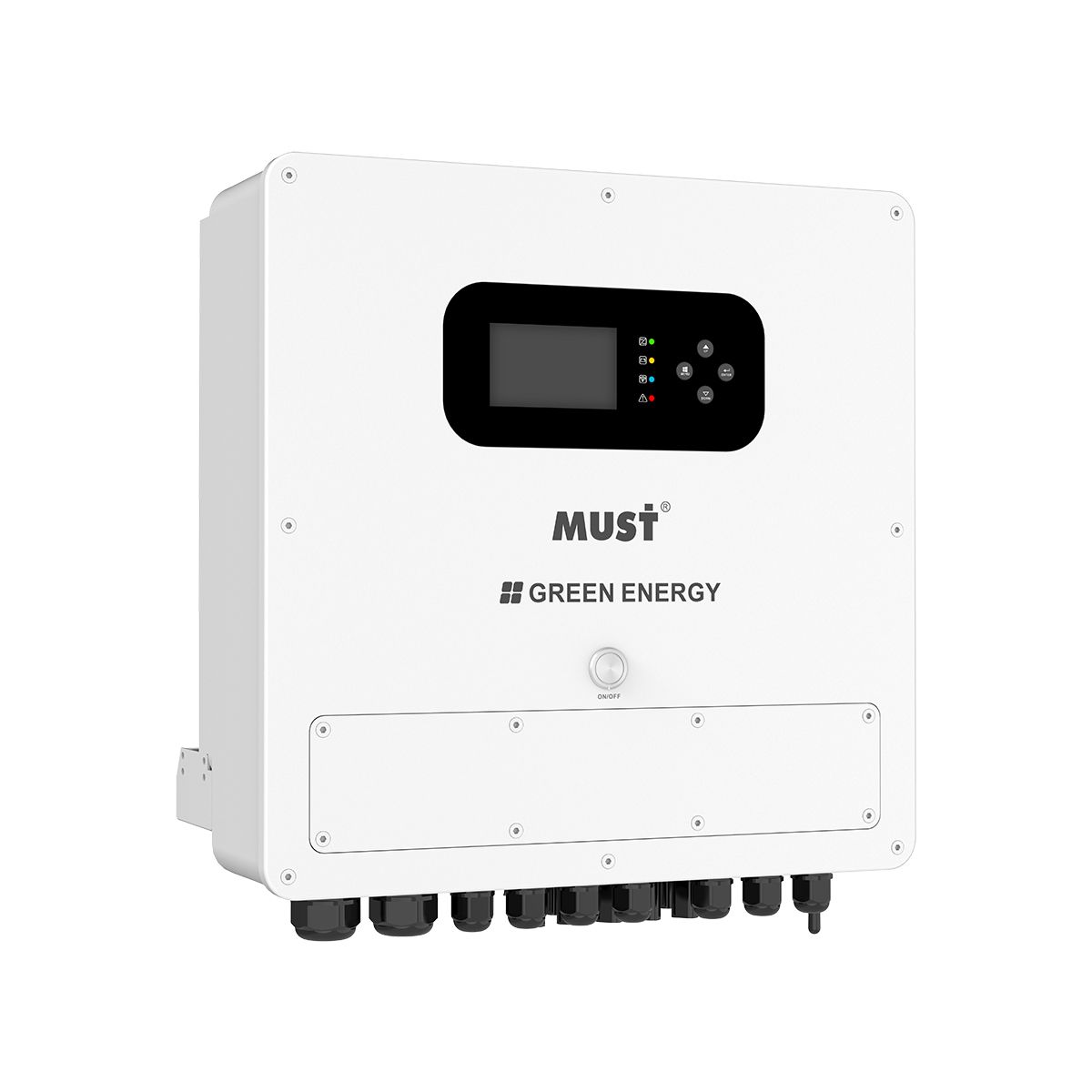

Single Phase Off-Grid Solar Inverter — Power Your Energy Freedom
Key Features:
- Smart User Interface: 4.3-inch color touch LCD for easy operation and real-time system monitoring.
- Rugged & Weatherproof: IP66-rated enclosure ensures reliable performance under harsh outdoor conditions.
- Powerful Performance: Supports up to 240A charging/discharging current, providing strong and stable power conversion.
- Flexible System Expansion: Allows up to 16 units parallel connection for greater power scalability in off-grid setups.

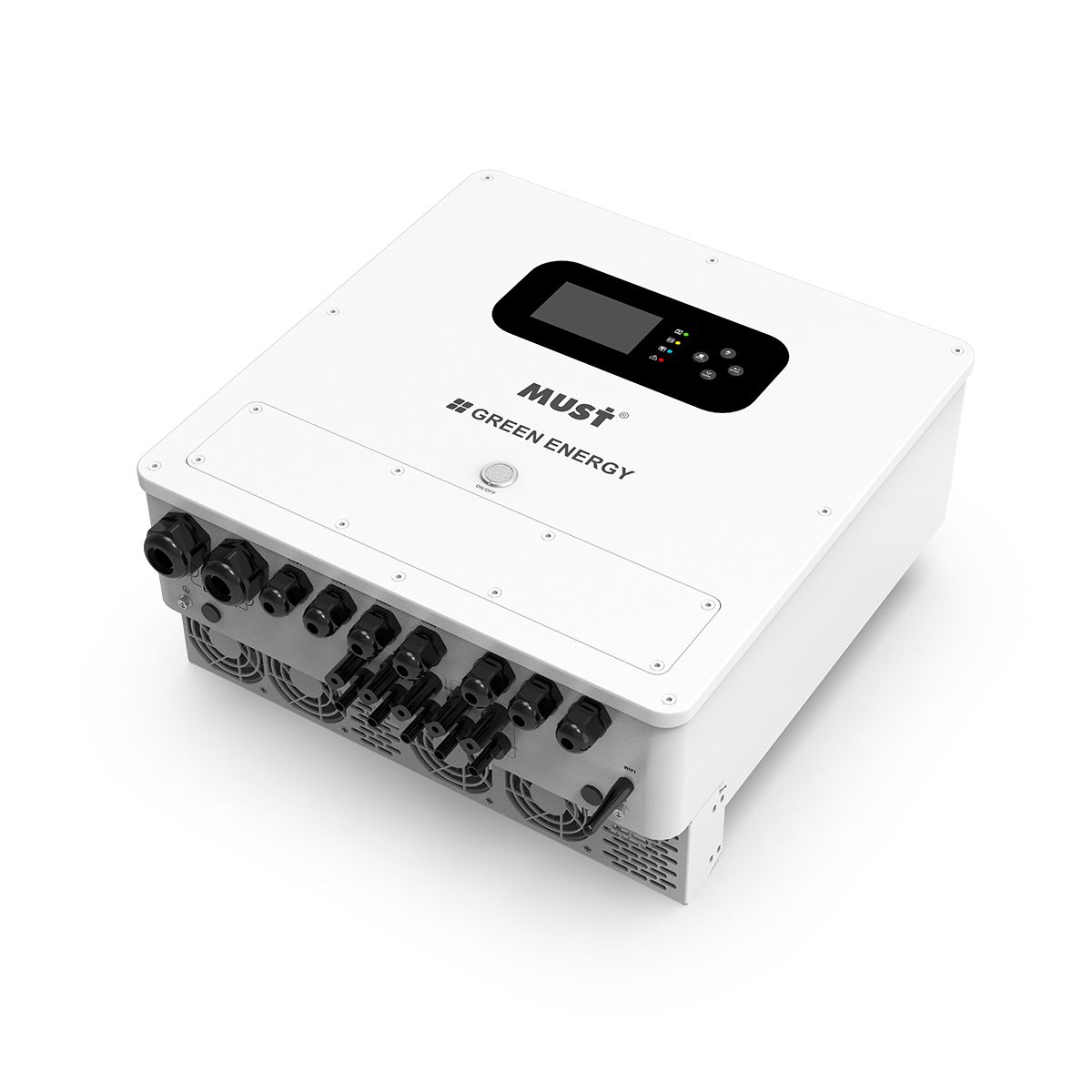

- Optimized Cooling System: Independent cooling design minimizes dust accumulation and enhances system longevity.
- Generator Compatibility: Capable of storing energy from diesel generators, ensuring continuous power supply.
- Smart Connectivity: Supports Wi-Fi monitoring, enabling remote access and real-time performance tracking anytime, anywhere.
MUST PV9000 HM Series — built for energy independence, engineered for durability, and designed to power a greener, smarter future.
| Model | PV90-3.6KL1 HM | PV90-5KL1 HM | PV90-6KL1 HM | PV90-8KL1 HM | PV90-10KL1 HM | PV90-12KL1 HM |
| Rated power | 3600W | 5000W | 6000W | 8000W | 10000W | 12000W |
| BATTERY INPUT DATA | ||||||
| Battery type | Lead-acid battery / Lithium battery | |||||
| Battery voltage | 48V | |||||
| Battery voltage range | 40~60V | |||||
| Charging curve | 3-stage adaptive with maintenance/Equalization | |||||
| Charging Strategy for Li-lon Battery | Self-adaption to BMS | |||||
| Over-current protection/ Over-temperature protection | Yes / Yes | |||||
| Maximum charging/discharging power | 3600W | 5000W | 6000W | 8000W | 10000W | 12000W |
| Maximum charging/discharging current | 90A | 120A | 150A | 190A | 220A | 240A |
| PV STRING INPUT DATA | ||||||
| Max. PV access power | 7200W | 10000W | 12000W | 14500W | 18000W | 20000W |
| Max. PV input power | 5760W | 8000W | 9600W | 12000W | 15000W | 18000W |
| Maximum DC voltage | 500V | |||||
| Start-up Voltage | 125V | |||||
| PV Input Voltage Range | 125~500V | |||||
| Full Load Voltage Range | 300~425V | |||||
| Rated PV Input Voltage | 370V | |||||
| Max. operating PV input | 18A+18A | 18A+18A | 18A+18A | 26A+26A | 26A+39A | 26A+39A |
| No.of MPP Trackers | 2/1+1 | 2/1+1 | 2/1+1 | 2/2+2 | 2/2+3 | 2/2+3 |
| Input terminal type | H4/MC4 | |||||
| AC INPUT/OUTPUT DATA | ||||||
| Rated AC Output Power | 3600W/3600VA | 5000W/5000VA | 6000W/6000VA | 8000W/8000VA | 10000W/10000VA | 12000W/12000VA |
| Rated AC Output Current | 15.7A | 21.7A | 26A | 34.7A | 43.4A | 52.2A |
| Max. AC Input Current | 35A | 35A | 35A | 38.2A | 47.8A | 55A |
| Rated Input/Output Voltage/Range | 230VAC | |||||
| Rated Input/Output Grid Frequency | 60Hz±5Hz/ 50Hz±5Hz | |||||
| Rated output power factor | 1 | |||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||||
| Total Harmonics Current Distortion (THDi) | <3% | |||||
| EFFICIENCY | ||||||
| Max. Efficiency | 97.5% | |||||
| Euro Efficiency | 96.5% | |||||
| MPPT Efficiency | >99% | |||||
| PROTECTION | ||||||
| Integrated | DC Polarity Reverse Connection Protection; AC Output Overcurrent Protection; AC Output Overvoltage Protection; AC Output short Circuit Protection; lsland Protection Monitoring Integrated all-pole sensitive leakage current; ISO monitoring; Over temperature protection Gird monitoring; Surge proterction level |
|||||
| Surge Protection | Type II (DC); Type II (AC) | |||||
| Overvoltage Category | OVC II (DC); OVC III (AC) | |||||
