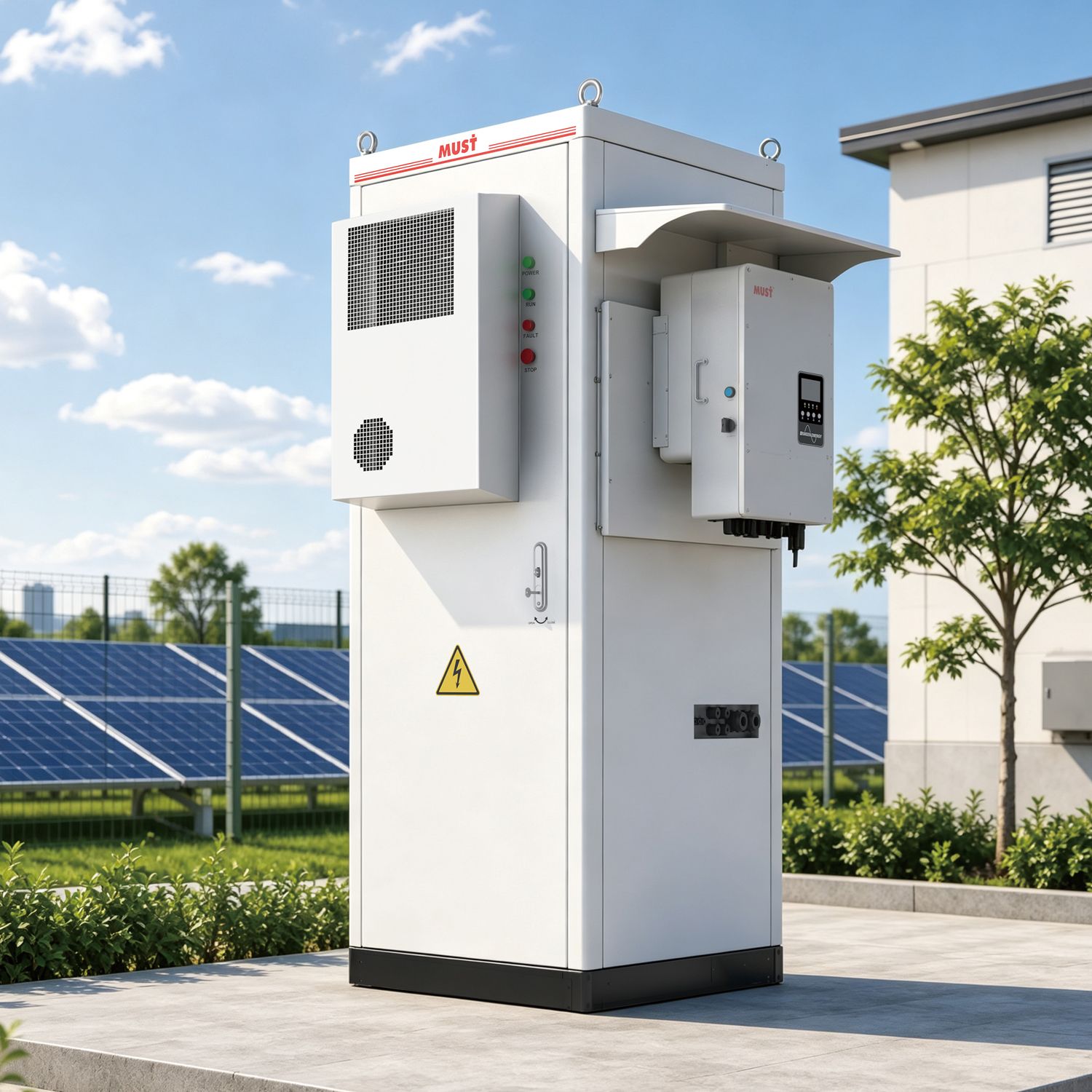

ESG Series | 30kW – 50kW / 61.44kWh

High-Voltage Commercial & Industrial ESS | 614Vdc Nominal (537.6-691.2V) | 30kW-50kW Rated Power | 61.44kWh Single Cabinet | Three-Phase 230/400Vac | IP54

The MUST ESG Series (61.4kWh) is an integrated high-voltage commercial and industrial energy storage cabinet designed for smart factory power backup, demand charge management, and solar self-consumption. Featuring rated AC outputs from 30kW to 50kW and a 61.44kWh LiFePO4 battery system, it integrates 4 MPPT solar inputs (up to 1000Vdc), dual-layer intelligent air cooling, aerosol fire suppression, and parallel scalability up to 8 cabinets for flexible megawatt-level expansion.

Category:
Description

Description

  • High-Capacity Scalability: 61.44kWh single cabinet capacity with multi-unit parallel expansion up to 8 units for dynamic system upgrades.
  • Durable & Safe LiFePO4 Technology: High-stability 100Ah LFP cells (TP16S*12) delivering over 6,000 cycles (@ 25°C, 80% DOD).
  • High Three-Phase Power Output: 30kW / 40kW / 50kW AC power (230/400Vac, 3P4W+PE) tailored for small and medium C&I loads.
  • High Solar Utilization: 4 MPPT trackers supporting up to 100kW DC PV input with a wide 150V-850Vdc operating range.
  • Comprehensive Safety Protection: Built-in aerosol fire suppression, smoke alarm, and water leakage detection paired with dual-layer intelligent cooling.
  • Wide Climate Adaptability: Operates reliably from -20°C to 55°C, IP54 outdoor protection, and up to 4000m operational altitude.
Technical Parameters ESG-6030 ESG-6040 ESG-6050
Battery Chemistry / Cell Capacity Lithium Iron Phosphate / 100 Ah Lithium Iron Phosphate / 100 Ah Lithium Iron Phosphate / 100 Ah
PACK Configuration / Nominal Energy TP16S*12 / 61.44 kWh TP16S*12 / 61.44 kWh TP16S*12 / 61.44 kWh
Battery Voltage Range 537.6 Vdc – 691.2 Vdc 537.6 Vdc – 691.2 Vdc 537.6 Vdc – 691.2 Vdc
Max. Charge / Discharge Current 100 A 100 A 100 A
Cycle Life ≥ 6000 cycles (25°C, 80% DOD) ≥ 6000 cycles (25°C, 80% DOD) ≥ 6000 cycles (25°C, 80% DOD)
Rated On-Grid AC Power 30 kW 40 kW 50 kW
Max. AC Input Current 91.2 A 121.6 A 152.0 A
Rated On-Grid Output Current 45.6 A 60.8 A 76.0 A
Rated AC Voltage / Wiring Method 230/400 Vac, Three-phase four-wire + PE 230/400 Vac, Three-phase four-wire + PE 230/400 Vac, Three-phase four-wire + PE
Grid Frequency / Power Factor 50/60 Hz / 0.8 leading – 0.8 lagging 50/60 Hz / 0.8 leading – 0.8 lagging 50/60 Hz / 0.8 leading – 0.8 lagging
Output THDi < 3% < 3% < 3%
Rated Off-Grid AC Power 30 kVA 40 kVA 50 kVA
Rated Off-Grid Output Current 45.6 A 60.8 A 76.0 A
Max. PV Input Power 60 kW 80 kW 100 kW
Max. PV Input Voltage / Start-up Voltage 1000 Vdc / 200 Vdc 1000 Vdc / 200 Vdc 1000 Vdc / 200 Vdc
MPPT Operating Voltage Range 150 Vdc – 850 Vdc 150 Vdc – 850 Vdc 150 Vdc – 850 Vdc
Max. Input Current / Short-circuit Current 8 * 20 A / 8 * 30 A 8 * 20 A / 8 * 30 A 8 * 20 A / 8 * 30 A
Number of MPPTs / Strings per MPPT 4 / 2+2+2+2 4 / 2+2+2+2 4 / 2+2+2+2
Net Weight 910 kg 910 kg 910 kg
Dimensions (WHD) 800 * 2235 * 1000 mm 800 * 2235 * 1000 mm 800 * 2235 * 1000 mm
Operating Ambient Temperature -20°C to 55°C (derating above 45°C) -20°C to 55°C (derating above 45°C) -20°C to 55°C (derating above 45°C)
Operating Humidity / Altitude 0-95% (Non-condensing) / Up to 4000m 0-95% (Non-condensing) / Up to 4000m 0-95% (Non-condensing) / Up to 4000m
Protection Rating / Cooling Method IP54 / Intelligent air cooling IP54 / Intelligent air cooling IP54 / Intelligent air cooling
Noise / Display ≤ 65 dB / Touch screen ≤ 65 dB / Touch screen ≤ 65 dB / Touch screen
Fire Protection System Aerosol fire suppression, leakage & smoke detection Aerosol fire suppression, leakage & smoke detection Aerosol fire suppression, leakage & smoke detection
Communication Interfaces RS485 / CAN / WiFi RS485 / CAN / WiFi RS485 / CAN / WiFi
Certifications CE-EMC (EN 61000-6-2/-4), CE-LVD, UN38.3 CE-EMC (EN 61000-6-2/-4), CE-LVD, UN38.3 CE-EMC (EN 61000-6-2/-4), CE-LVD, UN38.3
