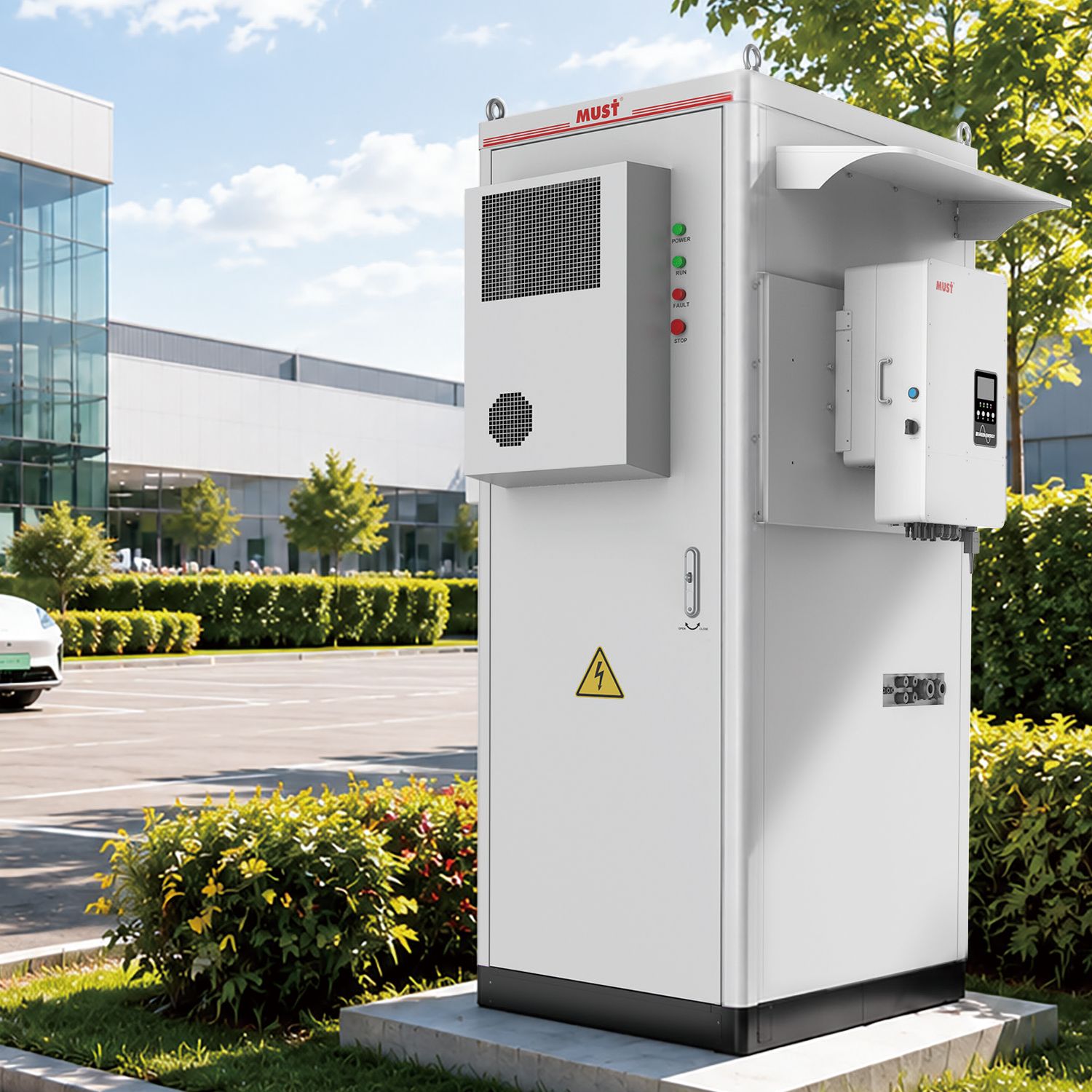

ESG Series | 30kW – 60kW / 112.53kWh

High-Capacity 314Ah Cell C&I Storage Cabinet | 358Vdc Nominal (313.6-403.2V) | 30kW-60kW Rated Power | 112.53kWh Single Cabinet | Three-Phase 230/400Vac | IP54

The MUST ESG Series (112.5kWh) leverages next-generation high-energy 314Ah LiFePO4 cells to deliver a massive 112.53kWh capacity within a single compact cabinet. Offering flexible power options from 30kW up to 60kW, this system features 4 MPPT solar inputs (up to 1000Vdc), multi-cabinet parallel support for up to 8 units, intelligent dual-layer thermal cooling, and comprehensive active fire safety systems. It serves as an ultra-reliable, high-return energy storage solution for commercial enterprises, agricultural facilities, and industrial parks.

Category: Tag:
Description

Description

  • High-Density 314Ah Cell Architecture: Utilizes ultra-large 314Ah LiFePO4 cells to achieve 112.53kWh single-cabinet capacity with 8,000+ cycle lifespan.
  • Versatile Power Ratings: 30kW, 40kW, 50kW, and 60kW power outputs to precisely match varying commercial load requirements.
  • Superior Solar Ingestion: 4 MPPT trackers supporting up to 100kW DC PV power with a wide 150V-850Vdc voltage window.
  • Modular Scalability: Supports parallel expansion up to 8 units, providing scalable capacity up to 900kWh.
  • Active Safety Defense: Integrated aerosol fire suppression, smoke alarm, and water leakage sensor with smart dual-layer air cooling.
  • Rugged & Intelligent Operation: -20°C to 55°C operating range, IP54 enclosure, intuitive touchscreen HMI, and multi-protocol cloud connectivity.
Technical Parameters ESG-11230 ESG-11240 ESG-11250 ESG-11260
Battery Chemistry / Cell Capacity LiFePO4 / 314 Ah LiFePO4 / 314 Ah LiFePO4 / 314 Ah LiFePO4 / 314 Ah
PACK Configuration / Nominal Energy 1P16S*7 / 112.53 kWh 1P16S*7 / 112.53 kWh 1P16S*7 / 112.53 kWh 1P16S*7 / 112.53 kWh
Battery Voltage Range 313.6 Vdc – 403.2 Vdc 313.6 Vdc – 403.2 Vdc 313.6 Vdc – 403.2 Vdc 313.6 Vdc – 403.2 Vdc
Max. Charge / Discharge Current 157 A 157 A 157 A 157 A
Cycle Life ≥ 8000 cycles (25°C, 80% DOD) ≥ 8000 cycles (25°C, 80% DOD) ≥ 8000 cycles (25°C, 80% DOD) ≥ 8000 cycles (25°C, 80% DOD)
Rated On-Grid AC Power 30 kW 40 kW 50 kW 60 kW
Max. AC Input Current 91.2 A 121.6 A 152.0 A 182.4 A
Rated On-Grid Output Current 45.6 A 60.8 A 76.0 A 91.2 A
Rated AC Voltage / Wiring Method 230/400 Vac, 3P4W + PE 230/400 Vac, 3P4W + PE 230/400 Vac, 3P4W + PE 230/400 Vac, 3P4W + PE
Grid Frequency / Power Factor 50/60 Hz / 0.8 lead – 0.8 lag 50/60 Hz / 0.8 lead – 0.8 lag 50/60 Hz / 0.8 lead – 0.8 lag 50/60 Hz / 0.8 lead – 0.8 lag
Output THDi < 3% < 3% < 3% < 3%
Rated Off-Grid AC Power 30 kVA 40 kVA 50 kVA 60 kVA
Rated Off-Grid Output Current 45.6 A 60.8 A 76.0 A 91.2 A
Max. PV Input Power 60 kW 80 kW 100 kW 100 kW
Max. PV Voltage / Start-up Voltage 1000 Vdc / 200 Vdc 1000 Vdc / 200 Vdc 1000 Vdc / 200 Vdc 1000 Vdc / 200 Vdc
MPPT Operating Voltage Range 150 Vdc – 850 Vdc 150 Vdc – 850 Vdc 150 Vdc – 850 Vdc 150 Vdc – 850 Vdc
Max. Input Current / Short-circuit Current 8 * 20 A / 8 * 30 A 8 * 20 A / 8 * 30 A 8 * 20 A / 8 * 30 A 8 * 20 A / 8 * 30 A
Number of MPPTs / Strings per MPPT 4 / 2+2+2+2 4 / 2+2+2+2 4 / 2+2+2+2 4 / 2+2+2+2
Net Weight 1240 kg 1240 kg 1240 kg 1240 kg
Dimensions (WHD) 800 * 2350 * 1200 mm 800 * 2350 * 1200 mm 800 * 2350 * 1200 mm 800 * 2350 * 1200 mm
Operating Ambient Temperature -20°C to 55°C (derating >45°C) -20°C to 55°C (derating >45°C) -20°C to 55°C (derating >45°C) -20°C to 55°C (derating >45°C)
Operating Humidity / Altitude 0-95% (Non-condensing) / 4000m 0-95% (Non-condensing) / 4000m 0-95% (Non-condensing) / 4000m 0-95% (Non-condensing) / 4000m
Protection Rating / Cooling Method IP54 / Intelligent air cooling IP54 / Intelligent air cooling IP54 / Intelligent air cooling IP54 / Intelligent air cooling
Noise / Display ≤ 65 dB / Touch screen ≤ 65 dB / Touch screen ≤ 65 dB / Touch screen ≤ 65 dB / Touch screen
Fire Protection System Aerosol fire suppression, leakage & smoke detection Aerosol fire suppression, leakage & smoke detection Aerosol fire suppression, leakage & smoke detection Aerosol fire suppression, leakage & smoke detection
Communication Interfaces RS485 / CAN / WiFi RS485 / CAN / WiFi RS485 / CAN / WiFi RS485 / CAN / WiFi
Certifications CE-EMC, CE-LVD, UN38.3 CE-EMC, CE-LVD, UN38.3 CE-EMC, CE-LVD, UN38.3 CE-EMC, CE-LVD, UN38.3
