Description
- IP66 Weatherproof Design: Complete dust and water resistance suitable for harsh indoor or outdoor residential environments.
- Dual MPPT Trackers (500V VOC): Supports up to 5000W PV input with 99.8% MPPT tracking efficiency.

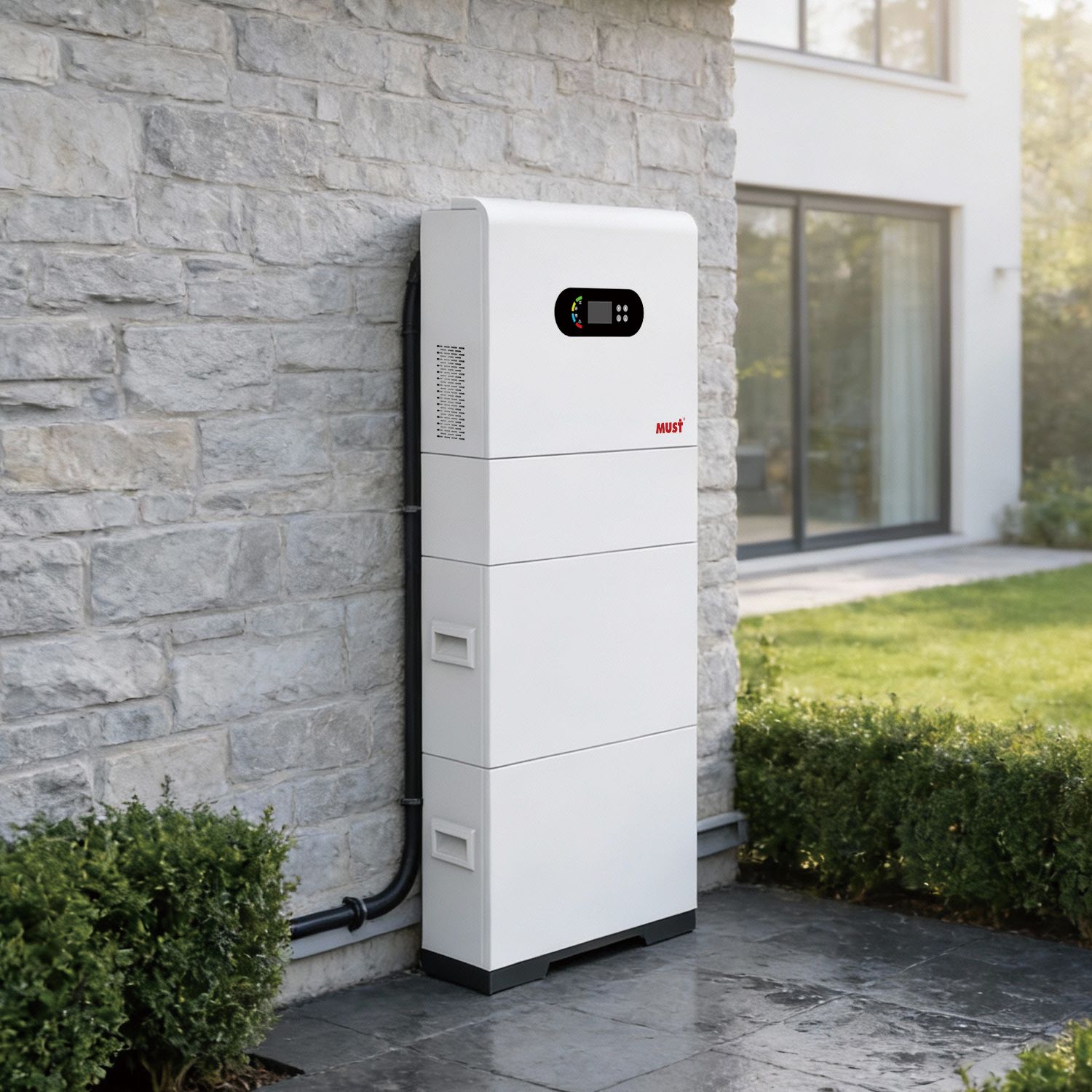

- Modular Scalable Storage: Stackable 1 to 3 battery modules providing 5.12kWh, 10.24kWh, or 15.36kWh capacity.
- TOU Peak-Valley Scheduling: 6 programmable time-of-use periods to optimize energy costs between grid, solar, and battery.
- Generator Auto-Start Compatibility: Integrated dry contacts for automatic generator startup during extended power outages.
| Parameter | HBP11-3648 LV | HBP11-4048 LV |
| Nominal AC Output Power | 3600W (Single Phase, 120VAC) | 4000W (Single Phase, 120VAC) |
| Max Recommended DC Power | 4000W | 5000W |
| MPPT Operating Voltage / Max VOC | 120V-500VDC / 500VDC (2 MPPT Trackers) | 120V-500VDC / 500VDC (2 MPPT Trackers) |
| Peak Backup Power (10s) | 5400W | 6000W |
| Max Inverter / MPPT Efficiency | Max: 97.3%; Euro: 96.5%; MPPT: 99.8% | Max: 97.3%; Euro: 96.5%; MPPT: 99.8% |
| Modular Battery Capacity | 51.2V 100Ah Modular: 5120Wh / 10240Wh / 15360Wh | 51.2V 100Ah Modular: 5120Wh / 10240Wh / 15360Wh |
| Max Charging Power / Current | 3600W / 75A | 4000W / 85A |
| Ingress Rating & Dimensions | IP66; Width 594 mm x Depth 220 mm x Height 1154/1559/1964 mm | |
| Net Weight | Inverter: 42 kg; Battery Module: 52 kg/unit | |
| Standard Warranty | Inverter: 5 Years; Lithium Battery: 5 Years; CE-EMC |
