HBP1800 RT Series (5.2KW)

Rack-Mount Lithium Battery Energy Storage System 10Kwh/20Kwh/30Kwh

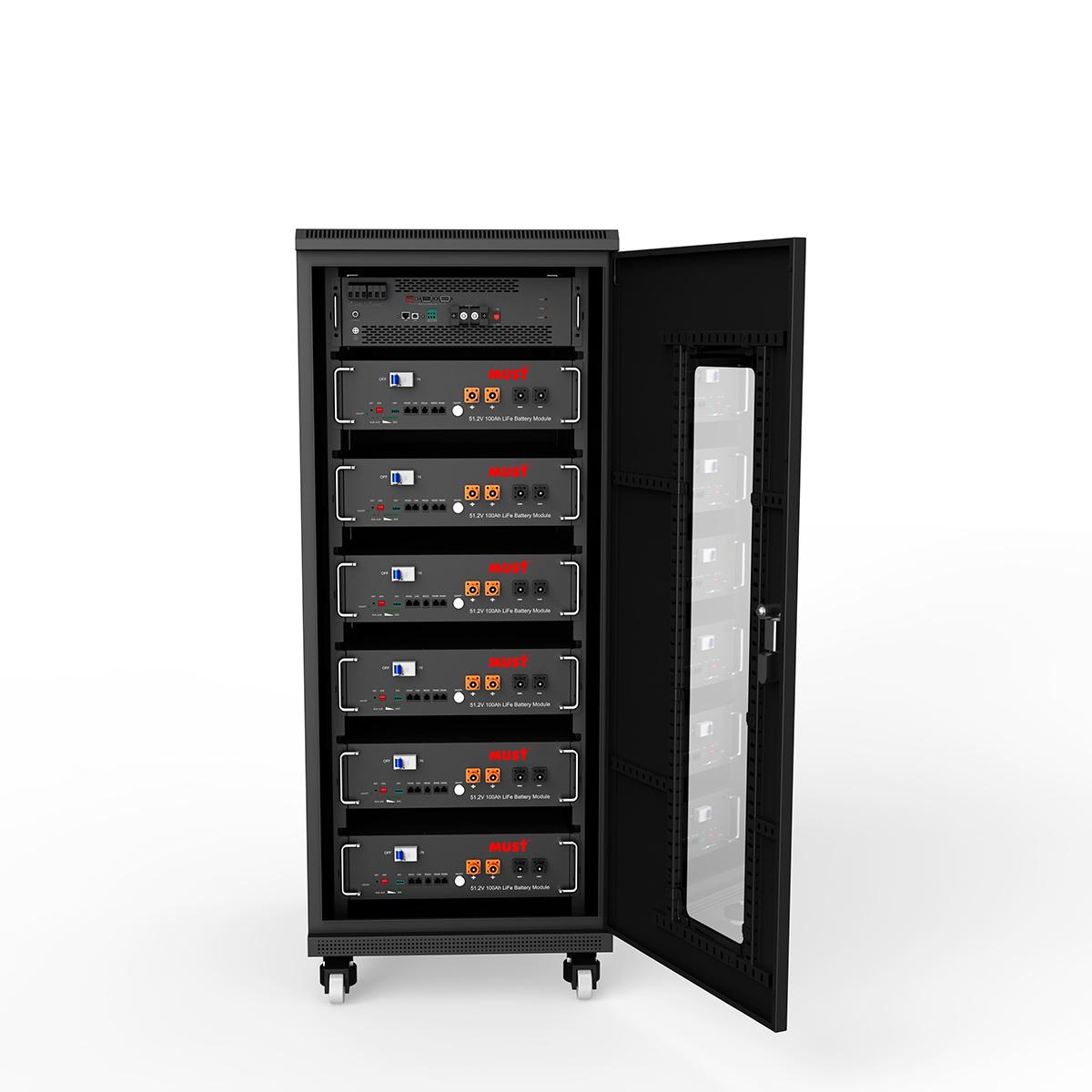

MUST 19” Rack-Mount 3U lithium battery energy storage system is an all-in-one solar and storage solution which integrates the solar inverter and LiFePO4 battery enclosure into a pre-wired modular system for easier and faster installation.



+ Modular, Scalable & Proven Performance

+ Parallelable for up to 6 battery packs

+ Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry

+ The ESS is pre-wired and factory tested to enable quick installation

+ BMS has protection functions including over-discharge, over-charge, over-current, and high/low temperature


Rated power 5200W
Output voltage waveform Pure sine wave
Output voltage regulation 230VAC ±5%
Output frequency 50Hz or 60Hz (±0.2Hz)
Peak efficiency 93%
Nominal DC input voltage 48Vdc
Standby Consumption < 25W
PV Input
Max solar power input 4000W
PV max charging current 80A
Combined charging current 80A
Max efficiency 98% max
PV array open circuit voltage 450VDC
PV Array MPPT Voltage Range 150~430VDC
AC Input
AC input voltage 230VAC ±5%
Acceptable input voltage range 170~280VAC
Nominal input frequency 50Hz / 60Hz (Auto detection)
Transfer time 10ms typical (UPS, VDE); 20ms typical (APL)
AC Charge
Charging current @ Nominal input voltage 60A
Charging Algorithm 4-step (Li)
Lithium Battery
Energy 10Kwh 20Kwh 30Kwh
Nominal voltage 51.2V
Battery capacity 51.2V 100Ah

3U Module×2

51.2V 100Ah

3U Module×4

51.2V 100Ah

3U Module×6

Standard charging and discharge current 100A
Maximum continuous charging & discharge current 100A
Battery Protection BMS Battery Management System Dynamic Protection
Operation ambient temperature 0~45℃
Storage ambient temperature -20~55℃
Battery Protection BMS Battery Management System Dynamic Protection
