Description
- Massive 1109kWh Scalability: High-density 12kWh modular blocks expand easily to handle large megawatt-scale utility loads.
- 100% Usable Deep Discharge: Advanced design allows safe 100% full depth of discharge (DoD) without sacrificing cell lifespan.
- Utility-Class 314Ah Cells: Built with massive utility-grade cells that deliver long-duration power stability and low internal resistance.
- Heavy Duty 220A Disconnect: Includes a built-in 220A internal circuit breaker to ensure immediate safety isolation across high-voltage runs.

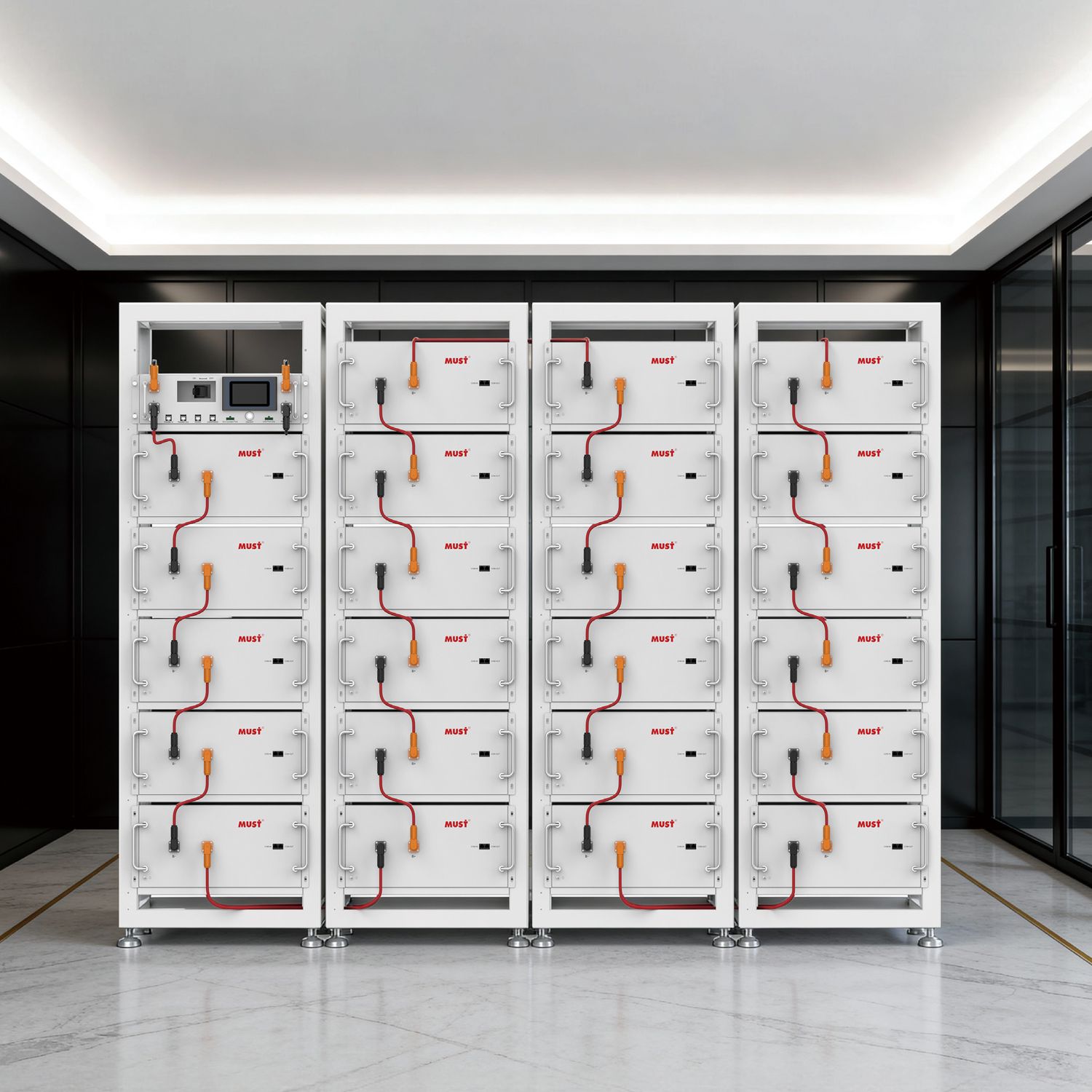

- Plug-and-Play Industrial Deployment: Integrated rack designs simplify site setup, drastically cutting down on labor costs during large project rollouts.
| Parameter | Specification |
| Base Module Used | HP2900 Max (51.2V / 314Ah cells / 12kWh nominal block capacity) |
| Model Configuration Matrix | HV29M-72.3 up to HV29M-277.3 (6 to 23 Modules per cluster) |
| Nominal Energy Array | Single cluster capacity options from 72.3kWh up to 277.3kWh |
| Nominal Voltage Profile | 230.4V DC up to 883.2V DC |
| Max Output Power Rating | 35kW up to 130kW continuous per cluster |
| Peak Pulse Discharge Current | 200A for up to 10 seconds |
| Cabinet Physical Enclosure | IP20 / Indoor heavy industrial rack mounting |
| Standard Warranty | 10 Years |
