Description
- Modular 5.12kWh Units: High flexibility allows customized energy configurations to precisely match system voltages and site loads.
- 95% Battery Roundtrip Efficiency: Advanced cell design minimizes internal heat loss, ensuring optimal power conversions.
- Integrated Safety Breaker: Centralized control box houses a rugged 125A safety circuit breaker for instant overcurrent isolation.
- 8000+ Deep Cycle Performance: Designed for demanding micro-grid duty cycles, supporting over 8000 cycles at 80% DoD.
- Seamless Integration: Fully compatible with mainstream high-voltage inverters via integrated CAN2.0 and RS485 communication protocols.
| Parameter | Specification |
| Base Module Used | HP2900 (51.2V / 100Ah battery module capacity) |
| System Models Portfolio | HV29-20.4 to HV29-87.1 (4 to 17 Modules in series per cluster) |
| Nominal Voltage Span | Scales from 204.8V DC up to 870.4V DC |
| Max Power Output Rating | 20kW continuous to 85kW continuous / Peak: 120A for 30s |
| Max Charge / Discharge Current | 100A continuous |

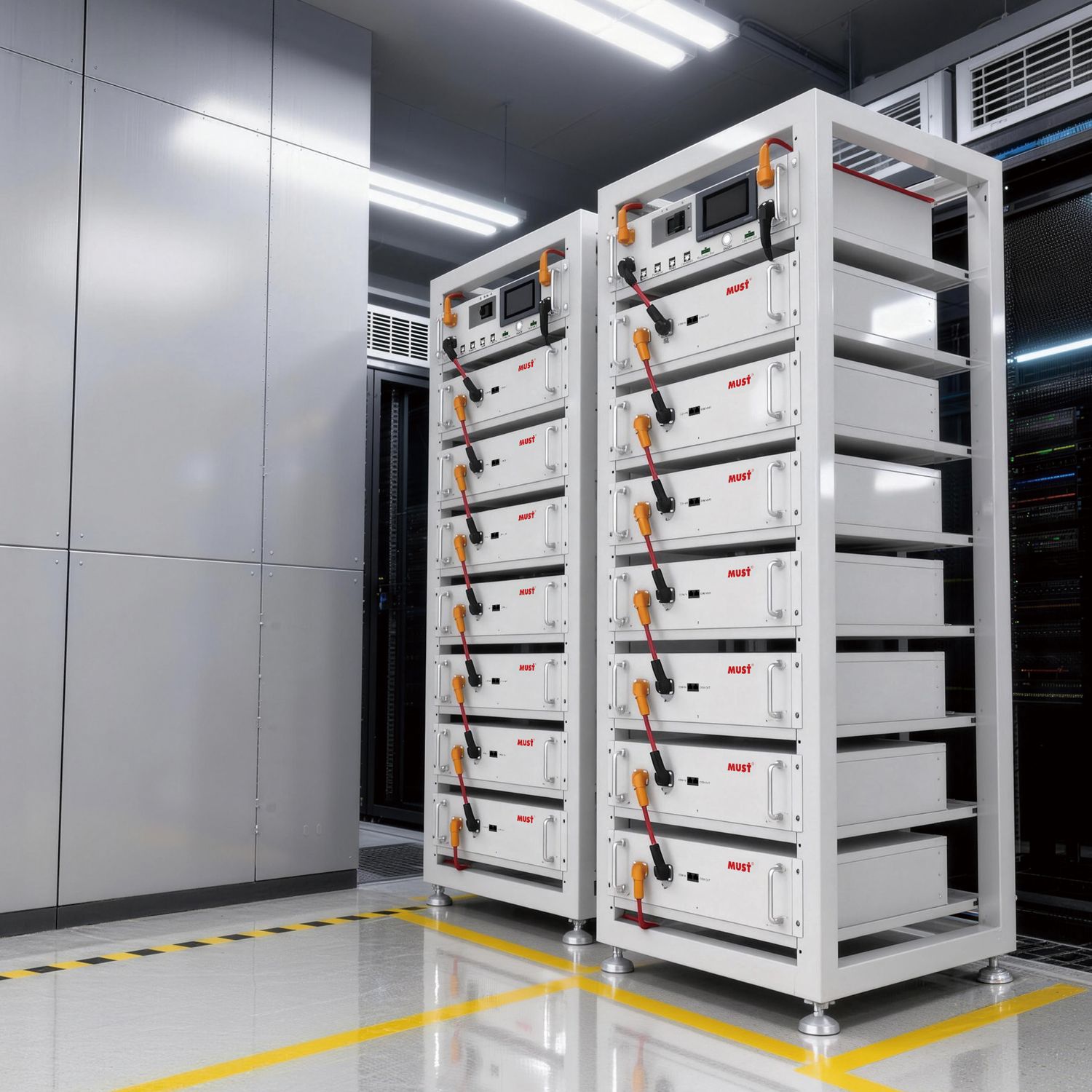

| Cabinet Physical Dimensions | Width: 550mm or 1150mm / Depth: 700mm or 800mm (Rack configuration dependent) |
| Enclosure Rating / Location | IP20 Protection level / Indoor cabinet rack installation |
| Standard Warranty | 10 Years |
