Description

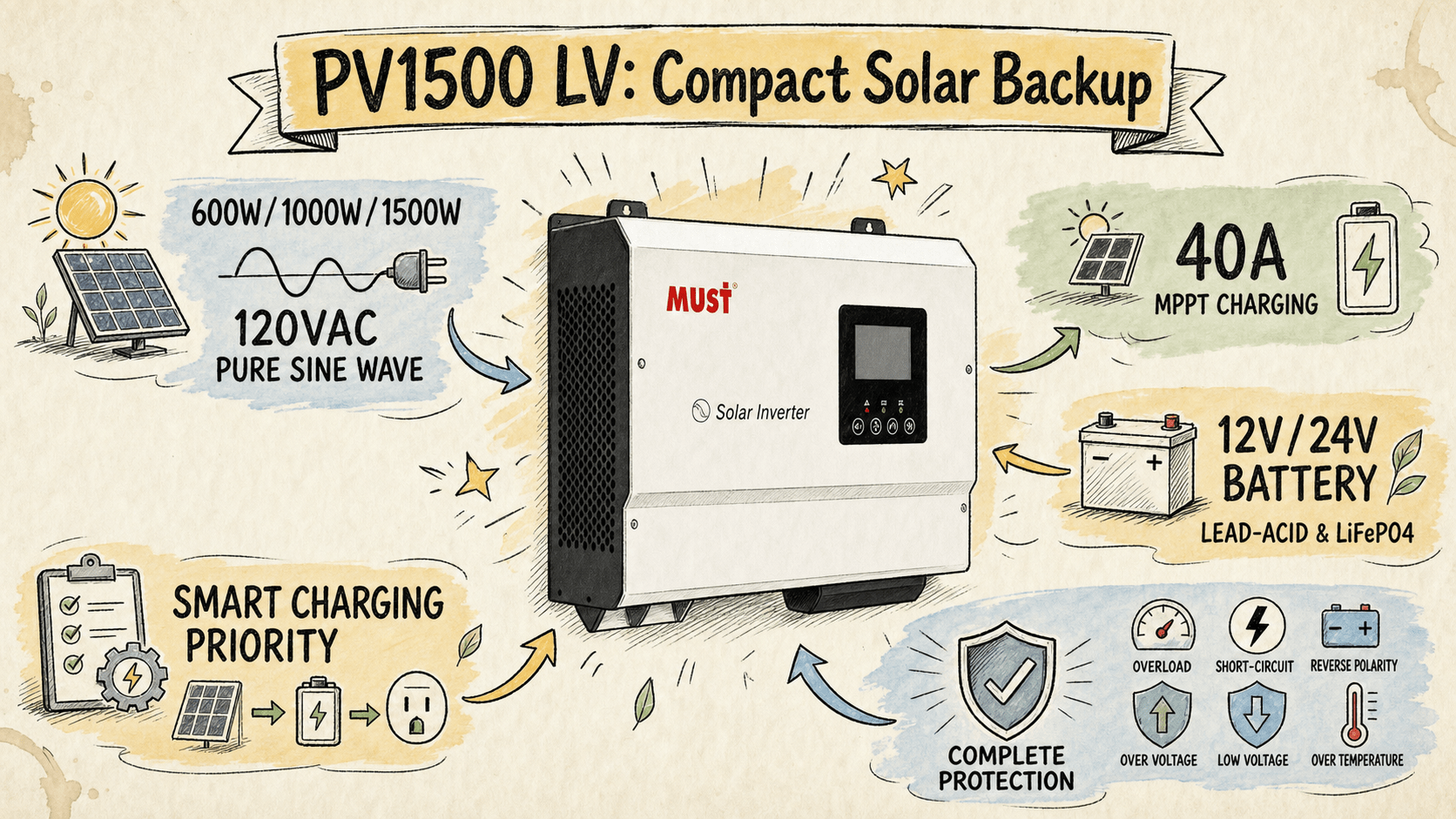

Key Features
- Compact 600-1500W Output: Pure sine wave power for small household, office and backup loads.
- 120VAC Low-Voltage Design: Purpose-built for regions using 110V/120V electrical systems.
- Built-in 40A MPPT: Efficient solar charging with up to 105VDC PV open-circuit voltage.
- Flexible Battery Support: 12V and 24V models work with lead-acid and LiFePO4 batteries.
- Smart Charging Priority: Adjustable utility/solar priority and maximum charging current.
- Complete Protection: Includes overload, short-circuit, reverse-polarity and deep-discharge protection.
Applications
- Small Home Backup: Keeps lighting, routers, televisions and small appliances operating.
- Apartment Solar Systems: Compact wall-mounted design fits limited utility spaces.
- Remote Offices and Shops: Stable pure sine wave power for electronics and communication equipment.
- Entry-Level Off-Grid Systems: Simple solar, battery and utility integration for modest loads.
Core Specifications Table
| Series | PV1500 LV |
|---|---|
| Rated Power | 600W / 1000W / 1500W |
| Output Waveform | Pure Sine Wave |
| Output Voltage | 120VAC |
| Battery Voltage | 12V / 24VDC |
| Maximum PV Charge Current | 40A |
| Maximum PV Open-Circuit Voltage | 105VDC |
| Maximum Efficiency | >95% |
| Battery Types | Lead-Acid / LiFePO4 |
| Display | LED + LCD |
