Description

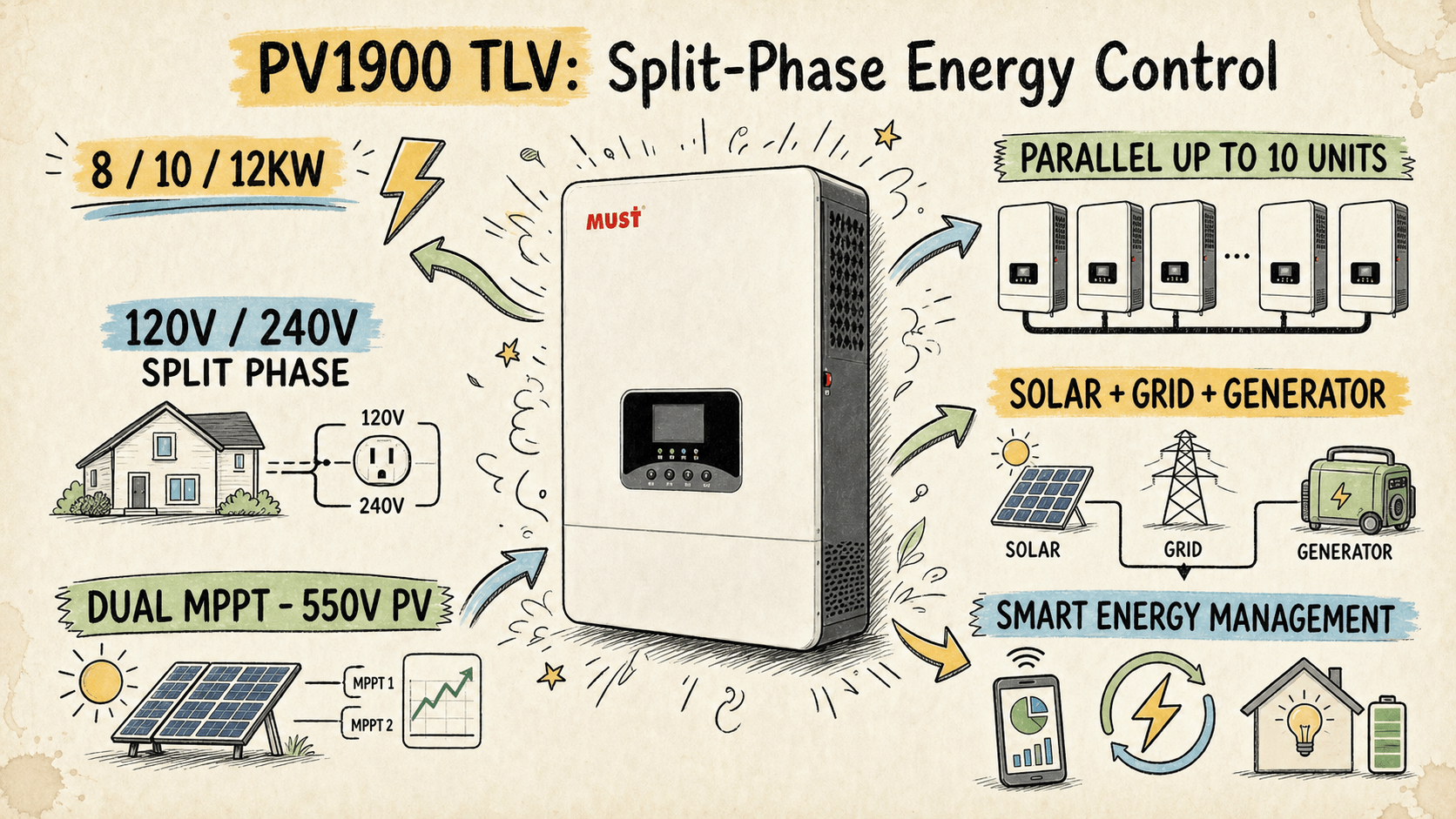

Key Features
- 8-12KW Split-Phase Power: Native 120V/240V output supports residential and light commercial loads.
- 100% Unbalanced Output: Flexible split-phase operation accommodates uneven load distribution.
- Dual MPPT Solar Input: Handles up to 550V PV input with 26A + 26A current capacity.
- Multi-Source Integration: Supports solar, utility grid and diesel generator input.
- Parallel Expansion: Up to 10 units can operate in parallel for larger systems.
- Smart Energy Control: Peak shifting, anti-backflow, AC coupling and optional WiFi monitoring.
Applications
- Whole-Home Energy Storage: Native split-phase output supports common 120V and 240V household loads.
- Solar Retrofit Projects: AC-coupling capability integrates with existing PV systems.
- Light Commercial Backup: Scalable power for offices, workshops and small businesses.
- Generator-Assisted Systems: Coordinates solar, battery, grid and generator energy sources.
Core Specifications Table
| Series | PV1900 TLV |
|---|---|
| Rated Power | 8KW / 10KW / 12KW |
| Grid Type | Split Phase |
| AC Output | 120V / 240V |
| Battery Voltage | 48V |
| Maximum PV Voltage | 550V |
| Maximum PV Input Current | 26A + 26A |
| MPPT Trackers | 2 |
| Parallel Operation | Up to 10 Units |
| Display | 4.3-inch Touchscreen |
