LP3000 PRO Series 5.12~20.48kWh

Luxury Stackable Low Voltage System | Slim Profile Enclosure & Advanced Module Balancing

The LP3000 PRO Series refines low-voltage energy storage with a slim-profile chassis (230mm depth) designed to sit flush against residential and commercial walls. This stackable system scales from 1 to 4 modules (up to 20.48kWh per stack) and supports multi-stack parallel expansion up to 76.8kWh. Outfitted with an advanced smart BMS for independent module management and rated at IP65 for outdoor installation, it delivers a clean, high-performance power reserve.

Category: Tag:
Description

Description

  • Slim Floor-Space Profile: At just 230mm deep, its compact footprint fits cleanly into garage pathways and walkways.
  • Independent Module Management: Advanced smart BMS monitors cell dynamics separately across modules, maximizing safety and performance.
  • High Power Output Platform: Readily sustains a continuous 10kW load, reaching a 12kW threshold for 30-second surge loads.
  • Weatherproof Architecture: IP65 certification guarantees reliable operation in both heavy rain and dusty conditions.
  • Flexible Expansion Matrix: Connects up to 4 modules per stack, supporting up to 15 total units in parallel (76.8kWh).
Parameter Specification
Nominal Operating Voltage 51.2V DC (Operating Range: 44.8V – 56.8V)
Base Module Used LP30 PRO-48100
System Model Setup Matrix LP30-5.1 PRO / 10.2 PRO / 15.3 PRO / 20.4 PRO
Usable Energy Capacity 4.91kWh / 9.83kWh / 14.75kWh / 19.66kWh
Max Charge / Discharge Current 200A continuous peak limit (across higher stack options)
Physical Dimensions (W*D*H) Base Width: 595mm x Depth: 230mm x Height: 450mm to 1590mm
Communication Hardware Array CAN / RS485 / BLE / Wi-Fi
Standard Warranty 5 Years / 10 Years (Optional)

Related Products

    New
    LP3000 Series 5.12~40.96kWh
    Read more
    Quick view

    LP3000 Series 5.12~40.96kWh

    High-Power Plug-and-Play Low Voltage System | Stackable Design & Massive 307kWh Scaling

    The LP3000 Series is a versatile, high-capacity low-voltage battery system featuring a tool-free, plug-and-play stackable design for quick installation. Each stack can accommodate up to 8 standalone modules, and the system can expand up to 60 units in parallel to build a massive 307.2kWh energy network. Built with cobalt-free LiFePO4 cells and rated at IP65, it safely delivers 10kW continuous output and an impressive 12kW peak surge for reliable power indoor or outdoor.

    Read more
    LP2100 Series 14.33~16.07kWh
    Read more
    Quick view

    LP2100 Series 14.33~16.07kWh

    High-Power LiFePO4 Cabinet Battery | 10kW Peak Performance & Smart Wi-Fi Monitoring

    The LP2100 Series is a high-capacity, heavy-duty cabinet battery designed to provide massive, stable continuous energy for residential and light commercial loads. It excels in high-demand environments, delivering a steady 8kW continuous output per module, with the ability to surge to a 10kW peak output for 10 seconds to handle motor startup loads. It features smart automatic reboot tracking following undervoltage events, ensuring high off-grid stability.

    Read more
    LP1500 Series 0.64~7.68kWh
    Read more
    Quick view

    LP1500 Series 0.64~7.68kWh

    Compact Lithium Iron Phosphate (LiFePO4) Battery | 12.8V / 25.6V Highly Scalable Power

    The LP1500 Series provides a lightweight, exceptionally durable energy storage option designed to serve as a high-density replacement for heavy lead-acid batteries. Rated at IP54 for dust and splash resistance, it functions seamlessly in demanding environments. Offering smart real-time monitoring via Bluetooth and multiple flexible series/parallel setup options, it is well-suited for diverse mobile and off-grid power solutions.

    Read more
    New
    LP1600 PRO Series 2.56~5.12kWh
    Read more
    Quick view

    LP1600 PRO Series 2.56~5.12kWh

    Portable Wall-Mount LiFePO4 Module | DC USB Charger & Mobile Energy Ready

    The LP1600 PRO Series brings portable energy storage and highly adaptable design together into a compact package. Outfitted with an ergonomic top handle and a lightweight metal layout, it can be mounted on a wall by a single person without strain. Featuring integrated multi-function USB output ports, it is an excellent power station solution for RV setups, marine vehicles, and off-grid mobile basecamps.

    Read more
    Hot
    LP1600 Series 2.56~30.72kWh
    Read more
    Quick view

    LP1600 Series 2.56~30.72kWh

    Universal LiFePO4 Energy Storage Module | Multi-Scenario Installation & High Expansion

    The LP1600 Series is a high-capacity, heavy-duty lithium iron phosphate battery module crafted to support substantial residential and industrial power systems. It stands out with ultimate setup versatility, allowing users to mount it to a wall, stack it vertically, fit it inside standard racks, or utilize a wheeled floor base. With the ability to network up to 15 modules in parallel without extensive layout complexity, it smoothly handles extensive load scaling.

    Read more
    LP2400 Series 48V-72V / 20~100Ah
    Read more
    Quick view

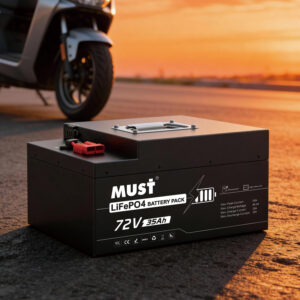

    LP2400 Series 48V-72V / 20~100Ah
