Description

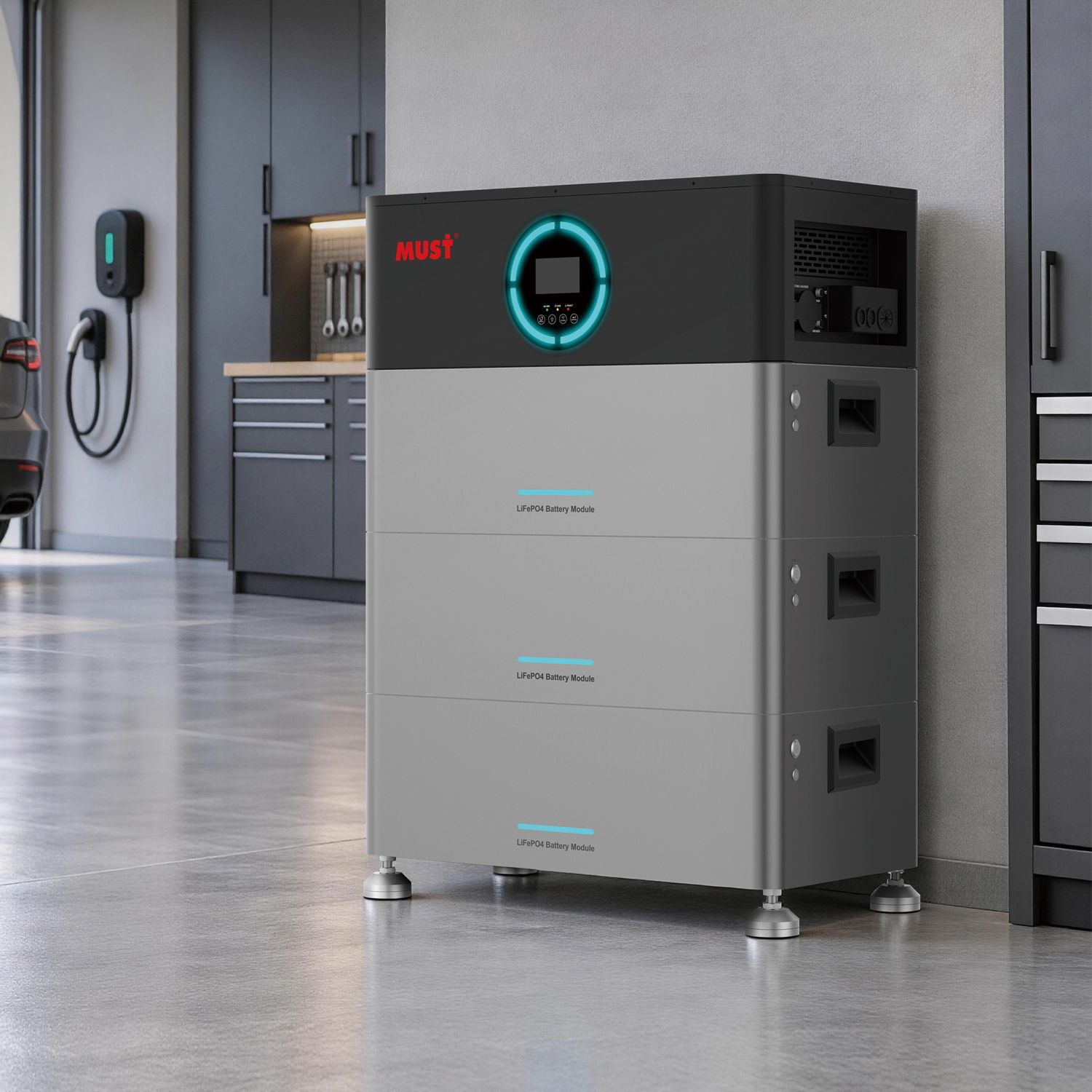

Designed with a sleek vertical stacking architecture, the MP3000 eliminates messy external cabling and fits neatly against walls or in utility corners. It features an advanced dual AC output configuration for intelligent main and emergency load management, an integrated 9,000W MPPT solar charger accepting high-voltage PV arrays up to 500Vdc, and dual-mode WiFi/Bluetooth connectivity for 24/7 cloud and local system monitoring.
Key Features
-
Modular & Scalable Stackable Storage (5.12–35.84 kWh):
-
Flexible modular capacity scales from 5.12 kWh to 35.84 kWh, supporting up to 7 lithium battery modules in parallel.
-
Compact, space-saving vertical footprint enables fast floor-standing assembly against walls or in garage corners.
-
-
Flexible Dual AC Output & Smart Load Management:
-
Dedicated Dual AC output allows intelligent separation between standard household appliances and critical backup loads.
-
Automatic seamless switching between solar, battery, and utility grid power ensures uninterrupted power supply.
-
Supports direct power extraction from connected loads to optimize self-consumption efficiency.
-
-
High-Yield Solar Harvesting (Up to 9,000W PV Input):
-
High-voltage PV input accommodates open-circuit array voltages up to 500Vdc with an ultra-wide MPPT range of 60–450Vdc.
-
Delivers a maximum solar charging current of 120A, maximizing photovoltaic generation even under fluctuating irradiance.
-
-
Robust Power Delivery & Inverter Efficiency:
-
Delivers up to 6,500W rated continuous output power when PV input exceeds 1,000W (6,000W rated power in pure battery mode).
-
Achieves 92% peak efficiency in battery mode with precision 230Vac ± 5% pure sine wave regulation.
-
-
Scalable Single- & Three-Phase Parallel Operation:
-
Supports parallel operation of up to 3 units for higher power capacity.
-
Configurable for high-power single-phase expansion or multi-unit three-phase system integration.
-
-
Smart Connectivity & Intuitive Control:
-
Built-in dual-mode WiFi and Bluetooth enable instant local setup and remote cloud management via mobile app.
-
High-definition color display paired with a customizable circular LED ring clearly indicates battery state-of-charge and system status at a glance.
-
-
Automotive-Grade Safety & Certified Durability:
-
Intelligent Battery Management System (BMS) provides comprehensive real-time monitoring of voltage, current, and cell temperature.
-
Integrated multi-tier protections against overload, over-temperature, short circuit, and high/low voltage faults.
-
Ultra-quiet operation (acoustic noise ≤ 52 dB), certified to CE standards, backed by a 2-year inverter warranty and a 5-year lithium battery warranty.
-
Technical Specifications
| Category | Parameter | Specification |
| Model & System | Model Identifier | MP30-6548 |
| System Architecture | All-in-One Energy Storage System (ESS) | |
| Certifications | CE | |
| Standard Warranty | Inverter: 2 Years | Lithium Battery: 5 Years | |
| Inverter AC Output | Rated Output Power (PV Input > 1,000 W) | 6,500 W |
| Rated Output Power (Battery Mode) | 6,000 W | |
| Output Voltage Regulation | 230 Vac ± 5% | |
| Output Frequency | 50 Hz / 60 Hz | |
| Peak Inverter Efficiency (Battery Mode) | 92% | |
| AC Output Configuration | Dual AC Output (Main Loads & Backup Loads) | |
| Overload Protection Timing |
• 105% – 110% Load: 33 s
• 110% – 150% Load: 11 s
• > 150% Load: 0.65 s
|
|
| Parallel Capability | Up to 3 units (Single-phase or Three-phase setup) | |
| Solar PV Input | Max. PV Array Open Circuit Voltage (Voc) | 500 Vdc |
| PV Array MPPT Operating Voltage Range | 60 – 450 Vdc | |
| Max. MPPT Input Power | 9,000 W | |
| Max. PV Input Current | 28 A | |
| Max. Solar Charge Current | 120 A | |
| AC Input (Grid / Gen) | Nominal AC Input Voltage | 230 Vac |
| Selectable Input Voltage Range | 90 – 280 Vac | |
| Input Frequency Range | 50 / 60 Hz (Auto Detection) | |
| Max. AC Charge Current | 100 A | |
| Lithium Battery System | Nominal Battery System Voltage | 51.2 Vdc |
| Single Battery Module Energy / Capacity | 5.12 kWh (5,120 Wh) / 100 Ah | |
| Protection Board (BMS) Current Limit | 100 A | |
| Expandable Battery Capacity Range | 5.12 kWh – 35.84 kWh (1 to 7 modules in parallel) | |
| Modular Configurations |
• 1 Battery Module: 5,120 Wh (100 Ah × 1)
• 2 Battery Modules: 10,240 Wh (100 Ah × 2)
• 3 Battery Modules: 15,360 Wh (100 Ah × 3)
• 4 Battery Modules: 20,480 Wh (100 Ah × 4)
• 5 Battery Modules: 25,600 Wh (100 Ah × 5)
|
|
| Protection Features | Integrated Protections | Overload, Over-temperature, Short-circuit, High & Low voltage protection |
| General & Environmental | Communication Ports | WiFi / Bluetooth / RS-485 |
| Display & Interface | Smart color display with customizable LED ring indicator | |
| Ingress Protection Rating | IP20 | |
| Operating Acoustic Noise | ≤ 52 dB | |
| Operating Temperature Range | -10°C to 50°C | |
| Storage Temperature Range | -15°C to 60°C | |
| Mechanical Dimensions | Inverter Module Dimensions (W × H × D) | 620 × 213.5 × 390 mm |
| Inverter Package Dimensions (W × H × D) | 725 × 300 × 472 mm | |
| Inverter Net Weight | 17.8 kg | |
| Battery Module Dimensions (W × H × D) | 620 × 200 × 390 mm | |
| Battery Module Package Dimensions (W × H × D) | 730 × 300 × 477 mm | |
| Battery Module Net Weight | 47.5 kg / module | |
| Stacked System Overall Heights |
• 1 Inverter + 1 Battery: 45 cm
• 1 Inverter + 2 Batteries: 65 cm
• 1 Inverter + 3 Batteries: 85 cm
• 1 Inverter + 4 Batteries: 105 cm
• 1 Inverter + 5 Batteries: 125 cm
|
